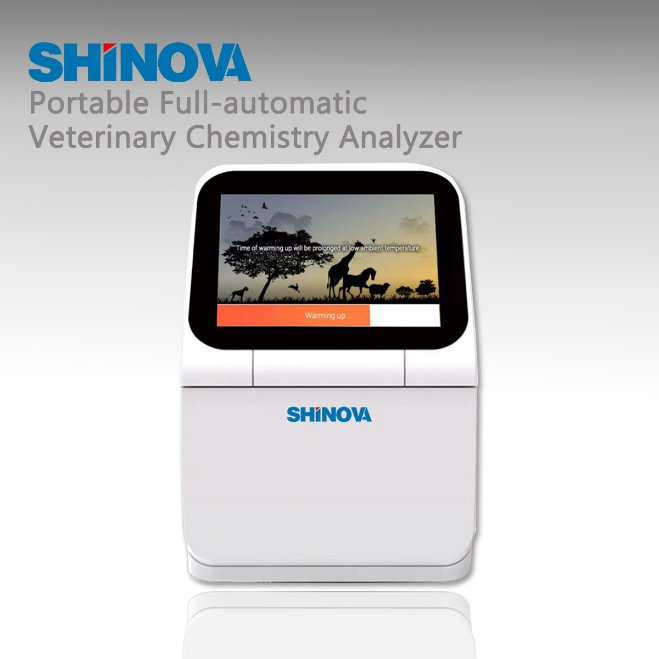

Portable Full-Automatic Veterinary Chemistry Analyzer (Pointcare V3)

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: ISO13485

Product Description

i

Basic Information

Model NO.
Pointcare V3
Type
Veterinary Chemistry Analyzer
Applicable Animals
Cat, Dog, Horse, Cow
Transport Package
Carton
Specification
35*34*40 0.048
Origin
China
HS Code
9027809900
Capacity
10,000 PCS/Year

Key Features

1 Compact design with high accuracy, reliability, and reproducibility.
2 Provides real-time blood chemistry (immunoassay) diagnostics for animals.

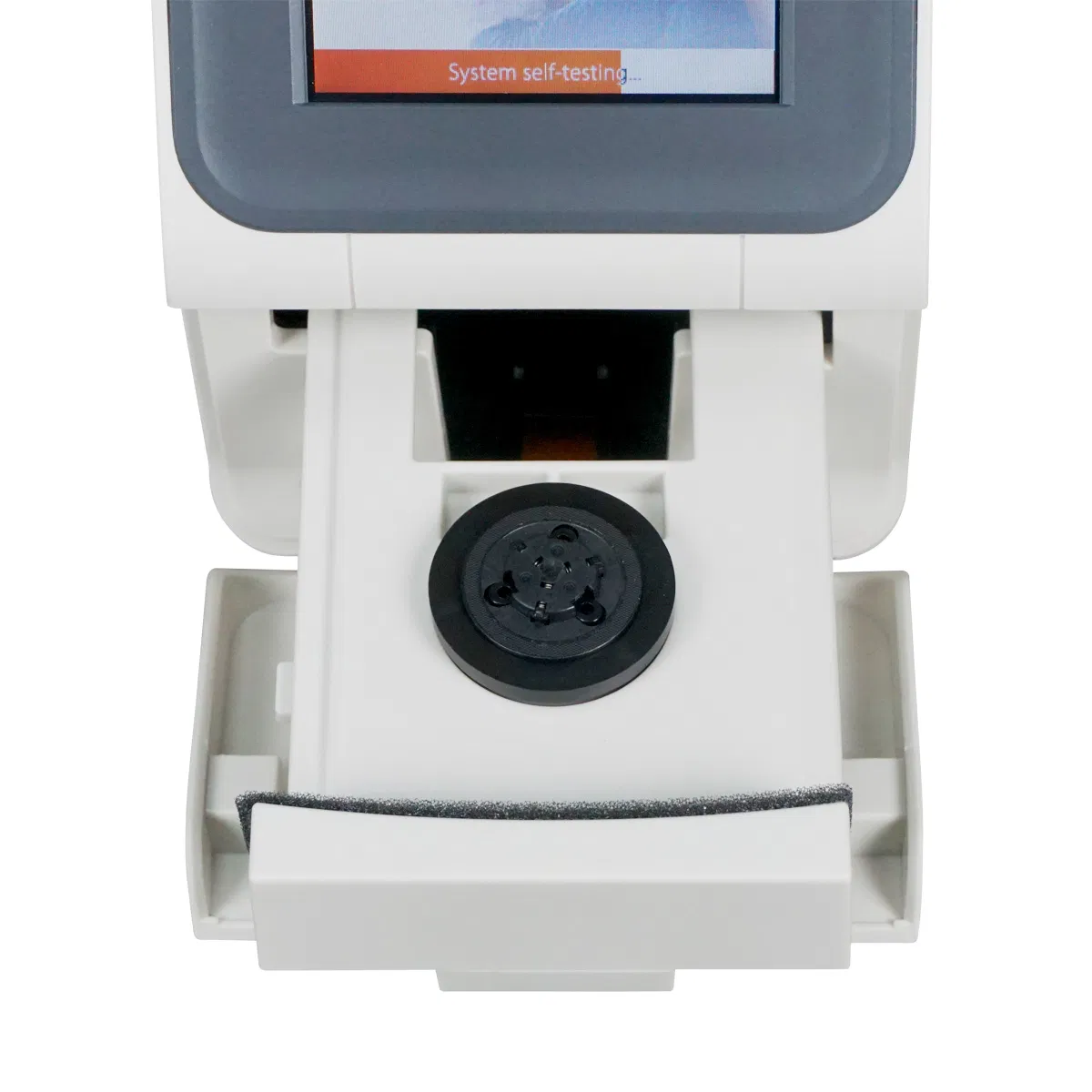

3 Uses self-contained reagent discs designed for various diagnostic conditions.
4 Requires only 100μl of whole blood to deliver up to 16 accurate results.
5 Simple 3-step operation from sample to results in approximately 13 minutes.

Technical Specifications

Display 4.3-inch color LCD Touch screen
Parameters 30 tests in 12 panels
Sample Type Whole blood, Plasma, Serum
Sample Size 100μl
Time to Results Circa 10 minutes
Interfaces 3G, WIFI, USB 2.0, Bluetooth, Support LIS
Power Supply AC 100V-240V, 50-60Hz
Environment Temp: 15-30ºC, Humidity: 40-80%
📋

Reagent Panels & Profiles

Profile Details & Analytes
Health checking Profile (16) TP, ALB, GLO*, ALB/GLO*, ALT, ALP, TBIL, CRE, BUN, BUN/CRE*, GLU, CHOL, CK, AMY, Ca2+, P
Preanesthetic Profile (7) TP, ALT, ALP, CRE, BUN, BUN/CRE*, GLU
Liver & Kidney Profile (12) TP, ALB, GLO*, ALB/GLO*, ALT, AST, GGT, TBIL, CRE, BUN, BUN/CRE*, GLU
Kidney Profile (10) TP, UA, CRE, ALB, BUN, BUN/CRE*, K+, Ca2+, P, TCO2
Critical Care Profile (10) ALT, CRE, BUN, BUN/CRE*, GLU, K+, Na+, Na+/K+*, Cl-, TCO2
Equine Panel (18) TP, ALB, GLO*, ALB/GLO*, TBIL, AST, GGT, ALP, CK, GLU, CRE, BUN, BUN/CRE*, K+, Na+, Na+/K+*, Ca, tCO2

* Calculated parameter | ** Specific profiles available for Avian, Reptile, and Large Animals.

📷

Product Gallery

?

Frequently Asked Questions

What types of animals can be tested with the Pointcare V3?
The analyzer is designed for a wide range of animals including cats, dogs, horses, cows, birds, reptiles (snakes, lizards, turtles), and other large animals.
How much blood sample is required for a single test?
Only a small sample size of 100μl is required, which can be whole blood, plasma, or serum.
How long does it take to receive diagnostic results?
The process is very efficient, delivering complete results in approximately 10 to 13 minutes through 3 simple steps.
Does the device support integration with hospital systems?
Yes, the Pointcare V3 supports LIS (Laboratory Information System) and features multiple interfaces including WIFI, Bluetooth, and USB 2.0.
How is the reagent information managed?
Reagent discs use QR codes to provide calibration data, test combination details, and other essential information automatically to the analyzer.
What are the printing options for test reports?

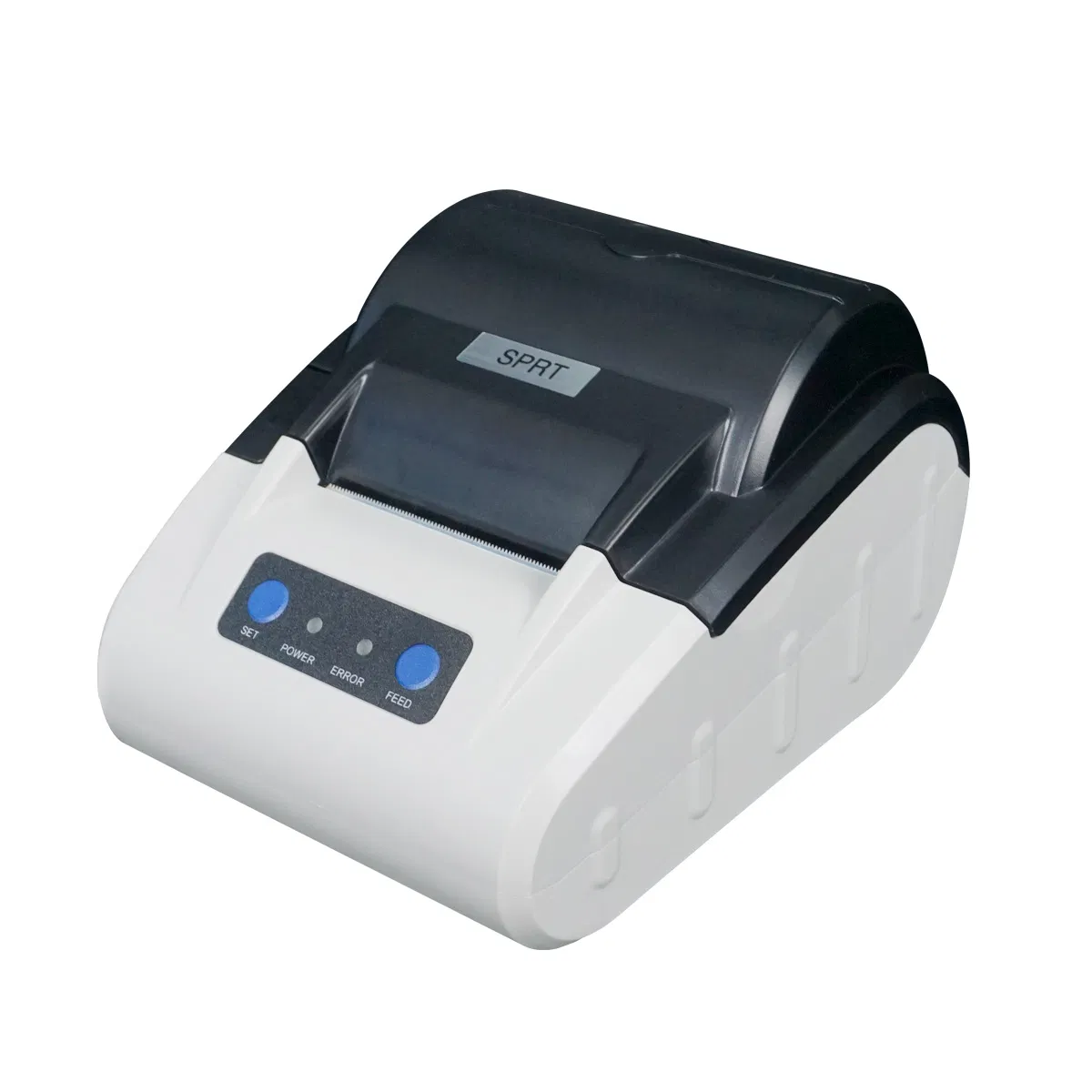

Reports can be printed via a connected computer data platform or through an optional external thermal printer.
