Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
1 / 5
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief
Eswt Shockwave Therapy System for Physiotherapy Pain Relief

Eswt Shockwave Therapy System for Physiotherapy Pain Relief

Customization: Available
Type: Physiotherapy
Function: Tissue Repair
Send Inquiry

Product Description

Basic Specifications
Model NO.
SmartWave BS-SWT2X
Theory
Shockwave Therapy
Certification
CE, ISO13485
LCD Display
With LCD Display
Product Name
Eswt Shock Wave Therapy Machine
Item
Radial Shockwave Therapy System
Targets
Patellar Tendinitis and Plantar Fasciitis
Gross Weight
2.7kgs
Power Input
110V / 220V
Production Capacity
1000 PCS/Year
Shockwave Therapy System for Physiotherapy
Eswt Shockwave Therapy System

SmartWave BS-SWT2X RSWT adopts Radial shockwave therapy (RSWT), which is a method for the treatment of superficial orthopedic disorders developed over the past 20 years. The mechanical/acoustic waves of force can be focused at a defined point with a parabolic reflector to ensure that stress limits are not exceeded in the remaining tissue. The penetrating depth can reach 0 - 60mm.

With different tips, the BS-SWT2X shockwave therapy system covers typical applications including Epicondylitis, Tendonitis, Biceps Tendonitis, Achilles Tendonitis, Lower Back Pain, Trigger Points, Plantar Fascitis, and aesthetic applications such as Cellulite therapy and Skin tightening.

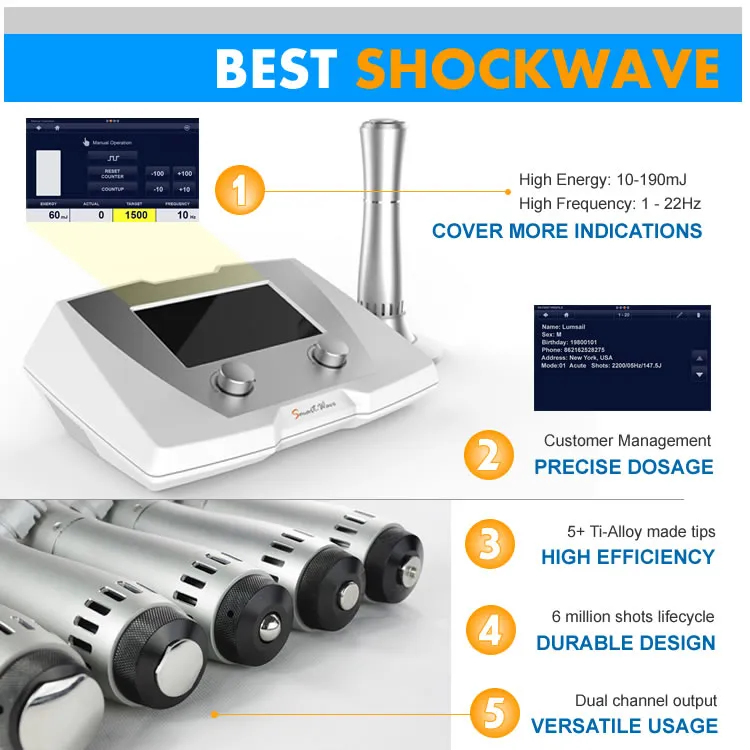

Therapy Application

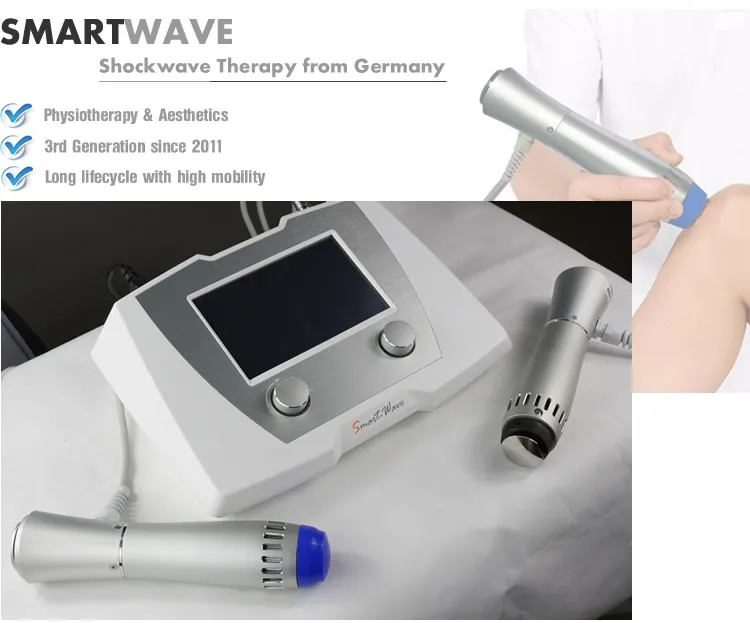

Device Features
Key Features
  • Ingrowth of Neovascularization, Reversal of Chronic Inflammation, Stimulation of Collagen
  • Projectile creates shockwave pulses 5 times heavier than general air-pressure
  • Much more comfortable for patient than general shockwave systems
  • Longer pulse rise time maintains the energy rather than high peak pressure amplitudes
  • Low peak and long rise time minimizes the painful sensation
  • Energy levels from 10 (0.25Bar) to 190 mJ (5Bar), and frequency up to 22Hz
  • Embedded electrical stimulation for skin tightening
Typical Indications
  • Radial and ulnar epicondylitis
  • Tendinitis of the shoulder / shoulder problems
  • Calcific tendinitis of the shoulder
  • Status post muscular injury
  • Patellar tendinitis / Patellar tendinopathy
  • Achillodynia / Plantar fasciitis
  • Heel spurs
  • Myofascial trigger point therapy (neck, back)
  • Trochanteric bursitis
  • Periostitis / shin splints
  • Dupuytren's disease
  • Thumb basal joint arthritis / rhizarthritis
Treatment Areas

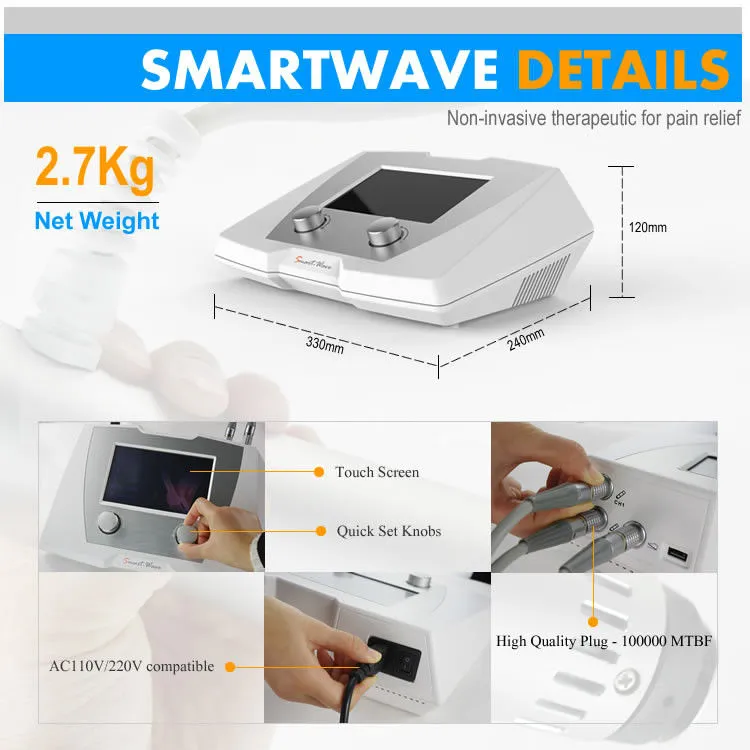

Device Components

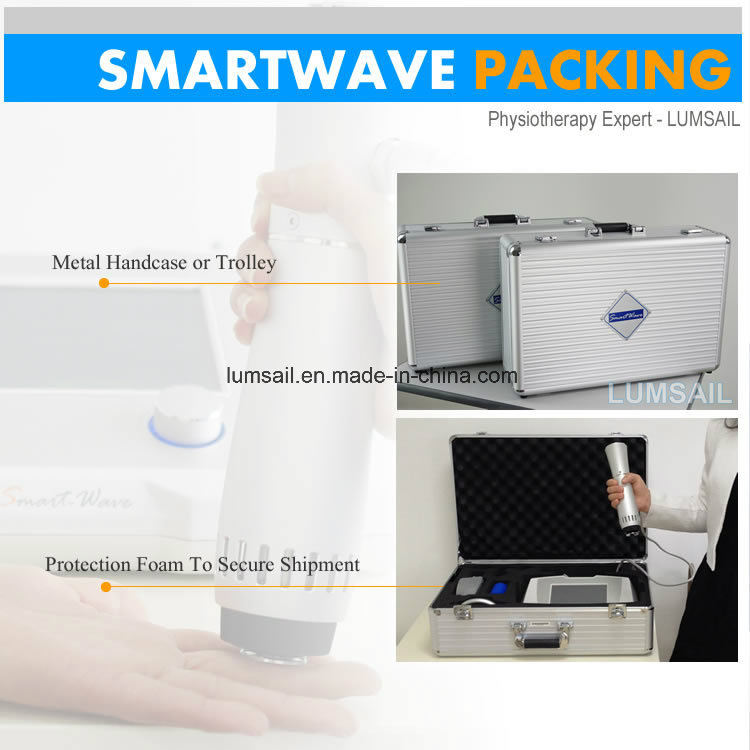

Package Included
  • Handpiece x 1 pc or 2 pc (dual channel only)
  • Handpiece base x 1 pc
  • Handpiece head (alloy made) x 5 pc
  • Main unit x 1 pc
  • Power cord & Foot switch x 1 pc
  • Operation manual x 1 copy
Technical Parameters
Shock sourceRadial Shockwave
Energy levels10 to 190 mJ (equivalent 0.25-5 bar) stepping at 10mJ
Pulse frequencies1 to 16 Hz
Burst modes3 modes or continuous
Adapter diameter39mm (15mm, 6mm, 25mm optional)
Control panel8 Inch full size colorful touch screen
Shockwave counterPositive and Negative (with value preset)
Built-in programsIndication menu with preset treatment protocols
Dimension330 x 280 x 120mm
Frequently Asked Questions
What is Radial Shockwave Therapy (RSWT)?
Radial shockwave therapy is a non-invasive treatment method for superficial orthopedic disorders. It uses mechanical acoustic waves focused at specific points to stimulate healing in tissues without exceeding stress limits.
What conditions can be treated with the SmartWave BS-SWT2X?
It is highly effective for conditions like Plantar Fasciitis, Achilles Tendonitis, Shoulder Tendonitis, Tennis Elbow (Epicondylitis), trigger points, and even aesthetic treatments like cellulite reduction.
Is the treatment painful for the patient?
The BS-SWT2X is designed for comfort. It uses a longer pulse rise time and lower peak pressure compared to general air-pressure systems, which significantly minimizes the painful sensation during therapy.
How deep can the shockwaves penetrate?
The system is capable of reaching a penetrating depth of 0 to 60mm, allowing it to target both superficial and deeper muscular issues.
Does the device come with pre-set programs?
Yes, the device features an 8-inch colorful touch screen with an indication menu that includes built-in preset treatment protocols for various conditions.
What is the energy range of this machine?
The energy levels are adjustable from 10 mJ to 190 mJ (equivalent to 0.25 to 5 bar), allowing for precise treatment intensity based on patient needs.
