The basic performance of the oxygen refill station is to pressurize and fill more than 90% oxygen that meets the concentration of medical standards into cylinders of different volumes. Visual and audible alarms indicate whether the device is out of specification or has detected a fault.

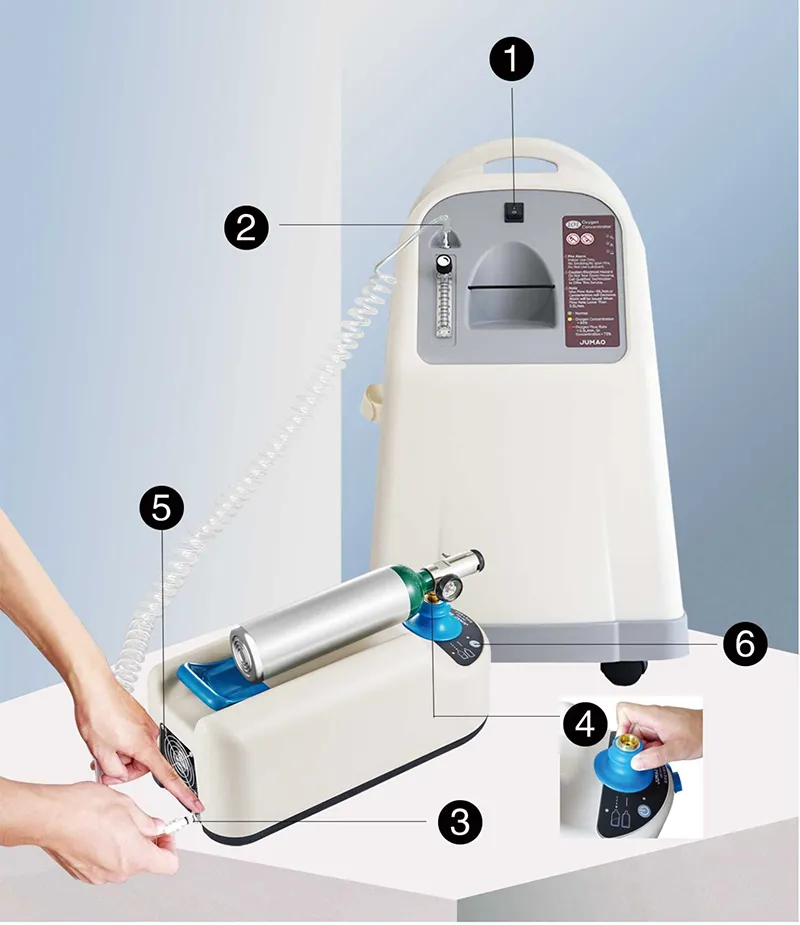

Driven by an electric motor, through the mechanical linkage of multi-stage cylinders, the medical oxygen produced in the oxygen concentrator is compressed to a higher pressure state and then filled into the oxygen cylinder for storage.
| Product Name | Medical Oxygen Filling Machine |
| Model | JMF 200A |
| Filling Speed | ≥2L/min |
| Max.Pressure(Mpa) | 13.8 |
| Matching Oxygen Purity Requirement | ≥90% |
| Matching Output Pressure Requirement(Kpa) | 30-80 |
| N.W./G.W.(Kg) | 12.5/14Kg |
| Machine/Carton Size(CM) | 49*23*20 / 58.6*31*35 |
