Using the characteristic of ultrasound which is good permeability in body's tissues, direction and superposed energy and using the heat effects, mechanical effects and physical and chemical effects, etc., release adhesions, improve local lesion microenvironment, improve microcirculation promote metabolism, improve tissue nutrition, widely used for soft tissue injuries and chronic pain rehabilitative care.
Ultrasound, more than 2000Hz, is the mechanical wave that cannot make human hearing reflection. The ultrasound over 0.8MHz-3.0MHz has treatment effect specifically for therapeutic applications.
1. Mechanical Function: The ultrasound provides "micro massage" to tissues and cells. It softens tissue, enhances penetration, improves metabolism, promotes blood circulation, and relieves pain.
2. Heating Function: Deep heating penetrates below the muscle (ultrasound diathermy), making it ideal for chronic soft tissue pain, arthritis, and rheumatism.
3. Physical Therapy Function:
• pH Changes: Shifts tissue value to alkaline, aiding inflammation repair.
• Enzyme Activity: Affects many enzymes by depolymerizing complex proteins.
• Redox Process: High-intensity ultrasound forms active free radicals to accelerate tissue growth.

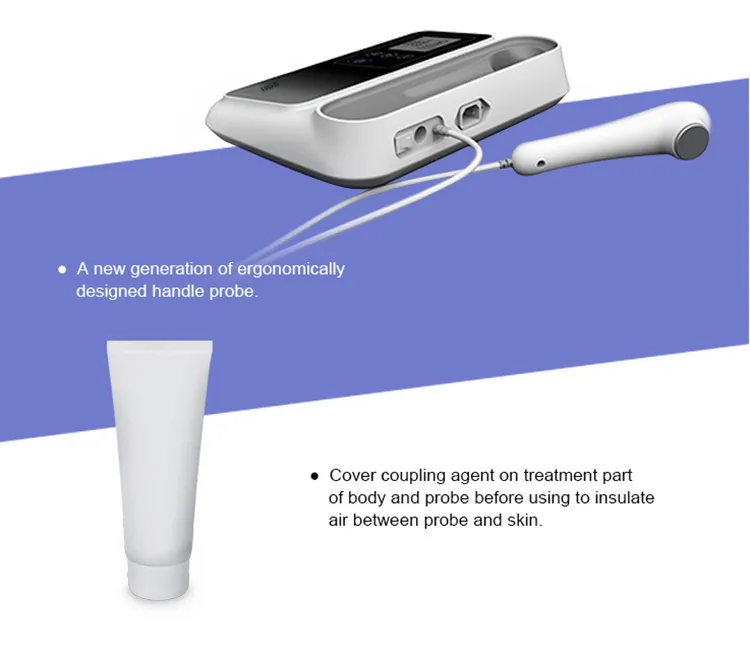

An ultrasound emitting probe is passed over the skin across the pain point. Ultrasound gel is applied to reduce friction and allow better transmission of waves. Despite the deep-tissue heat, patients typically feel little or no heat at all during the process.

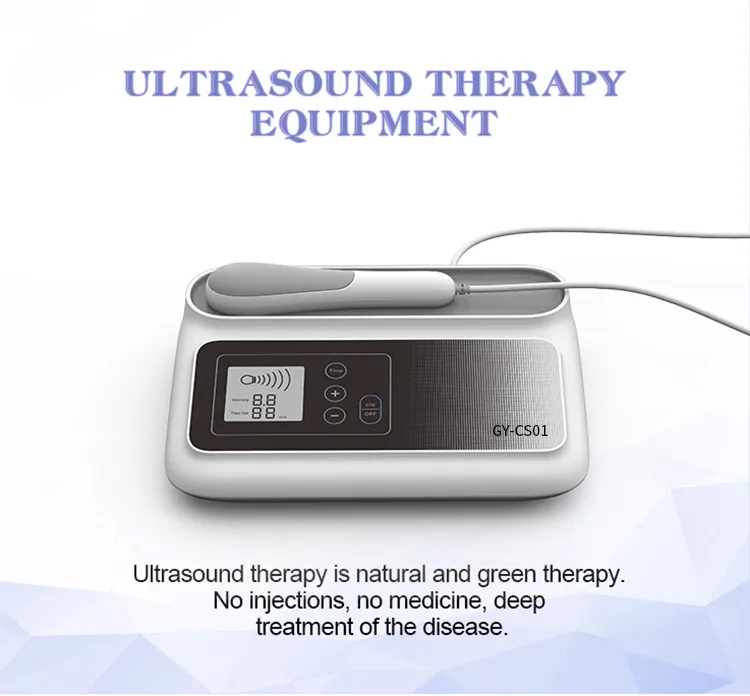

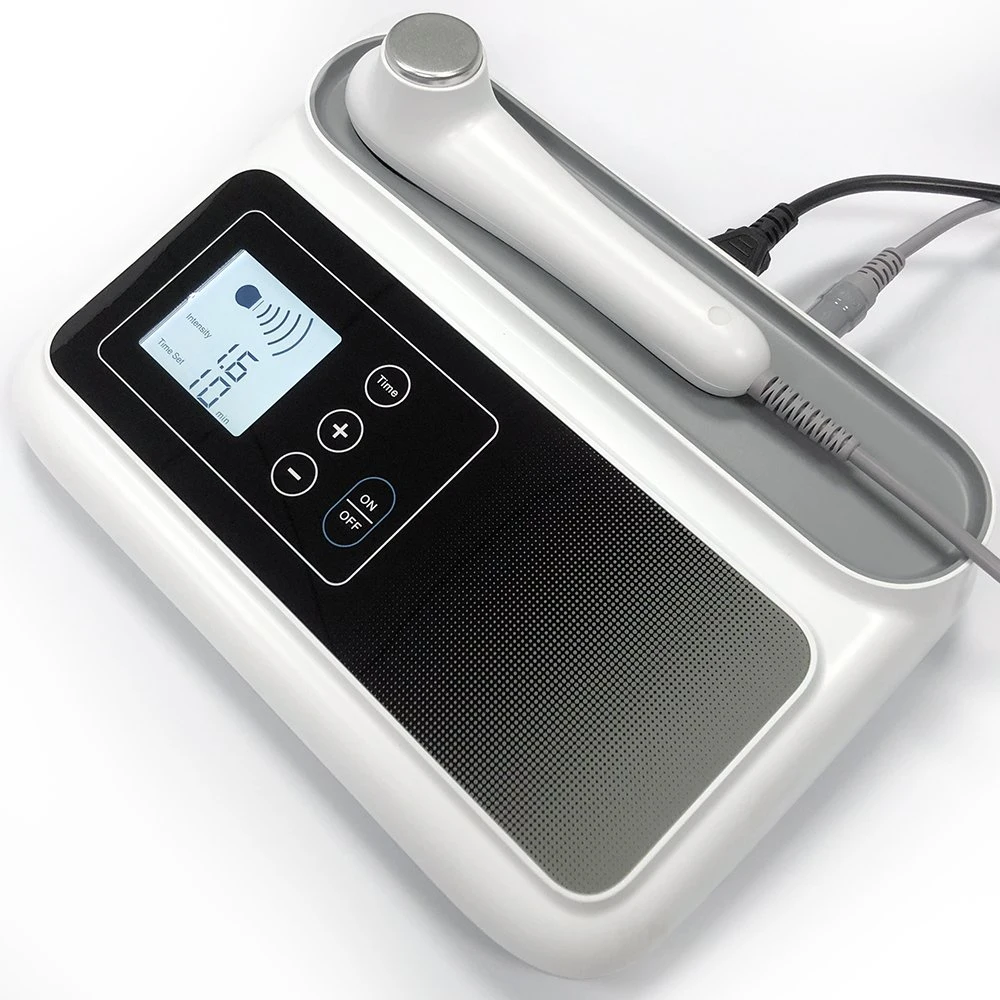

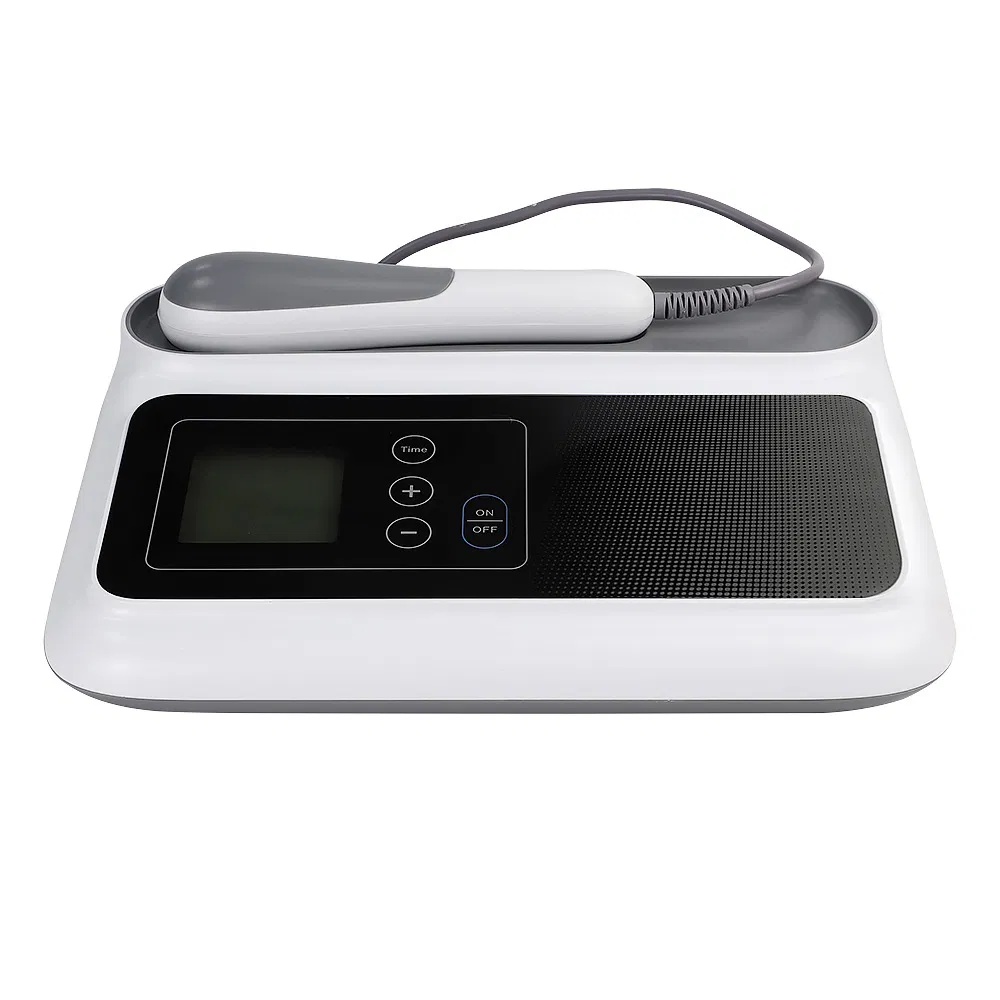

| Item Name | Ultrasound Energy Meter | Item NR | CS01 |
| Relative Humidity | 20%-80% | Ambient | 5-40ºC |

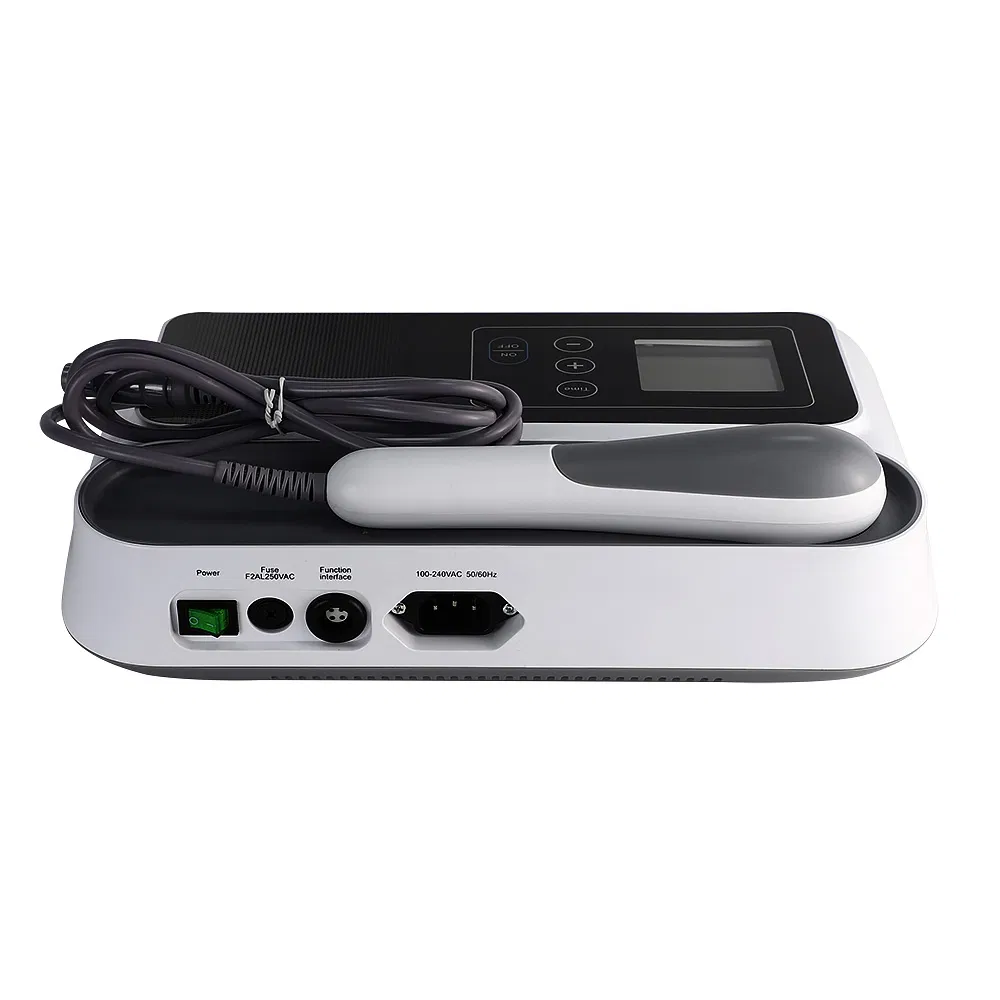

| Power Input | ≤25W | Atmospheric Pressure | 80-106kpa |
| Frequency | 1.05MHZ±10% | Beam Style | Straight |
| Probe Temperature | ≤50ºC | Output Power | ≤3w/cm² |
| Working Status | Gear | Effective Ultrasound (W/CM²) | Pulse Duration (ms) |
|---|---|---|---|
| M1 | 1 | 0.8 | 2 |
| M2 | 2 | 1.2 | 4 |
| M3 | 3 | 1.6 | 6 |
| M4 | 4 | 2.0 | 8 |
| M5 | 5 | 2.5 | Continuous |
