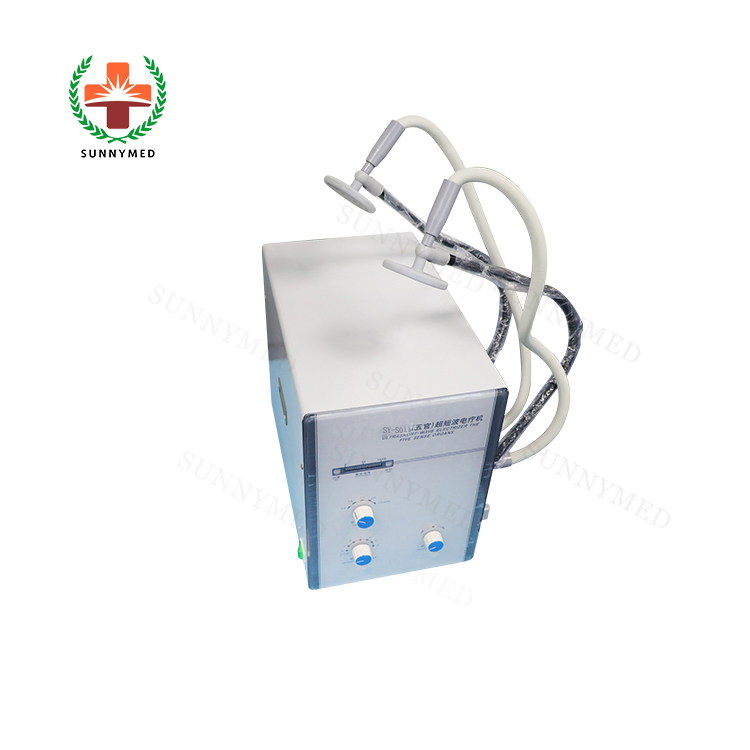

SY-S011 Table Top Medical Instruments Ultrashort Wave Electrotherapy Machine
The ultrashort-wave electrizer is a professional medical device suitable for pain relief, spasmodic reduction, anti-inflammatory purposes, and auxiliary treatment for various conditions related to the five sense organs.
Compact and efficient unit designed for desktop use in medical environments.
Equipped with an electric timer, along with sound and light hints for precise operation.

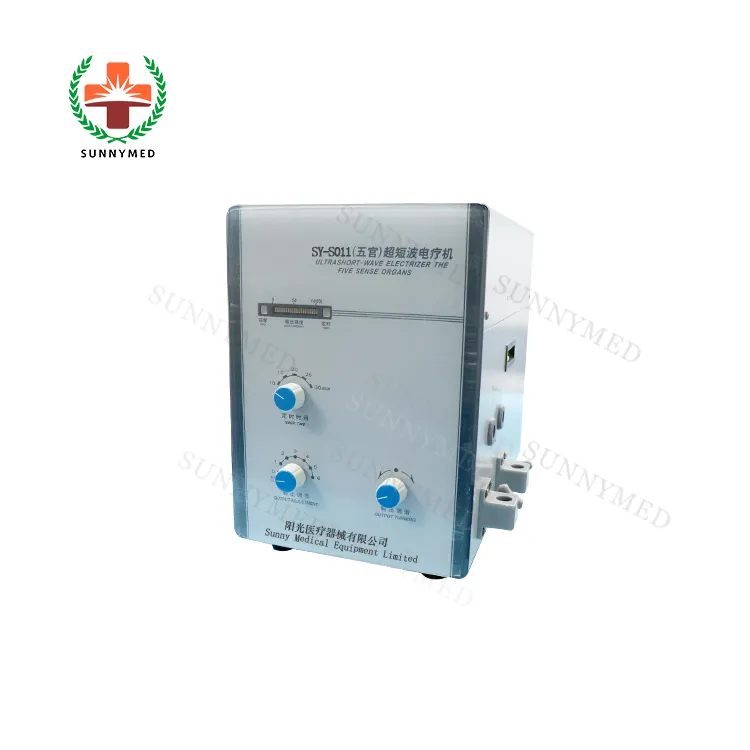

Output intensity is clearly displayed via a light cross interface.

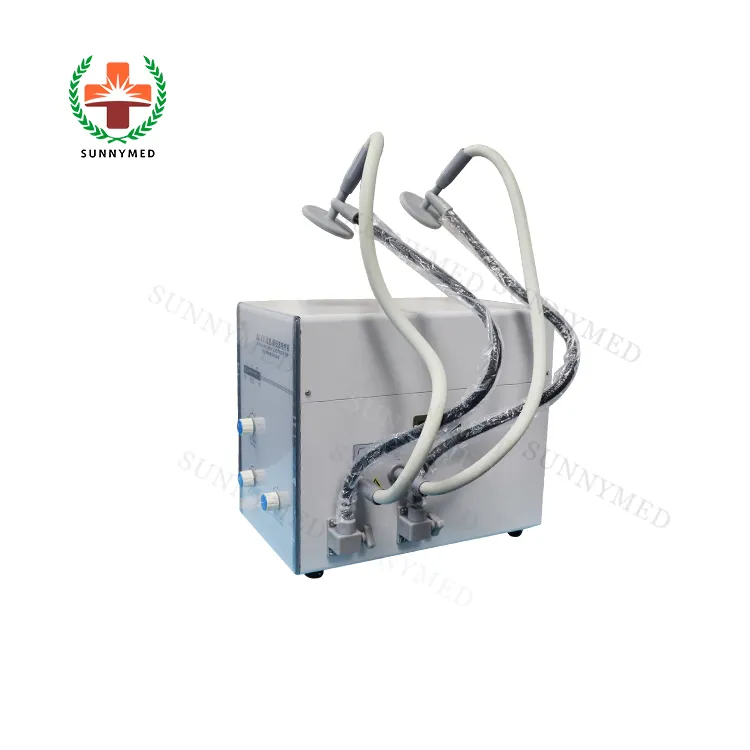

Features a first-return-zero protection device and a flexible mental hose treatment arm.
| No. | Parameter | Details |
|---|---|---|
| 1 | Output Power | 50W ± 20% |
| 2 | Working Frequency | 27.12MHz ± 0.6% |
| 3 | Treatment Time | 5 steps: 10, 15, 20, 25, 30min ± 10% |
| 4 | Power Supply | AC 220V, 50Hz, Rated Input: 700VA |
| 5 | Operation | Continuous operation up to 4 hours |
| 6 | Dimensions & Weight | 460mm × 380mm × 400mm, 21Kg |
| 7 | Environment | 5ºC ~ 40ºC, Relative humidity ≤ 80% |
| No. | Component | Quantity / Details |
|---|---|---|
| 1 | Fuse | T1/5A (2 pcs), T8A (1 pc), F400mA (4 pcs) |
| 2 | Silastic Electrode | 1 pair each: Large (φ90mm), Medium (φ75mm), Small (φ53mm) |
| 3 | Treatment Arm | Two sets |
| 4 | Fluorescent Tube | One pc (for testing) |
| 5 | Silicone Output Cable | Two lines |
| 6 | Power Supply Cable | One pc |
A: It is primarily used for pain relief, anti-inflammatory treatments, reducing spasms, and auxiliary therapy for sense organ conditions.
A: The device operates at a stable frequency of 27.12MHz ± 0.6%.
A: There are 5 adjustable time steps: 10, 15, 20, 25, and 30 minutes.
A: Yes, it comes with three pairs of silastic electrodes in Large (φ90mm), Medium (φ75mm), and Small (φ53mm) sizes.
A: Yes, the SY-S011 is designed for continuous operation for up to 4 hours.
A: Yes, we offer OEM services including custom logo printing on the machine to meet your branding needs.
