If Voltage Sine Wave Physiotherapy Electrotherapy Machine for Pain Relief

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.PE5
TheoryElectrotherapy
CertificationISO13485
NameSuper Interference Electric Therapy Machine
ApplicationRehab Centers and Clinics
WaveformSine Wave
Channels6
Electrodes24
Carrier Frequency2500Hz, 4000Hz, 5000Hz
Treatment Frequency1-199Hz
VoltageAC220V 50/60Hz
P

Product Description

The interference electrotherapy device PE5 is further developed on the basis of traditional interference electrotherapy and dynamic interference electrotherapy. The low frequency formed in the body interferes with the endogenous current, can inhibit the sensory nerve, and promote the expansion of capillaries and arteries, local blood circulation. Change, is conducive to the role of inflammatory exudate, edema absorption.

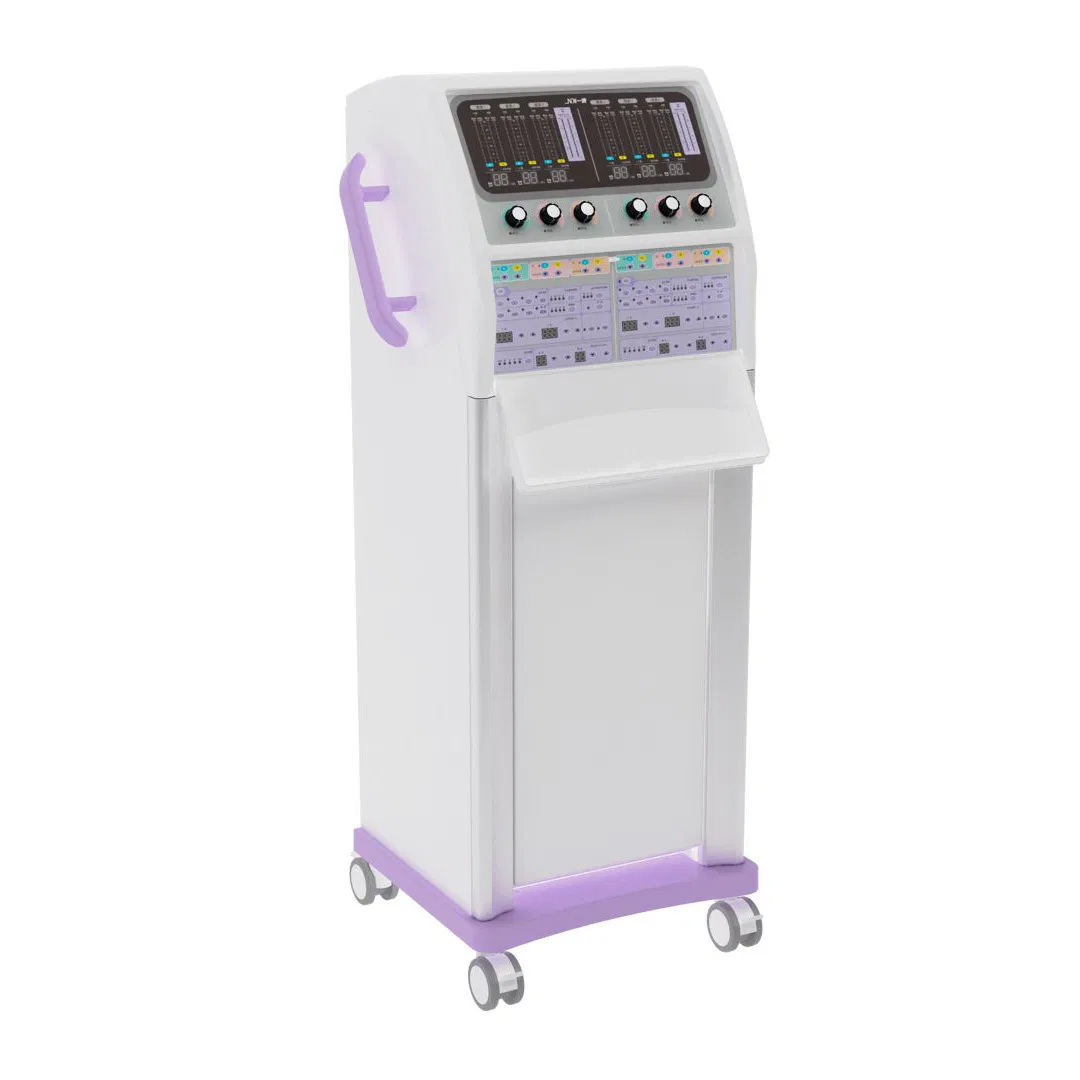

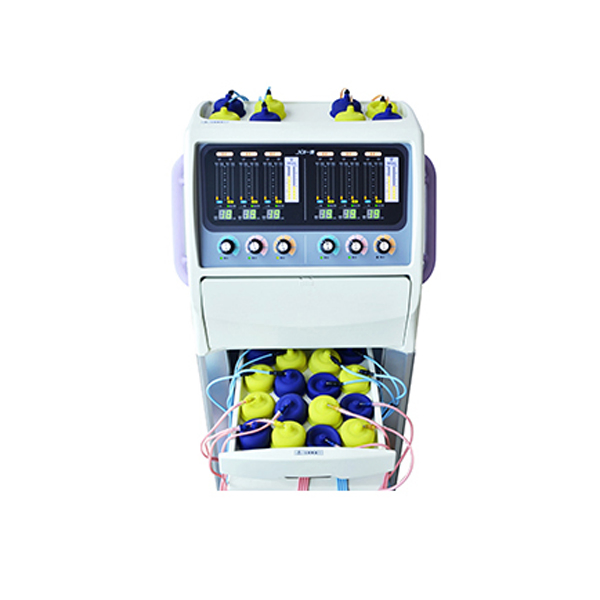

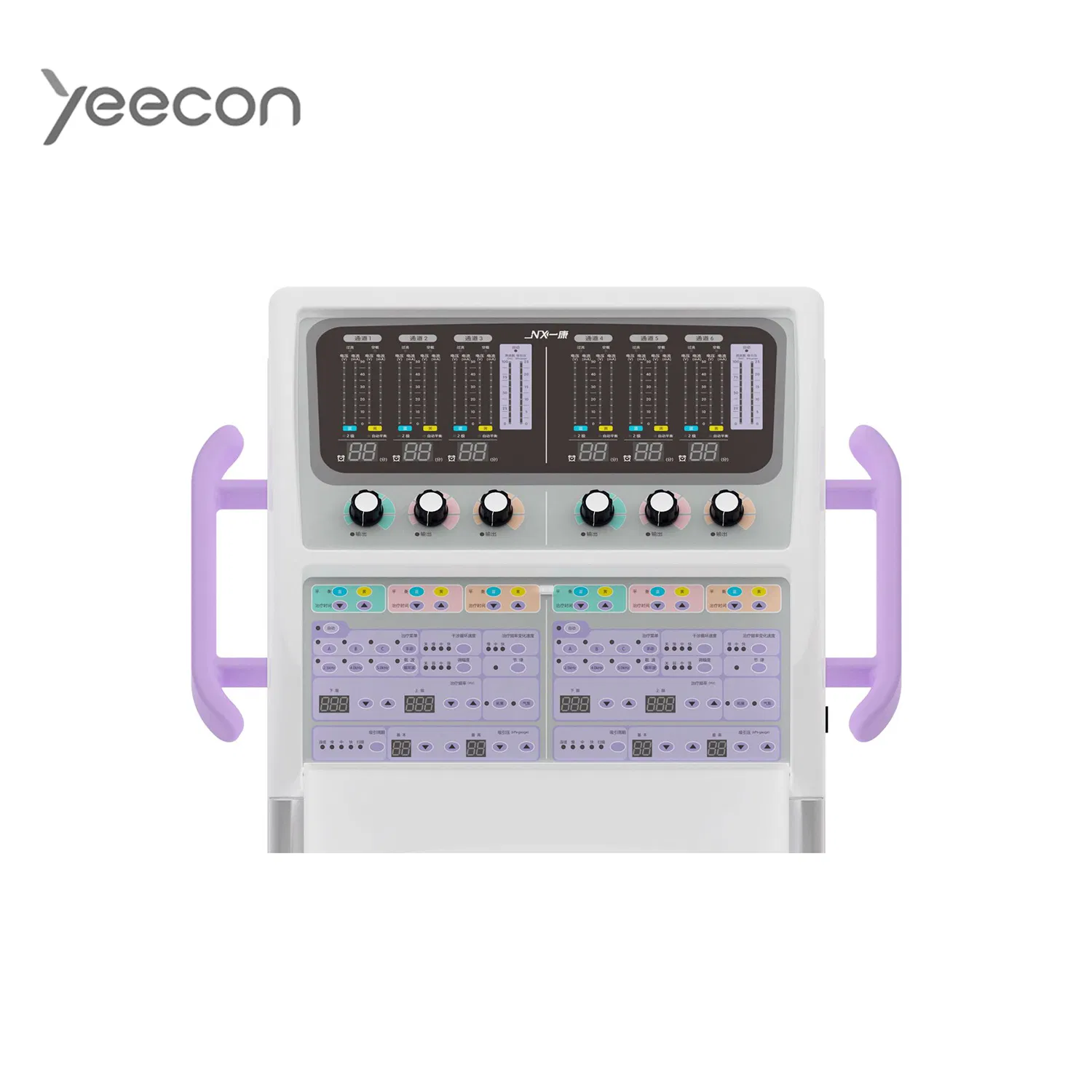

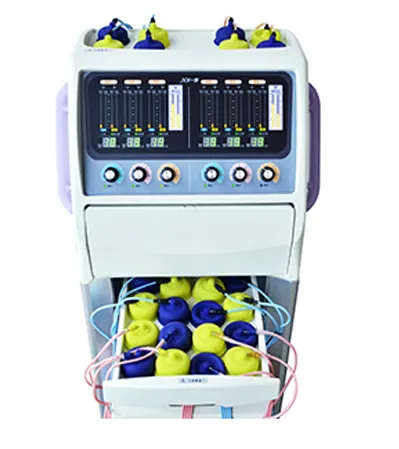

PE5 Electrotherapy Machine

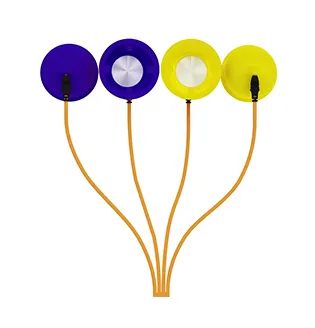

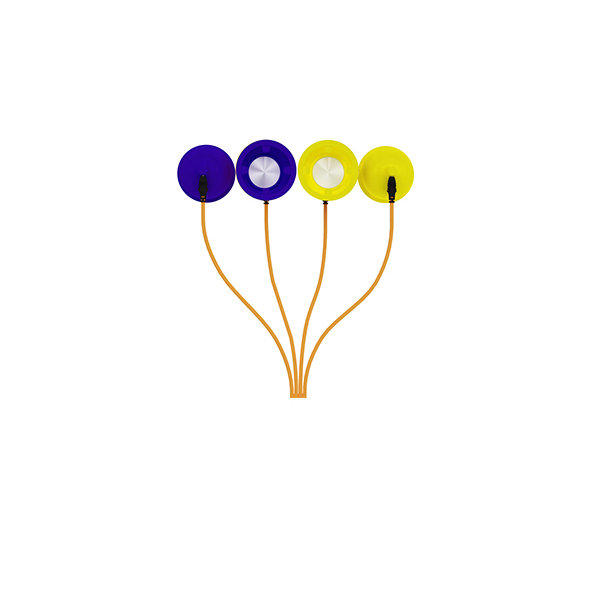

PE5 Device Detail
A

Adaptation & Indications

Adaptation Departments:

Rehabilitation, physiotherapy, pain, tuina, acupuncture, Chinese medicine, orthopedics, dry medicine, geriatrics, community rehabilitation and sports medicine, etc.

Application Scenario

Indications:

Soft tissue analgesia, promote local blood circulation, excite and dilate vascular nerves; strengthen the discharge of pain-causing mediators and harmful pathological metabolites, reduce edema and tension between tissues and nerve fibers.

!

Contraindications

Cardiac pacemakers, pregnant and lactating women, bleeding and skin diseases, and those with malignant tumors.

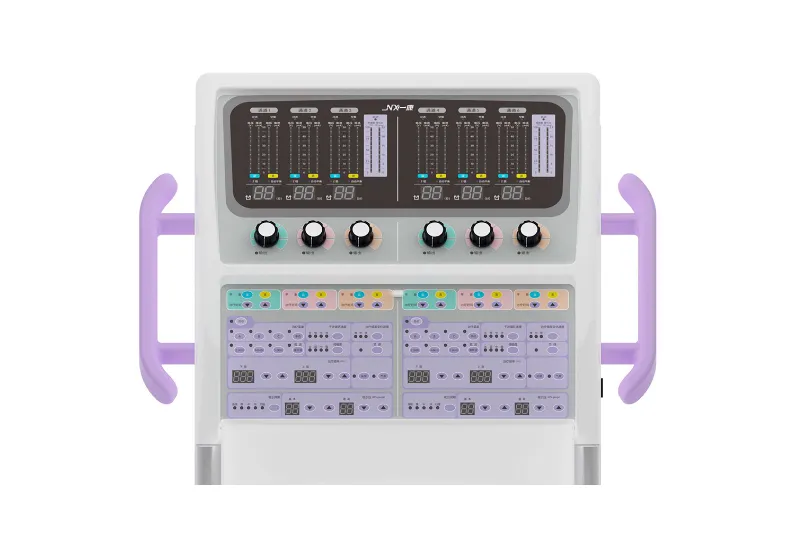

Contraindications Info
S

Special Features of PE5

  • Two sets of independently adjustable outputs, each set of 3 channels, a total of 6 channels, each channel is 4 electrodes;
  • The expansion mode allows the output to be extended to 2 channels, that is, the electrode is extended to the 8-electrode output;
  • At the end, the output knob automatically returns to the starting position;
  • Safe output with deductor monitoring function;
  • An overcurrent protection circuit that limits the current to a minimum when the treatment current exceeds the maximum current limit;
  • PE5 has 2 heating and insulation boards to heat the electrodes;
  • Current balance adjustment button to adjust the current difference between the same set of outputs;
  • The adsorption electrode replaces the bonded gel electrode, which is convenient to use and reduces the cost of use.
PE5 Features Detail
C

Certifications

Product Certifications
?

Frequently Asked Questions

What is the MOQ for international orders? We require all international orders to have an ongoing minimum order quantity. For smaller quantities or resale inquiries, please reach out for more details.
Can you provide OEM or ODM services? Yes, we have a strong development team capable of customizing products according to your specific requirements.
What documentation can you supply? We can provide most necessary documentation, including Certificates of Analysis/Conformance, Insurance, Origin, and other required export documents.
What is the average lead time for production? Samples typically take about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit and final approval.
What payment methods are accepted? Payments can be made via bank transfer, Western Union, or PayPal, typically with a 30% deposit in advance and 70% balance against the copy of B/L.
What is the product warranty policy? We warranty our materials and workmanship. Our commitment is to resolve all customer issues to ensure complete satisfaction, whether within the warranty period or not.
