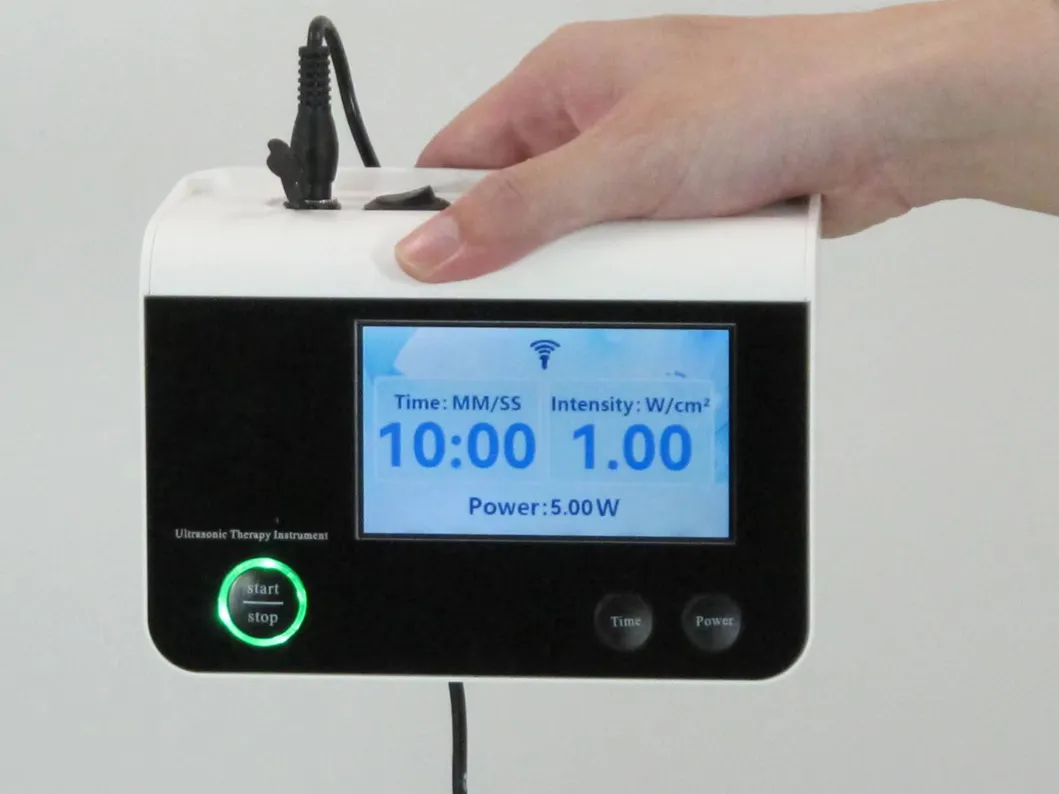

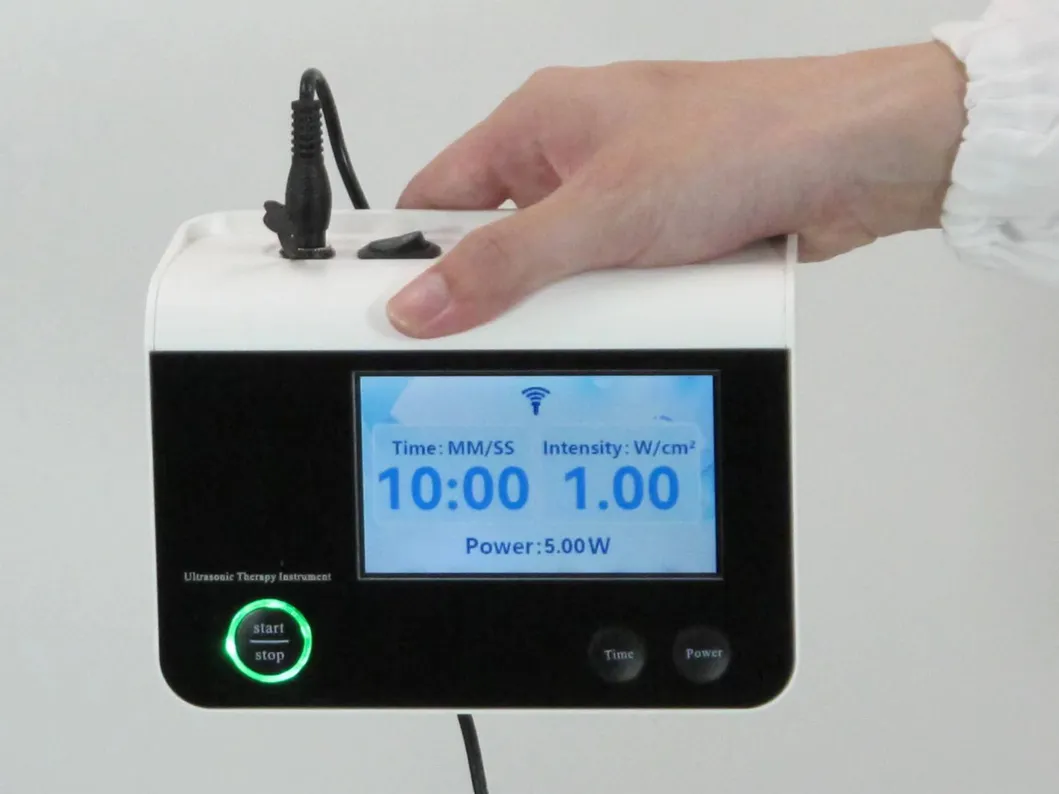

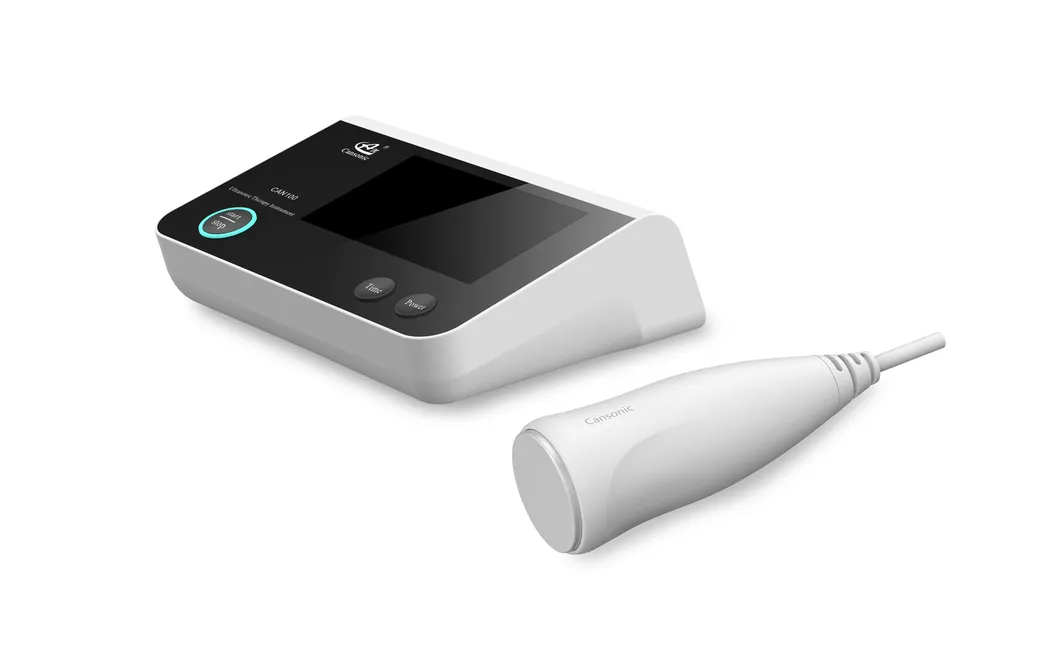

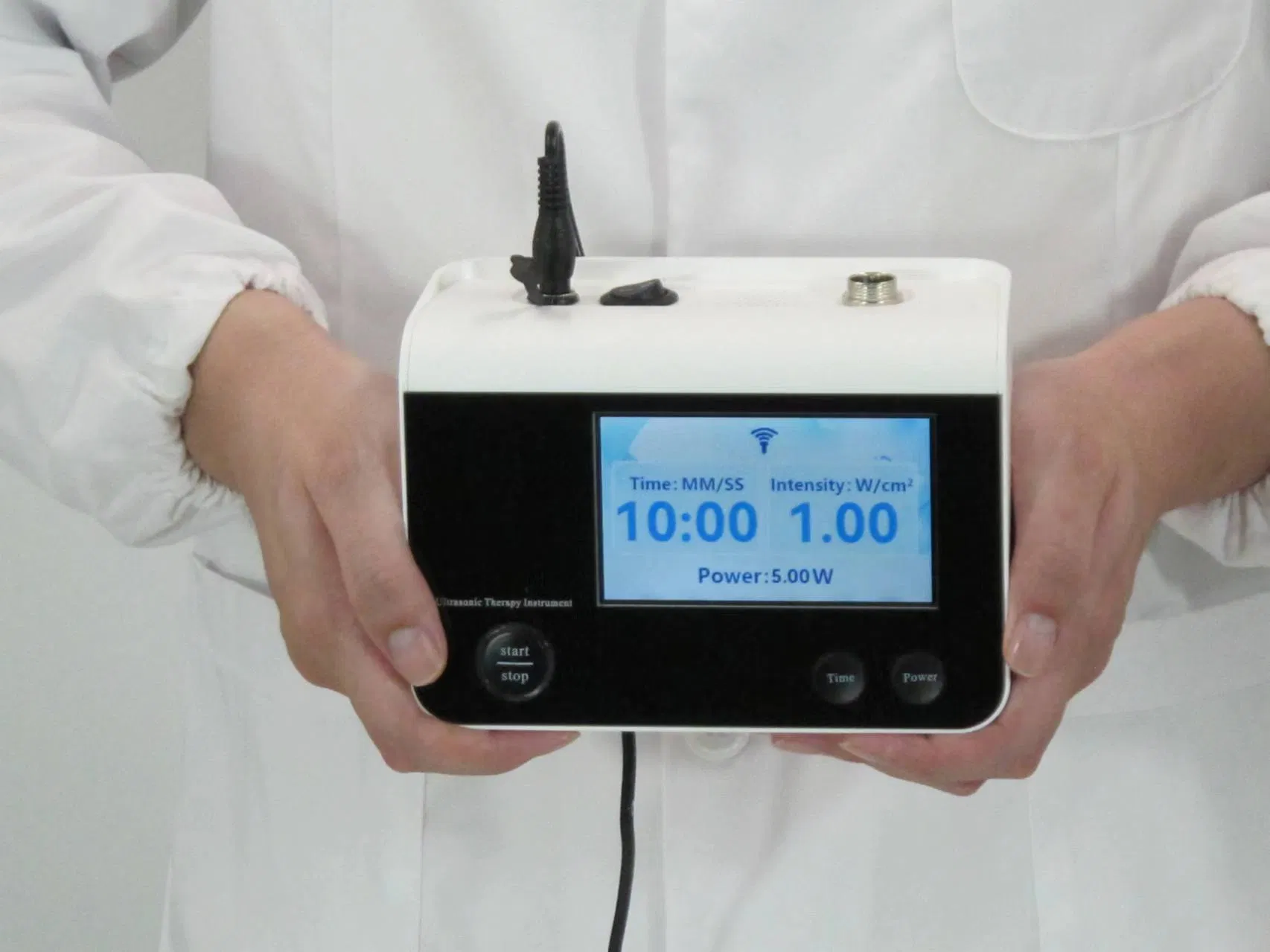

The CAN 100 is a high-tech full digital ultrasonic therapy instrument designed to utilize ultrasonic waves for effective physical therapy. By producing endogenic tissue heat, it helps dilate blood vessels, accelerate blood flow, and enhance metabolism.
This instrument is widely applied for adjunctive therapy in the following areas:
| Parameter Item | Specification Details |
|---|---|
| Maximum effective ultrasound intensity | ≤3.0 W/cm² |
| Accuracy of ultrasonic output power | 15.0±20% W |
| Effective radiating area | 5.0±20% cm² |
| Ultrasonic operating frequency | 1.0±10% MHz |
| Beam inhomogeneity coefficient | ≤8.0 |
| Waveforms | Pulse duration: 6ms |
| Pulse repetition period | 10ms |
| Duty cycle | 60% |
It is primarily used for physical therapy to relieve pain, reduce muscle tension, and assist in the rehabilitation of stroke-affected limbs and soft tissue injuries.

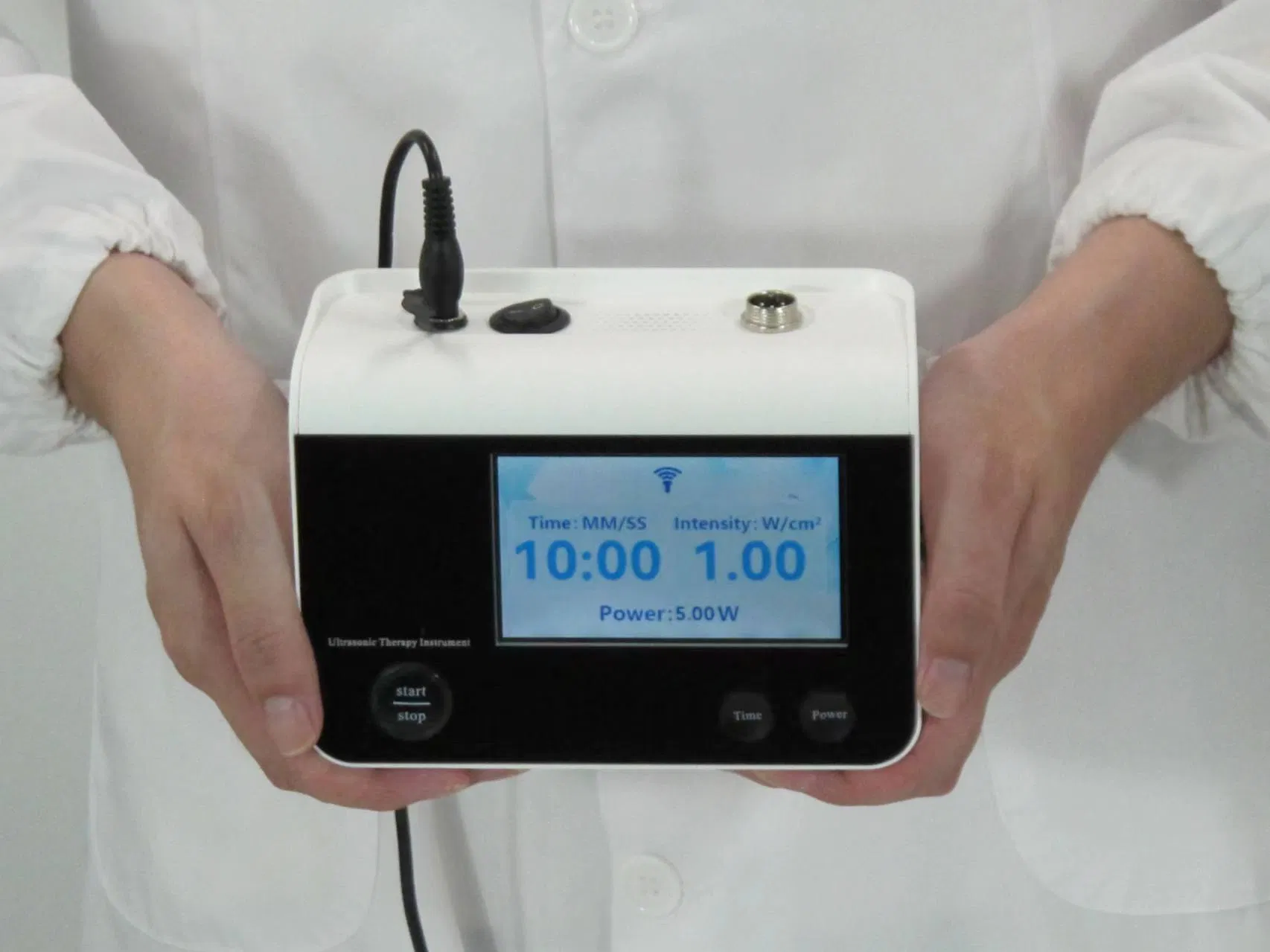

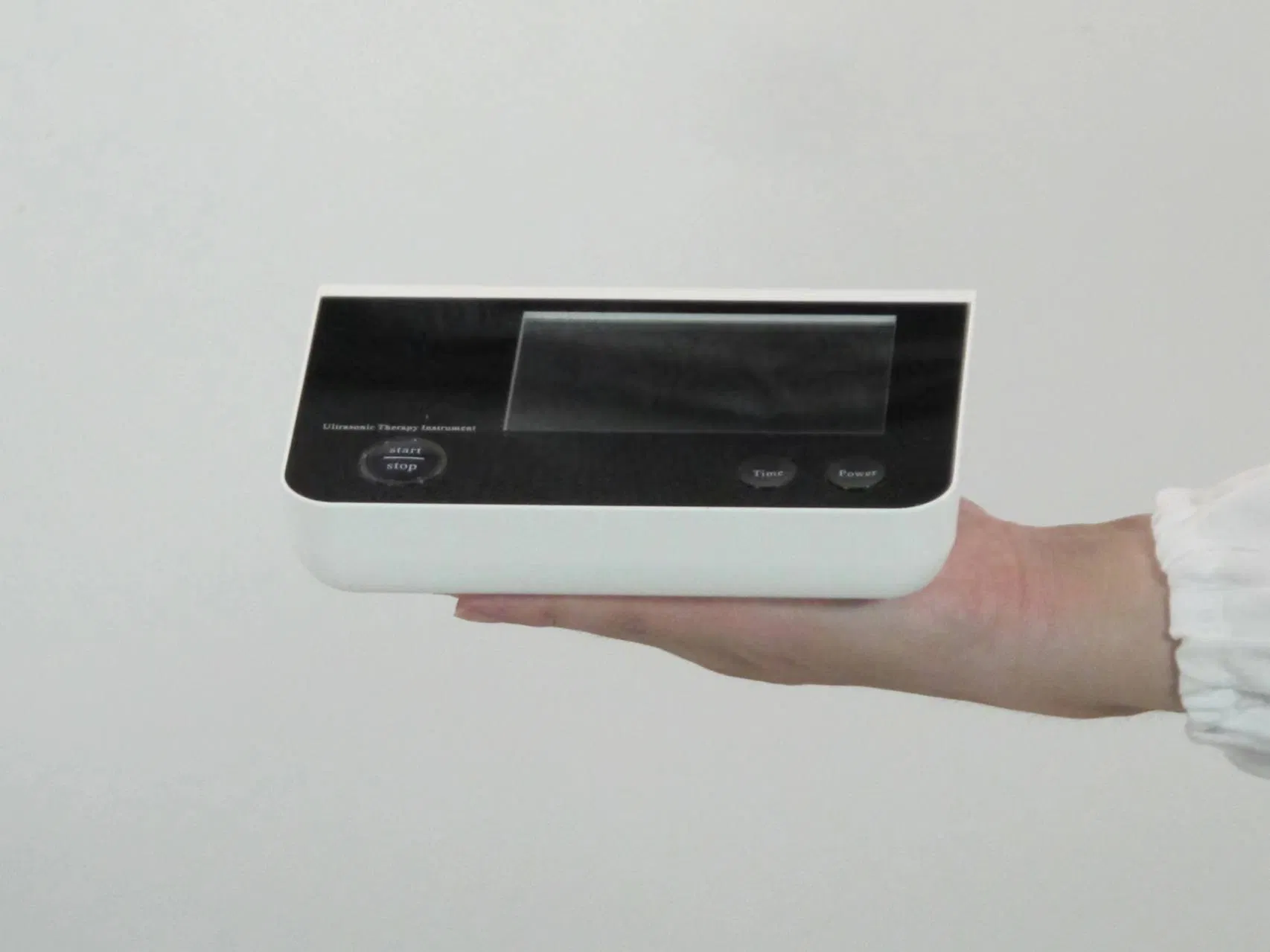

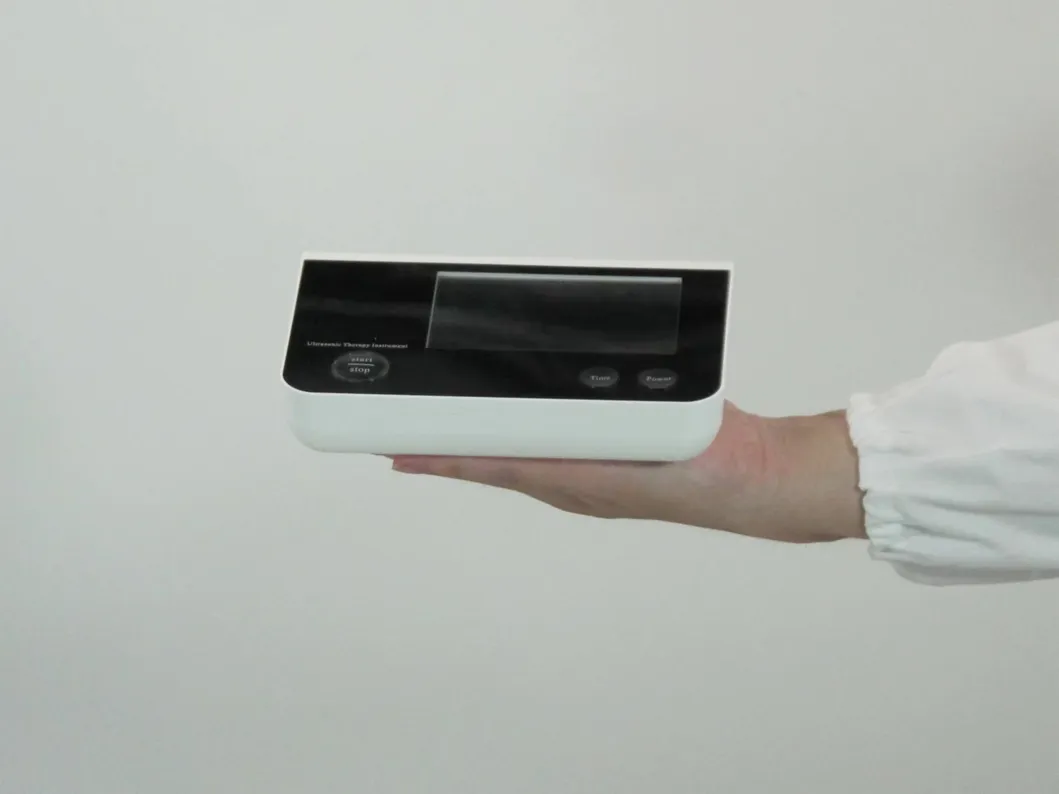

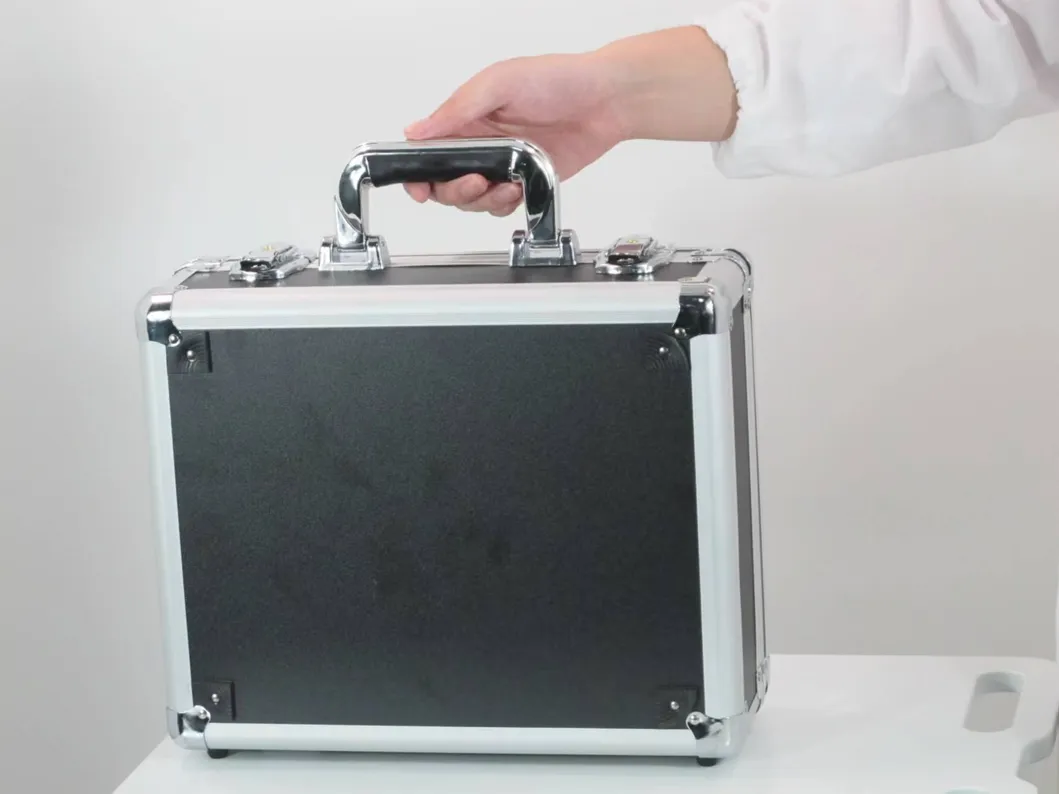

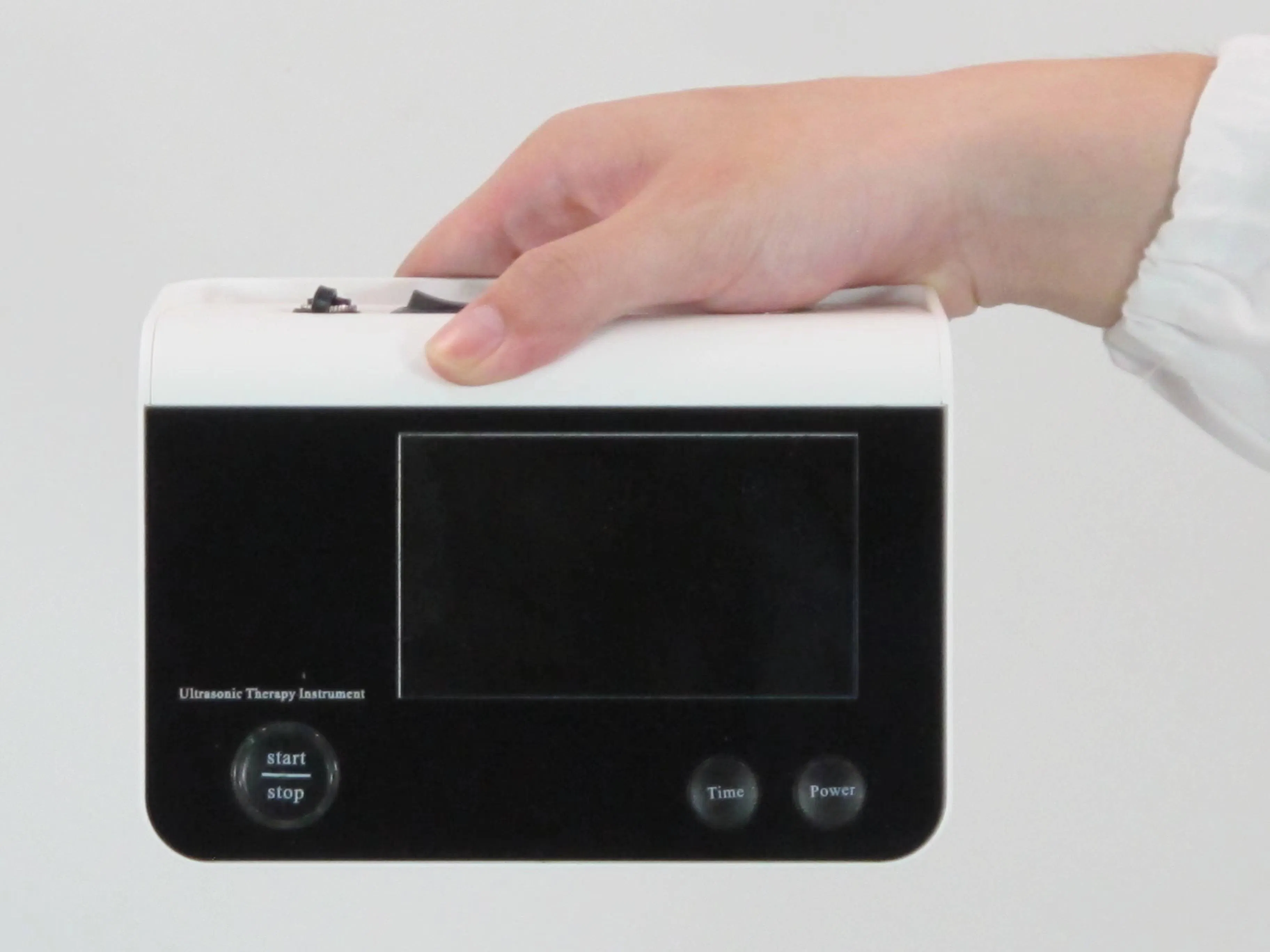

Yes, the CAN 100 is designed to be portable, lightweight, and simple to operate, making it ideal for home physiotherapy.
Ultrasound waves penetrate tissues to create deep heat, which improves blood circulation, boosts metabolism, and helps in the healing process of connective tissues.

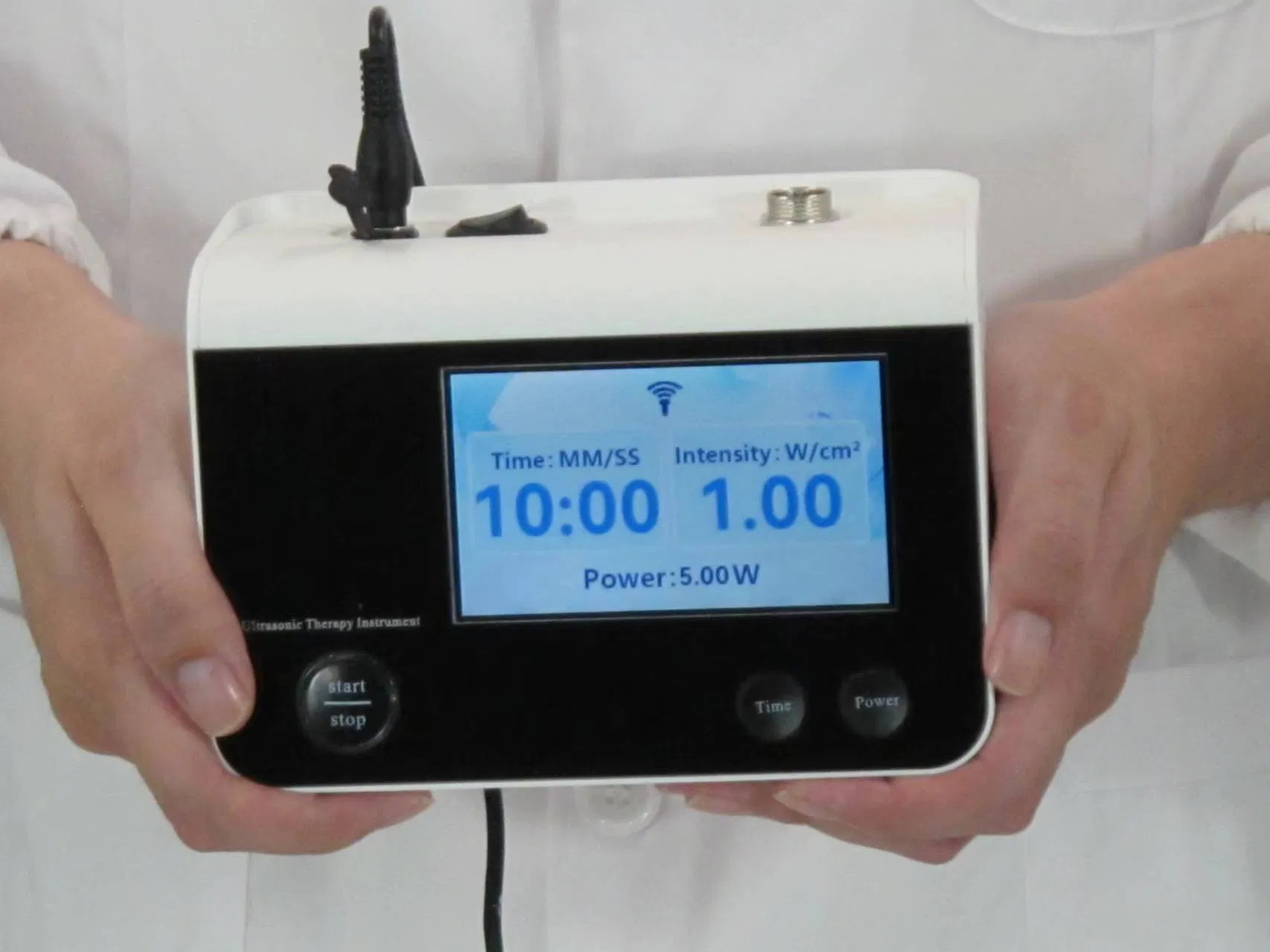

Absolutely. Users can manually adjust both the ultrasound intensity and the treatment duration to suit specific therapeutic needs.
Yes, it is specifically suitable for relieving chronic conditions such as arthralgia and lumbar muscle degeneration.
The device utilizes a full digital signal generator and a low-power chip to accurately control the frequency and duty cycle of the ultrasonic waves.
