Advanced Health Monitoring Smartwatch with SpO2 and ECG Features

1 / 5

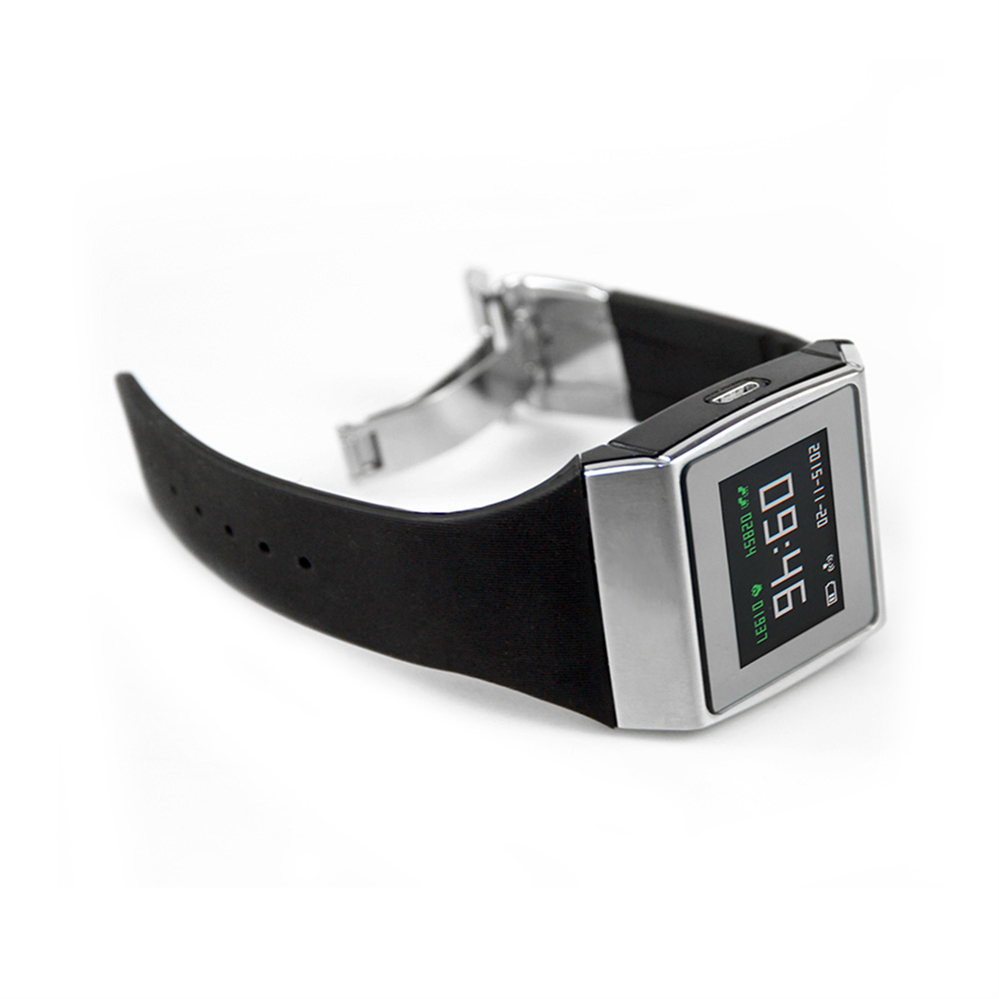

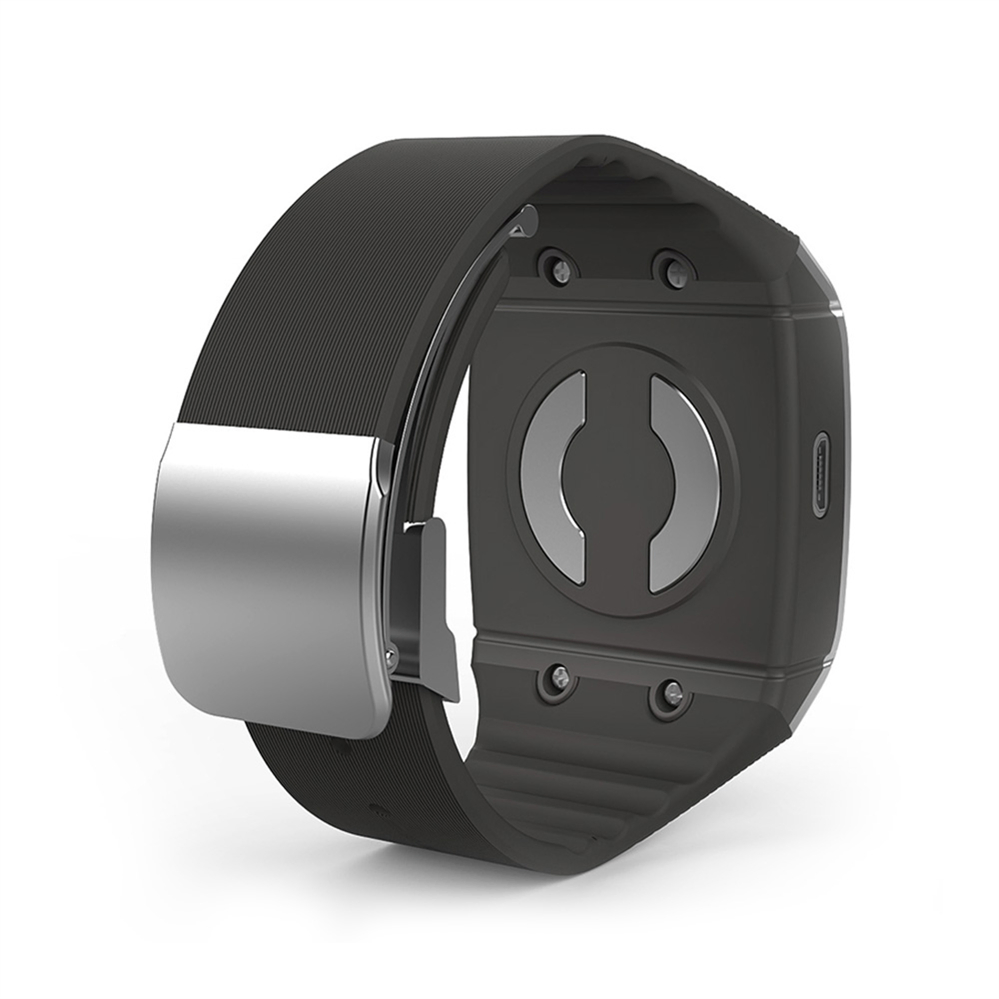

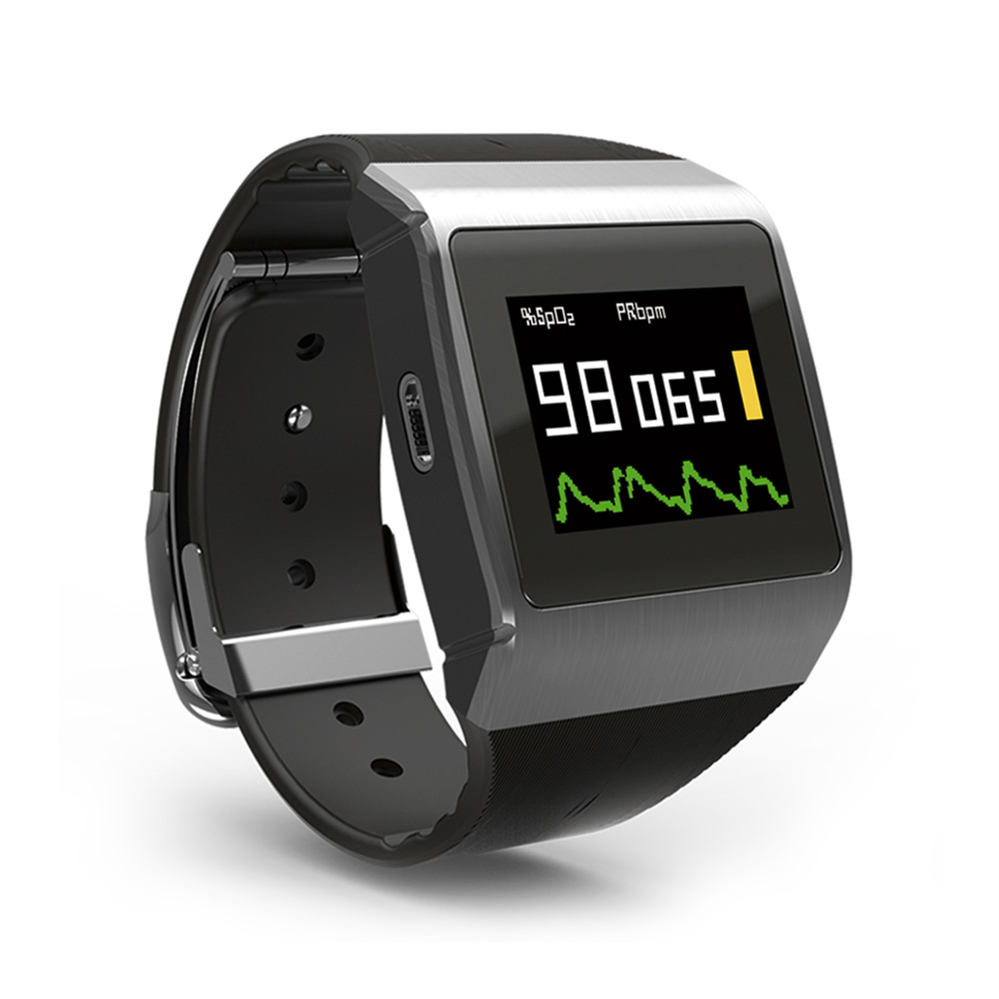

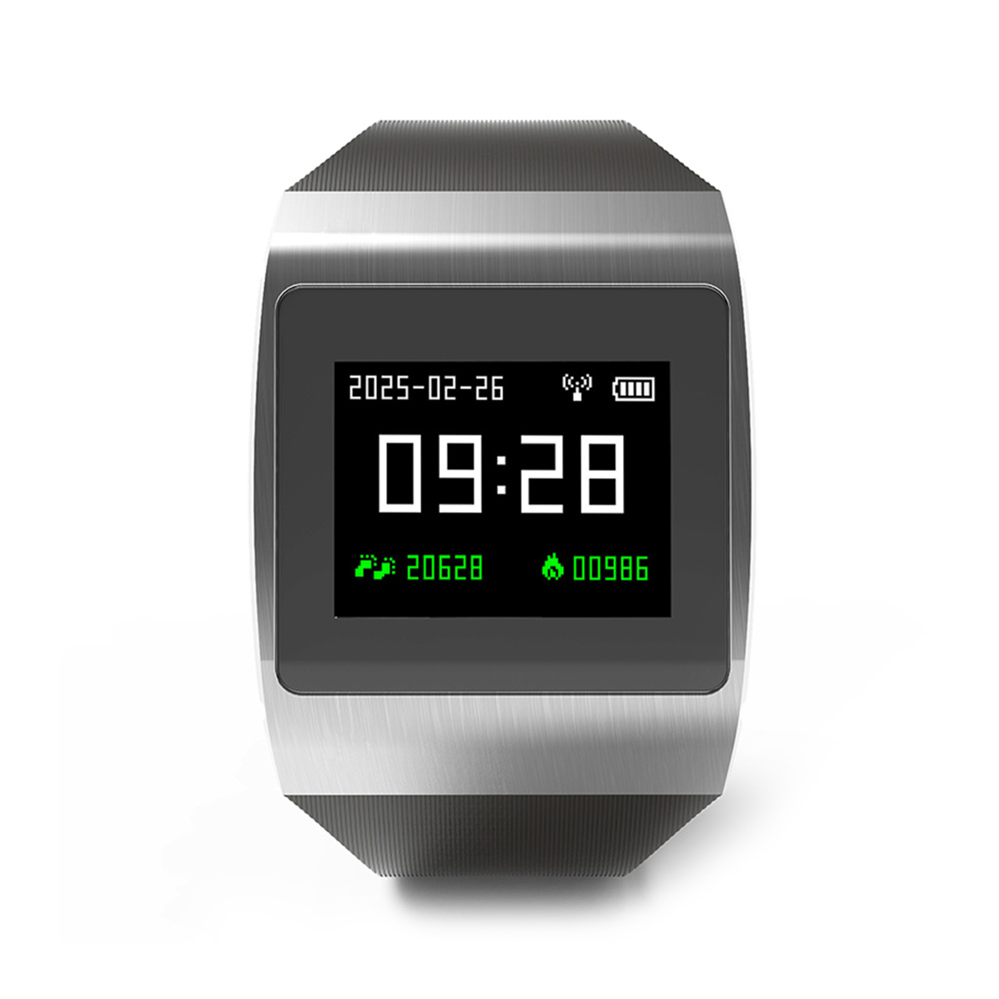

Advanced Health Monitoring Smartwatch with SpO2 and ECG Features

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Pulse Oximeter

Send Inquiry

Product Description

📋

Basic Information

Model NO.

CMS50K

Certification

Group

Middle-aged and Old

Function 1

Display of SpO2 Value, Pulse Rate Waveform

Function 2

Auto Power on, Auto Standby

Indication

Low-Voltage Indication

Function 3

Capacity Pulse Scanning & Recording

Measurement

Oxygen Saturation, Pulse Rate

Working Time

8 Hours (Theoretical)

Working Voltage

DC 3.6V ~ 4.2V

Battery

3.7 V Rechargeable Lithium Battery

Weight

About 73 G

Specification

50.4mm*41.4mm*14.7mm

Origin

China

HS Code

9018909911

⌚

Product Description

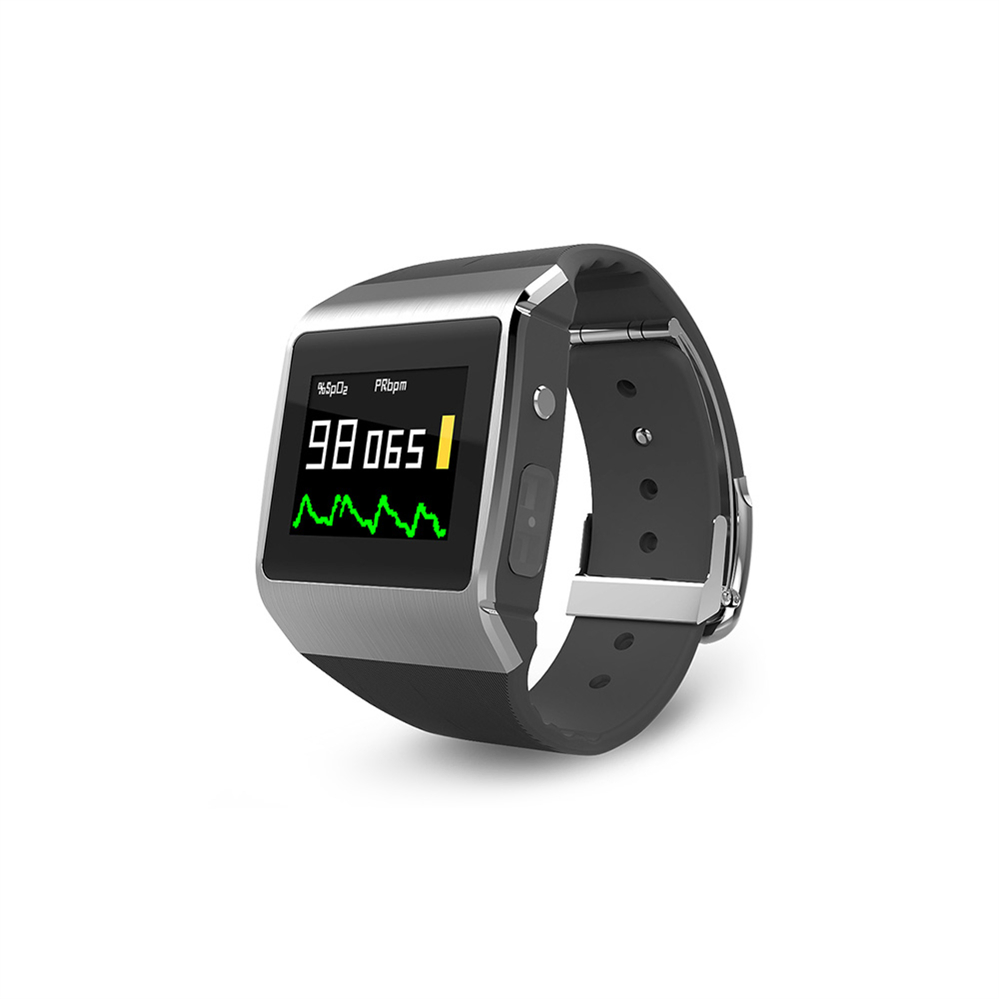

CMS50K CE Wrist SpO2 ECG Monitoring Wrist Design Wearable Pulse Oximeter Watch

Model: CMS50K

1. Introduction

CMS50K Sport Smart Watch Wearable integrates functions of SpO2, ECG and pedometer in one product.

2. Features

Display of SpO2 value.
Display of pulse rate value.
Display of heart rate value and ECG waveform.
Display of step number and calorie.
Low-battery indication.
Data storage function.
The data stored can be uploaded to mobile terminal.
Clock and Charging functions.

3. Performance

Measurement range of SpO2: 0%~100% (Error: 70%~100%: ±2%).
Measurement range of pulse rate: 30bpm~250bpm (Error: ±2bpm or ±2%).
Measurement range of heart rate: 30bpm~300bpm (Error: ±1bpm or 1%).
Resolution: SpO2: 1%, Pulse rate: 1bpm.
Weak Filling Condition: SpO2 and pulse rate shown correctly when ratio is 0.4%.
Resistance to light: Deviation less than ±1% between natural and darkroom light.
Pedometer range: 0~65535 steps.
Operating Current: ≤100mA; Power supply: 3.7V rechargeable lithium battery.
Protection: Type BF applied part; Ingress protection: IP54.

📸

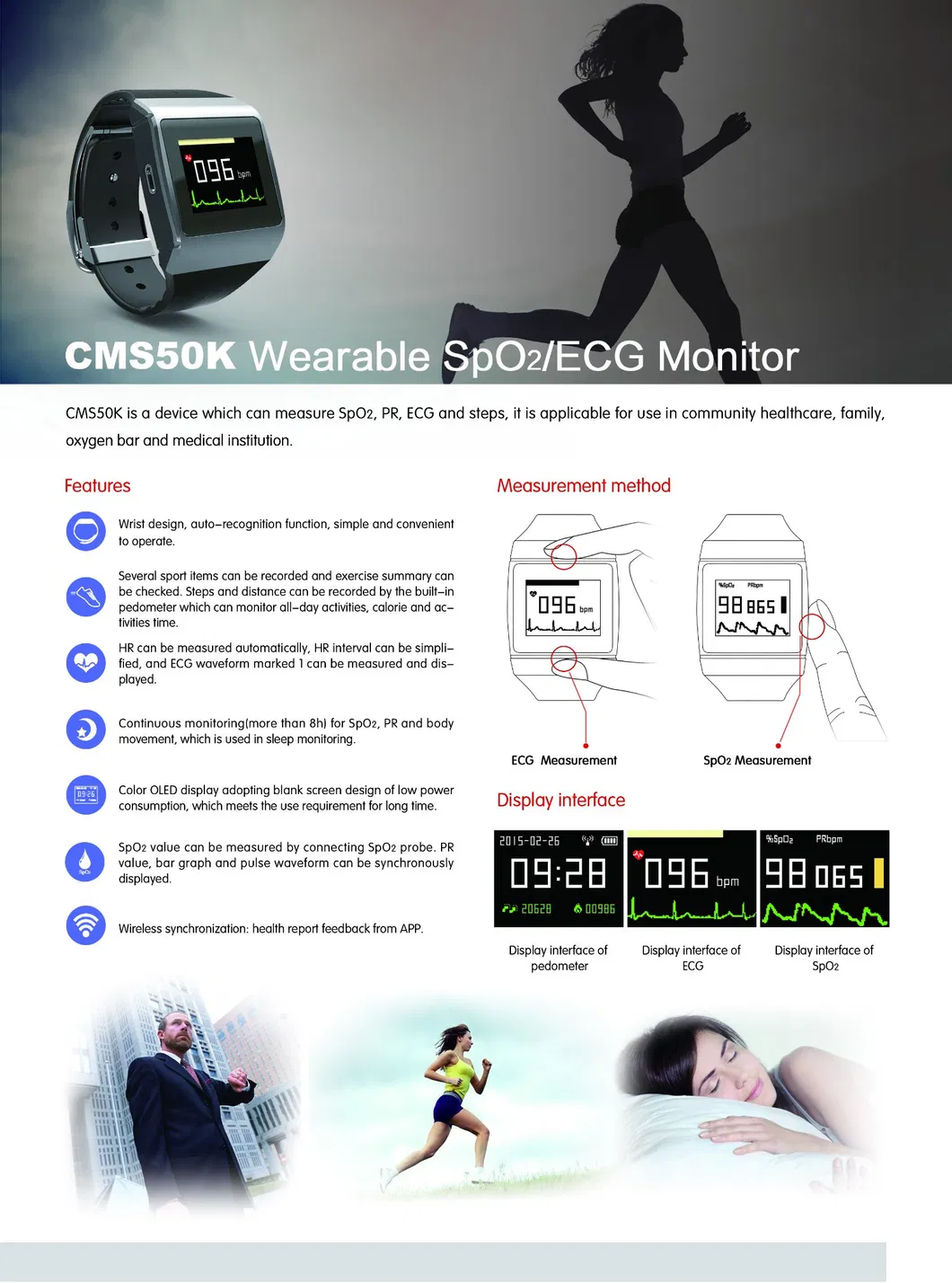

Product Gallery & Certificates

❓

Frequently Asked Questions

What health parameters can the CMS50K monitor?

The CMS50K is a multi-functional wearable device that monitors SpO2 (oxygen saturation), pulse rate, heart rate, and even displays ECG waveforms.

Does this watch have a fitness tracking feature?

Yes, it includes an integrated pedometer that tracks the number of steps taken and calories burned during your activities.

How can I access my stored health data?

The device has a data storage function, and the recorded data can be easily uploaded to a mobile terminal for further review and tracking.

Is the device protected against water and dust?

Yes, the CMS50K has an IP54 protection grade, meaning it is protected against dust ingress and splashes of water.

What is the battery life and how is it charged?

The device uses a built-in 3.7V rechargeable lithium battery with a theoretical working time of approximately 8 hours. It features a dedicated charging function for convenience.

How accurate are the SpO2 and pulse rate readings?

The SpO2 measurement range is 0%~100% with an error of ±2% for levels between 70%~100%. The pulse rate measurement error is ±2bpm or ±2%, whichever is larger.
