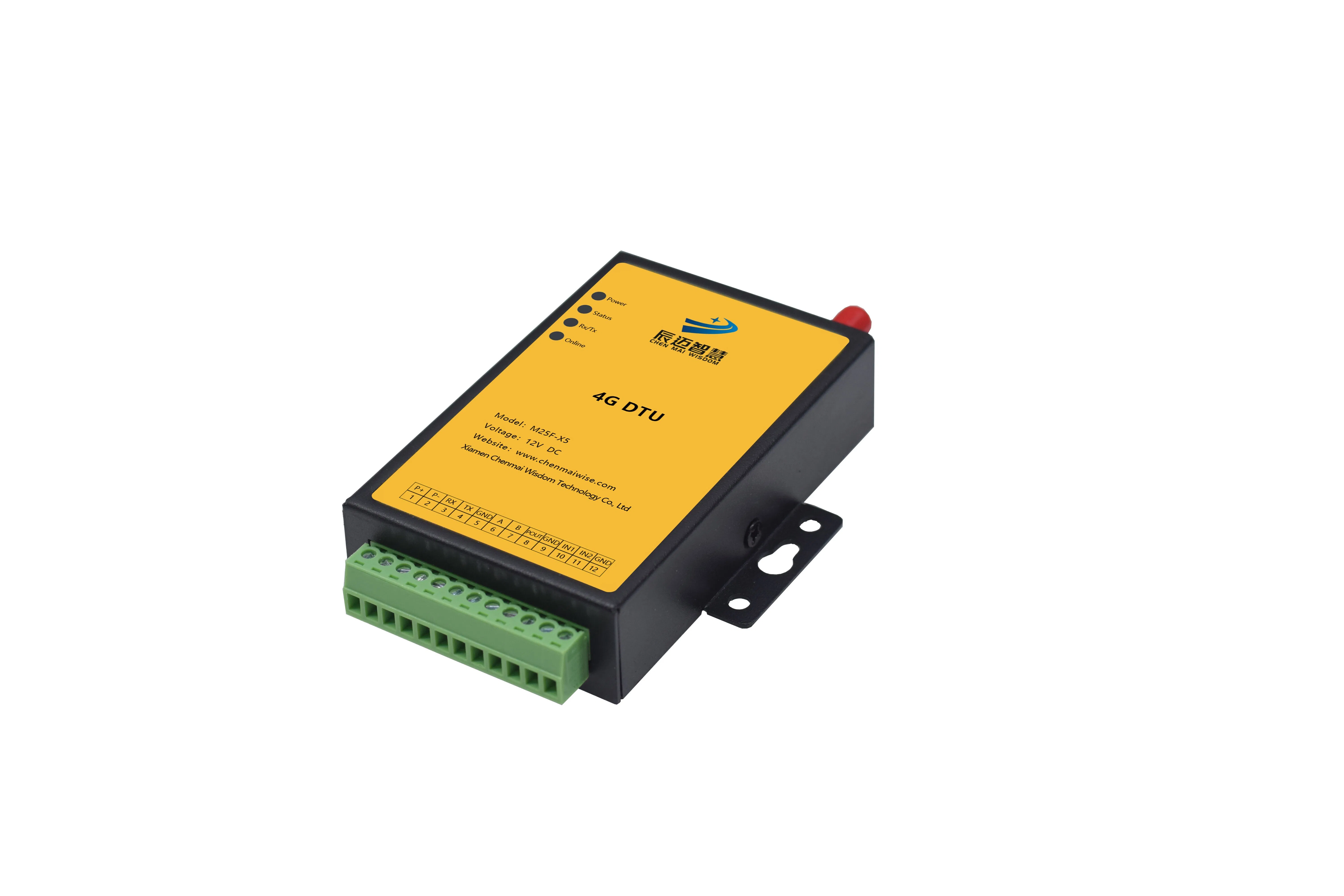

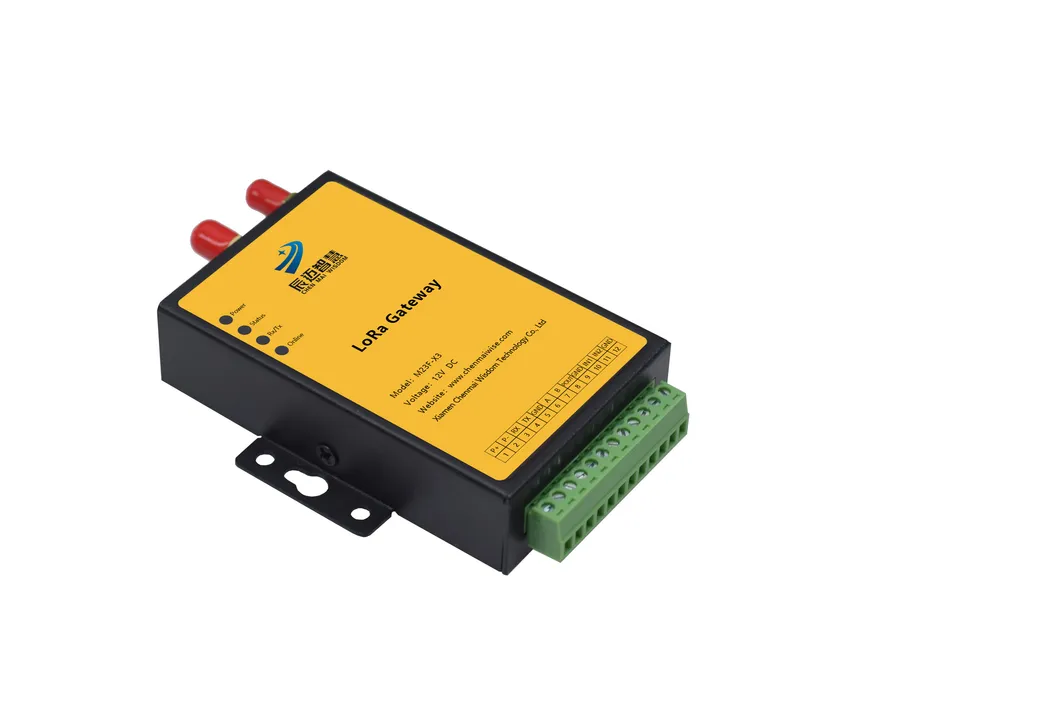

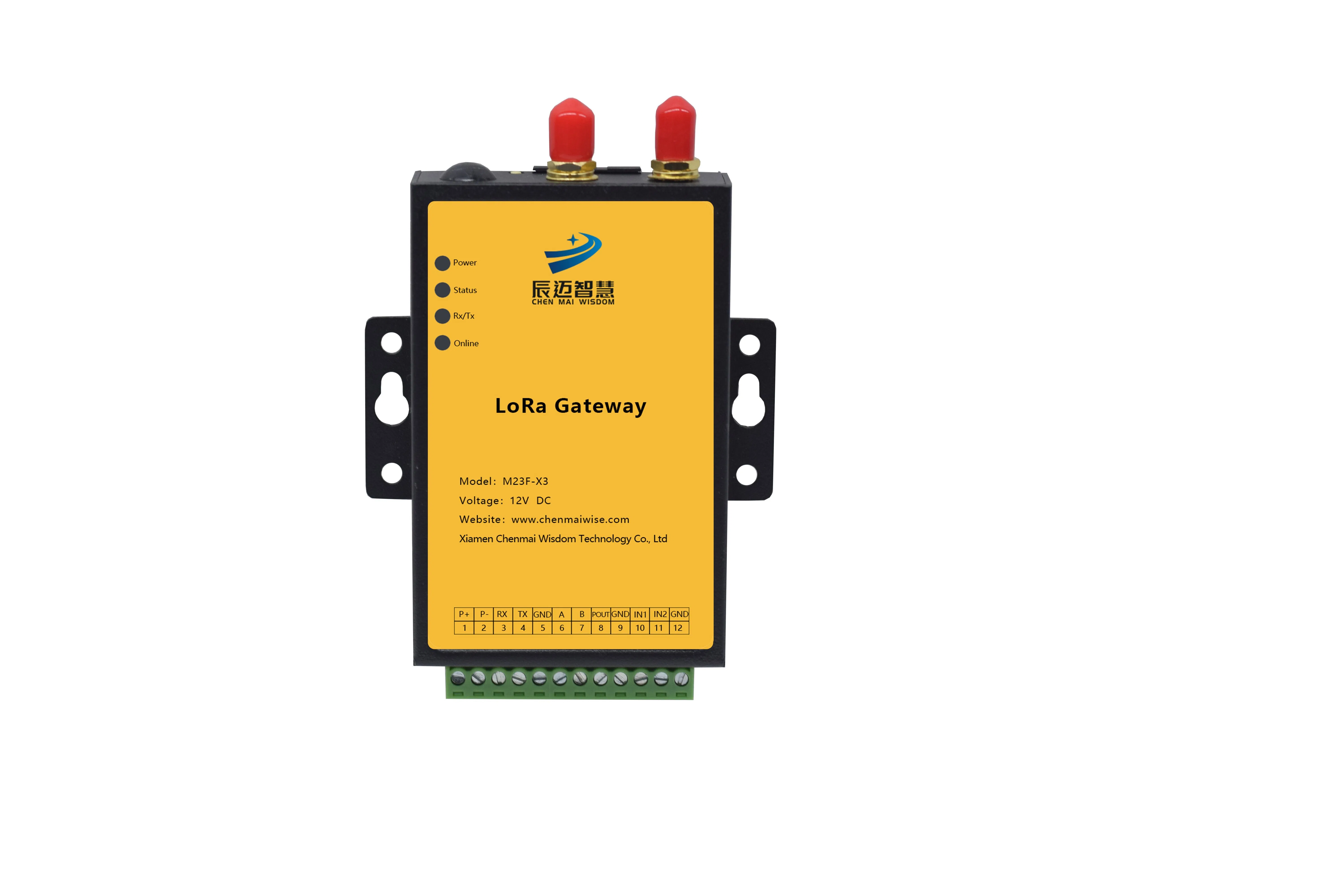

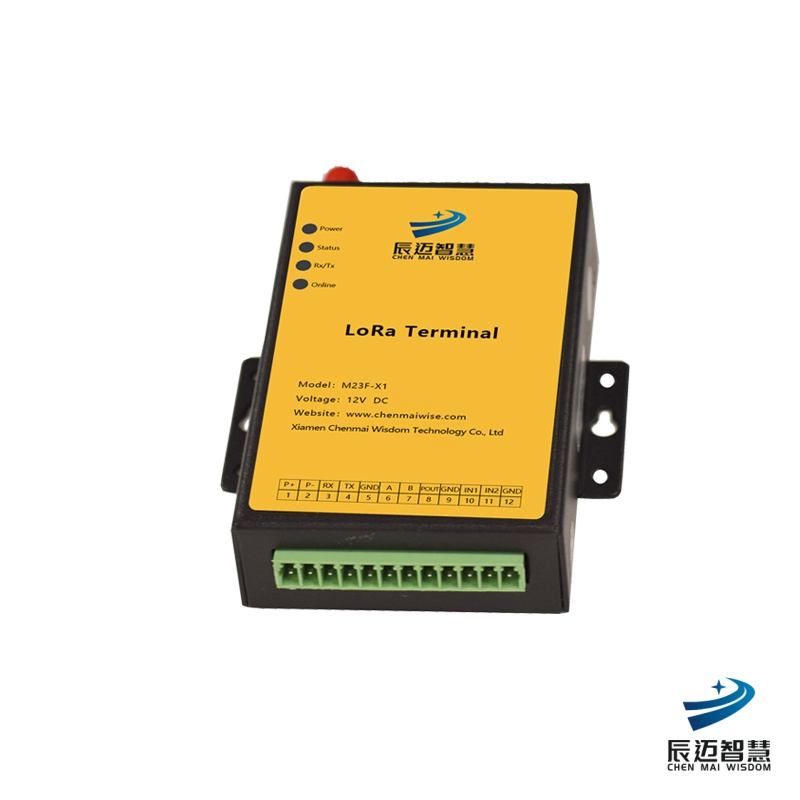

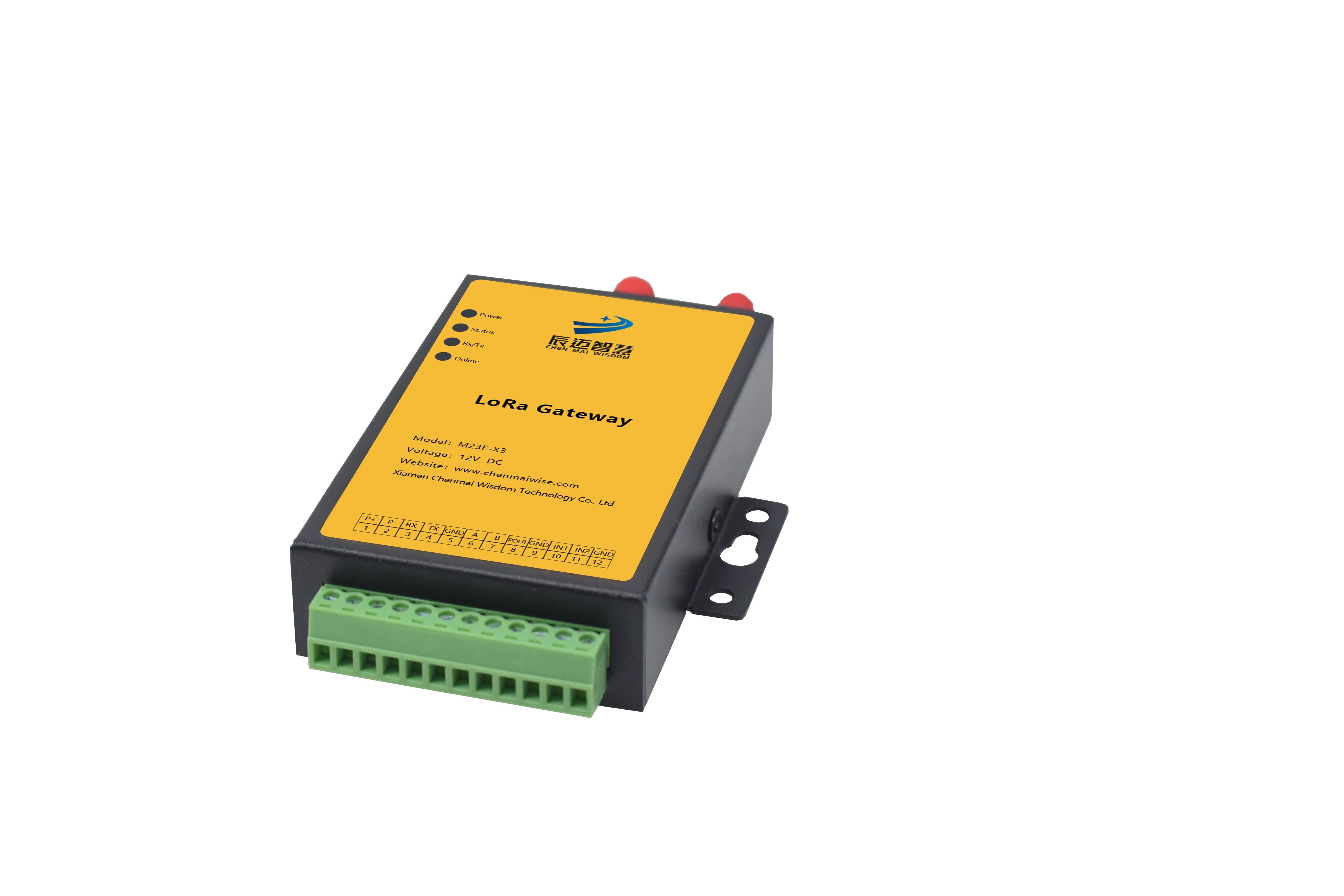

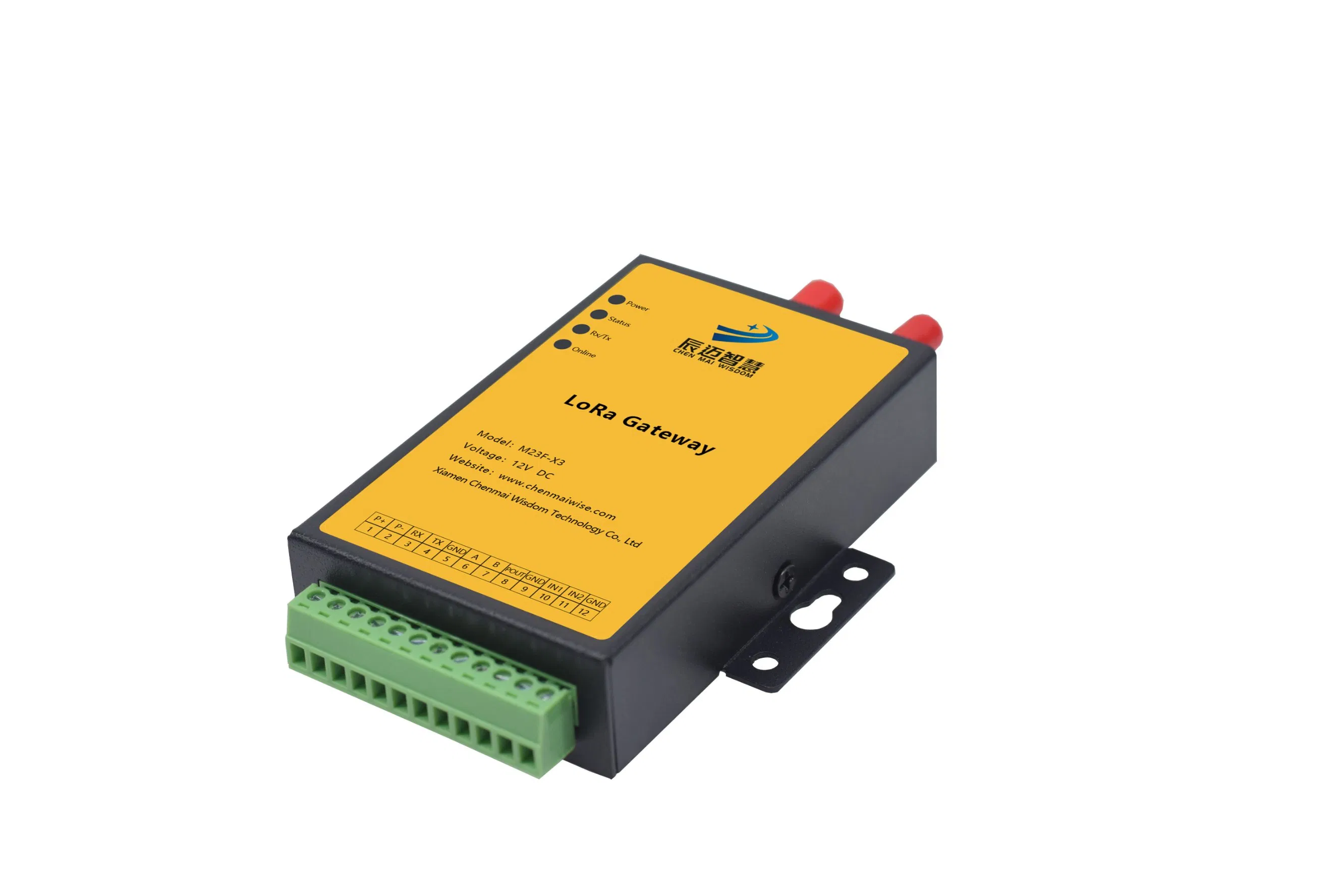

Advanced M21f-V63 Lora Terminal by Chenmai for Global Distribution

📊Basic Specifications

Model NO.

M23F-X3

Connection Mode

Push-Pull Connection

Shape

Rectangle

Contact Termination

Welding Connection

Type

Filter Electric Connector

Character

Environmental Protection

Production Process

Ceramic

Interface Type

S-VIDEO

Origin

China

Specification

Metal

📦Packaging & Delivery

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

2.000kg

Transport Package

Carton

📝Product Description

The M23F-X3 LoRa Terminal is an independently developed data transmission device designed for seamless IoT connectivity. It integrates LoRa and serial port communication technologies, enabling efficient data exchange with external equipment via serial ports and flexible networking through LoRa networks. The terminal is equipped with specialized interfaces including an incremental rain gauge port, RS232, and RS485, ensuring secure and transparent data transmission for industrial applications.

Key Product Features

Supports wireless data transmission over LoRa networks
Supports local configuration, data export and firmware upgrade
Adopts industrial-grade chips for stable performance
Integrated WDT watchdog design ensures system stability
Supports multiple baud rates and RF data rates
Device health monitoring: power supply, temperature and signal strength
System sleep power consumption ≤ 2 mA
Wide operating temperature: -30ºC ~ 75ºC
Supports MODBUS-RTU communication protocol

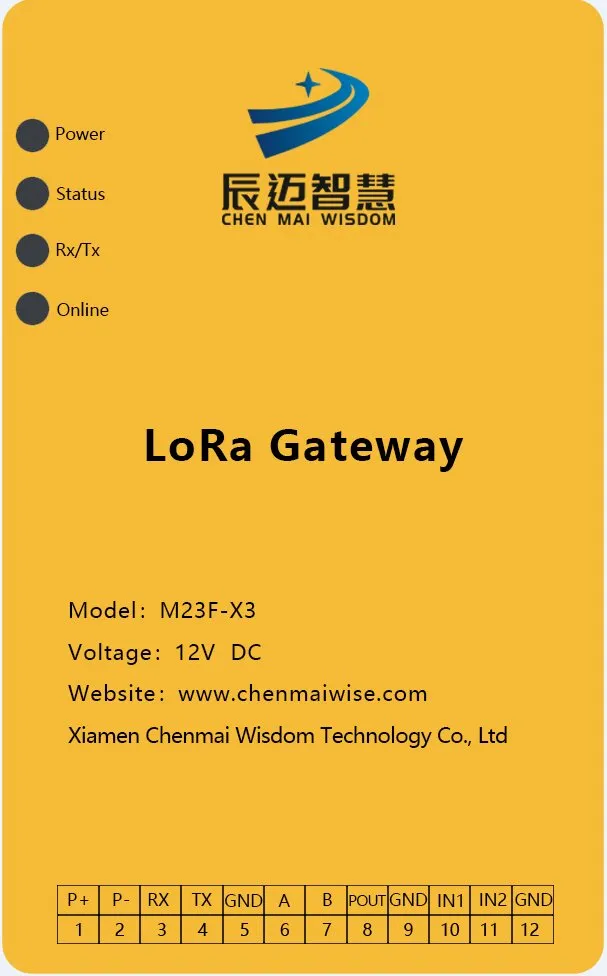

2-channel rain gauge input, 1-channel RS485, 1-channel RS232

🖼️Product Gallery

🌐Smart IoT Solutions

Vision: Co-create a Smart Earth and advance towards integrated technology! We are a provider of Smart IoT Terminal Products and Solution Services, integrating R&D and manufacturing to support government departments, industry clients, and the public.

Smart IoT Terminal Capabilities

Our terminals, based on edge computing, integrate multiple communication technologies including 5G/4G, Beidou/GPS, NB-LoRa, and optical fiber broadband. They build a space-air-ground integrated monitoring system for various industrial sectors.

Cloud-end Monitoring & Early Warning

Leveraging cloud computing and big data, our platforms feature real-time large-screen visualization, remote management, and threshold-crossing alarms. These systems are widely applied in smart water conservancy, intelligent transportation, and emergency disaster prevention.
