Basic Information
Connection Mode
Push-Pull Connection
Termination
Welding Connection
Type
Filter Electric Connector
Character
Environmental Protection
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Product Description

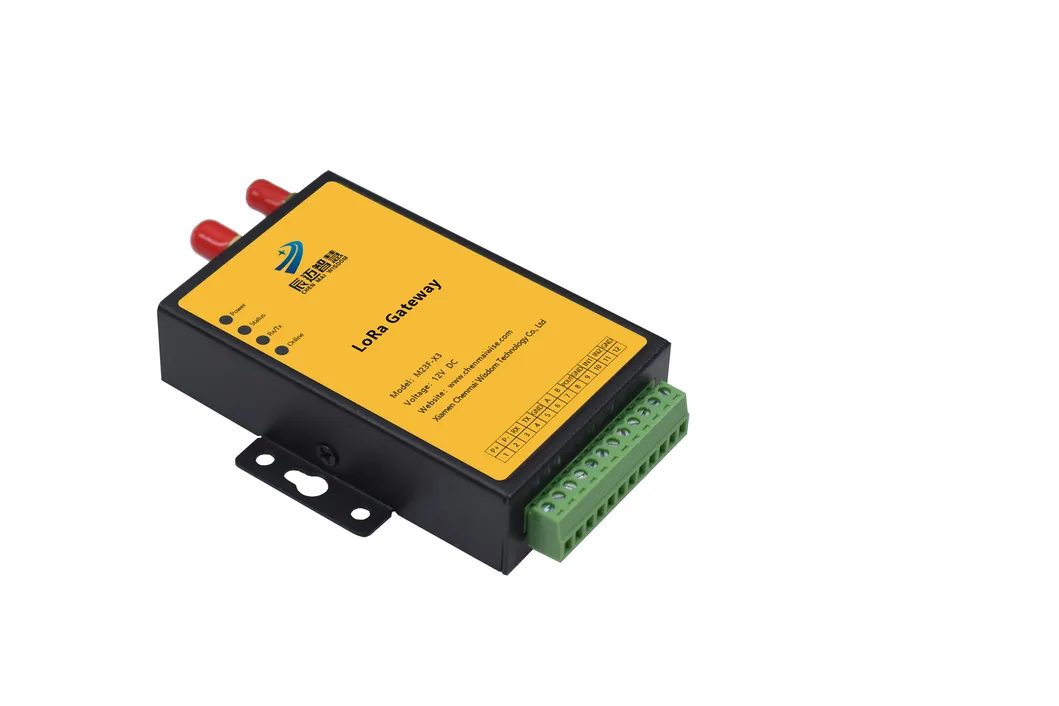

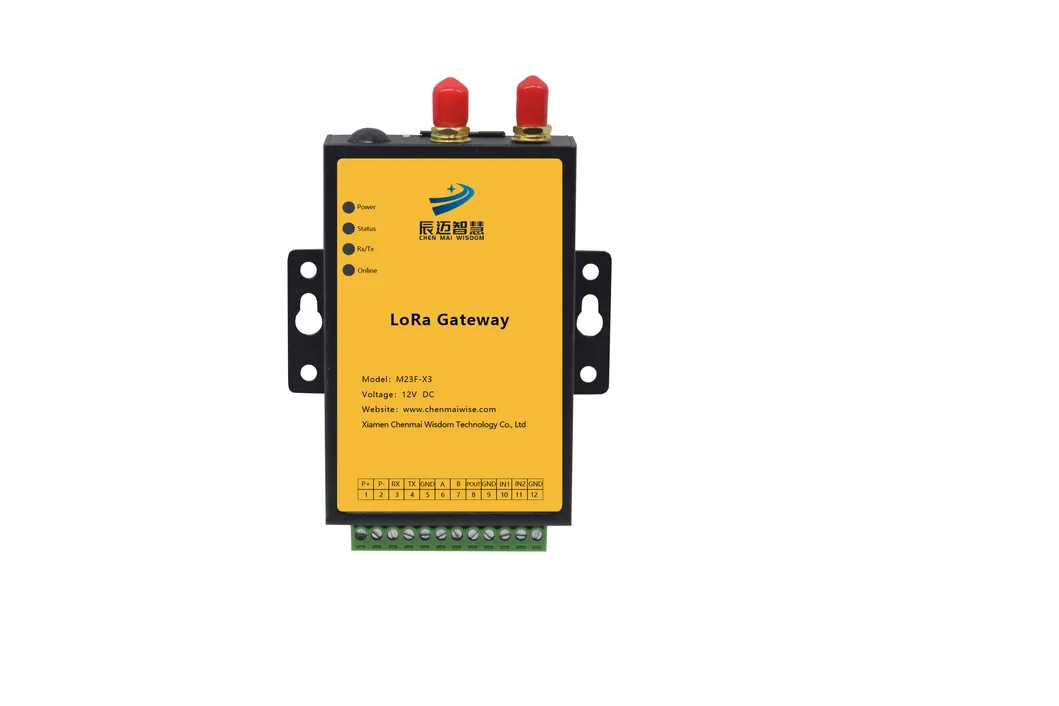

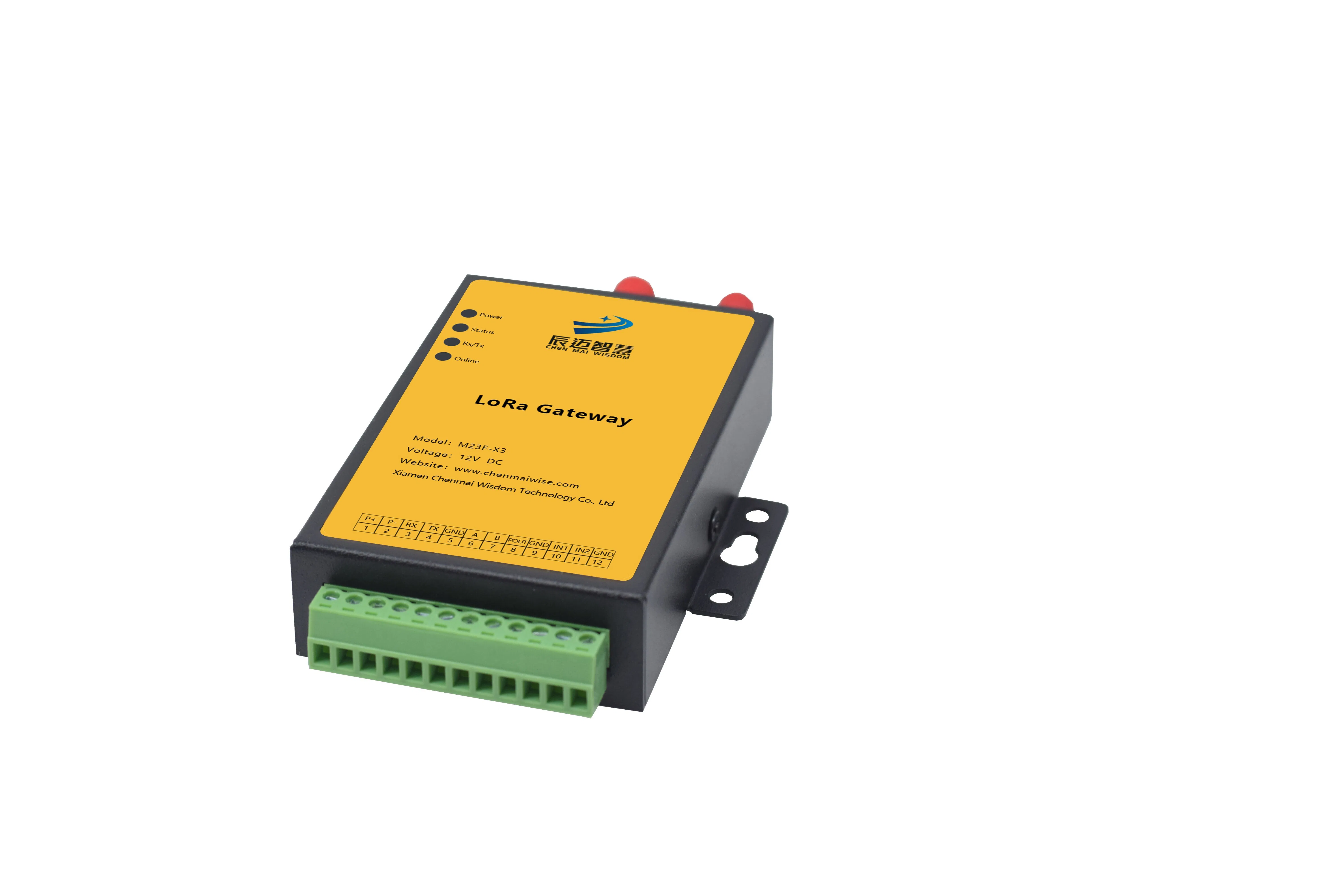

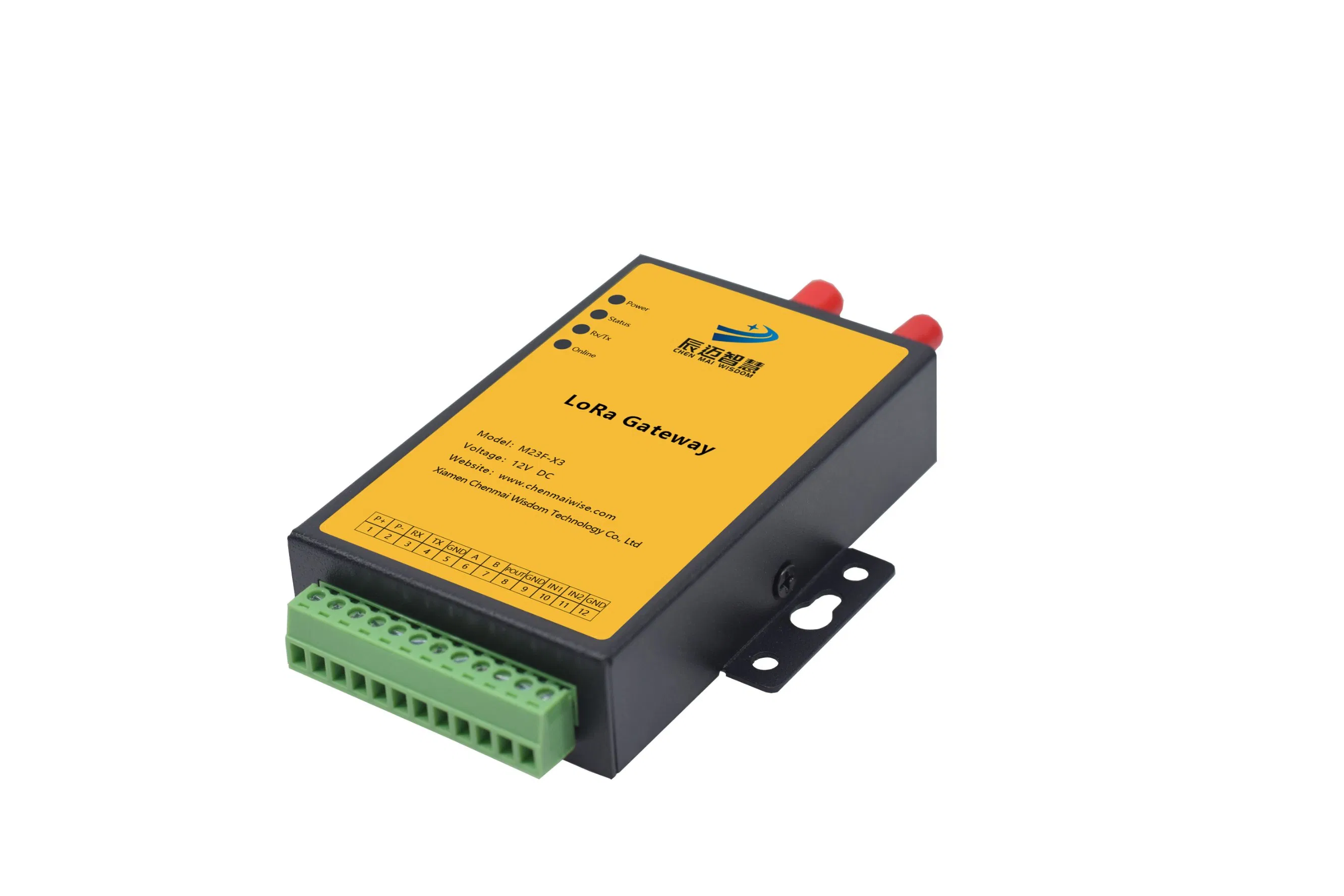

The M23F-X3 LoRa Terminal is an independently developed data transmission device. It integrates LoRa and serial port communication technologies, enabling data exchange with external equipment via serial ports and flexible networking through LoRa networks. The terminal is equipped with interfaces including an incremental rain gauge port, RS232 and RS485, ensuring secure and transparent data transmission.
Featuring comprehensive functions, long-term stable and reliable performance, as well as simple maintenance, it allows for hassle-free operation. This product is widely applied in the M2M (Machine-to-Machine) industry, covering scenarios like smart water conservancy, intelligent transportation, smart construction sites, smart fire protection and smart water services.
Key Product Features
- Supports wireless data transmission over LoRa networks
- Supports local configuration, data export and firmware upgrade
- Adopts industrial-grade chips for stable performance
- Integrated WDT watchdog design for system stability
- Supports multiple baud rates and RF data rates
- Supports monitoring for power, temperature and signal strength
- System sleep power consumption ≤ 2 mA
- Operating temperature range: -30ºC ~ 75ºC
- Supports MODBUS-RTU communication protocol
- 2-channel rain gauge, 1-channel RS485, 1-channel RS232
Technical Solutions & Infrastructure
Our solutions focus on co-creating a Smart Earth through advanced IoT terminal products. As a technology-driven provider, we integrate R&D and manufacturing to offer cloud-to-end smart IoT solutions for smart cities, environmental monitoring, and emergency disaster prevention.
Smart IoT Terminal Products: Based on edge computing, integrating 5G/4G, Beidou/GPS, NB-LoRa and optical fiber. These terminals build an integrated data collection system for space, air, and ground.
Cloud-end Monitoring: Leveraging cloud computing and big data, the platform features real-time visualization of GIS maps, videos, and monitoring data. It supports remote management, threshold alarms, and real-time early warnings via mobile applications.
Frequently Asked Questions
What communication protocols does the M23F-X3 support?
The M23F-X3 terminal supports the standard MODBUS-RTU communication protocol, ensuring compatibility with a wide range of industrial equipment and monitoring systems.
What is the operating temperature range for this terminal?
Designed for industrial environments, the device operates reliably in temperatures ranging from -30ºC to 75ºC.
Does the device support low power consumption modes?
Yes, the system is optimized for efficiency with a sleep mode power consumption of ≤ 2 mA, making it ideal for remote deployments.
What types of physical interfaces are available?

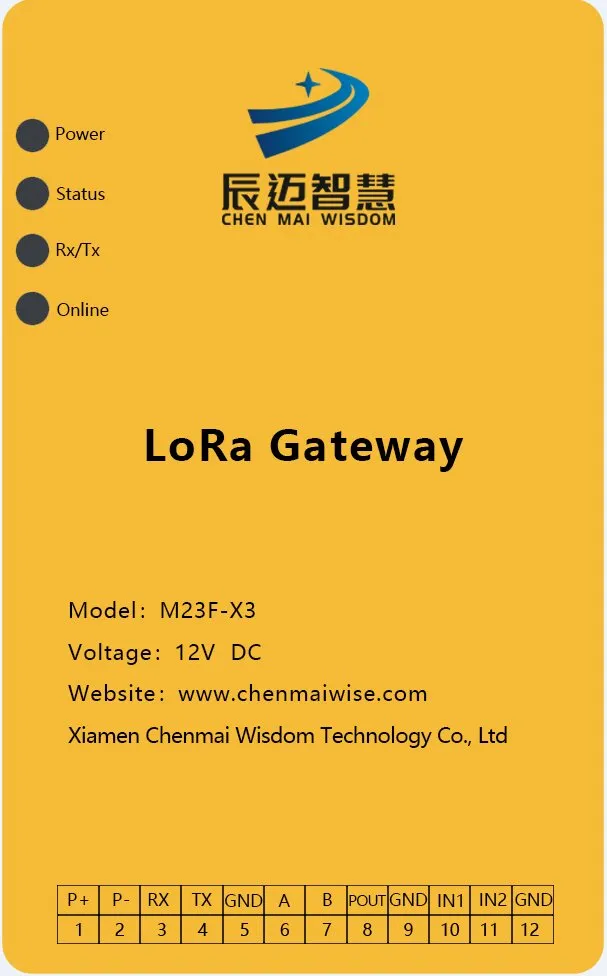

The terminal is equipped with 2-channel rain gauge inputs, 1-channel RS485, 1-channel RS232, and 1-channel controlled power output for versatile connectivity.
Can the firmware be updated remotely?
The device supports local configuration and firmware upgrades to ensure long-term stability and the addition of new features as needed.
How does the integrated WDT watchdog benefit the system?
The integrated WDT (Watchdog Timer) design automatically monitors system health and performs resets if software errors occur, ensuring 24/7 continuous and stable operation.
