Technical Specifications
| Model NO. |
M23F-X3 |
Connection Mode |
Push-Pull Connection |
| Shape |
Rectangle |
Contact Termination |
Welding Connection |
| Type |
Filter Electric Connector |
Character |
Environmental Protection |
| Process |
Ceramic |
Interface Type |
S-VIDEO |
| Origin |
China |
Material |
Metal / Ceramic |
Packaging & Delivery
| Package Size |
50.00cm * 50.00cm * 50.00cm |
| Package Gross Weight |
2.000kg |
| Transport Package |
Carton |
Product Overview

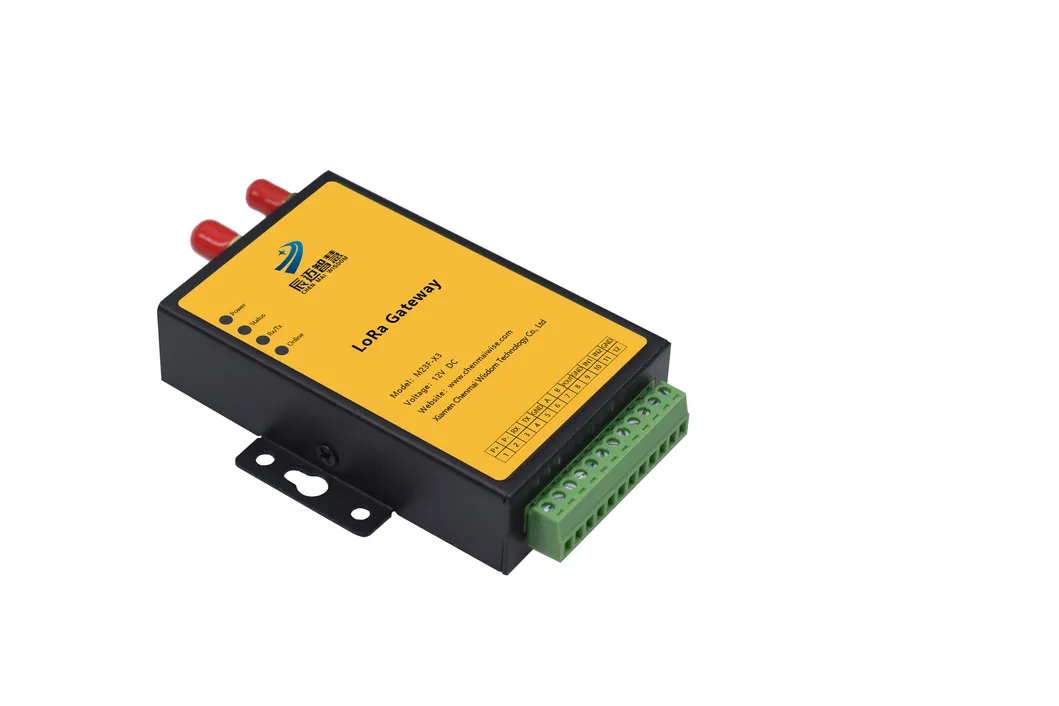

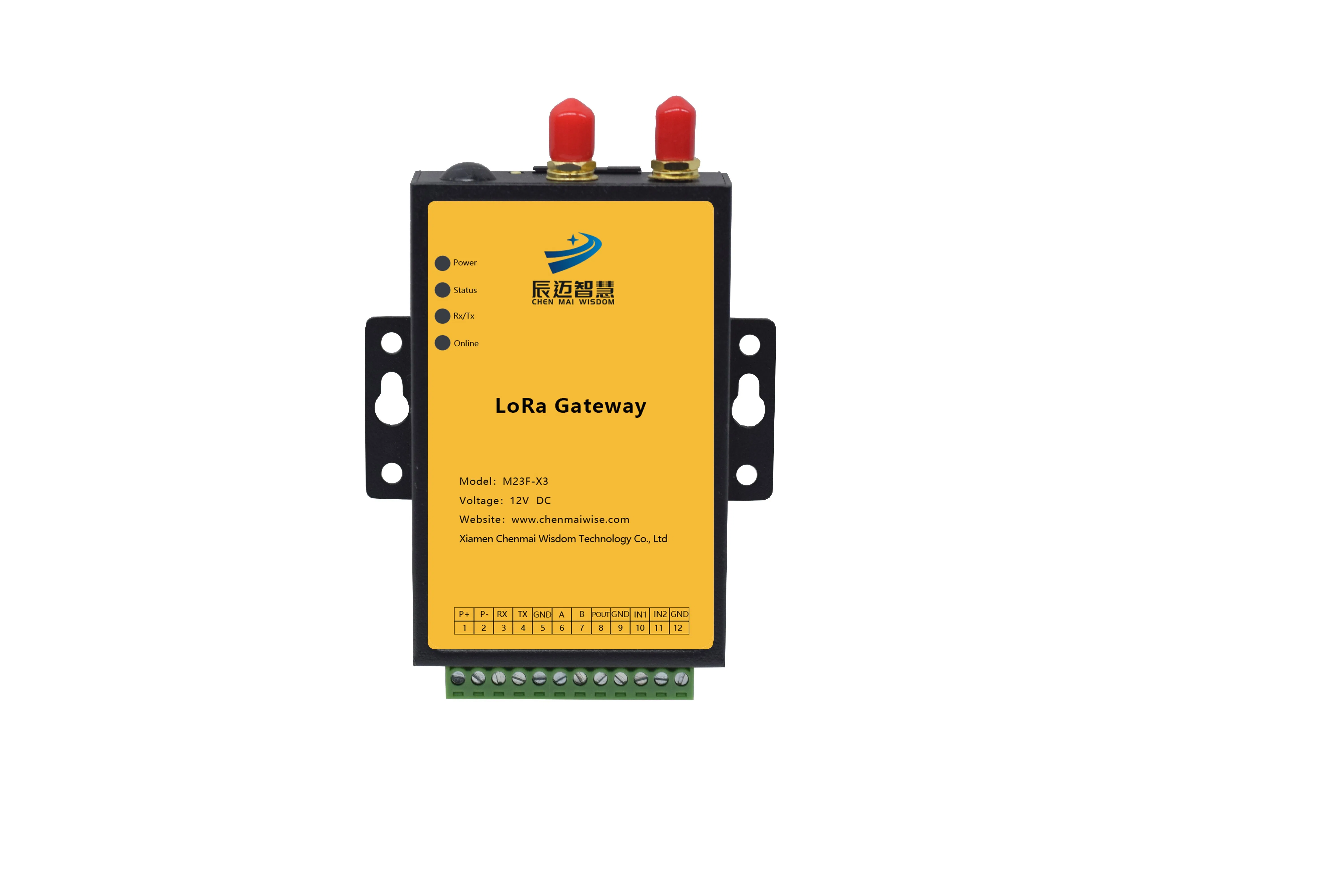

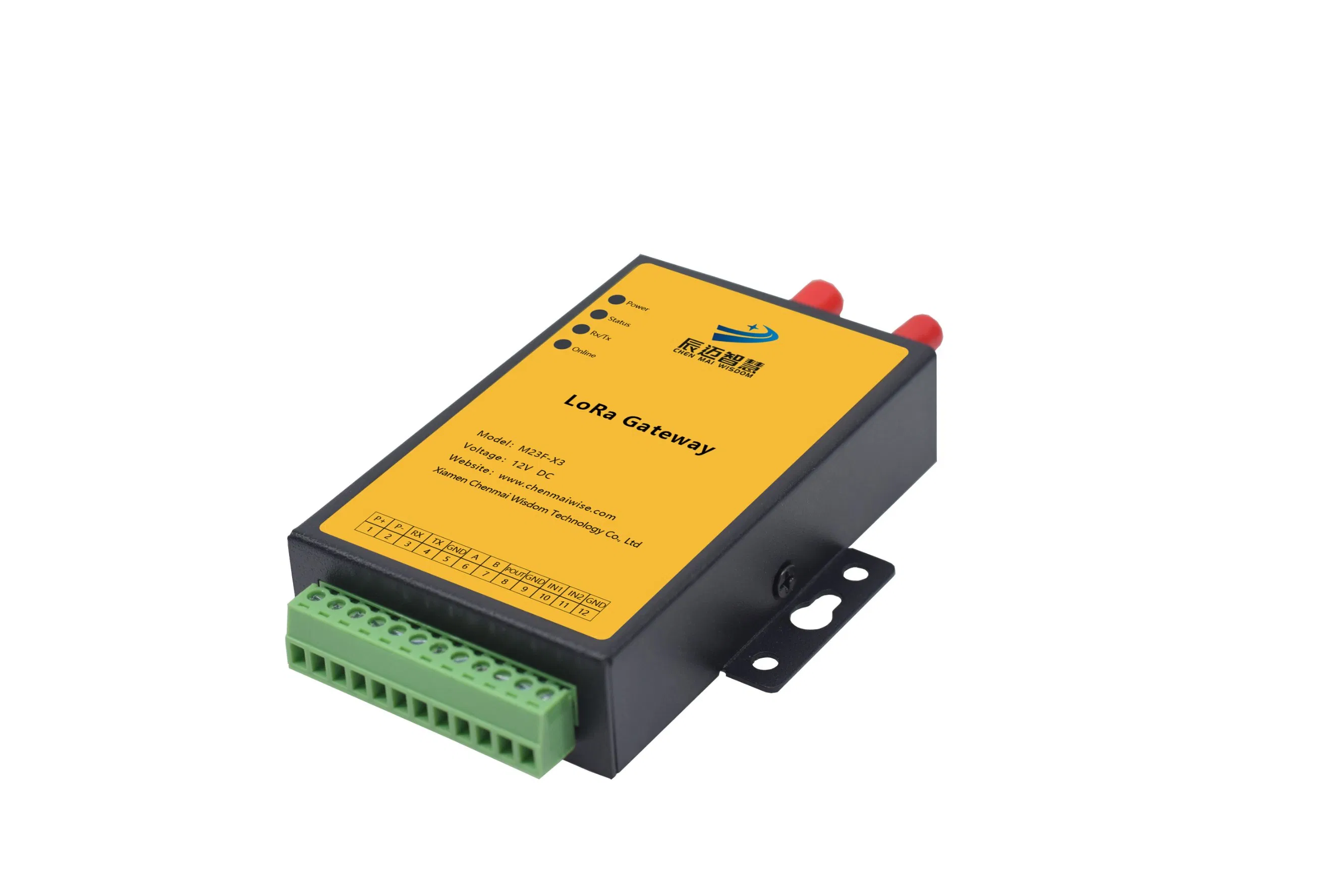

The M23F-X3 LoRa Terminal is an advanced data transmission device designed for seamless integration between LoRa and serial port communication technologies. It facilitates robust data exchange with external equipment via multiple serial ports, supporting flexible networking within LoRa infrastructures. The terminal features a versatile interface array, including an incremental rain gauge port, RS232, and RS485, ensuring secure and transparent data transmission across various industrial applications.
Engineered for long-term stability and reliability, this terminal offers comprehensive functionality with minimal maintenance requirements. It is an ideal solution for M2M (Machine-to-Machine) industries, including smart water conservancy, intelligent transportation, construction site monitoring, and smart fire protection services.
Key Product Features
- Supports wireless data transmission over LoRa networks
- Local configuration, data export, and firmware upgrades
- Industrial-grade chips for reliable performance
- Integrated WDT watchdog for system stability
- Supports multiple baud rates and RF data rates
- Real-time health monitoring (Power, Temp, Signal)
- Ultra-low sleep power consumption ≤ 2 mA
- Operating temperature: -30ºC to 75ºC
- Full support for MODBUS-RTU protocol
- 2-channel rain gauge & controlled power output
Smart IoT Solutions
Our technology vision focuses on creating a smarter environment through integrated IoT terminal products. By combining 5G/4G, Beidou/GPS, and NB-LoRa technologies, we provide a space-air-ground integrated data collection system.
Cloud Integration & Monitoring
The system utilizes cloud computing and big data to offer real-time visualization through GIS maps and video monitoring. Users can benefit from remote management, threshold-crossing alarms, and real-time cloud-to-end linkage for early warnings, providing a scientific basis for decision-making in government and industry sectors.
Frequently Asked Questions
1. What are the primary communication interfaces of the M23F-X3?

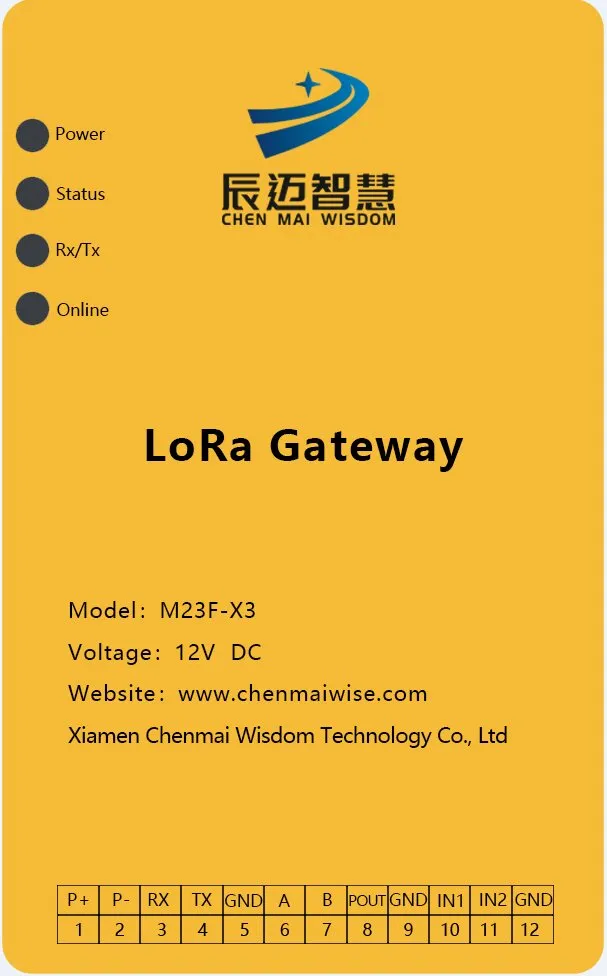

The M23F-X3 supports 1-channel RS485, 1-channel RS232, and 2-channel rain gauge inputs, making it highly versatile for sensor integration.
2. Does the terminal support industrial protocols?
Yes, the device fully supports the MODBUS-RTU communication protocol, which is widely used in industrial automation.
3. What is the power efficiency of the device during idle periods?
The system is designed for high efficiency, with a sleep mode power consumption of ≤ 2 mA, ideal for battery-powered or solar-powered applications.
4. Can this LoRa terminal operate in extreme temperatures?
Yes, it is built with industrial-grade components and has an operating temperature range of -30ºC to 75ºC.
5. How is the system stability ensured?
The terminal features an integrated WDT (Watchdog Timer) design, which automatically monitors and resets the system to prevent crashes or freezes.
6. What industries benefit most from this LoRa terminal?
It is widely applied in smart water services, intelligent transportation, environmental monitoring, and disaster prevention systems.
