M23f-X3 Lora Gateway: Advanced Technical Specifications for IoT Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🟦 Basic Specifications

Model NO.

M23F-X3

Connection Mode

Push-Pull Connection

Shape

Rectangle

Contact Form

Welding Connection

Type

Filter Electric Connector

Character

Environmental Protection

Production Process

Ceramic

Interface Type

S-VIDEO

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

2.000kg

🟦 Product Description

The M23F-X3 LoRa Terminal is an advanced data transmission device designed for seamless communication. It integrates LoRa and serial port technologies, enabling efficient data exchange with external equipment via RS232 and RS485 interfaces. The terminal is specifically equipped for environmental monitoring with an incremental rain gauge port, ensuring secure and transparent data transmission across various industrial networks.

🟦 Key Features & Technical Advantages

✓ Supports long-range wireless data transmission over LoRa networks.

✓ Industrial-grade chip integration for stable, 24/7 reliable performance.

✓ Built-in WDT watchdog design to prevent system crashes and ensure stability.

✓ Ultra-low power consumption: system sleep mode ≤ 2 mA.

✓ Wide operating temperature range: -30ºC to 75ºC for harsh environments.

✓ Versatile I/O: 2-channel rain gauge input, 1-channel RS485, and 1-channel RS232.

✓ Full support for MODBUS-RTU industrial communication protocols.

✓ Real-time monitoring of power supply, temperature, and signal strength.

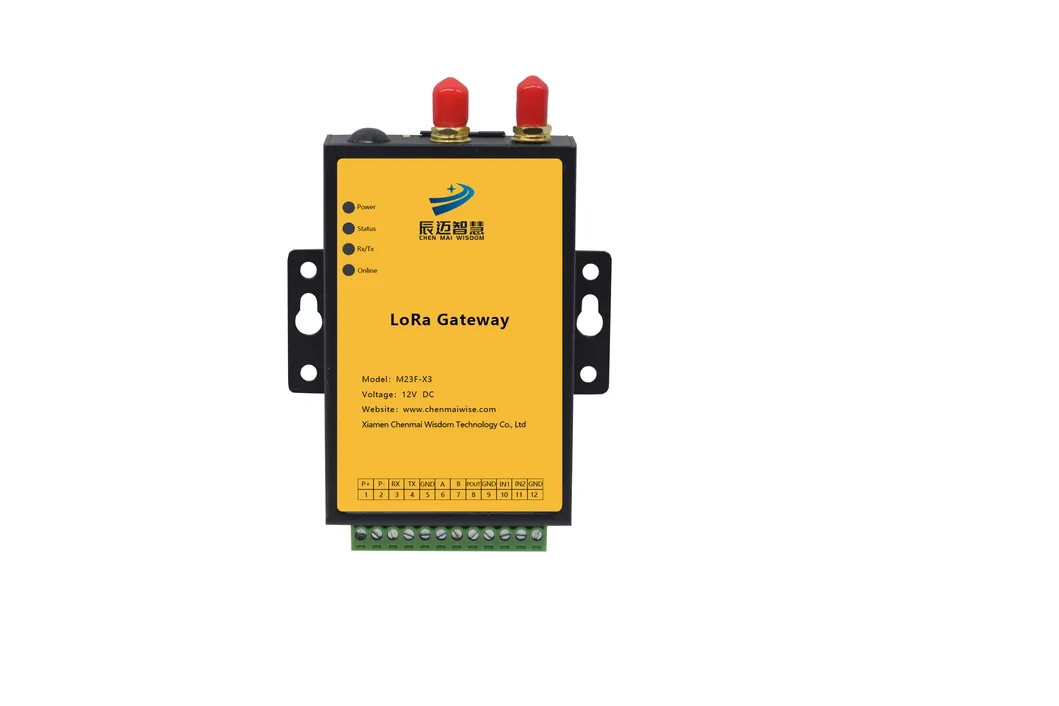

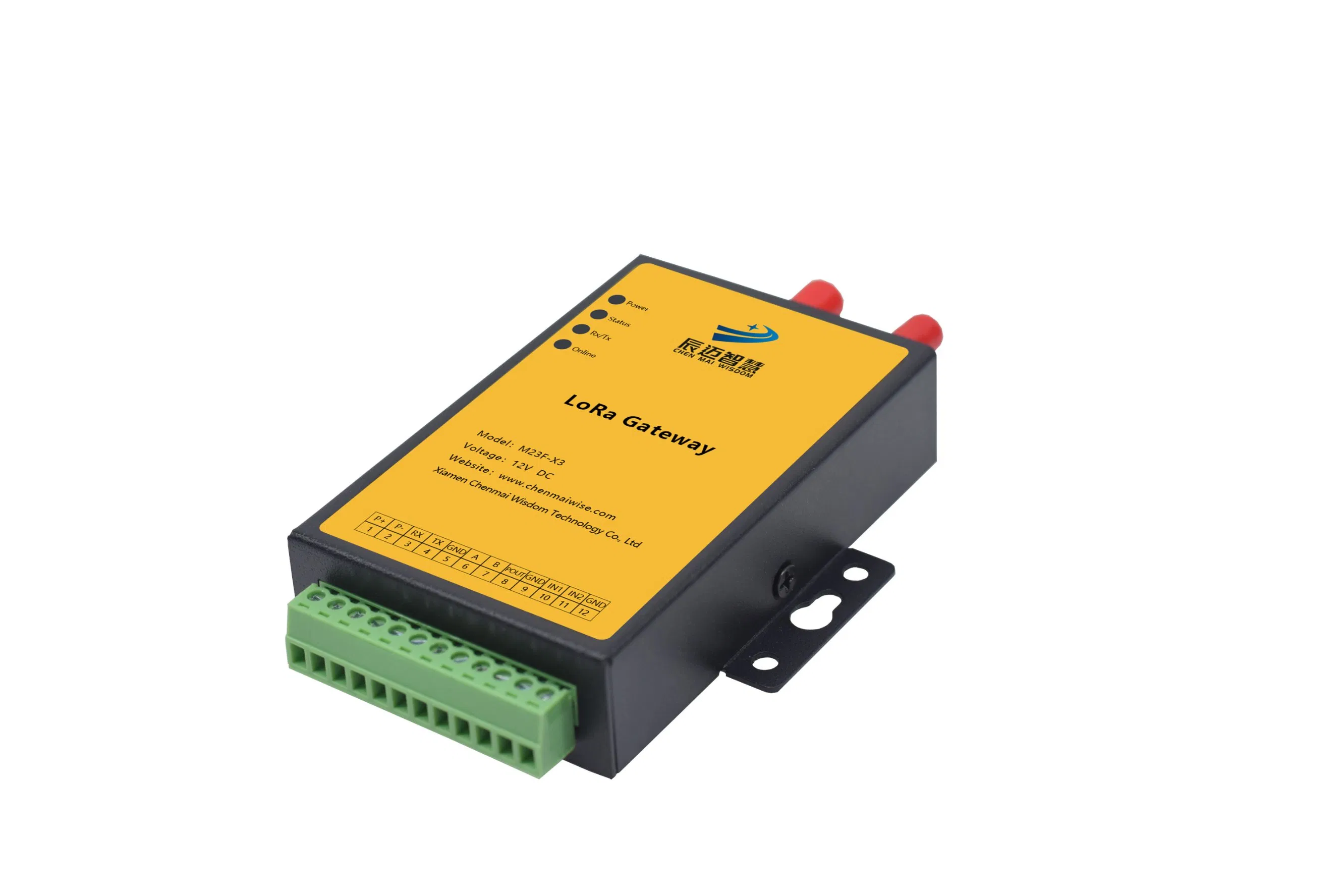

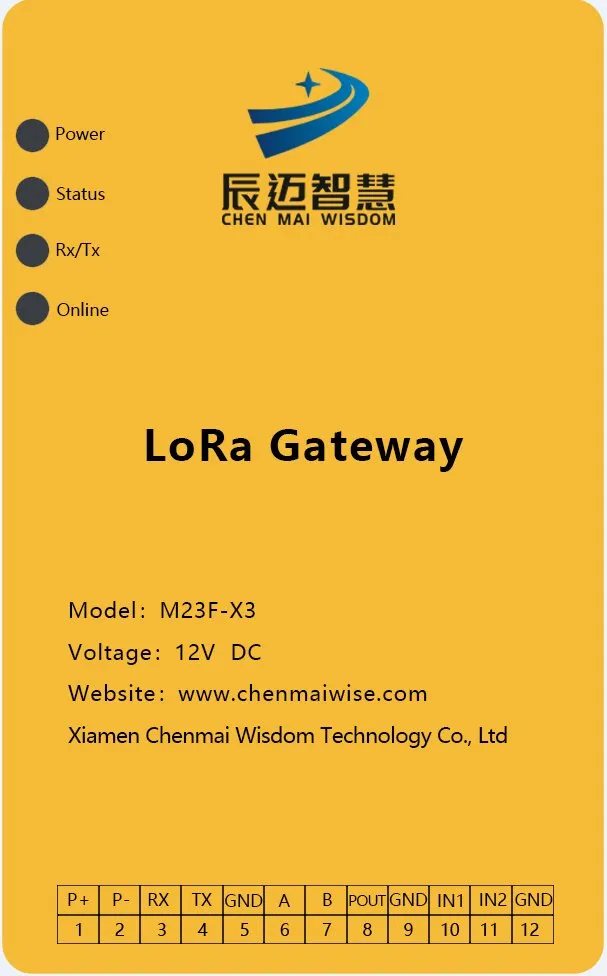

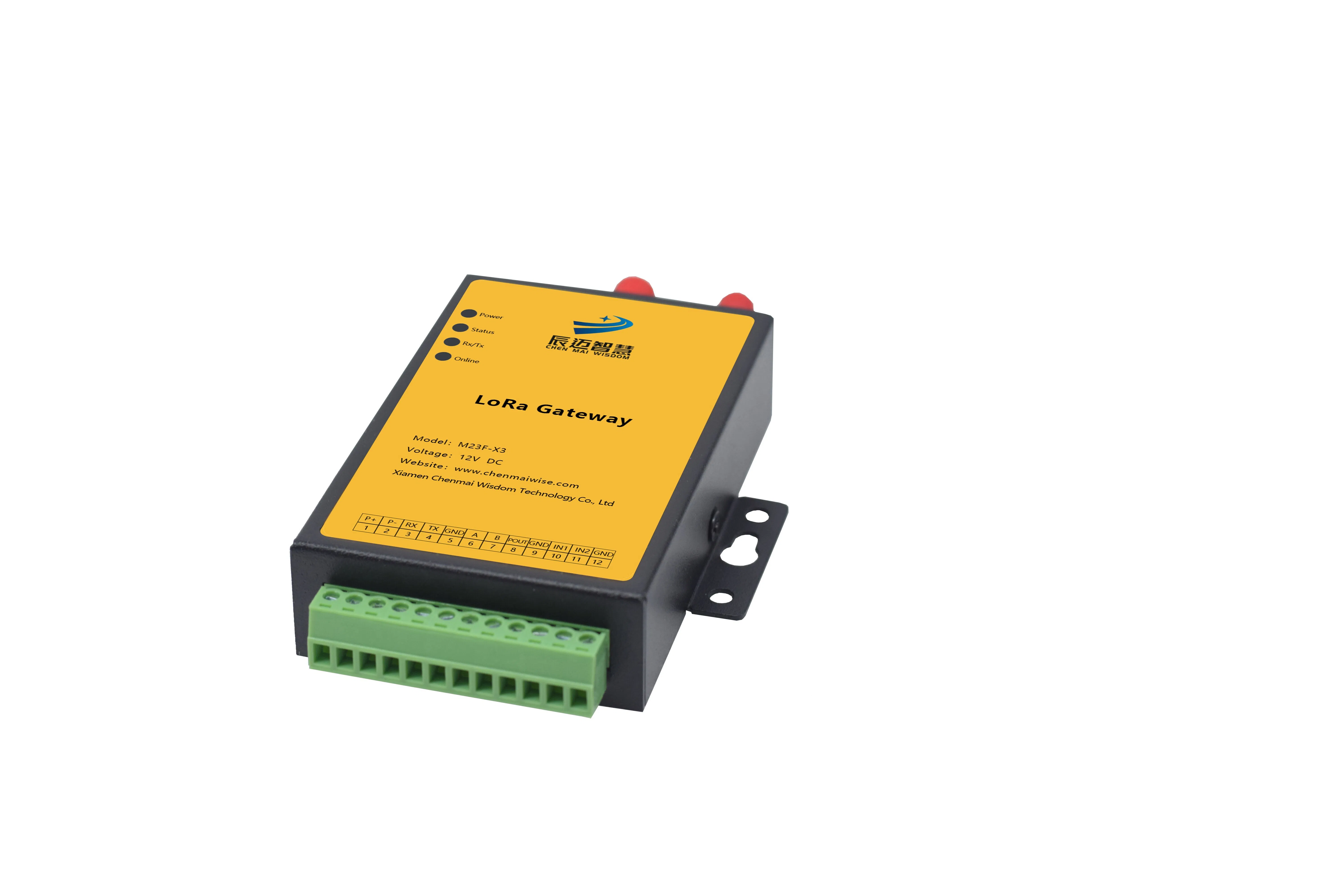

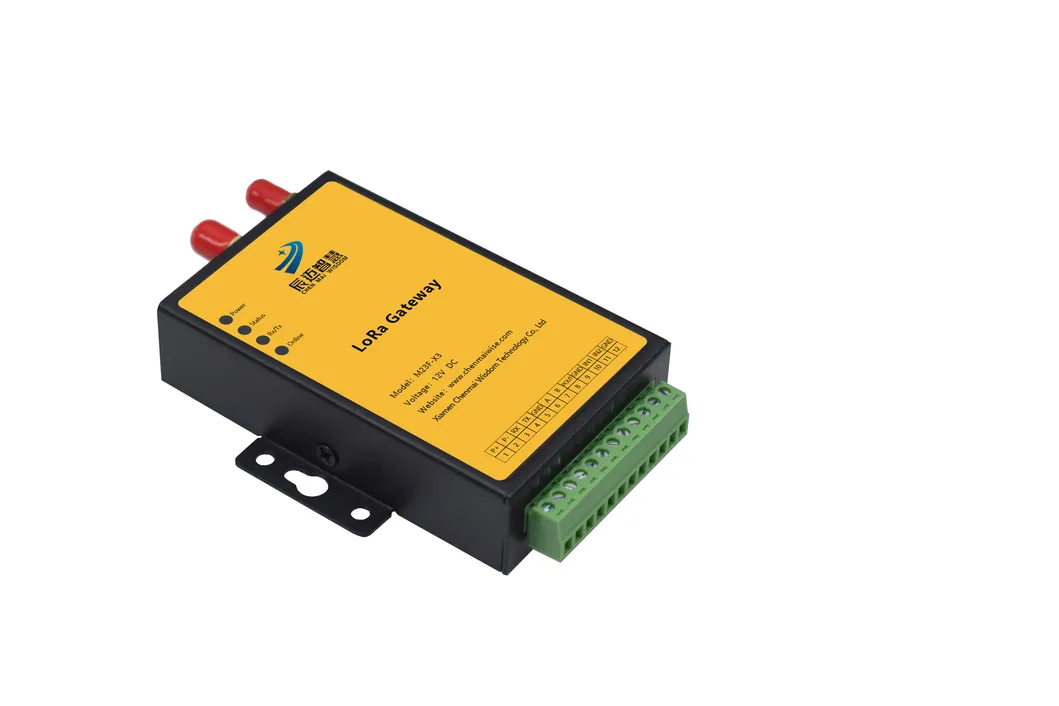

🟦 Product Visualization

🟦 Frequently Asked Questions

Q: What communication protocols does the M23F-X3 support? A: The terminal supports wireless LoRa data transmission and the standard industrial MODBUS-RTU communication protocol.

Q: Can the device handle extreme weather conditions? A: Yes, it is built with industrial-grade components and operates reliably within a temperature range of -30ºC to 75ºC.

Q: What type of sensors can be connected to this terminal? A: It features specialized interfaces for 2-channel rain gauge inputs, as well as RS485 and RS232 ports for various industrial sensors.

Q: Is the device energy-efficient for remote locations? A: Absolutely. The terminal is designed for low power consumption, with a system sleep current of less than or equal to 2 mA.

Q: How does the system ensure continuous operation? A: It includes an integrated WDT watchdog design which automatically monitors system health and prevents long-term downtime.

Q: Can I upgrade the device firmware remotely? A: The terminal supports local configuration, data export, and firmware upgrades to maintain performance and add features.
