Medical Diagnosis Equipment Digital 4D Ultrasound System

Customization:	Available
Customized:	Non-Customized
Certification:	CE, ISO13485

Basic Information

Model NO.

HP-UC900Ei

Scale

Medium

Name

Trolley Ultrasound Scanner

Display Mode

Cw/Pw

Display

15 Inch LED Monitor

Warranty

24 Month

Probe Connector

4

Probe Element

128

Transport Package

Carton Package

Specification

15 Inch color doppler

Origin

China

HS Code

9018121000

Capacity

200 Sets Per Month

Product Description

The familiar PC system, 15 inch LED monitor, ergonomic & rotatable design operation panel, free arm with 360 degree rotation and four probe connectors make the machine operate easily and conveniently.

Main Features

15 inch high resolution medical LED monitor

LED light below the monitor

180 degree rotatable free arm

Compact structure and elegant appearance

180 degree rotatable keyboard

Satellites orbiting type control panel and backlit keyboard design

Built-in floating standard keyboard

Special USB interface design on the left side of control panel

Four probe connectors

Compatible with convex, linear, transvaginal, and phased array probes

Technical Specifications

Displaying mode	B, B/B, 4B, B/M, M, PW, CW, B/C, B/C/D, B/D, duplex, triplex, CF
Signal processing	Full-digital beam forming, dynamic filter, RDA, DRA, CFM processing, real-time dynamic focusing
Image processing	THI, PSHI TM broadband multi-frequency, Speckle-reduction, iBeam TM, iZoom TM, One-key optimization
General measurement	B mode-distance, circumference, area, volume; M mode- distance, time, velocity, heart rate
Packages	Abdomen, OB, Gynecological, Urology, Small parts, Cardiac, Skeletal & Muscles, Vascular
Scanning depth	Up to 300mm
Storage	500G HDD; Format: BMP, JPEG, PNG
Ports	VGA, USB port, DICOM port (network port)
Dimension	750mm × 600mm × 1380mm (Net)
Weight	65kg (Net weight)

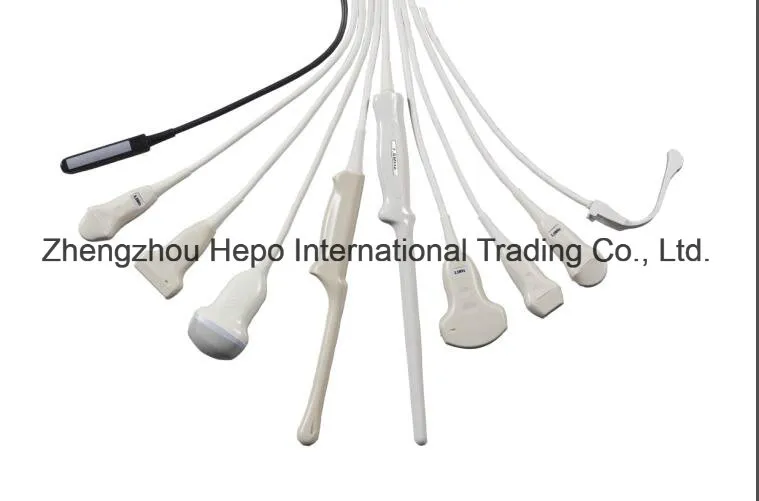

Probes Configuration

Configuration	Probes	Multi-frequency Steps
Standard	3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
Standard	7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
Options	6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz
Options	3.5MHz micro-convex probe	2.0, 2.5, 3.5, 4.5, 5.0Mhz
Options	3.0Mhz phased array probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
Options	4D Volume probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz

FAQ / Frequently Asked Questions

1. How to get the selected products? Products can be sourced directly from the international head office or through authorized local agencies. Please contact a sales engineer for regional availability.

2. How to place an order or inquiry? Fill out the inquiry form on the product page with your specific model requirements or demands and submit it to our team.

3. What payment terms are accepted? For business entities and distributors, T/T and L/C at sight are accepted. For individual end-users, Western Union options are available.

4. What are the available delivery methods? Options include Sea Shipment (cost-effective for all products), Air Shipment (fast delivery for packages under 1.4m), and International Express (DHL, TNT, FedEx).

5. What is the production lead time? Typically, products are ready for delivery within 10 days, including production and final packaging.

6. How can I apply for a local agency? Request an Agency Information Form from our sales engineers. After submission, our team will review and contact you within a few business days.
