🔵 Basic Information
Product Name
Magnetic Resonance Imaging
Certification
CE, FDA, ISO13485
Instrument Class
Class III
Power Source
Electric (AC220V/110V)
Material
Metal / Wooden Boxes
After-Sale Service
Online Technical Support

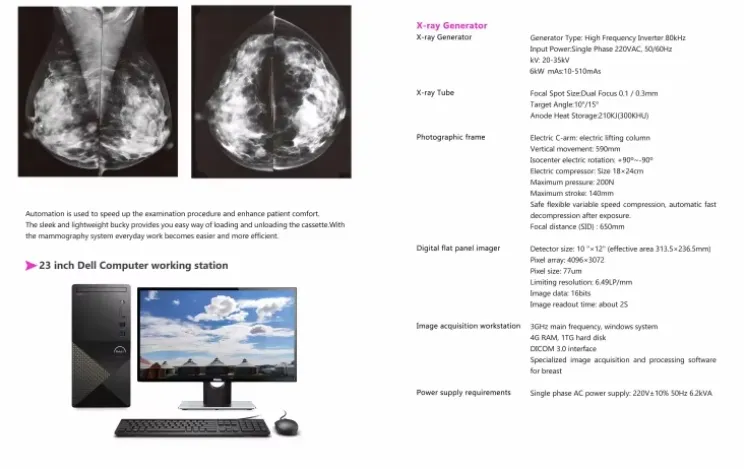

⚙️ Technical Specifications
Generator Type
High Frequency Inverter 80kHz
Radiographic Ratings
Large Focal: 20-35kV/10-510mAs; Small Focal: 20-35kV/10-100mAs
X-ray Tube Focus
Dual Focus 0.2 / 0.4mm
Anode Drive
High-speed 2800rpm, Target Angle 12°
U-arm Movement
Vertical 590mm, Rotation +90° to -90°
Compressor
Automatic release after exposure, Max Pressure 200N
Detector Material
Amorphous Silicon, 24cm×30cm Coverage
Pixel Resolution
2816×3528 Matrix, 85μm Pixel Size
Workstation CPU
Intel Core Duo 3.0GHz, ≥8G Memory, ≥1T HDD
Software
Imaging Software Package DMOC V1.0, DICOM 3.0
🏢 About Us
We adhere to the concept of quality first and superior service. Being practical, pragmatic, and enterprising, we develop new and far-reaching multi-channel and multi-level business cooperation. Relying on years of experience in the medical industry and broad development prospects, we strive to be specialized, refined, and strong in our field.
✅ Key Advantages
- 🔹 Original Manufacturer: Professional equipment and manufacturing processes.
- 🔹 Large Output: Capability to produce more than 50,000 PCS each month.
- 🔹 Quality Control: ISO13485 Management system; 100% factory tested.
- 🔹 Cost Advantage: Professional scale economy benefits for competitive pricing.
- 🔹 Diverse Series: Multiple models meeting different international standards.
- 🔹 Export Expertise: Over 5 years of global exporting experience.
🖼️ Exhibition
🛠️ Our Services
- ⭐ Support customization based on special requests.
- ⭐ OEM services available.
- ⭐ Special LOGO printing available.
- ⭐ Fast shipping within 5-7 days via FedEx, DHL, TNT, EMS, UPS.
If you have any interests or need more info on our surgical lights and allied gas items (gas cylinder valves, regulators, medical central oxygen systems), you are welcome to enquire anytime!
❓ Frequently Asked Questions

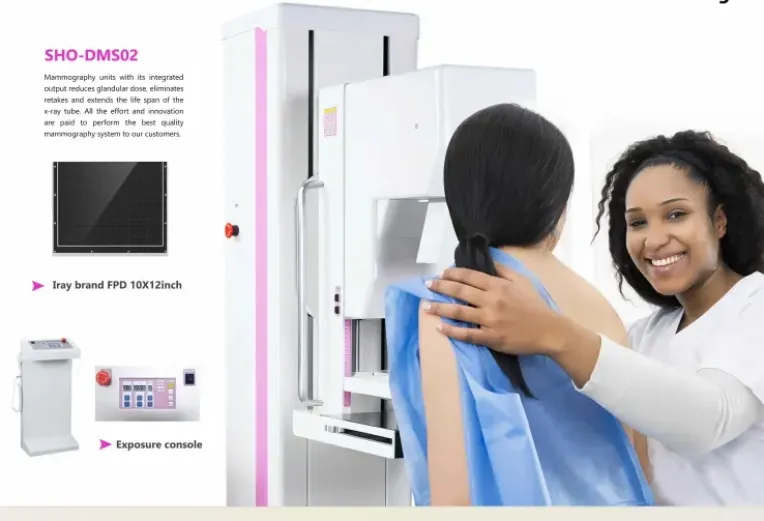

1. What certifications does this Mammography system have?
The system is fully certified with CE, FDA, and ISO13485 standards, ensuring compliance with international medical safety regulations.
2. What is the detector material and resolution?
The system uses an Amorphous Silicon detector with a 2816×3528 pixel matrix and an 85μm pixel size for high-resolution diagnostic imaging.
3. Can the equipment be customized or branded (OEM)?
Yes, we support full customization and OEM services, including special LOGO printing to meet your specific market requirements.
4. What is the rotation range of the U-arm stand?
The radiographic stand features a U-arm with a vertical movement of 590mm and a rotation range of +90° to -90° for flexible positioning.
5. How long does shipping take after payment?
Orders are typically processed and shipped within 5-7 days after 100% payment is received, using reliable carriers like FedEx, DHL, and UPS.
6. What type of after-sale support is provided?
We provide comprehensive online technical support to assist with installation, operation, and troubleshooting of the equipment.
