Pet Diagnosis Equipment Veterinary Digital Portable Animal Xray System

1 / 5

Pet Diagnosis Equipment Veterinary Digital Portable Animal Xray System

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Information

Model NO.	HFX-08	Certification	CE, ISO13485
Power	5kw	Kv Range	40~125kv
Ma Range	5~160mA	Mas Range	0.1-200mas
Working Frequency	100kHz	Exposure Time	0.0032s~10s
Transport Package	Standard Export Carton Packing	Specification	CE, ISO
Production Capacity	500 Piece/Month	-	-

Product Description

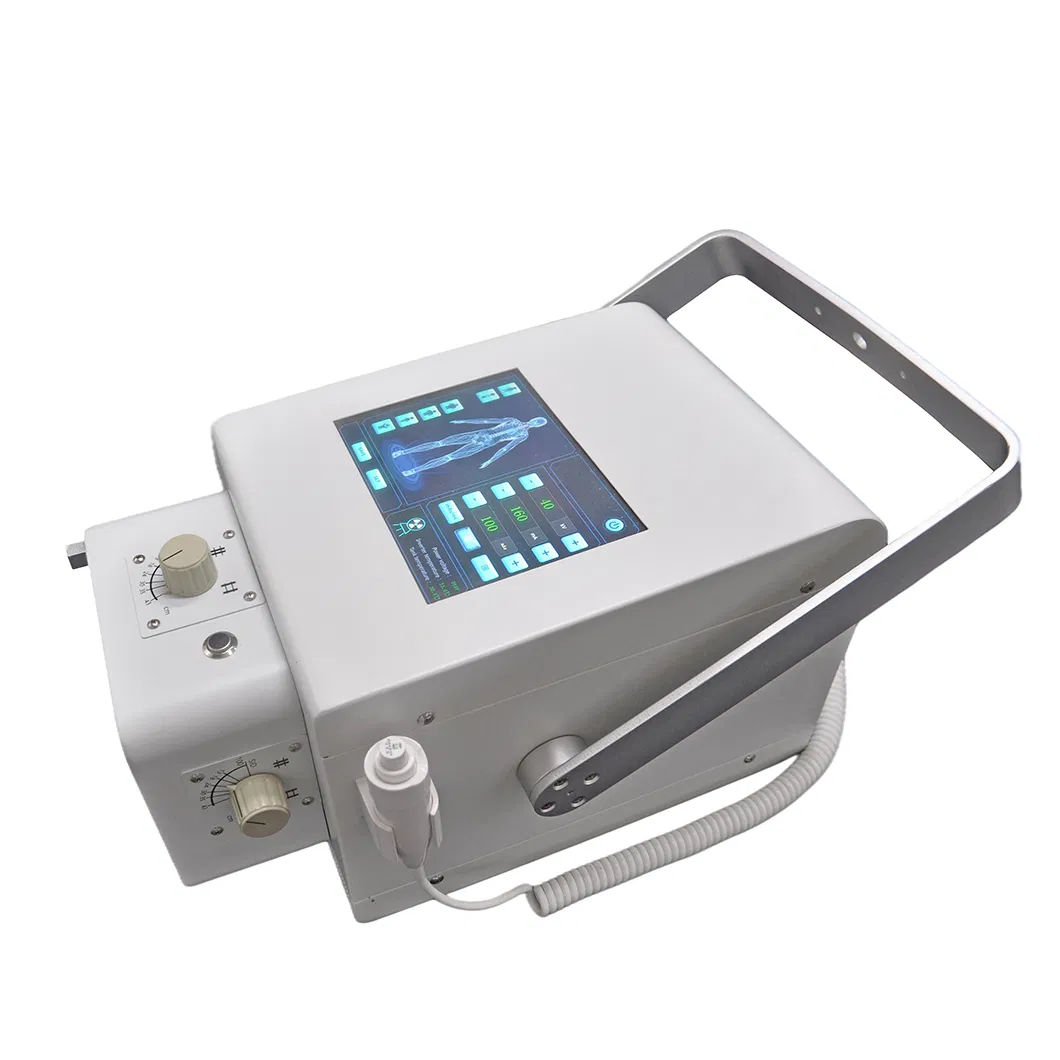

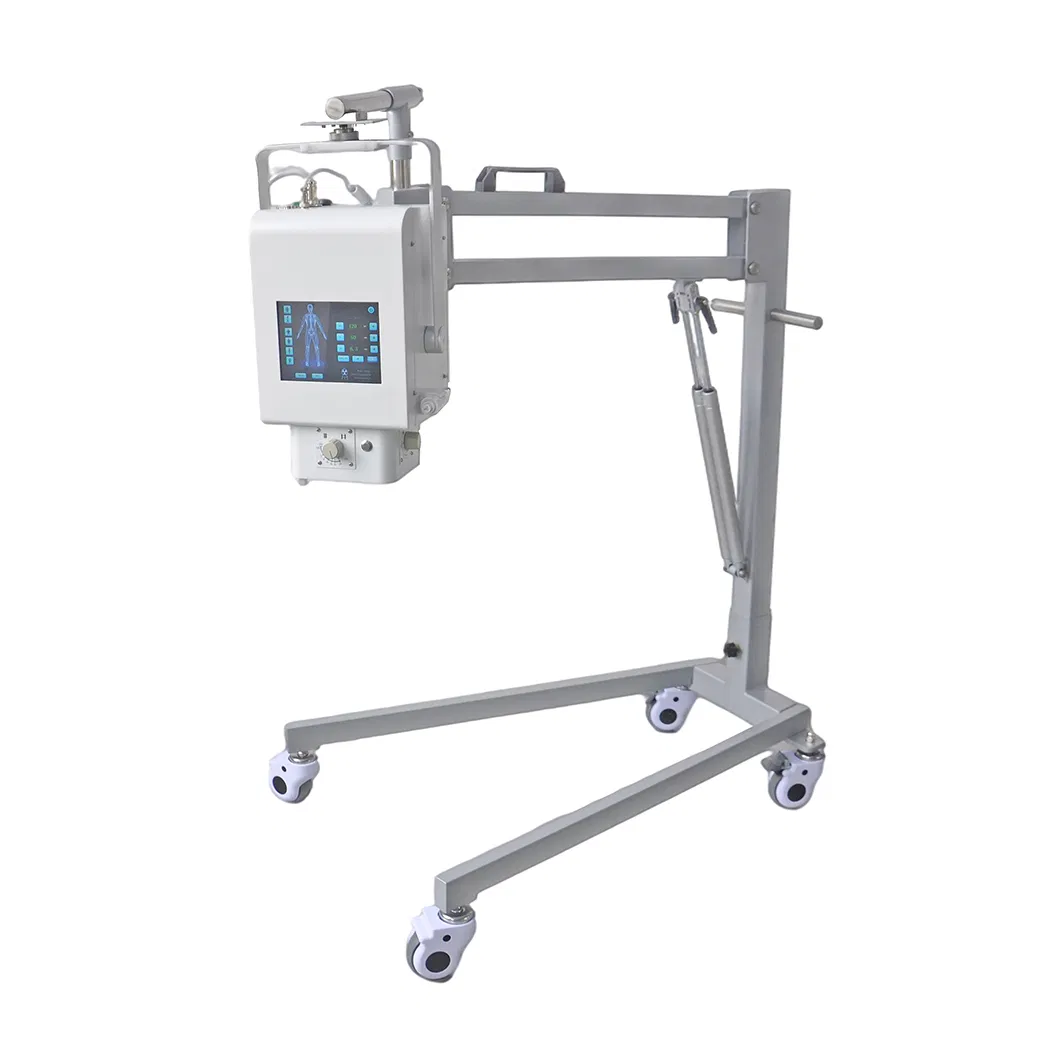

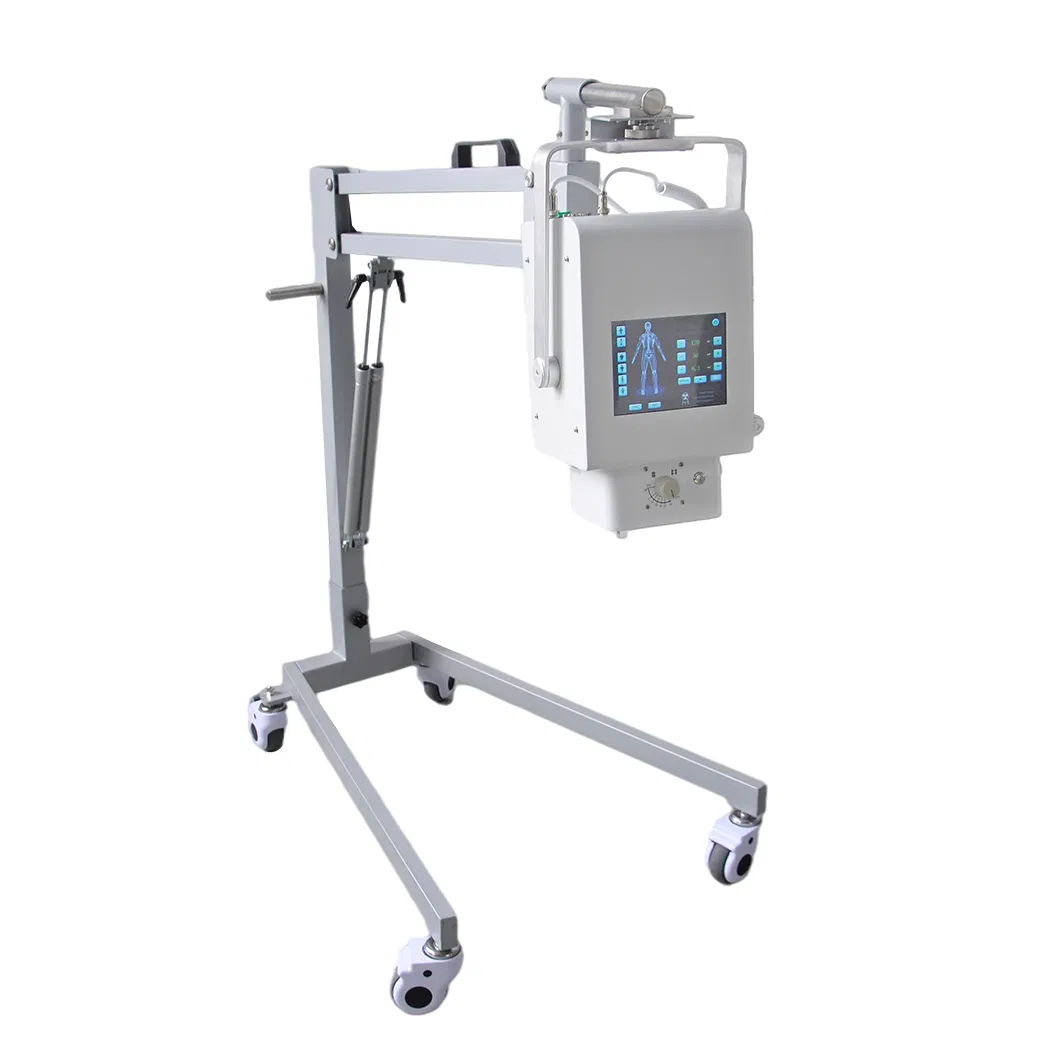

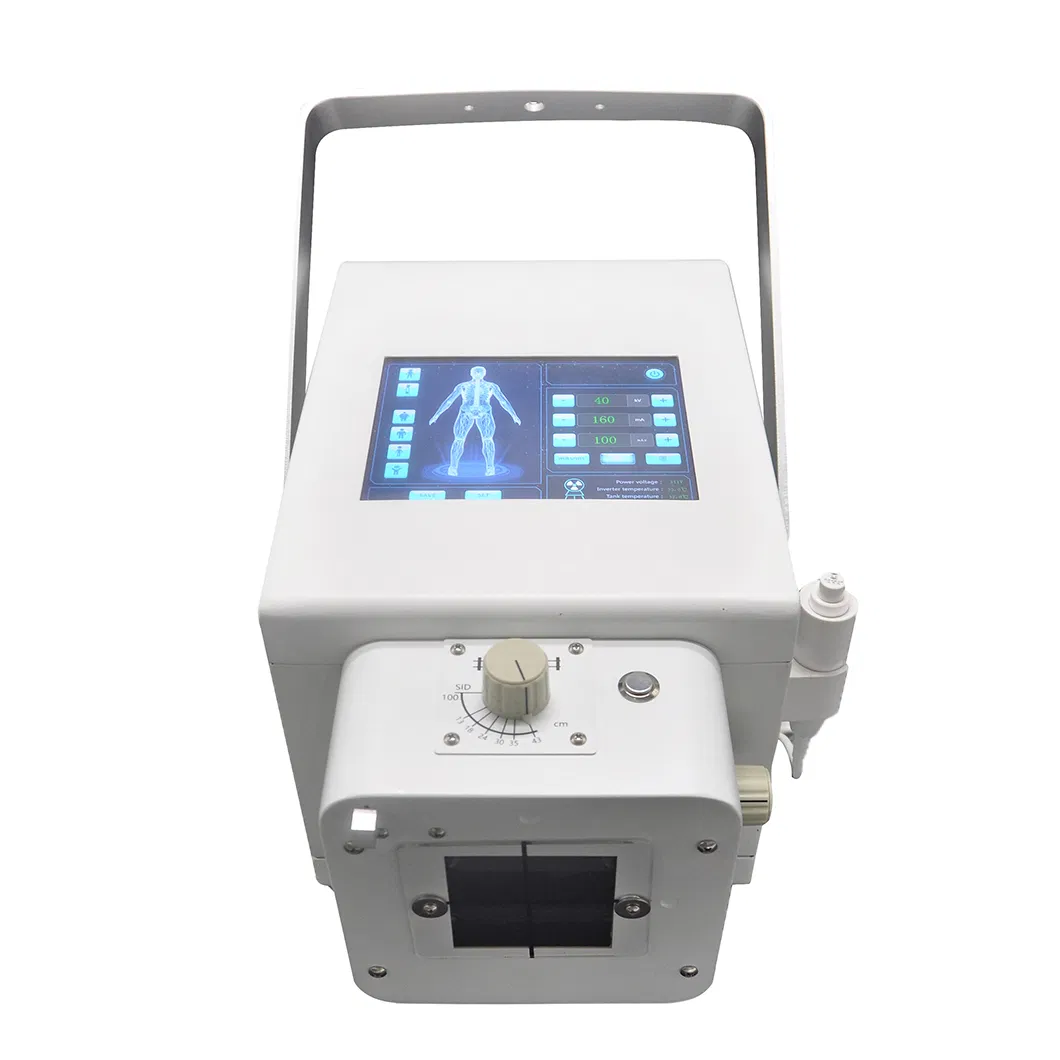

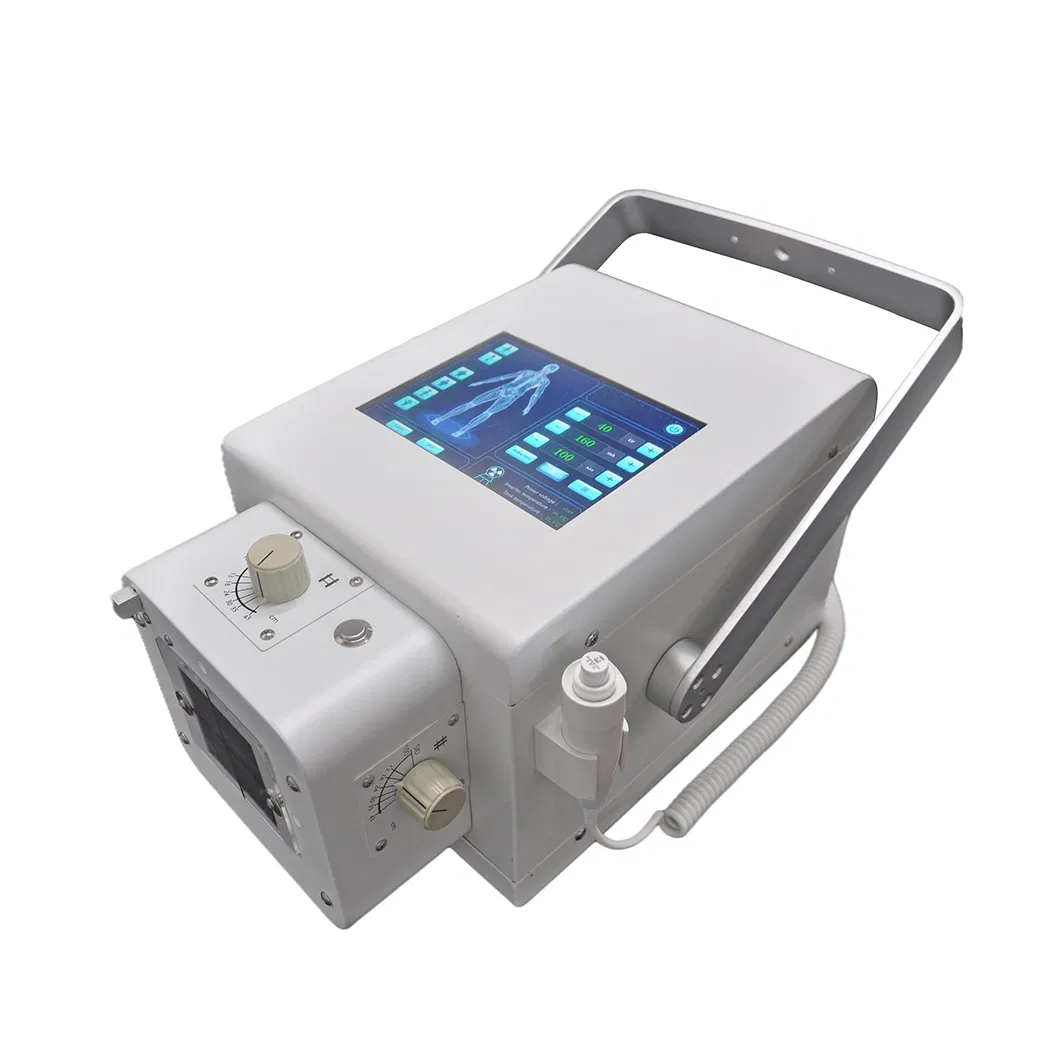

HFX-08 Veterinary Digital Portable X-ray System

Application:
HFX-08 can be widely used for human limbs checking and diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, and charity organizations etc.

Technical Specifications

X-ray Machine Parameters
Power	8kW
Voltage	AC220V ± 10%
kV Range	40~125kV
mA Range	5~160mA
mAs Range	0.1-200mAs
Working Frequency	100kHz
Exposure time	0.0032S~10S
Single Focus	2.0 mm
Head size / Weight	420mm245mm240mm / 18KG
Detector Parameters
Size	17*17 inch
Scintillator	CsI
Pixel Size	139um
AD Conversion	16 bit
Wifi	2.4G & 5G
Image Transfer	Gigabit Ethernet

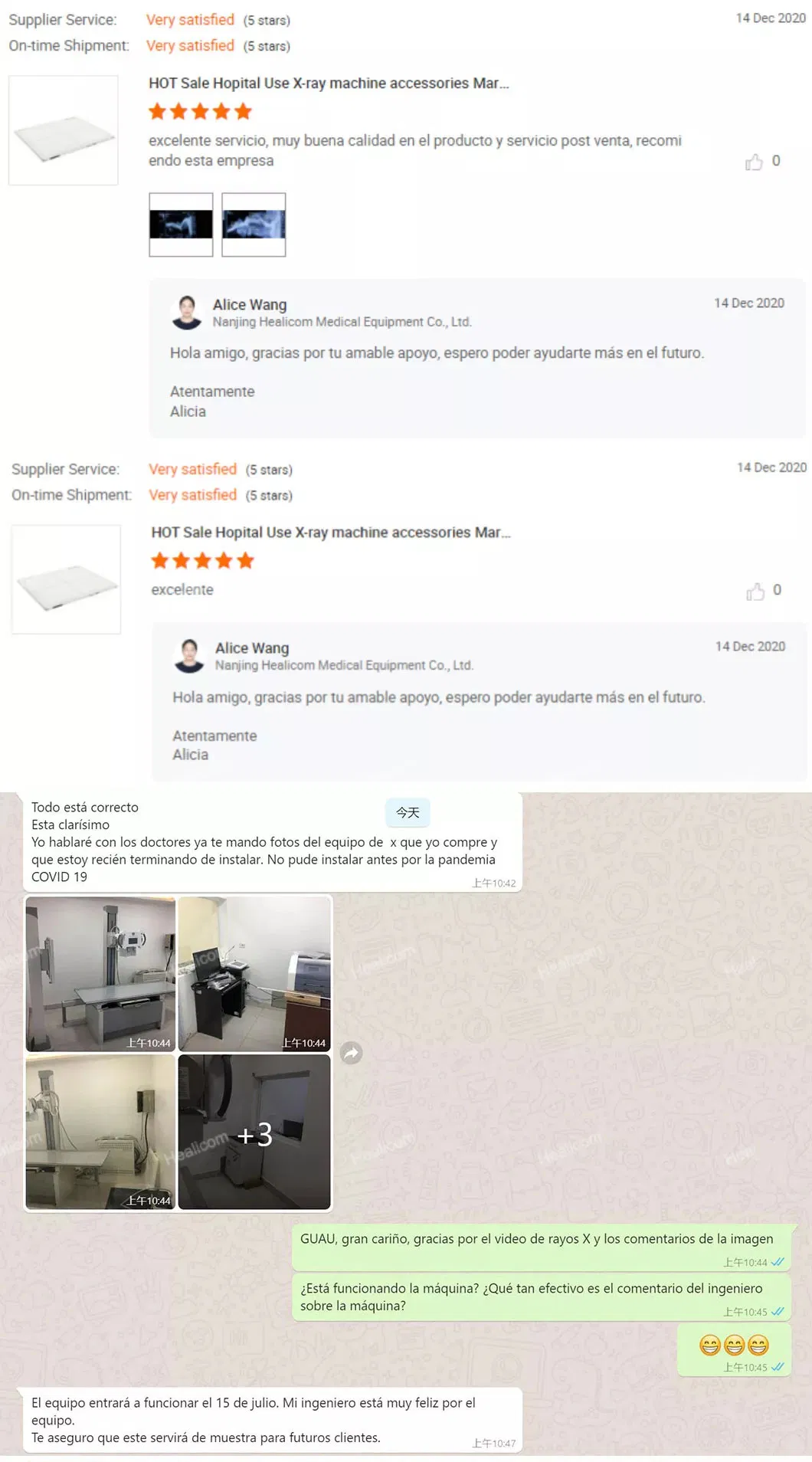

Customer Feedback

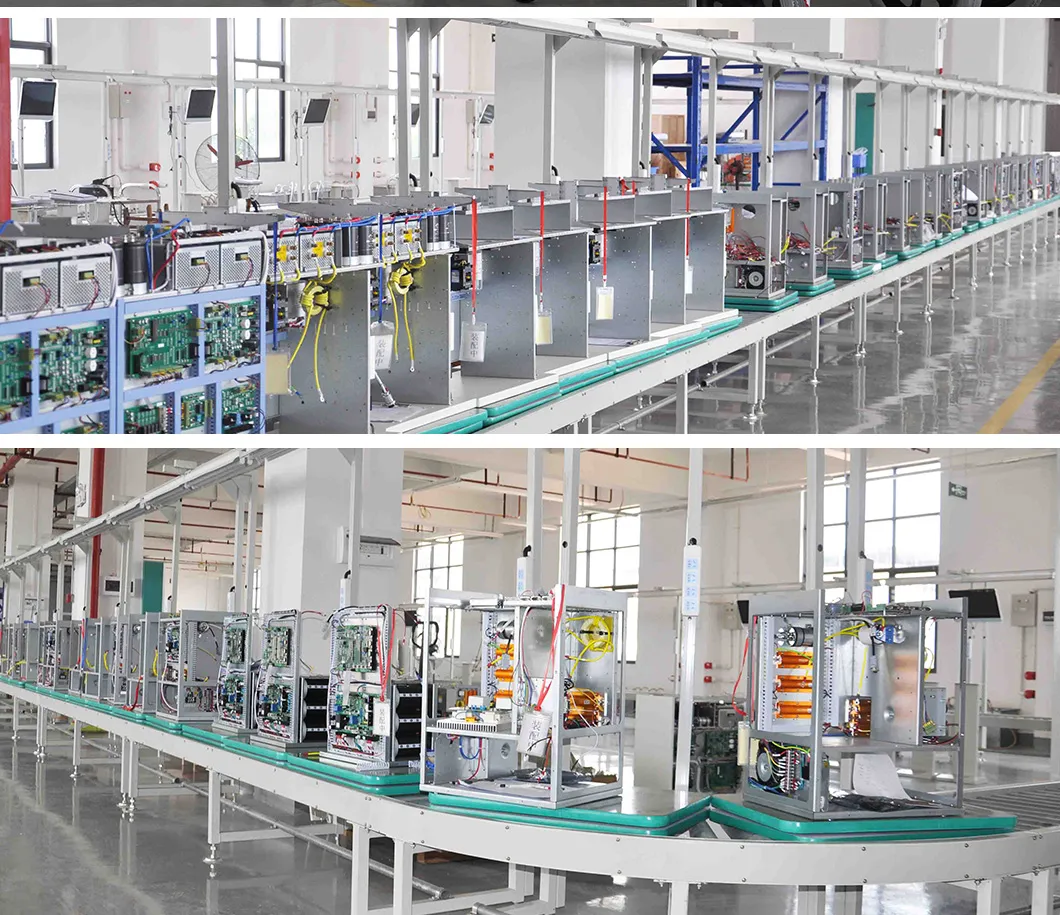

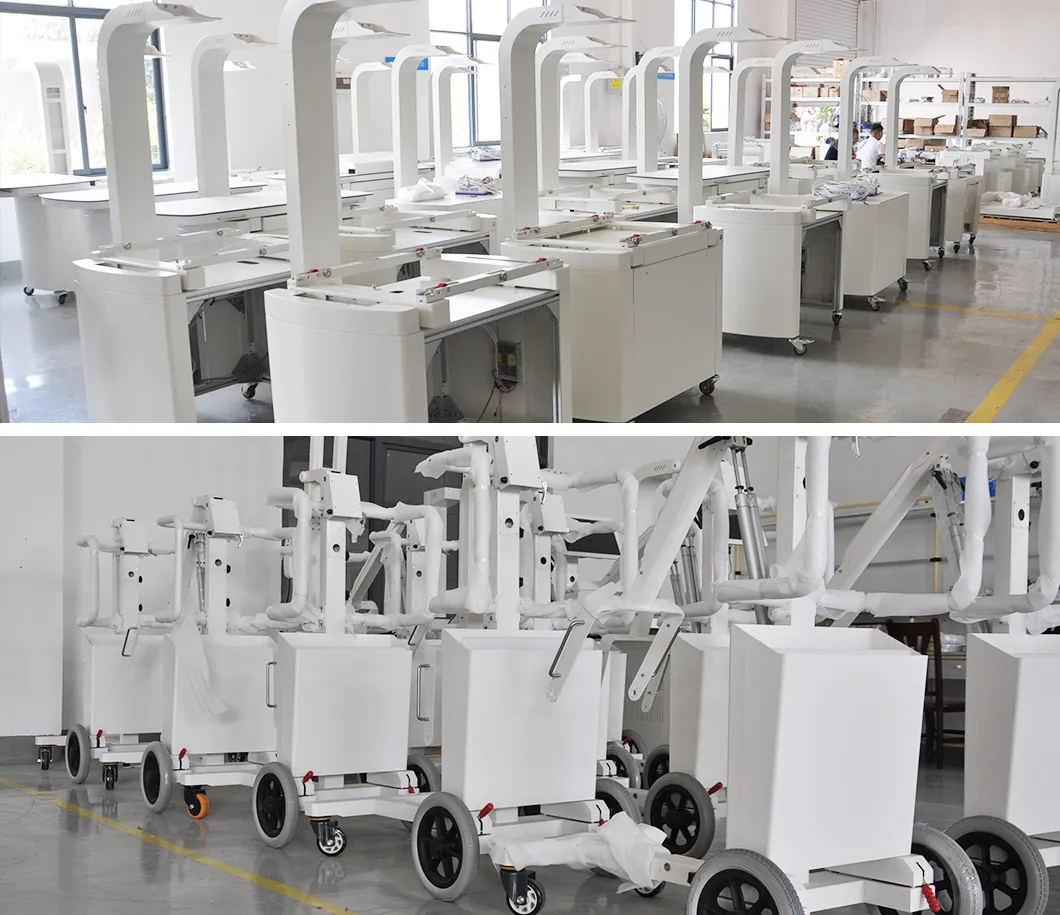

Workshop Display

Production Environment

Frequently Asked Questions

What about the price level?

We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this field more than 20 years. We always adhere to the principle of providing top quality products with competitive prices.

Why do prices vary between suppliers for similar-looking products?

Many products in the market may look similar but use different materials and quality control standards. Prices for products with lower-grade materials and less rigorous quality control are naturally cheaper.

What is the time of delivery?

Since products are produced based on specific orders, the delivery period is generally 15 days after order confirmation. For small or sample orders, please check with us regarding ready stock for immediate delivery.

What about quality assurance?

We offer a one-year warranty period starting from the time of shipment. For minor issues, we provide free spare parts for replacements. For serious problems, we provide free replacements.

What are the payment terms?

We accept T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.
