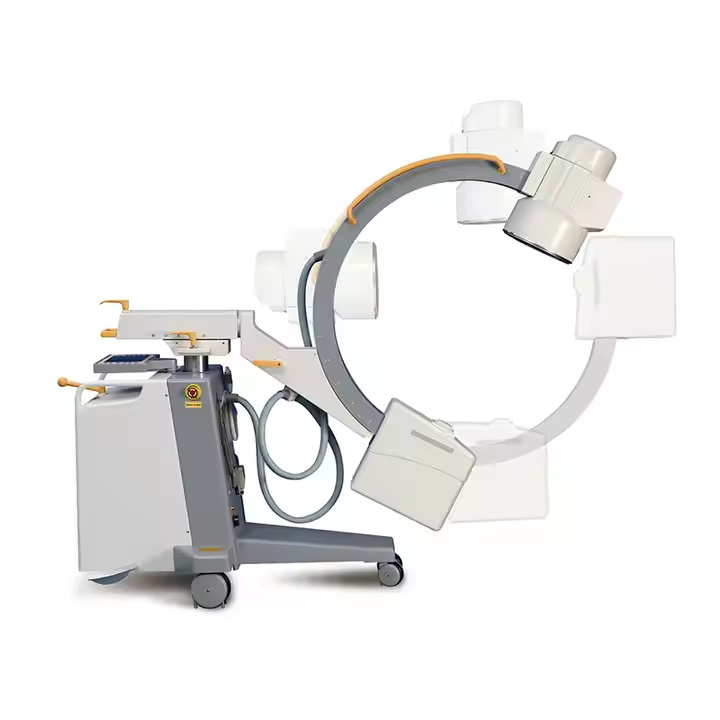

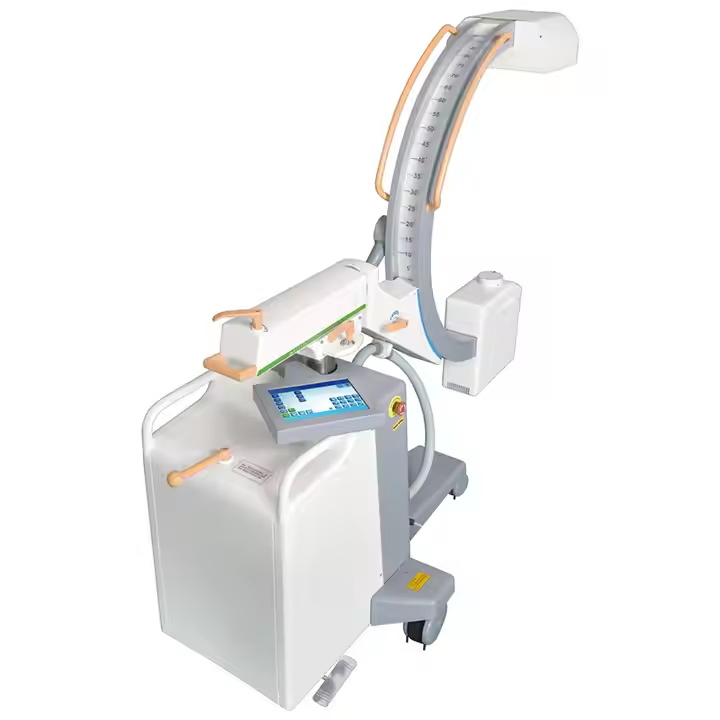

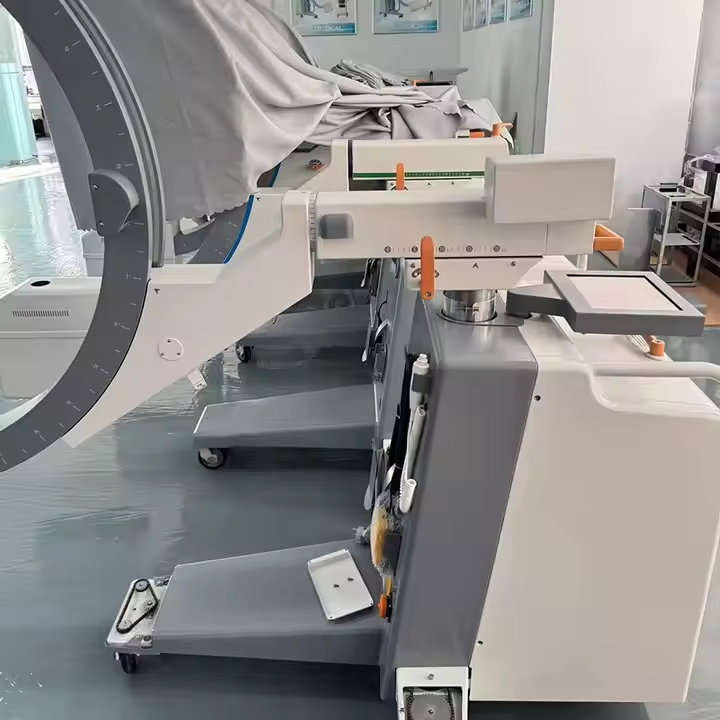

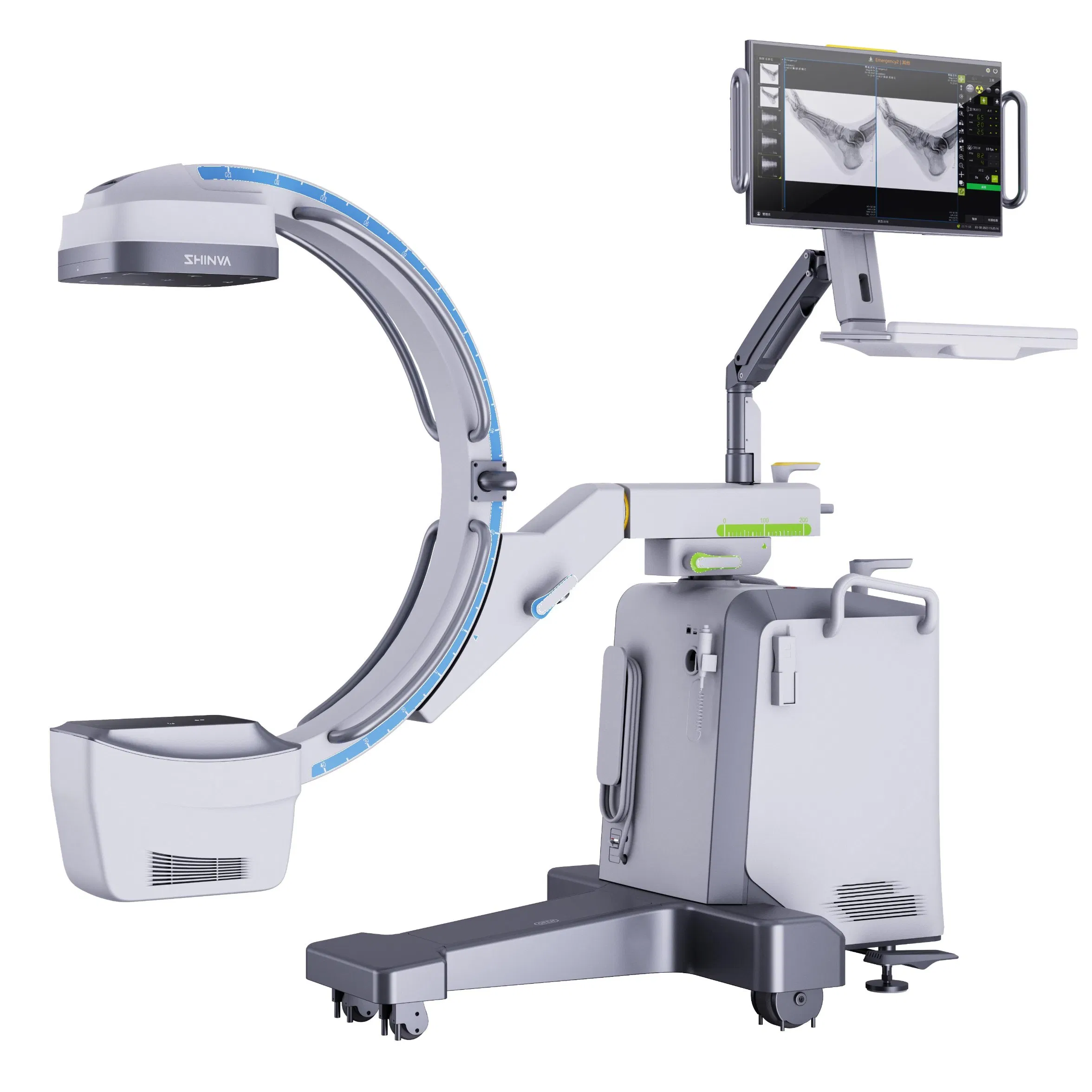

Digital C-Arm X-ray System for Accurate Medical Diagnosis

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

📊

Basic Information

Model NO.	HT005
Product Name	C-Arm X-ray Machine
Type	Mobile C-Arm / Digital X-ray / Surgical Imaging
Application	Hospital / Clinic / Operating Room
X-ray Tube Voltage	40-120 Kv (Adjustable)
Image Intensifier	9 Inch / 12 Inch / Optional
Display System	Dual 19-Inch LCD Monitors
Image Storage	≥ 200,000 Images (Digital Storage)

🔍

Product Description

The Series Mobile C-arm X-ray Machine adopts a 1Kx1K pixel digital image system to provide clear images for accurate diagnosis. Its simple and lightweight mechanical design makes operation convenient and efficient.

Clinical applications are extensive, spanning spine surgery, trauma, joint pain management, orthopedics, general surgery, urology, gastroenterology, and oncology, providing the best diagnostic solutions.

Key Product Features

Simple, highly integrated structure with no external drag cables for ease of use.
Large anode heat capacity to support intensive, long-term clinical use.
High mA pulse technology ensures clear imaging even for obese patients.
Advanced image algorithms eliminate dynamic tailing for sharp visualization.
Real-time AK & AKR dynamic monitoring with dose display and over-dose protection.
50KW high power capability with interconnected image acquisition.

📋

Technical Specification

Part	Technical Parameters & Performance
HF Generator	110kV, 3.5KW, 40kHz; Pulsed fluoroscopy 40~110 kv / 0.5~5mA; Boost fluoroscopy up to 10mA.
X-ray Tube	Dual-focus fixed anode: 0.6mm/1.5mm; Advanced Technology.
Image Intensifier	Three fields of vision: 9", 6", 4.5" (Canon Brand).
CCD Camera	High-resolution camera with 360° rotation.
Image System	5 Degree recursive Noise Reduction, Frame freezing, Massive storage, DICOM 3.0 support.

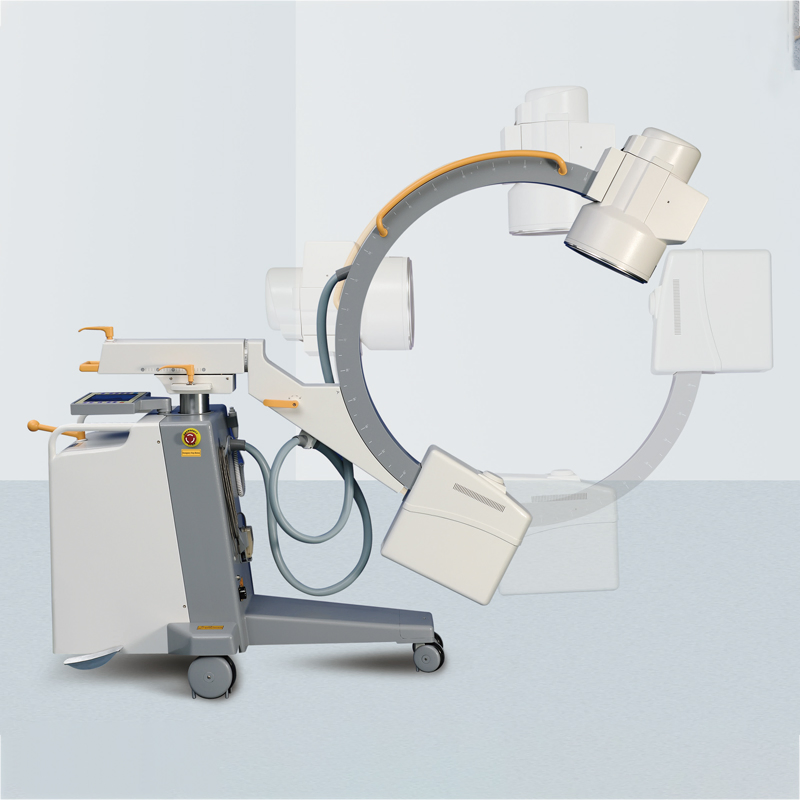

Mechanical Motion	Vertical travel: 0~400mm; Horizontal travel: 0~200mm; Rotation: ±180°.
C-Arm Dimensions	SID: 1000mm; Depth in arm ≥ 650mm.

⭐

System Advantages

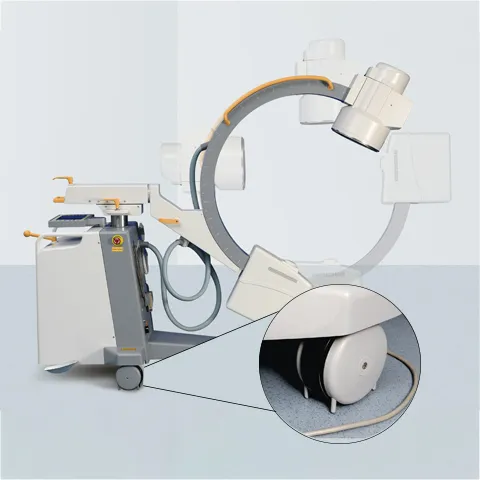

Easy Positioning

Color-guided C-arm assisting operators in achieving the right position quickly. Unique block wire wheel design prevents cable compaction.

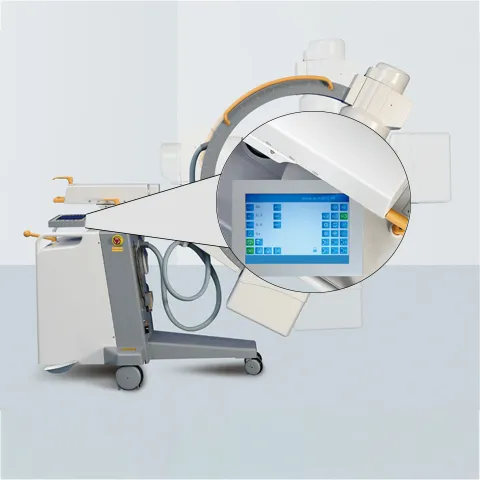

Advanced Workstation

19" high-definition medical LCD display with mass storage, movie playback, and highly integrated patient information management.

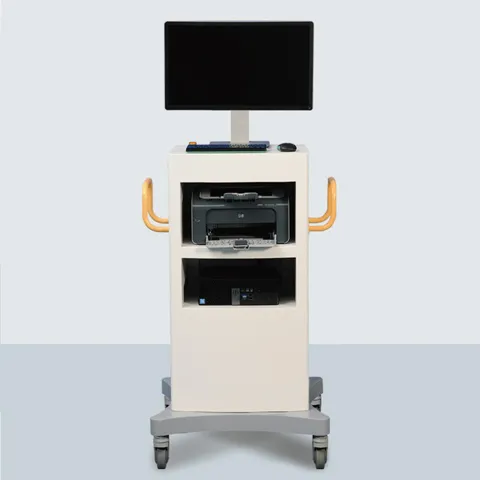

Compact & Portable

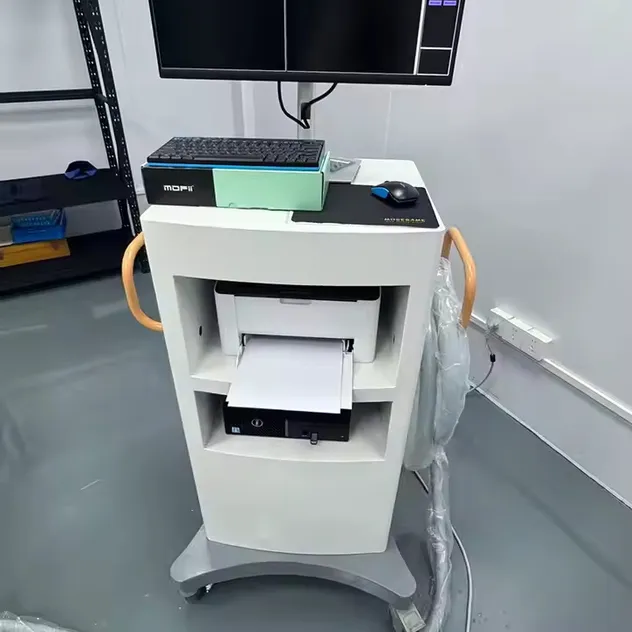

Specially designed trolley for operating rooms with functions for processing, storage, keyboard input, and printing.

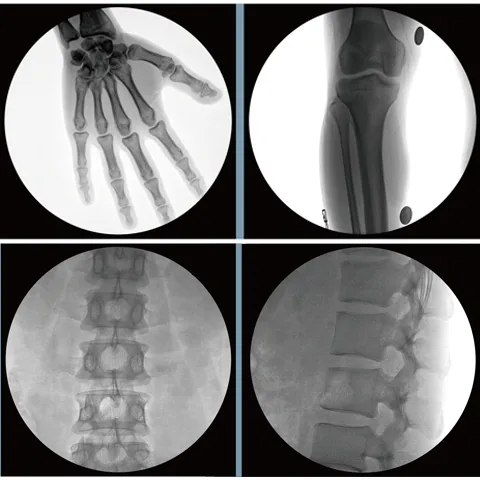

Perfect Image Quality

1Kx1K digital image system with lossless processing, following international DICOM standards for digital hospitals.

📸

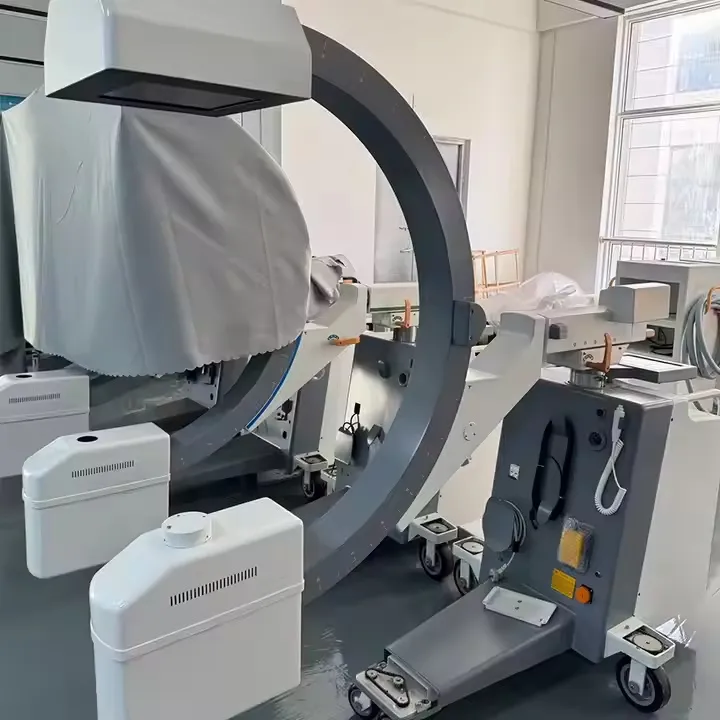

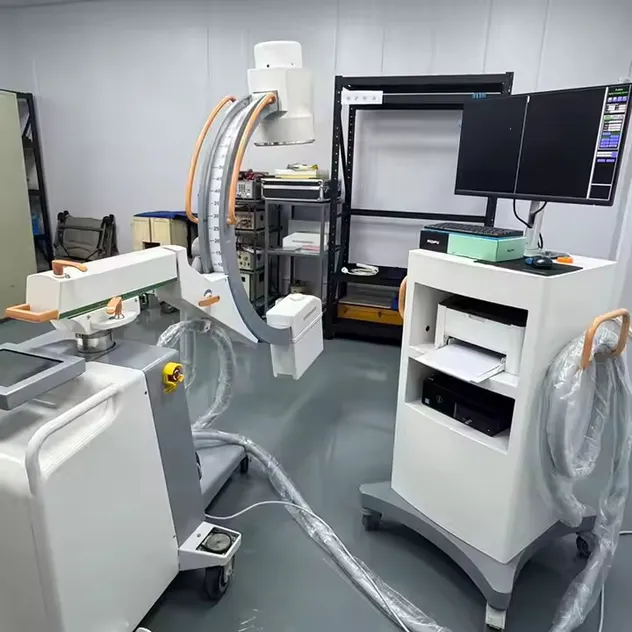

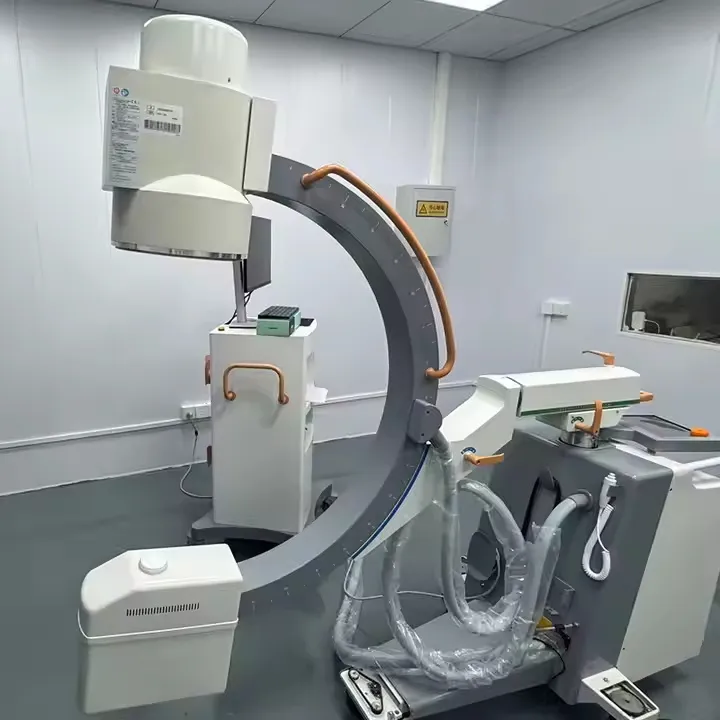

Product Gallery

🏢

Professional Manufacturer

We are a high-tech enterprise focused on the research, development, production, and sales of medical equipment and new materials. Our facilities have passed ISO9001:2000 international quality management and ISO14001:2011 international environmental management certifications.

With a strong focus on technical innovation and customer service, our products have been exported to 46 countries and regions, including North America, Europe, Southeast Asia, and the Middle East. We strive to be your most reliable long-term partner for medical imaging solutions.

❓

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are a professional manufacturer specializing in medical X-ray imaging systems and protective products.

Q: What is the typical lead time for the C-Arm machine? A: The standard delivery time is usually around 7-10 days after order confirmation, depending on specific configurations.

Q: What payment terms do you support? A: We accept multiple payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), and D/P (Documents against Payment).

Q: Does the system support DICOM 3.0 standards? A: Yes, the system is fully compatible with DICOM 3.0, allowing for seamless integration with hospital PACS networks and electronic medical records.

Q: What documents are provided with the shipment? A: Typically, we provide the Commercial Invoice, Packing List, Bill of Lading, and COA. We can accommodate special documentation requirements for specific markets upon request.

Q: What is the warranty period for this C-Arm system? A: We offer a standard 1-year warranty, with an optional 2-year extension available to ensure long-term operational reliability.
