Impulse Voltage Test System for Hv Equipment Insulation Coordination and Fault Diagnosis

1 / 5

Impulse Voltage Test System for Hv Equipment Insulation Coordination and Fault Diagnosis

After-sales Service:	All Series
Warranty:	1 Year
Max Diameter of Workpiece:	Na

Send Inquiry

Product Description

Basic Information

Model NO.

Test System

Type

Gas-Insulated Transformer

Accuracy Grade

Display

Digital

Control

PC Software Display

Product Type

High Voltage Impulse Test System

Test Type

Lightning Impulse (LI) / Switching Impulse (SI)

Test Function

Insulation Withstand Test

Application

Transformers / High Voltage Equipment

Max Output Voltage

Customized

Control System

PLC / Computer Control

Applicable Standards

IEC / IEEE

Safety Protection

Interlock / Emergency Stop / Over-Voltage Protection

Origin

China

Product Description

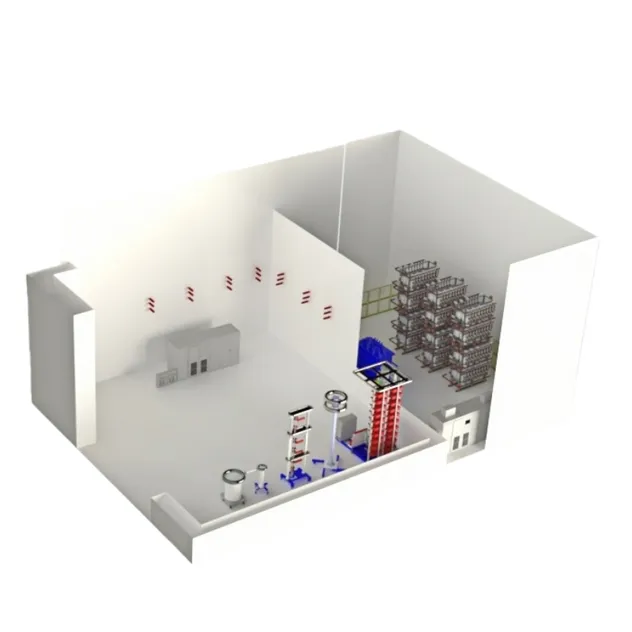

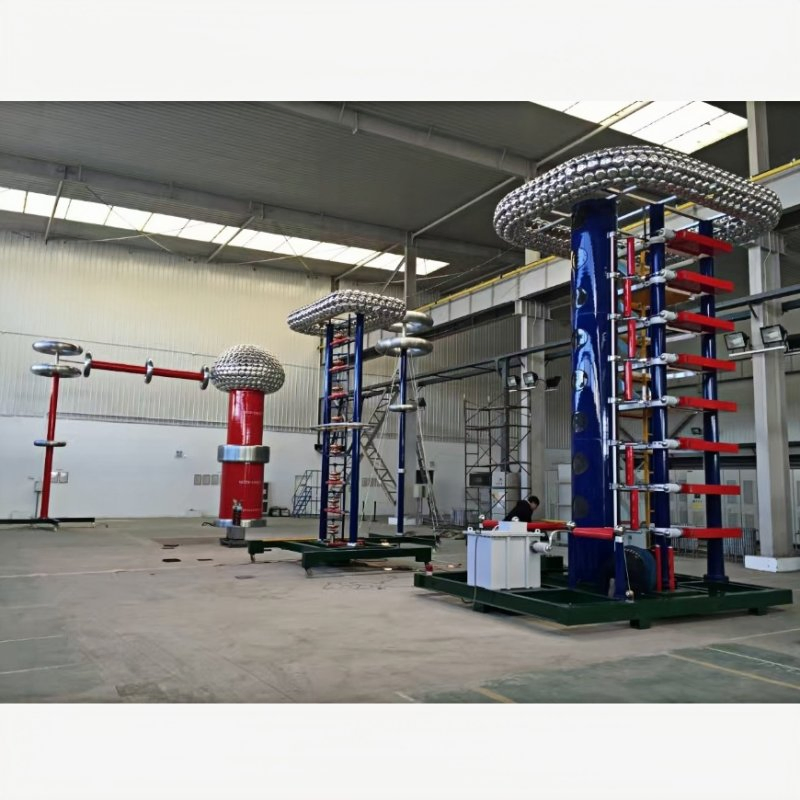

IMPULSE VOLTAGE TEST SYSTEM

This system provides a complete high-voltage impulse test solution for assessing insulation strength and faults in equipment like transformers. It integrates impulse generation and measurement, featuring a 12-bit, 100 MS/s internal A/D card. User-friendly software enables powerful waveform analysis and report generation, with automatic evaluation compliant with key IEC standards. The system is controlled via a host computer using USB or Ethernet for seamless integration into test setups.

Product Name	Model No.	Description

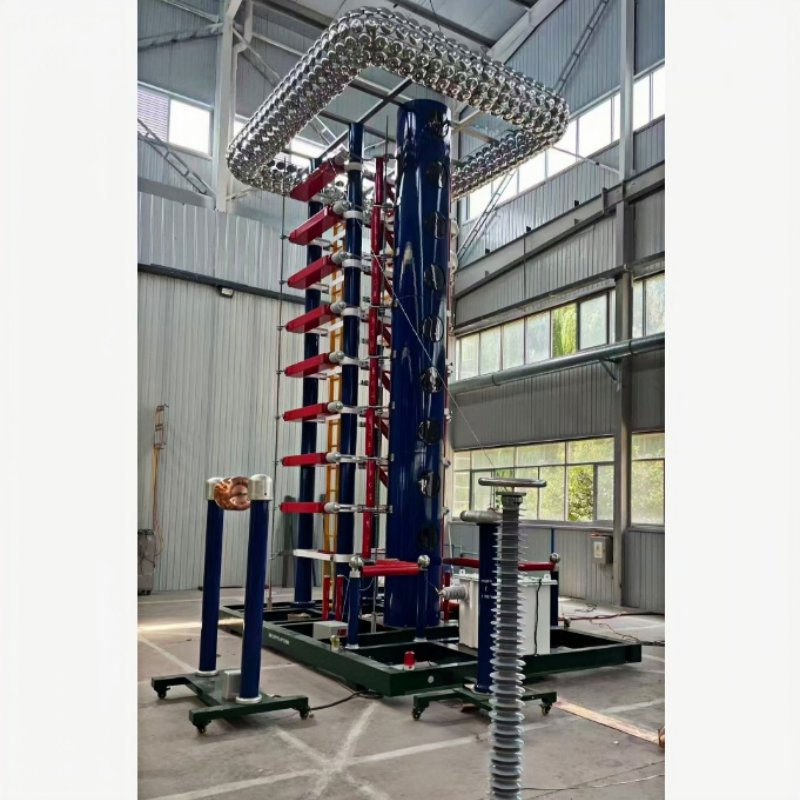

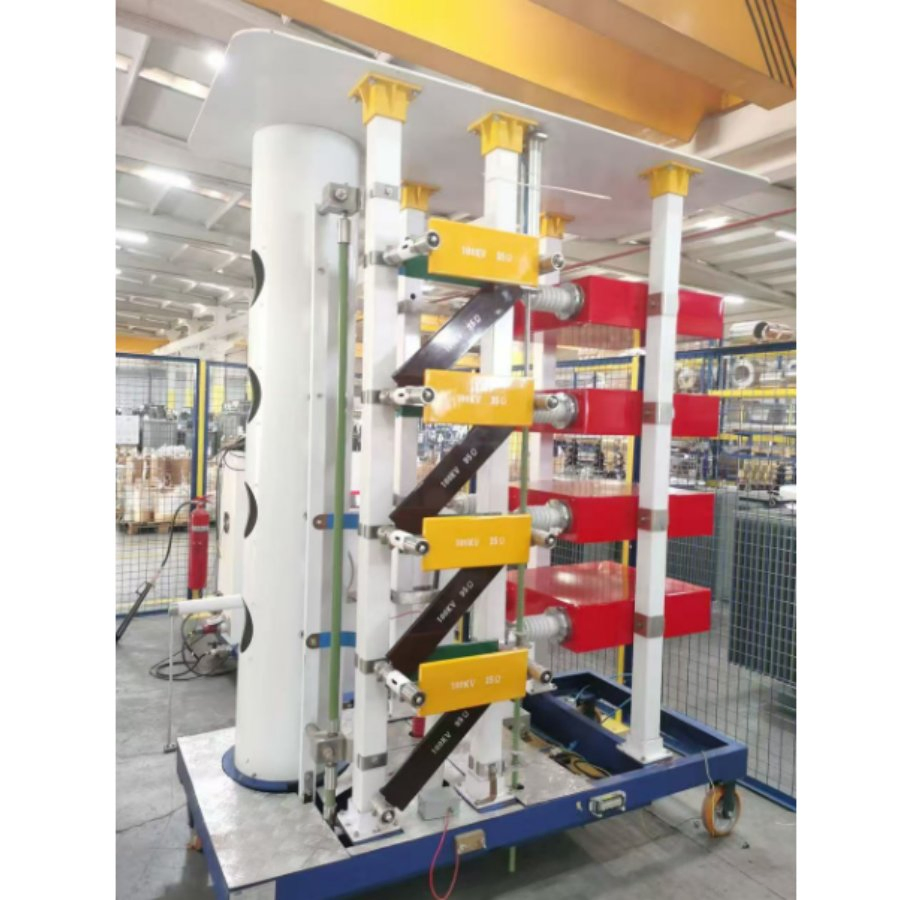

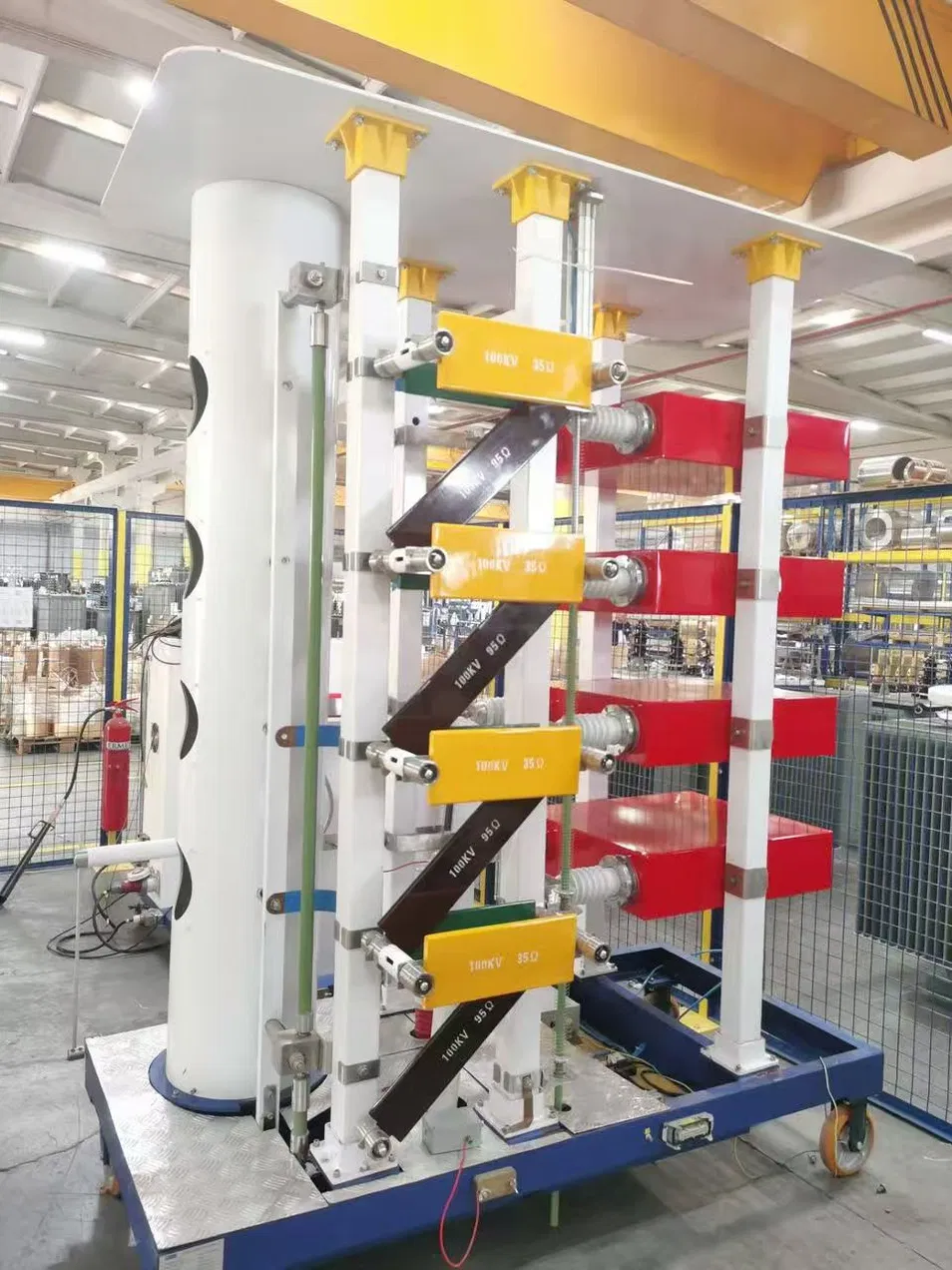

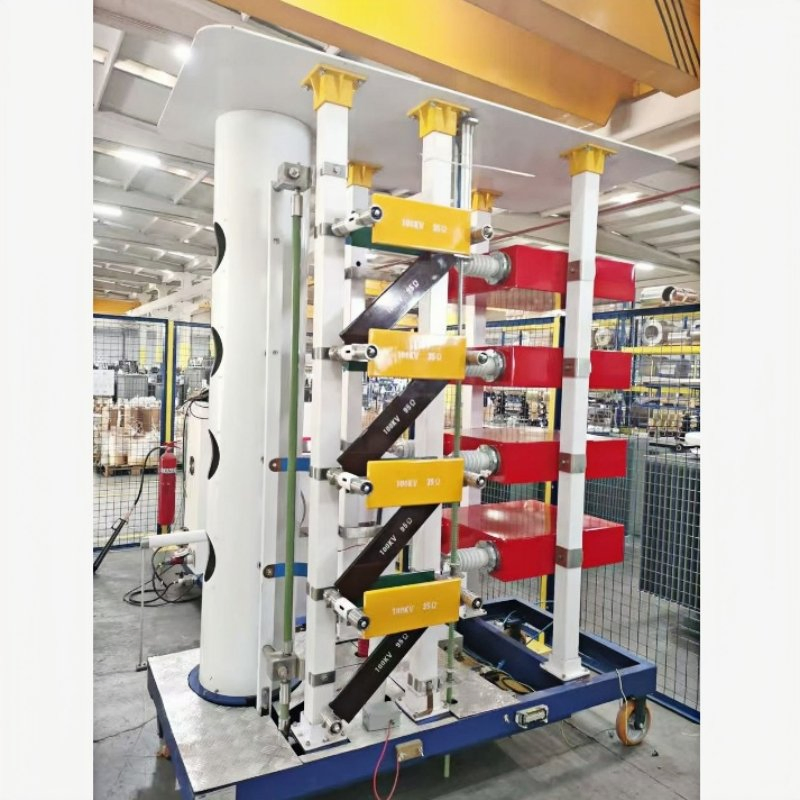

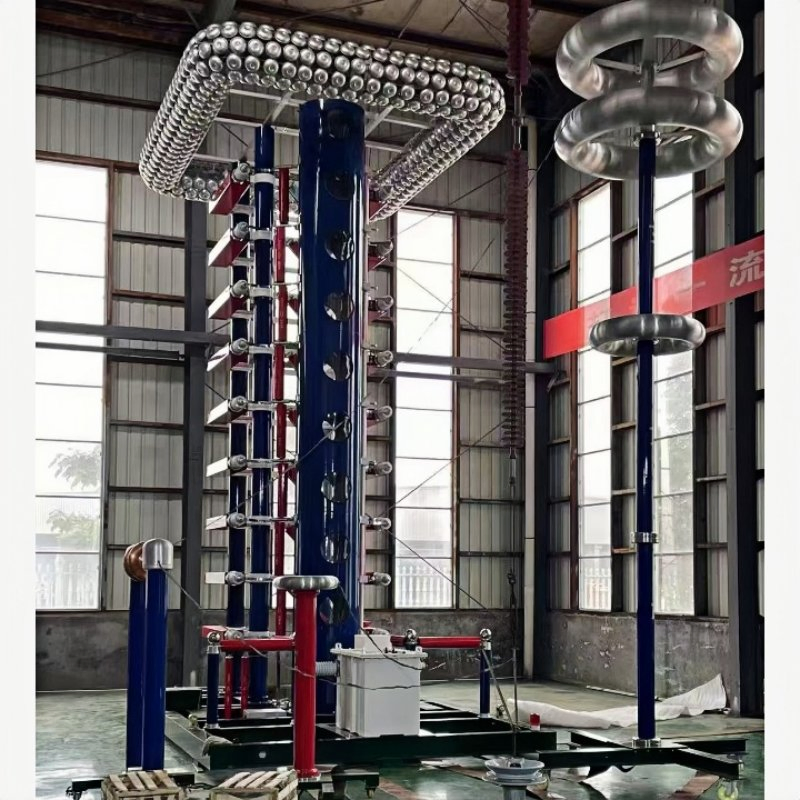

Impulse Voltage Generator	QDYS-300/30	300kV, 30kJ, S structure, LI (1.2/50us) according to IEC60060
DC Charging Device	ZD-120/0.22	5kVA, Input voltage: 0.22kV (AC), Output voltage: 120kV (DC)

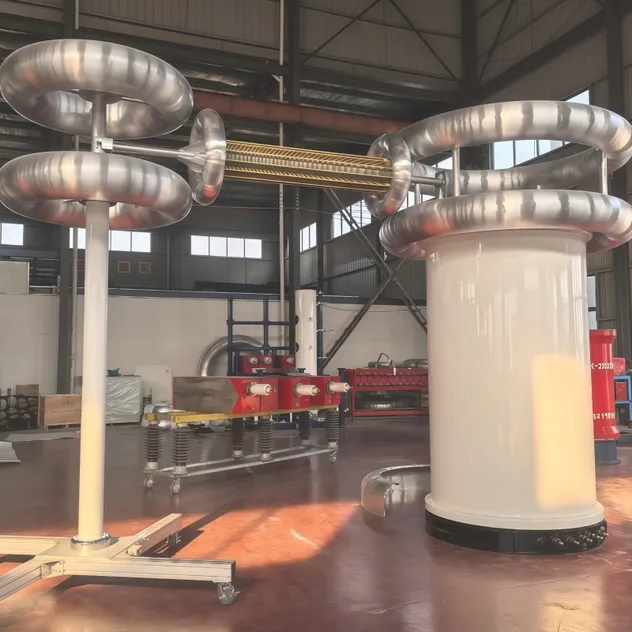

Weak Damped Capacitive Impulse Voltage Divider	DF-300/300	300kV, 300pF, Divider ratio: 300:1, Accuracy: 0.5%, Partial response time: <95nS
Automatic Multiple Chopping Gap	LQSF300	300kV, 2 Sphere, LIC, Chopping time: 2-6us
Automatic Impulse Control System	IMS-2001	MITSUBISHI PLC, SIEMENS components
Digital Impulse Voltage Measuring System	LQ3004-12/100	12Bit, 100Ms/s, 2 channel, Advance analyzers software by LABVIEW
