Image Diagnosis Chest Radiography Mobile X-Rays Digital Radiography System

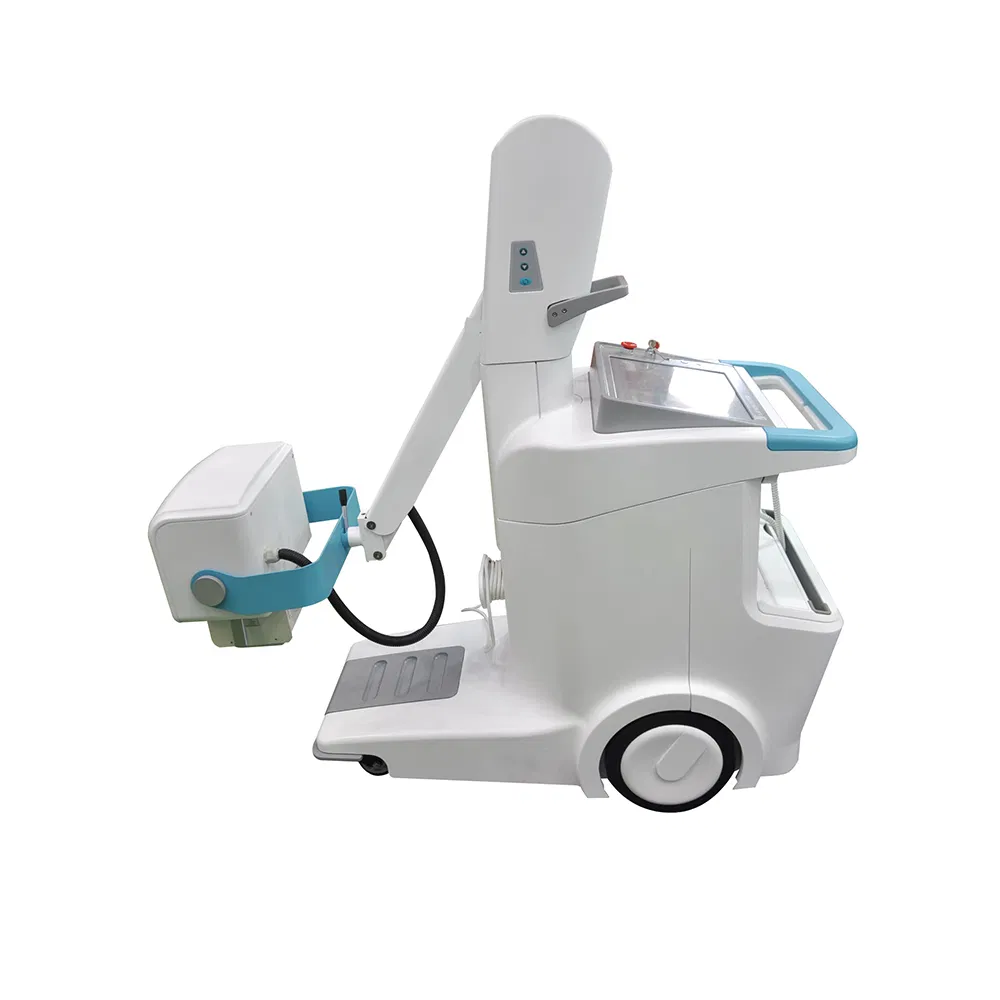

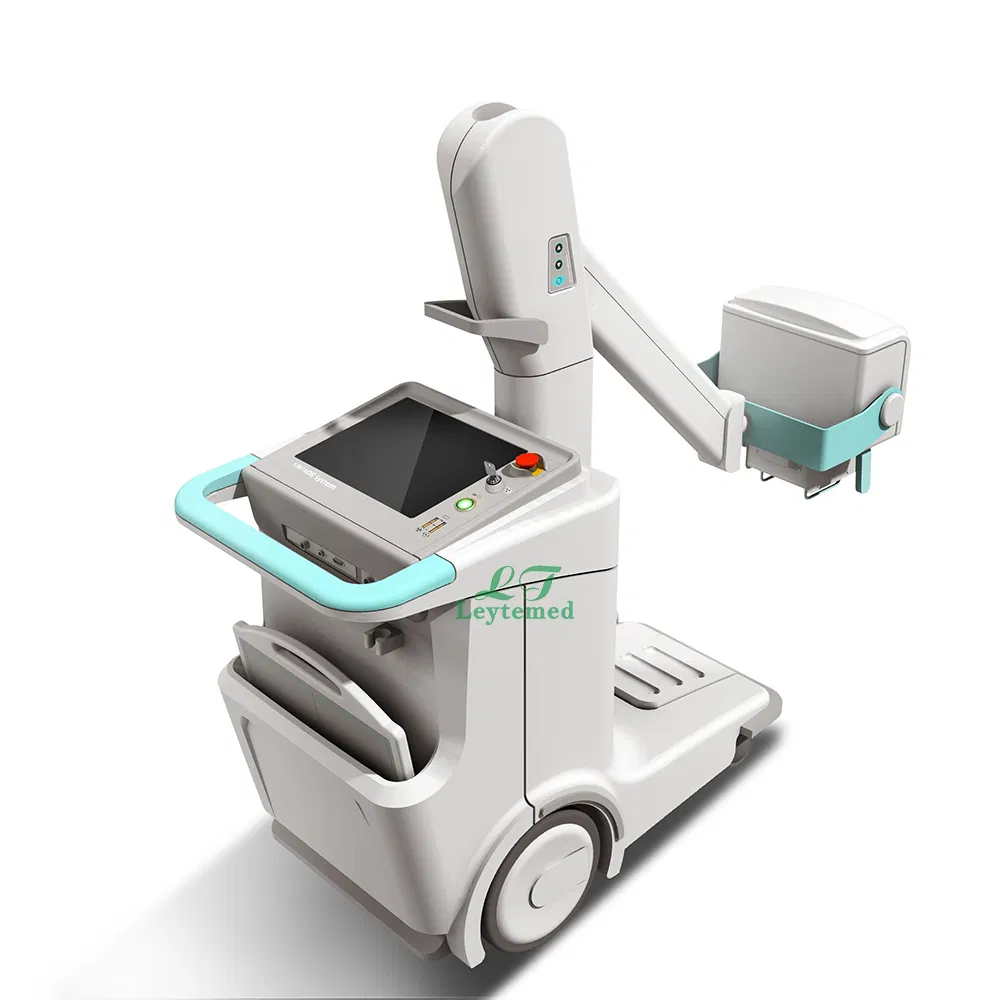

Mobile DR - Rapid Diagnosis

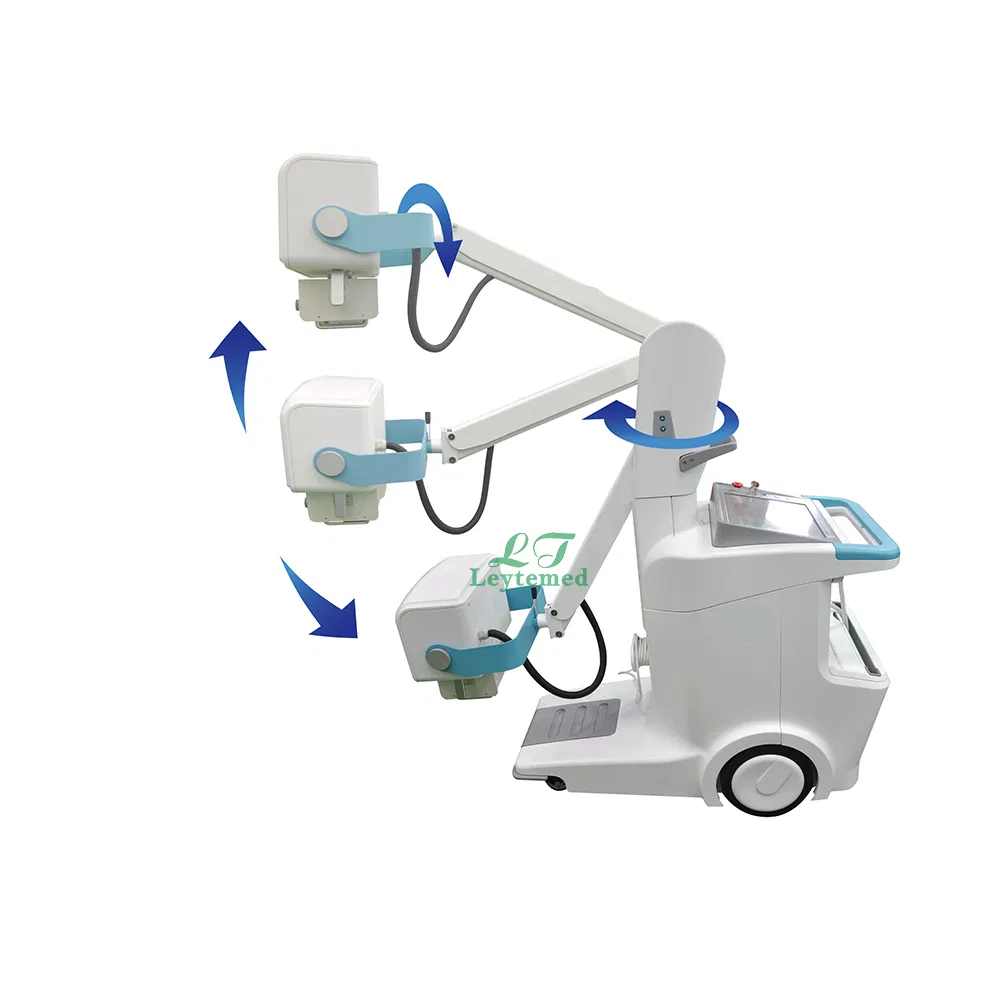

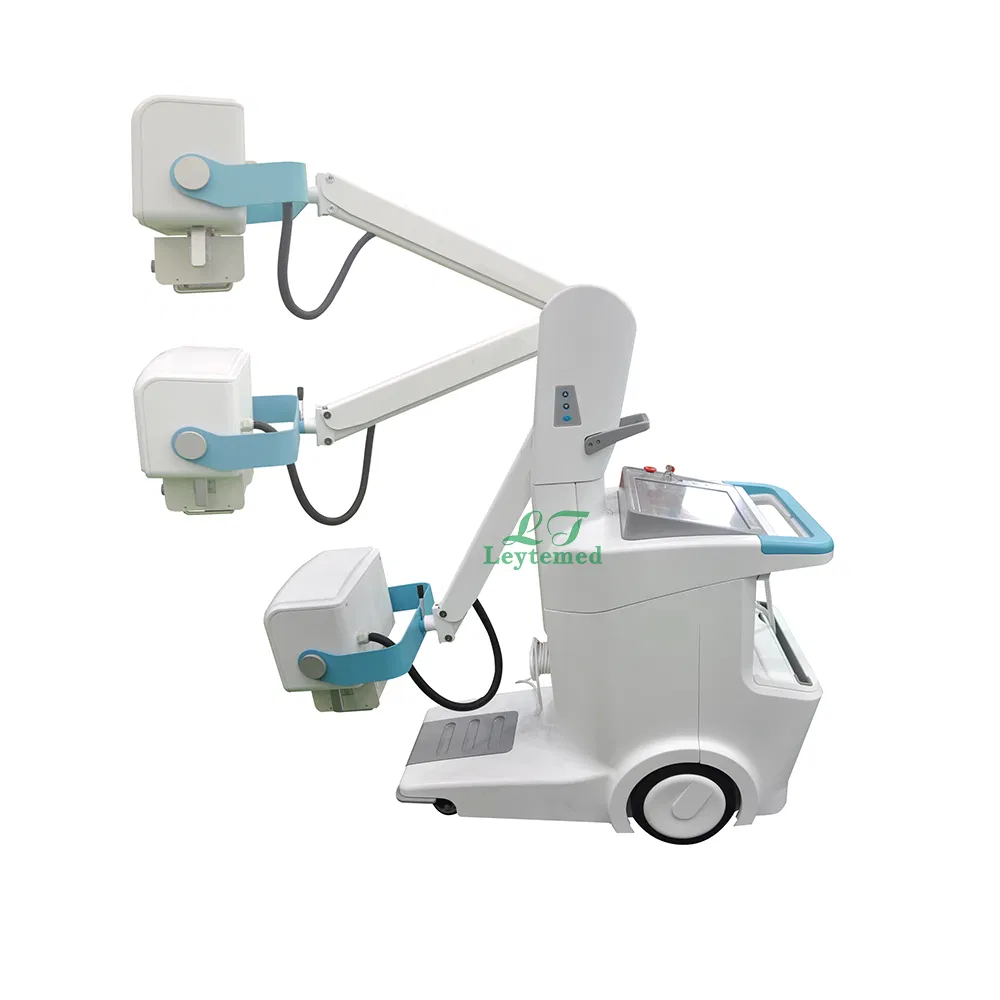

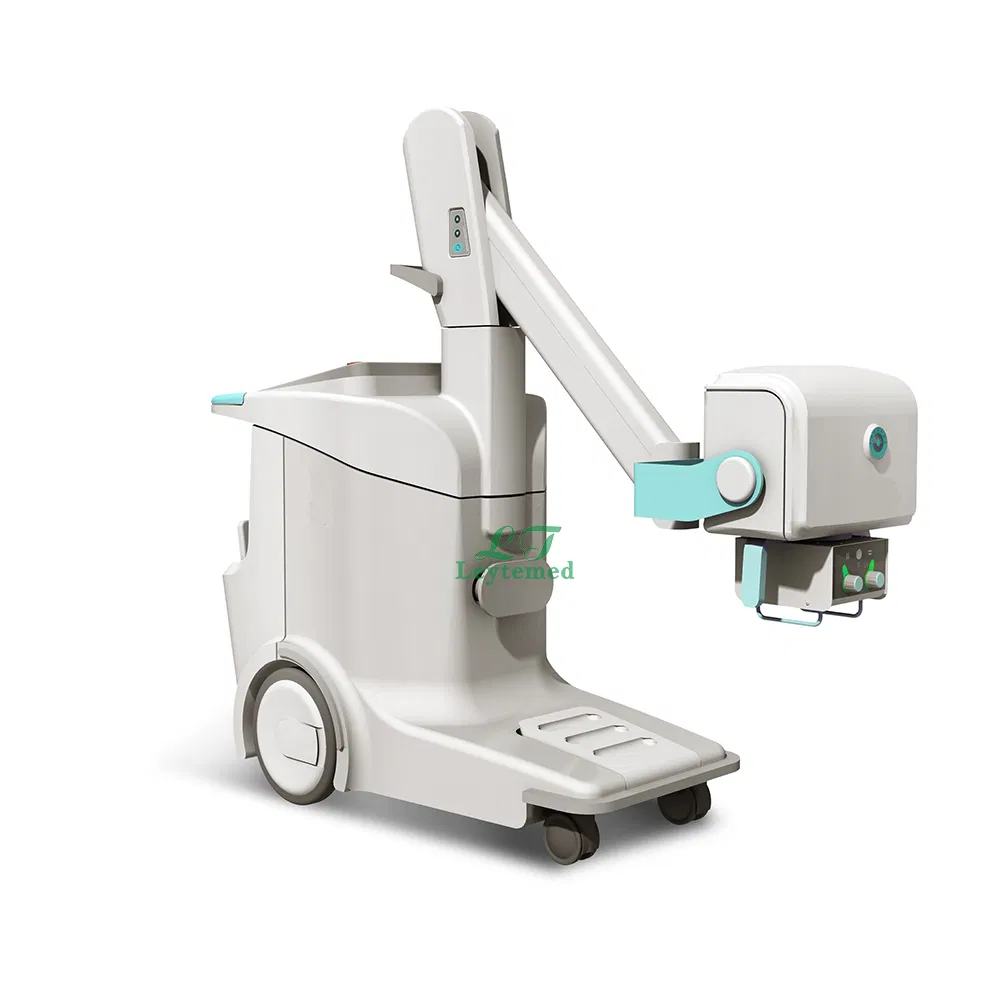

The Digital Radiography System (DR) is essential for diagnostic imaging. By taking chest radiography of patients, clinicians can effectively identify and treat conditions. This mobile DR is small and lightweight, allowing it to reach isolated wards, ICU, and emergency areas, eliminating the need for patient movement.
| Main Component | Technical Specifications | |
|---|---|---|
| X-ray Generator | Output Power | 32KW |
| Power Voltage | 220V ± 22V | |
| kV range | 40~125kV | |
| mA range | 32~400mA | |
| mAs range | 0.32 ~400mAs | |
| Exposure time | 0.002~6.3S | |
| X-ray Tube | Small focus | 1.0 |
| Large focus | 2.0 | |
| Collimator | Inherent filtration | 1.0mm Al /75kV |
| Light Source | LED | |
| Flat Panel Detector | Size | 17 X 17 inch |
| Scintillator | CSI | |
| Pixels | 3328 * 3328 | |
| Resolution | 3.6 | |
| AD Conversion | 16 | |

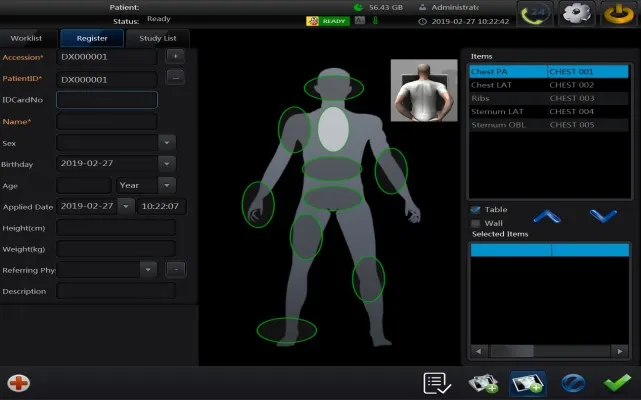

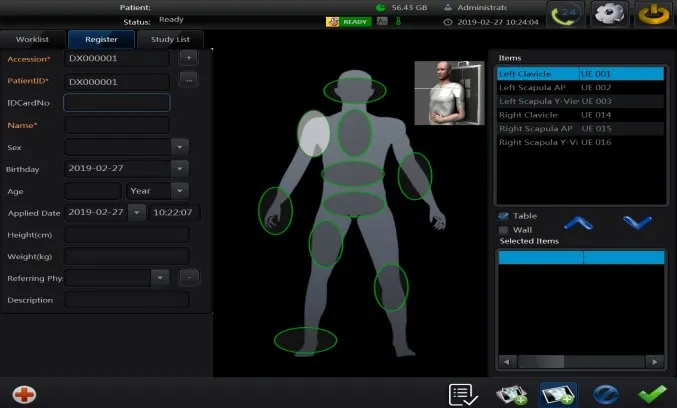

Acquisition Software: Support Multi-languages, professional tools, various X-ray generators, and RIS/PACS/DICOM Printer connections.
Workstation: Image capture, print, storage, post-processing, and patient management.

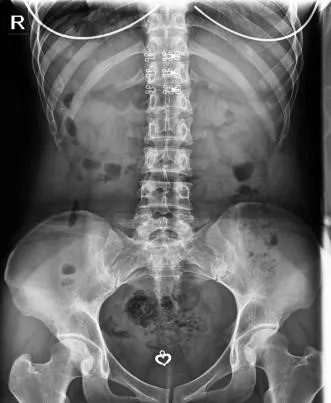

Clinical Applications: Applicable to orthopedics, emergency rooms, and operating rooms for diagnosis of the head, limbs, chest, spine, and lumbar spine.
