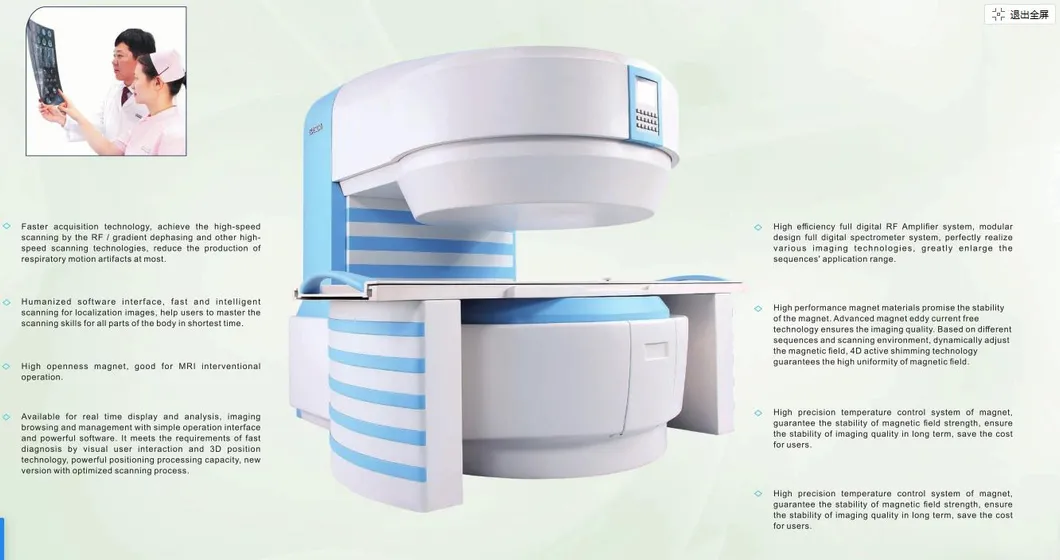

Available for real-time display and analysis, imaging browsing, and management with a simple operation interface and powerful software. It meets the requirements of fast diagnosis by visual user interaction and 3D position technology. Features include powerful positioning processing capacity and an optimized scanning process.
High-performance magnet materials ensure the stability of the system. Advanced magnet eddy current-free technology guarantees superior imaging quality. Based on different sequences and scanning environments, the system dynamically adjusts the magnetic field. The 4D active shimming technology ensures high uniformity of the magnetic field.
| S/N | Description | Specification Details | Unit | Qty |
|---|---|---|---|---|
| 1 | RF Shielded room | Includes: radio frequency shielding room, doors, observation windows, transmission board, waveguide board, AC, and lighting. | Set | 1 |
| 2 | Permanent magnet | C-shape design, self-controlled temperature, none eddy magnet. | Set | 1 |
| 3 | Spectrometer | Full-digital spectrometer. | Unit | 1 |
| 4-8 | RF & Gradient | RF amplifier, Preamplifier, Transmitting coil, Gradient amplifier, Gradient coil. | Set | 1 each |
| 9 | PC system | Dual-core processor workstation, CPU ≥2.8GHz, HDD ≥1000GB, RAM ≥4GB. | Set | 1 |
| 10 | Display | 24-inch widescreen LCD (TFT) display. | Set | 1 |
| 12-18 | Coils & Bed | Diagnostic bed, Head coil, Neck coil, Body coils (Big/Small), Knee coil, Shoulder coil. | Set | 1 each |
| 23-26 | Auxiliary Systems | Three-phase AC stabilizer, Magnet temperature control, Voice system, Laser positioning. | Set | 1 each |
