After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE, GMP, ISO
Condition: New
Send Inquiry

Product Description

Overview - Basic Information

Model NO.
Customized
Fill Range
1L & Above
Filling Principle
Gravity Filling
Main Material
Glass, Plastic, Stainless Steel
Voltage
380V
Warranty
1 Year
Pump Type
Ceramic/Peristaltic/Metal Pump
Process Type
Washing, Sterilizing, Filling, Stoppering, Capping
Filling Speed
3500-4000 Bottles/Hour
Filling Accuracy
≤±0.5%
Origin
China
HS Code
8422303090

Product Description

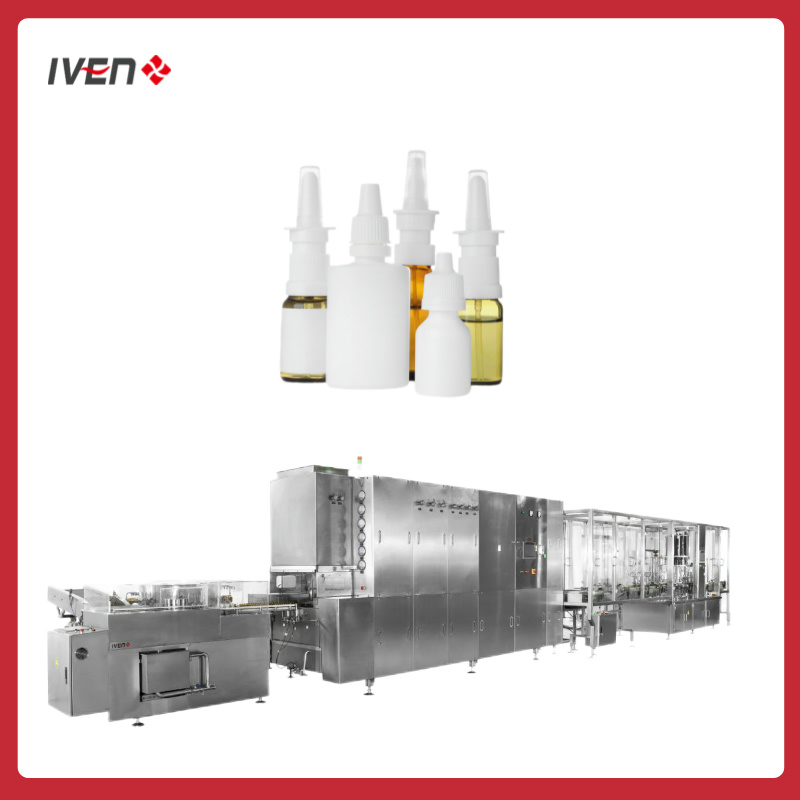

High Speed Pharma & Medicinal Liquid Nasal/Mouth Spray Filling Capping Machine

This production line is suitable for packaging production processes such as bottle unscrambling, air washing, filling, cap feeding, cap screwing/pressing, labeling, and palletizing of spray and aerosol bottles. It is widely used in medicine, daily chemical, and chemical industries. It also handles other materials like droppers with high efficiency.

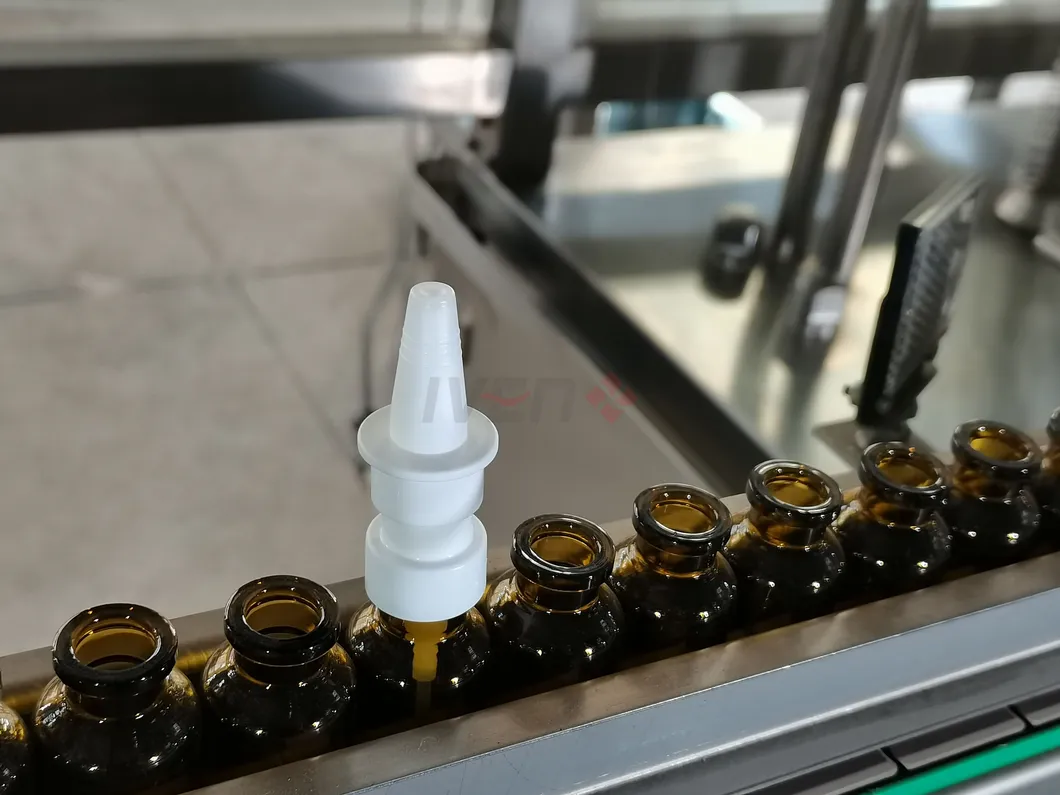

Filling Capping System

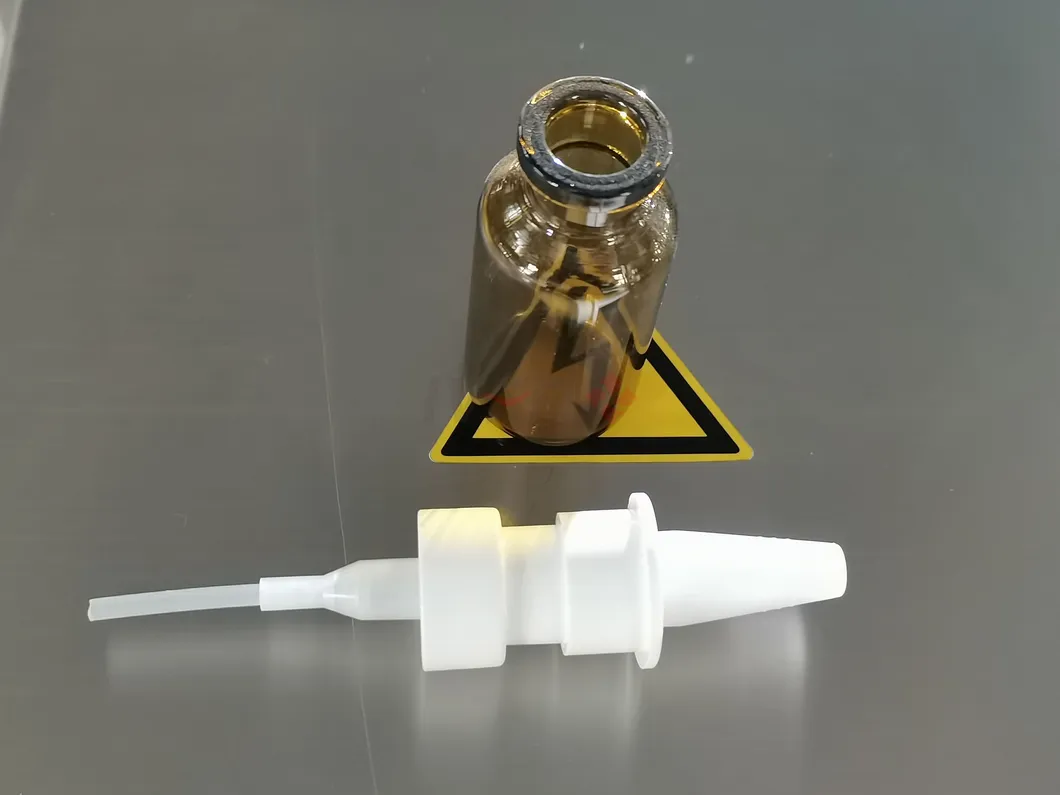

Liquid Filling Machine

Key Features & Technical Advantages

  • Automatic bottle unscrambling to save manpower.
  • Purified air rinsing with ion wind device to eliminate static electricity.
  • Plunger metering pump for various viscosities with high precision.
  • Easy disassembly for convenient cleaning and sterilization (Supports CIP/SIP).
  • PLC control system with variable frequency speed control.
  • Servo motor driving with filling volume adjusted via HMI.
  • Anti-leaking device with bottom-up filling to avoid bubbles.
  • Full compliance with GMP requirements.

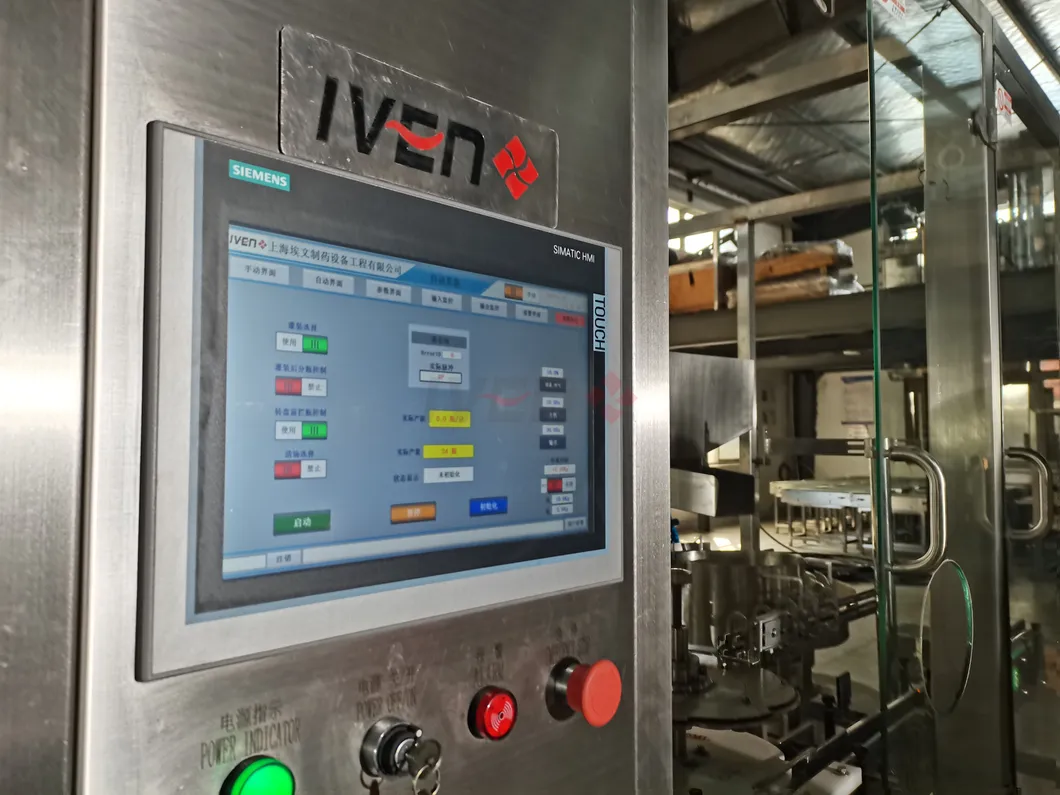

Equipment Detail 1

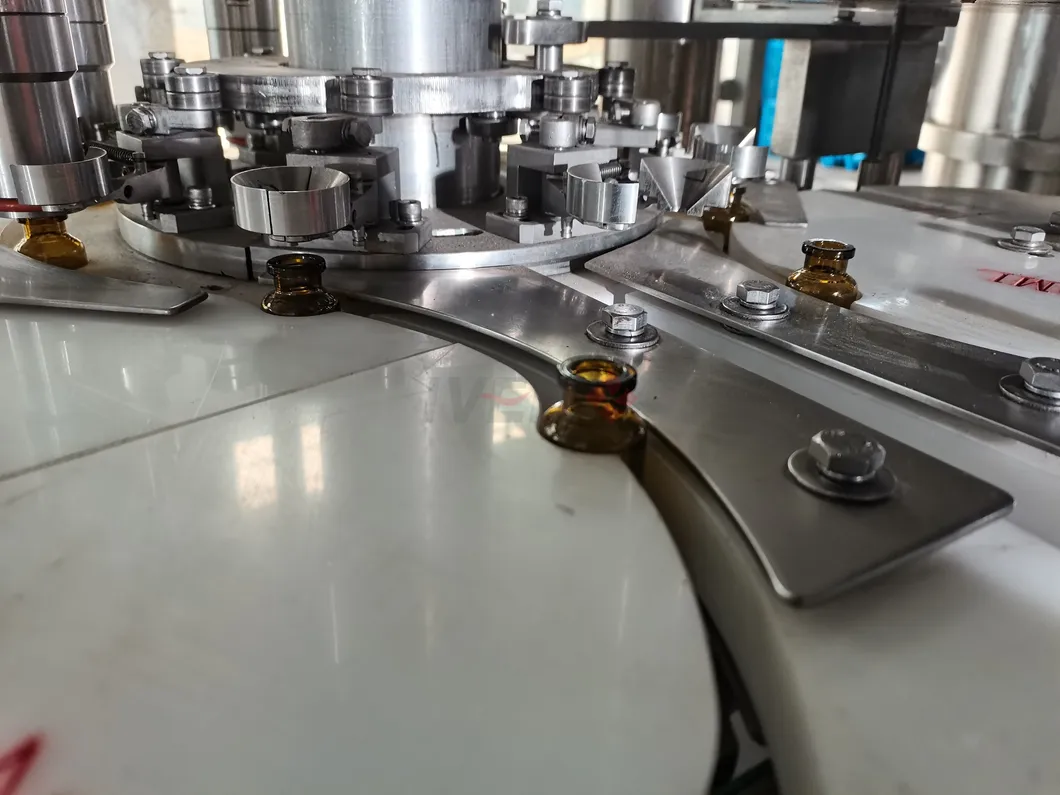

Equipment Detail 2

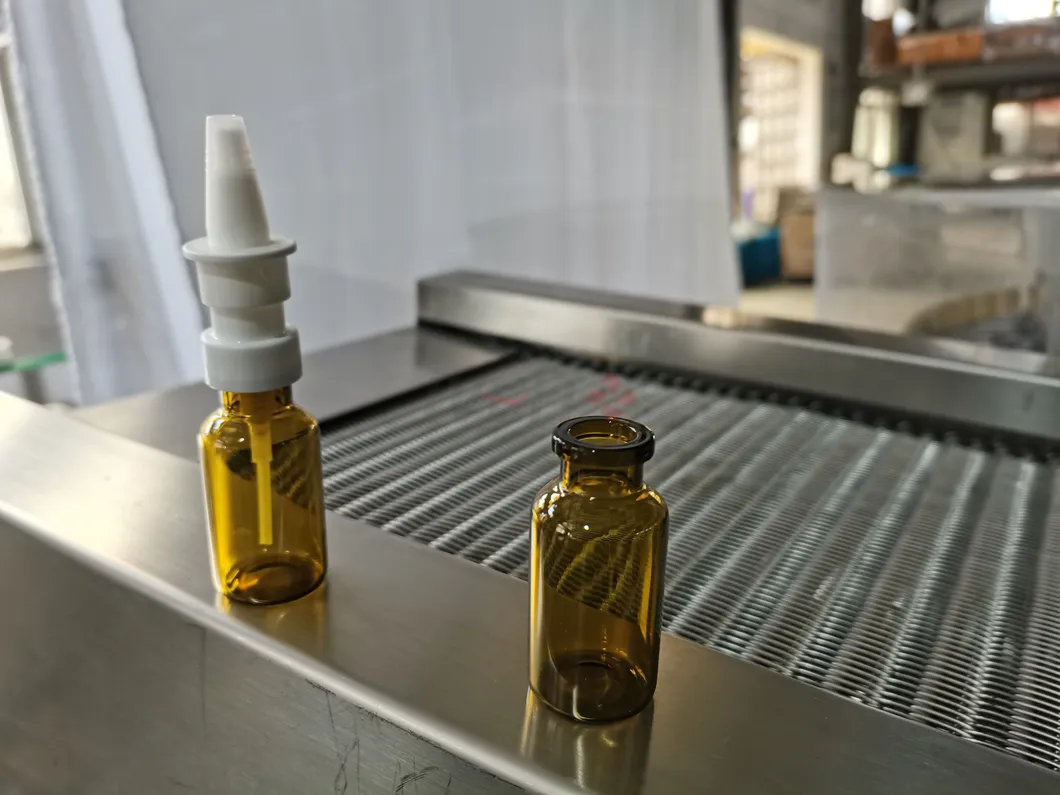

Equipment Detail 3

Product Parameters

Model PYG2/1/1 PYC4/2/2 PYG12/8/B PYG24/18/18
Production Capacity 30-50 bpm 60-90 bpm 90-120 bpm 200-250 bpm
Bottle Moving Mode Intermittent Type Rotary Type
Filling Range 5-500ml
Filling Heads 2 Heads 4 Heads 12 Heads 24 Heads
Filling Accuracy ≤±0.5%
Power Supply 220/380V 50/60Hz
Air Pressure 0.4-0.6MPa
Weight 1000kg 1500kg 2500kg 3500kg

Manufacturing Excellence

Factory Overview
Production Line
Quality Control
Manufacturing Detail
Certification
Global Supply

Frequently Asked Questions

What is the stable production capacity of this machine?
Depending on the model, the stable capacity ranges from 30 bottles/minute up to 250 bottles/minute.
What liquids and bottle types can this machine handle?
It is designed for medicinal liquids such as nasal and mouth sprays. It works with glass, plastic, and stainless steel bottles.
How accurate is the filling system?
The system utilizes high-precision plunger metering pumps, achieving a filling accuracy of ≤±0.5%.
Is the equipment easy to clean for pharmaceutical use?
Yes, the pump structure is designed for easy disassembly and supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) functions.
Does the machine comply with GMP standards?
The entire production line is designed and manufactured strictly according to GMP (Good Manufacturing Practice) requirements.
What power supply and air pressure are required?
The machine requires a 220V/380V 50/60Hz power supply and operates under an air pressure of 0.4-0.6MPa.
