Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
1 / 5
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief
Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief

Advanced CE Approved Snuff Fluid Dispensing System for Sinus Relief

After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE, GMP, ISO
Condition: New
Send Inquiry

Product Description

📊 Basic Information
Model
Customized
Fill Range
1L & Above / 5-500ml
Filling Principle
Gravity Filling
Main Material
Glass, Plastic, Stainless Steel
Voltage
380V
Warranty
1 Year
Pump Type
Ceramic, Peristaltic, Metal Pump
Process Type
Washing, Sterilizing, Filling, Stoppering, Capping
Filling Speed
3500-4000 Bottles/Hour
Filling Accuracy
≤±0.5%
Capacity
30-250 Bottles/Minute
Origin
China
⚙️ Product Description

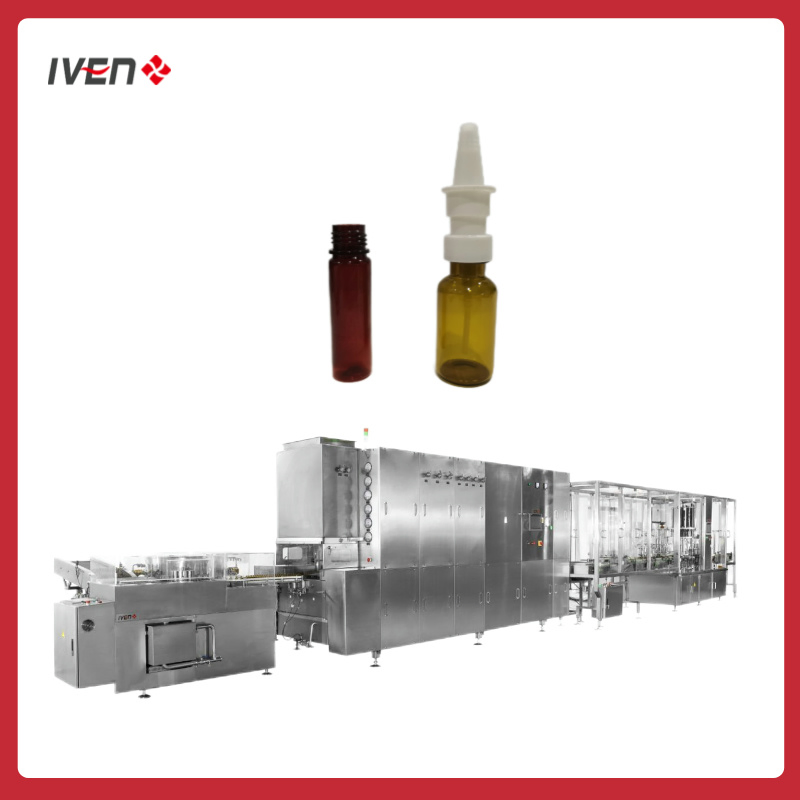

Therapeutic Nasal Spray Aerosol Filling Sealing Equipment

This production line is suitable for packaging production such as bottle unscrambling, air washing, filling, cap feeding, cap screwing (pressing or cap grabbing), aerating, large cap feeding, labeling, cartoning, case packing and palletizing of spray and aerosol bottles. It is widely used in medicine, daily chemical, and chemical industries.

Nasal Spray Equipment 1

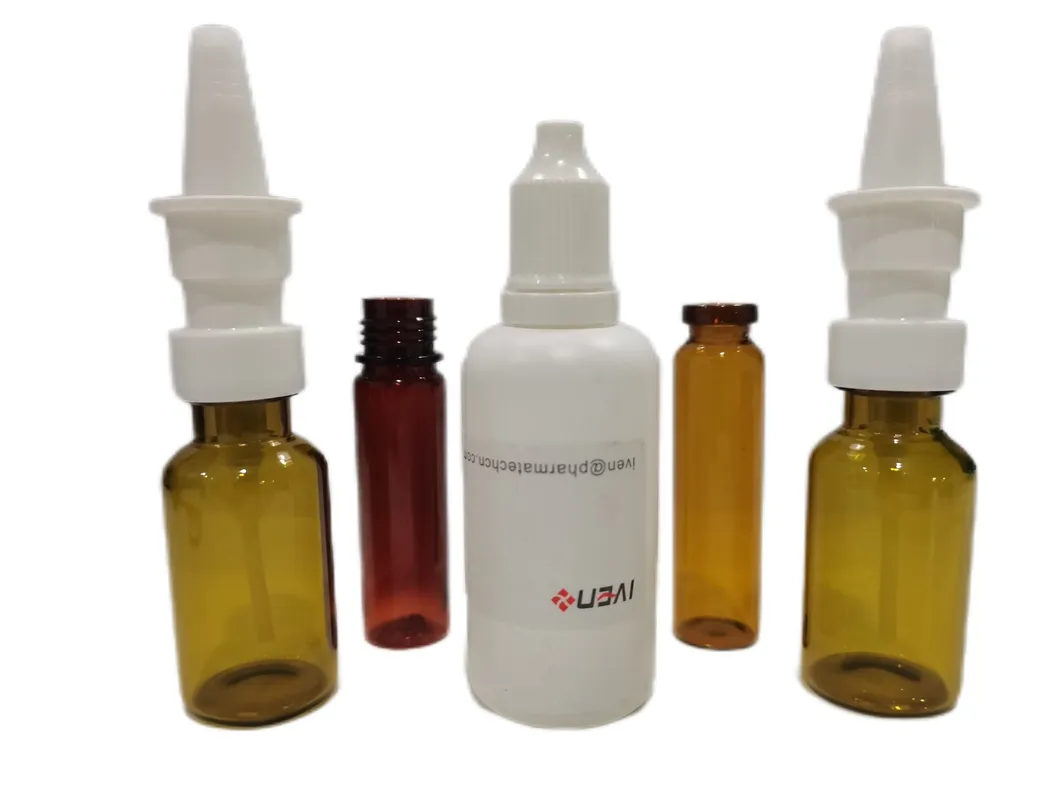

Nasal Spray Equipment 2
✅ Key Features
  • Automatic Operation: Adopts automatic bottle unscrambling to save manpower.
  • High Hygiene: Purified air rinsing with ion wind device to eliminate static electricity.
  • Precision Filling: Plunger metering pump for various viscosities; supports CIP/SIP functions.
  • Advanced Control: PLC control system with variable frequency speed and servo motor driving.
  • Anti-Leakage: Filling system starts from the bottom to avoid bubbles and leaking.
  • GMP Compliant: Entire line designed according to strict GMP requirements.

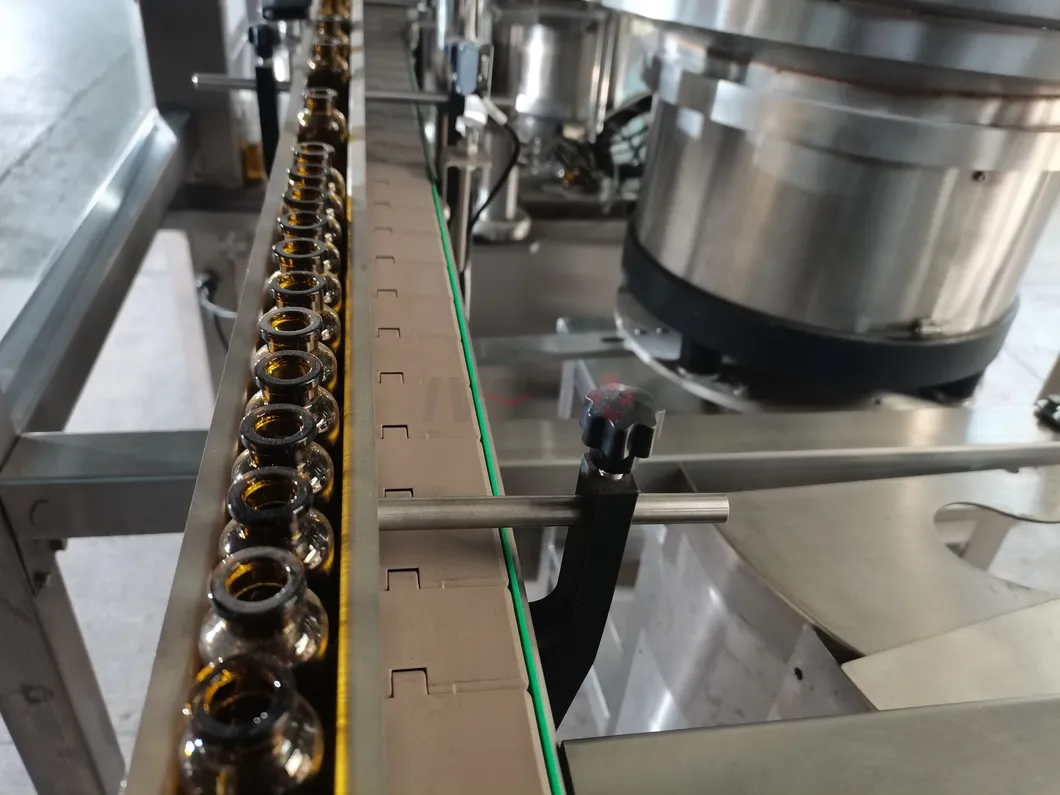

Process Detail 1

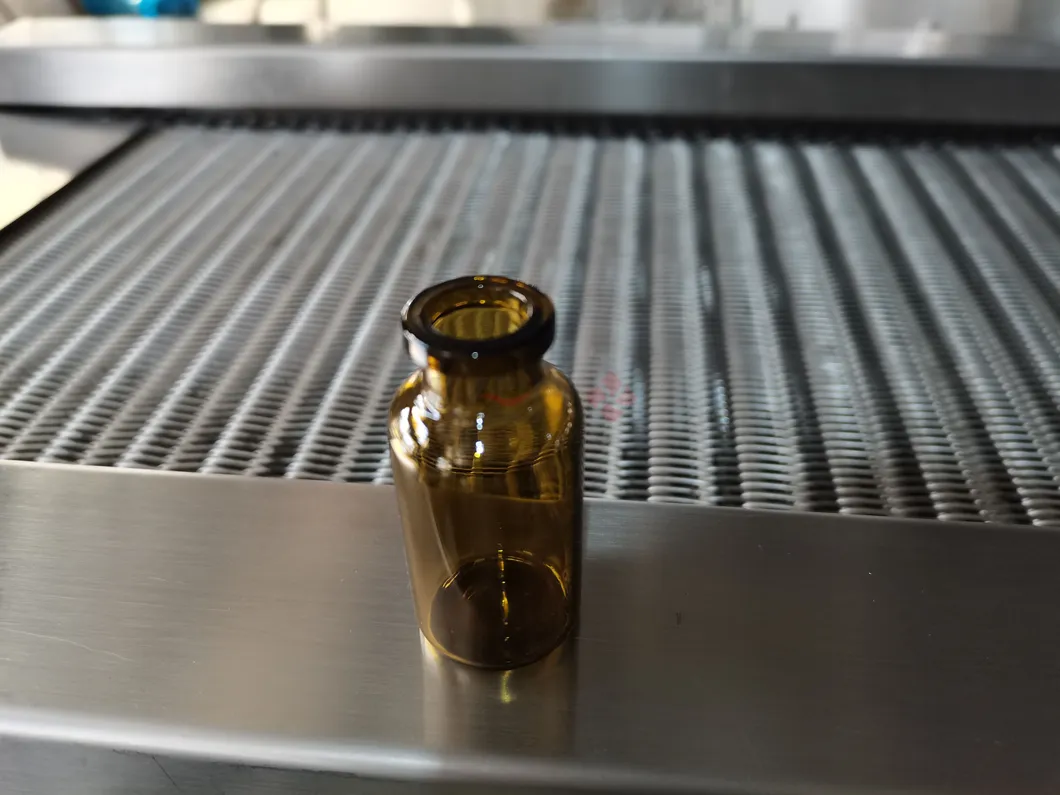

Process Detail 2

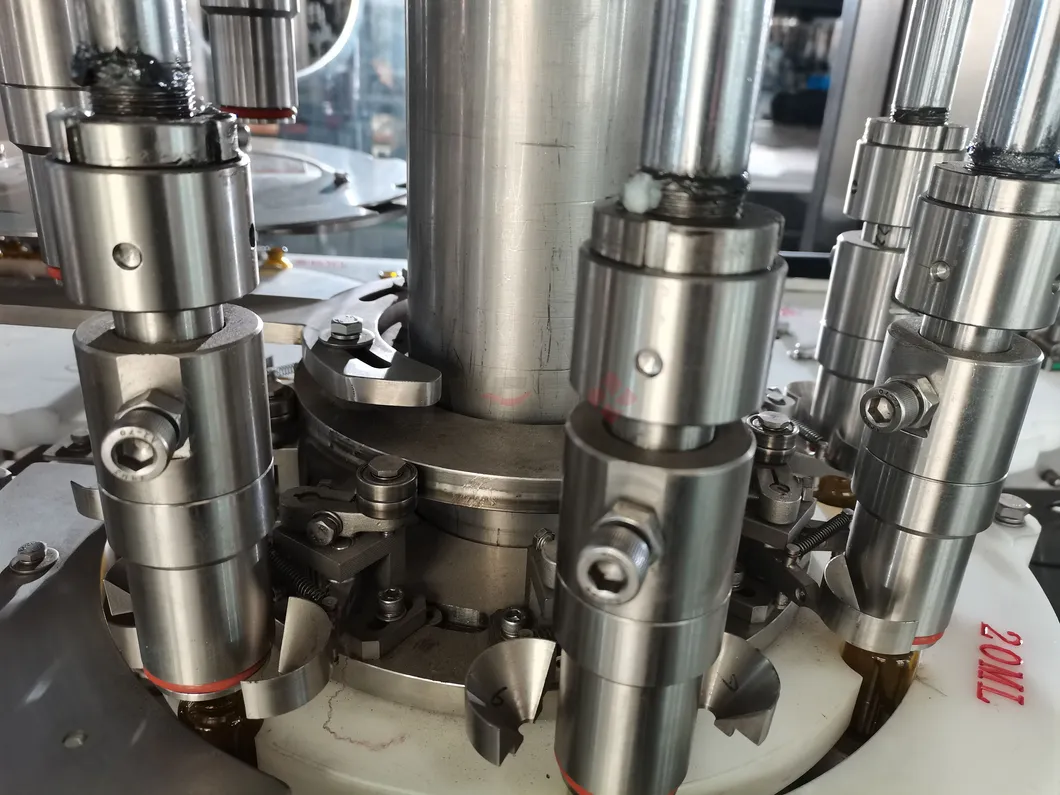

Process Detail 3
📋 Technical Parameters
Product Model PYG2/1/1 PYC4/2/2 PYG12/8/B PYG24/18/18
Stable Capacity 30-50 bpm 60-90 bpm 90-120 bpm 200-250 bpm
Moving Mode Intermittent type / Rotary type
Filling Range 5-500ml
Filling Heads 2 heads 4 heads 12 heads 24 heads
Accuracy ≤±0.5%
Capping Heads 1 head 2 heads 8 heads 8 heads
Power Supply 220/380V 50/60Hz
Weight 1000kg 1500kg 2500kg 3500kg
🏢 Company Profile
Production Capability Overview
❓ Frequently Asked Questions
1. What industries can use this filling equipment?
It is ideal for pharmaceutical, daily chemical, and chemical industries, specifically for spray and aerosol bottle packaging.
2. What is the filling accuracy of the machine?
The machine achieves a high filling accuracy of ≤±0.5% using plunger metering pumps.
3. Does the equipment support cleaning and sterilization?
Yes, the pump structure is designed for easy disassembly and supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) functions.
4. Can the filling volume be adjusted easily?
Yes, the filling volume is controlled via a servo motor and can be easily adjusted through the PLC man-machine interface.
5. Is the production line compatible with different bottle sizes?
The entire line is designed to be versatile, allowing for convenient adjustments to accommodate various bottle specifications within a short time.
6. How does the machine prevent bubbles during filling?
The system features an anti-leaking device that fills from the bottom of the bottle and rises slowly to eliminate bubble formation.
