Computerized Multi-Head Nasal Spray Bottle Filling and Capping System

1 / 5

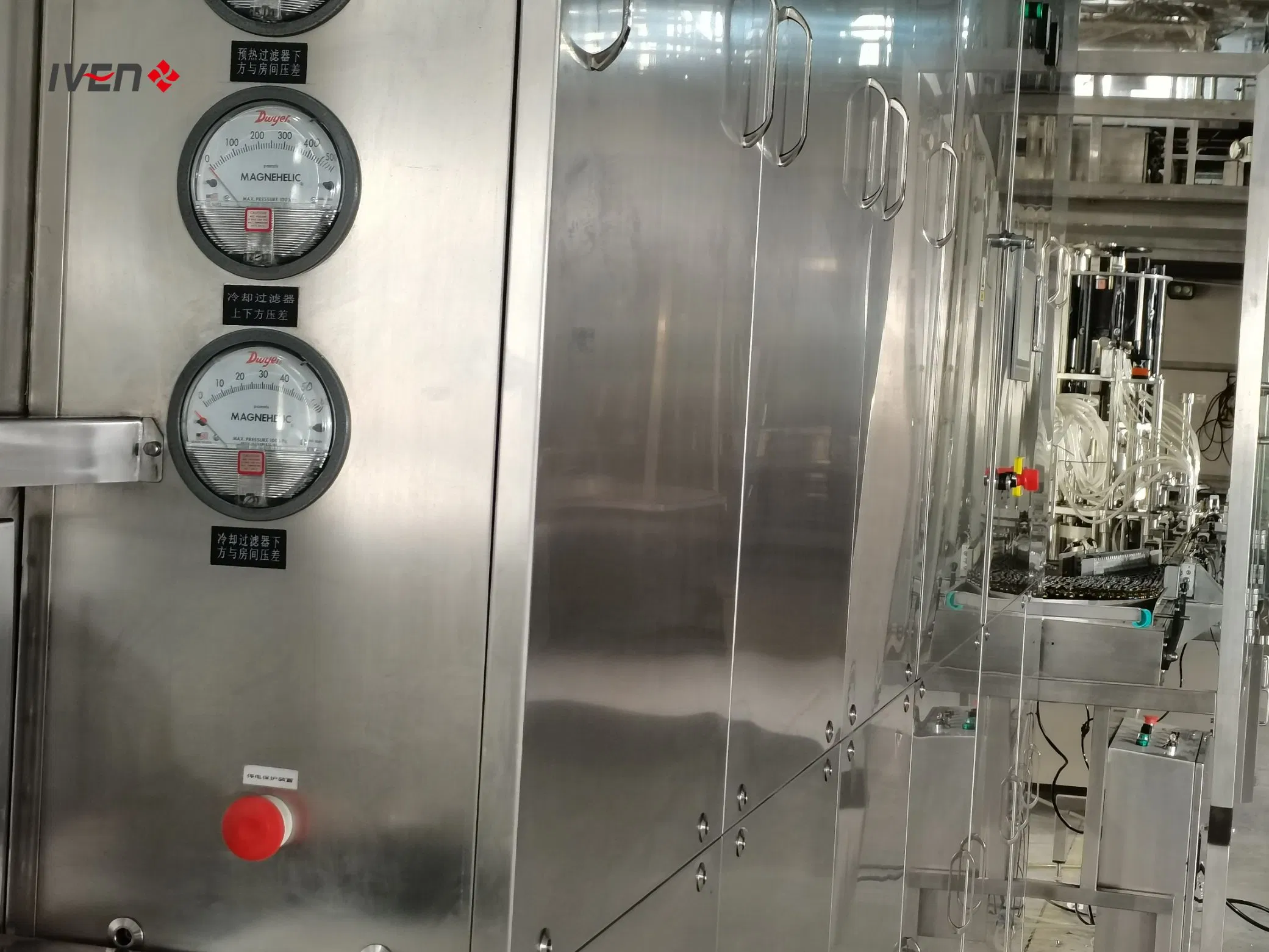

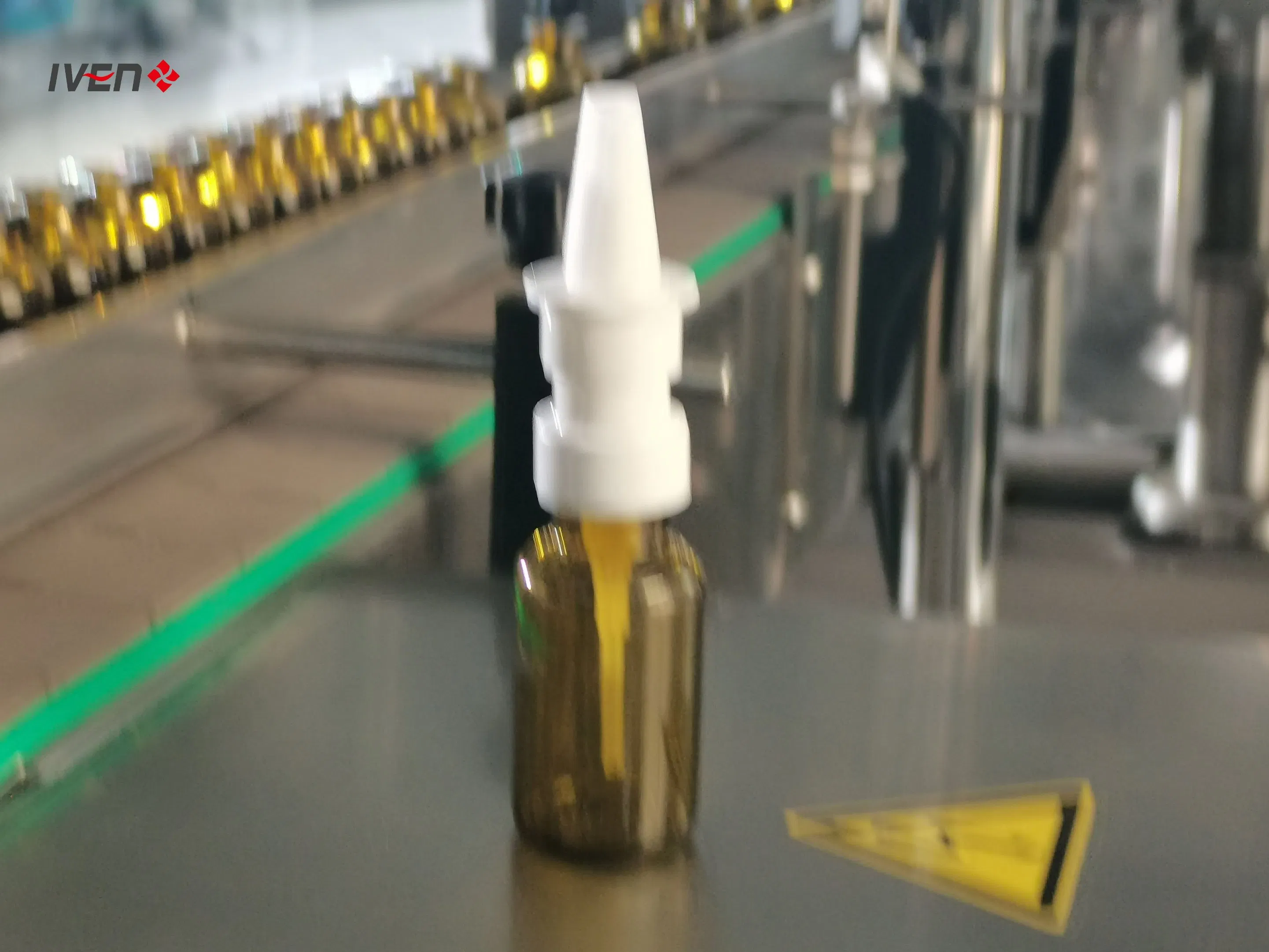

Computerized Multi-Head Nasal Spray Bottle Filling and Capping System

After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification:	CE, GMP, ISO
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.

Customized IVEN -1

Fill Range

1L & Above / 5-500ml

Filling Principle

Gravity Filling

Main Material

Glass, Plastic, Stainless Steel

Voltage

380V

Warranty

1 Year

Pump Type

Ceramic, Peristaltic, Metal Pump

Process Type

Washing, Sterilizing, Filling, Stoppering, Capping

Filling Speed

3500-4000 Bottles/Hour

Filling Accuracy

≤±0.5%

Control System

PLC Control

Origin

China

Product Description

Customized Nasal Decongestant Pharmaceutical Liquid Filling and Packing Machine

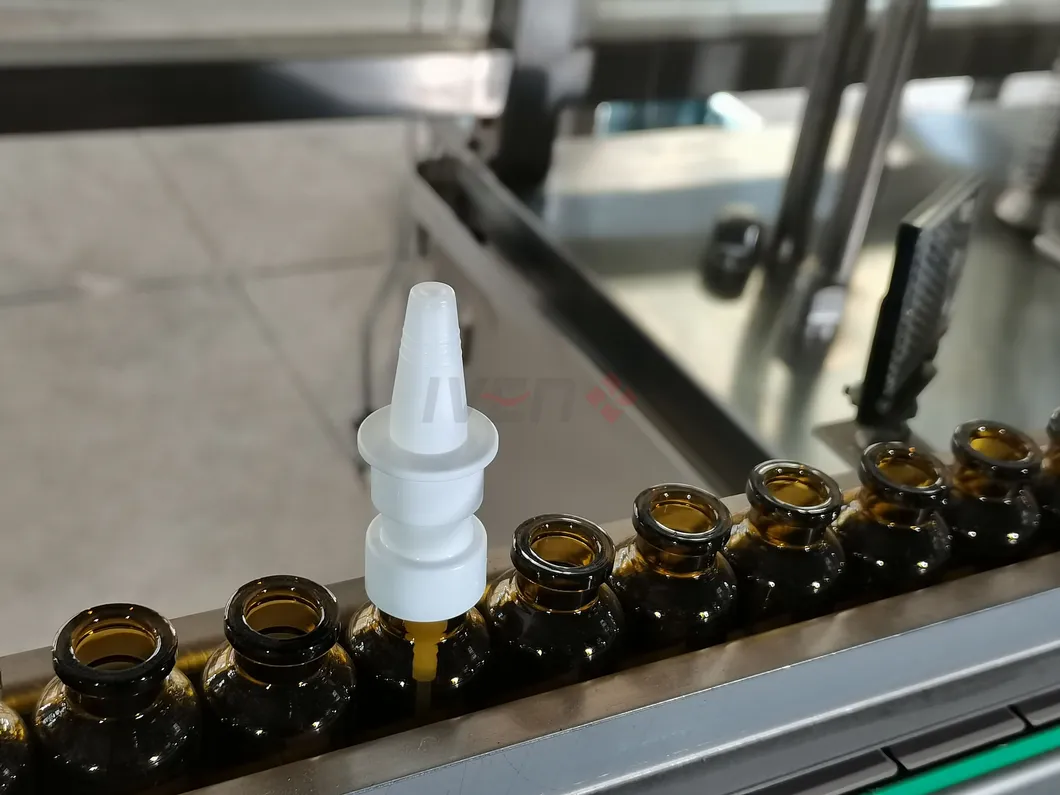

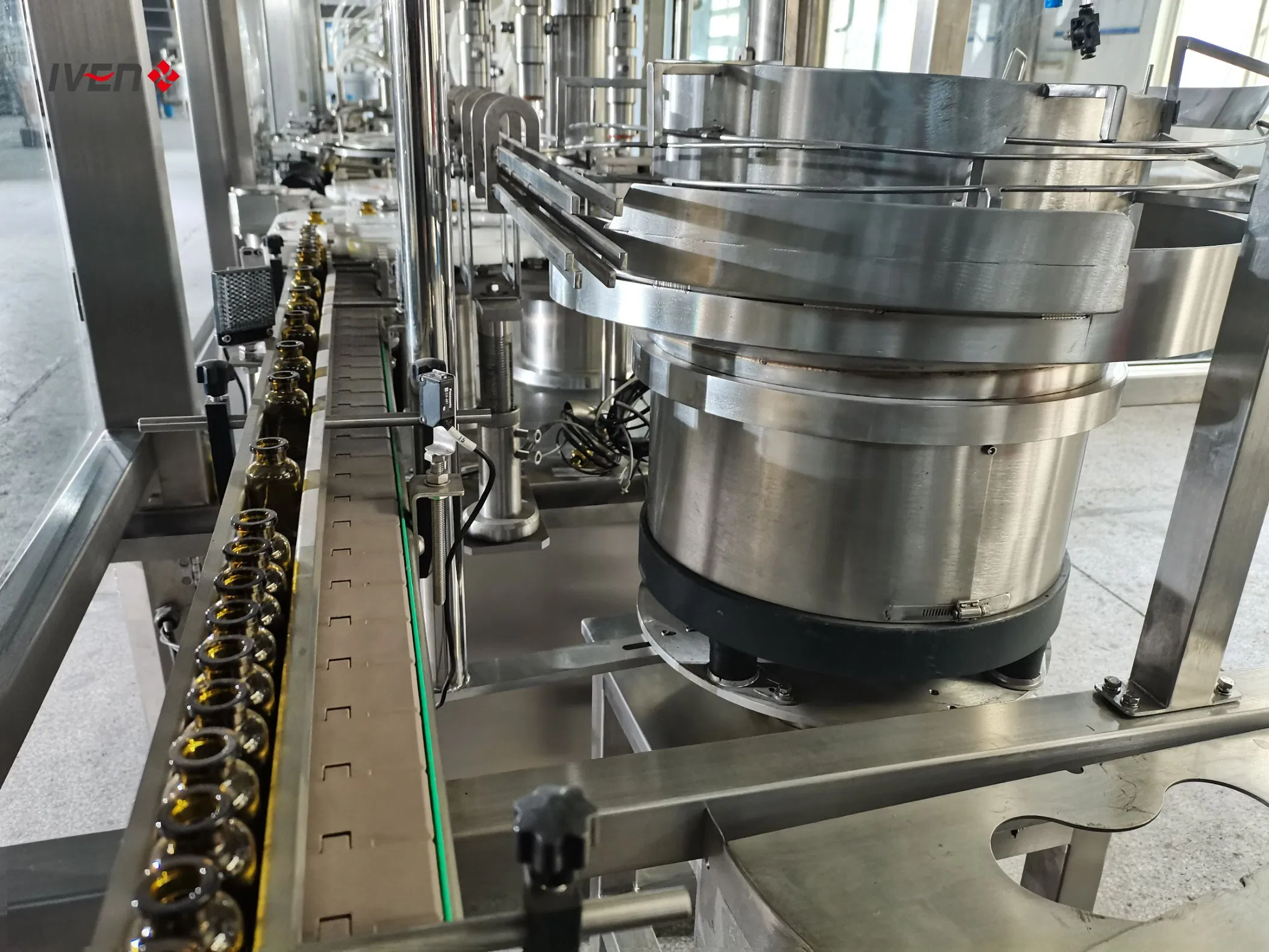

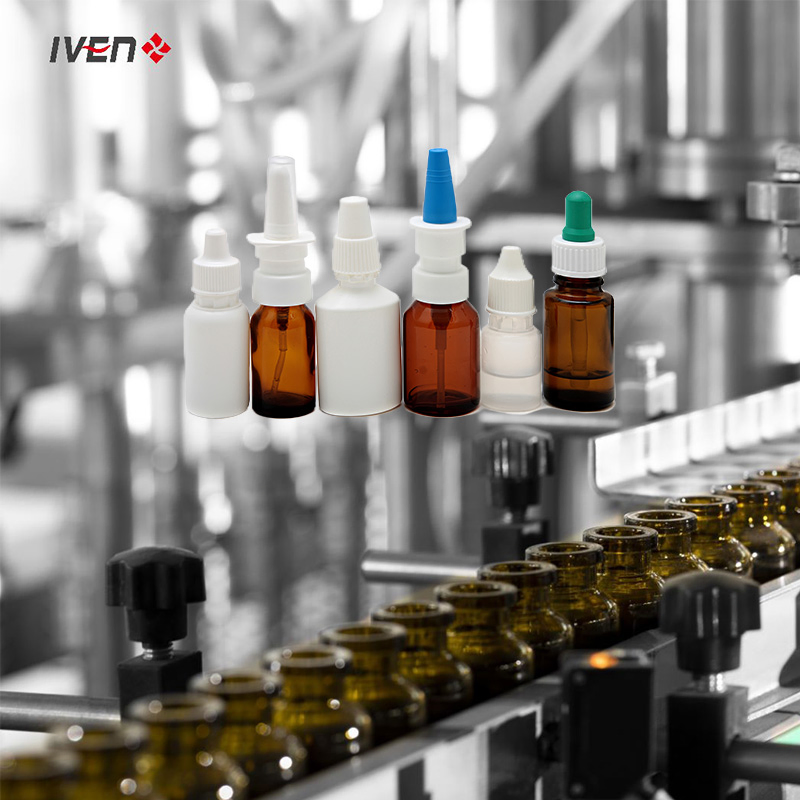

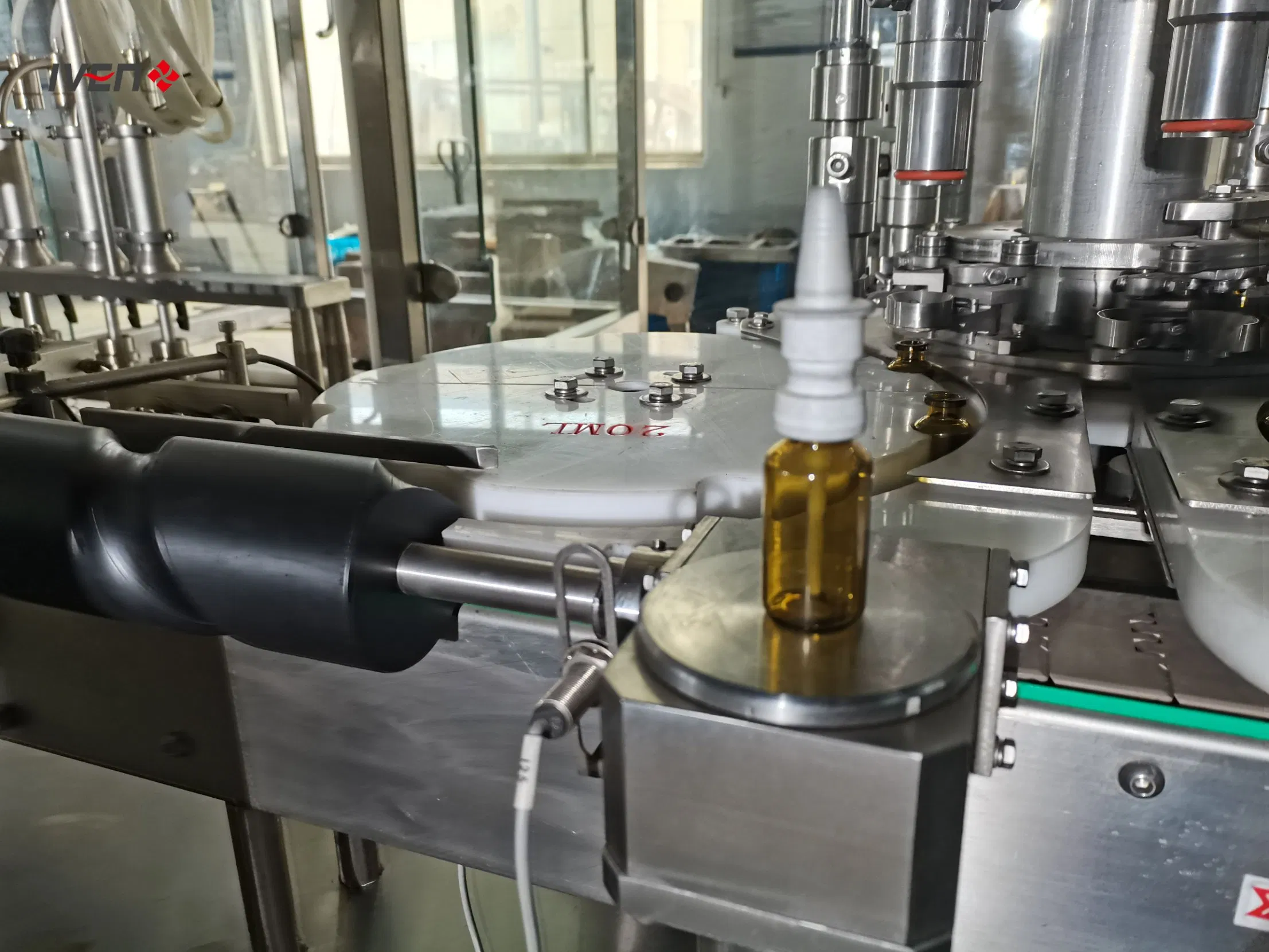

Nasal Spray Filling and Capping production line is suitable for packaging production such as bottle unscrambling, air washing, filling, cap feeding, cap screwing (pressing or cap grabbing), aerating, large cap feeding, labeling, cartoning, case packing and palletizing of spray and aerosol bottles in such Industries as medicine, daily chemical industry, chemical industry, etc. It has reached the advanced level and can replace similar imported products. It is also suitable for filling of other packaging materials such as droppers.

Main Technical Features

Adopts automatic bottle unscrambling instead of manual work, saving manpower.
Purified air is used to rinse bottles, ensuring clean bottles, equipped with ion wind device for eliminating static electricity.
Adopts plunger metering pump for various viscosities with high precision. Easy to disassemble for cleaning and sterilization.
Supports CIP/SIP functions for high hygiene standards.

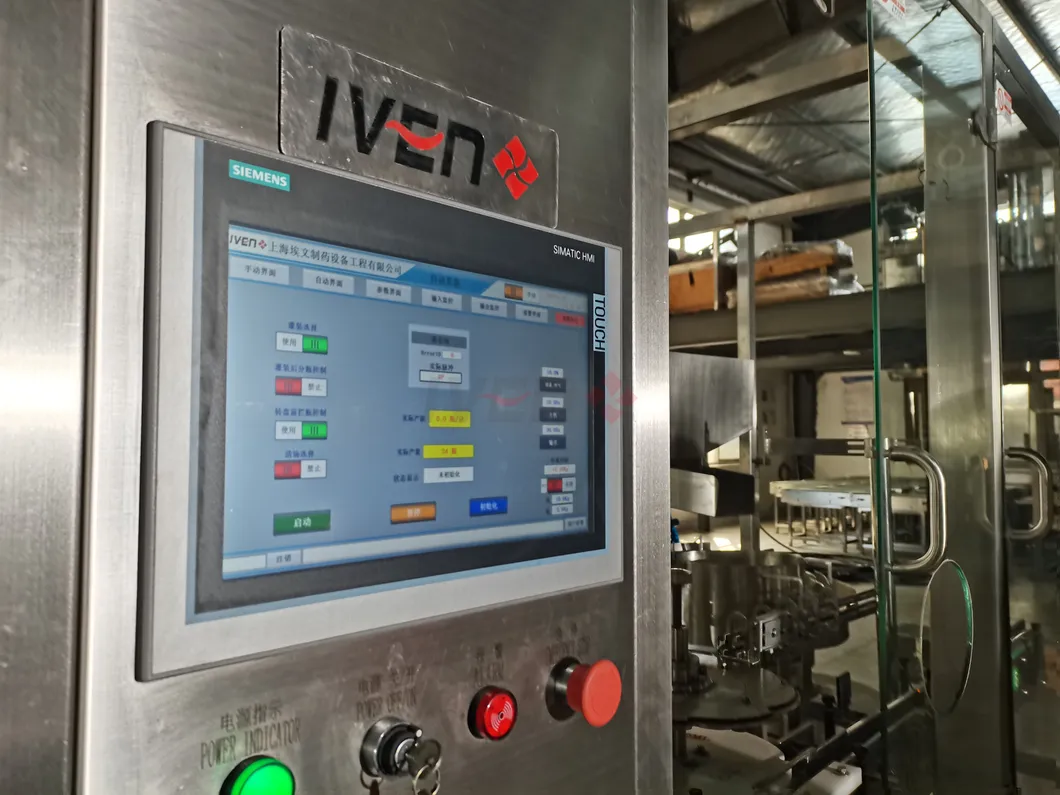

PLC control system with variable frequency speed control and high degree of automation.
Servo motor driving with filling volume adjusted on the man-machine interface.
Anti-leaking device with bottom-up filling to avoid bubbles.

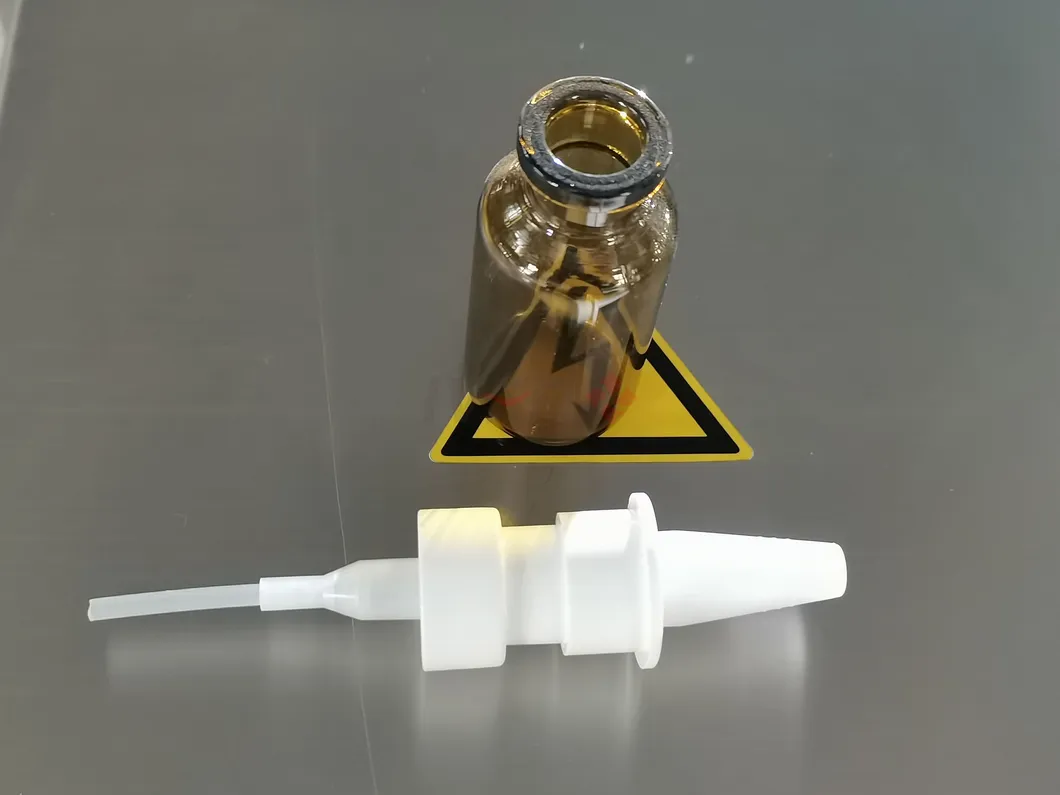

Mechanical hand feeds the cap of slim tube with guiding function, stable and reliable.
Designed according to GMP requirements.

Product Parameters

Product Model	PYG2/1/1	PYC4/2/2	PYG12/8/B	PYG24/18/18
Stable production capacity	30-50 bottles/min	60-90 bottles/min	90-120 bottles/min	200-250 bottles/min
Bottle moving mode	Intermittent type / Rotary type
Filling range	5-500ml
Number of filling heads	2 heads	4 heads	12 heads	24 heads
Filling accuracy	≤±0.5%
Number of capping heads	1 head	2 heads	8 heads	8 heads
Power supply	220/380V 50/60Hz
Power	≤2.2kw	≤2.2kw	≤3.5kw	≤5kw
Weight	1000kg	1500kg	2500kg	3500kg

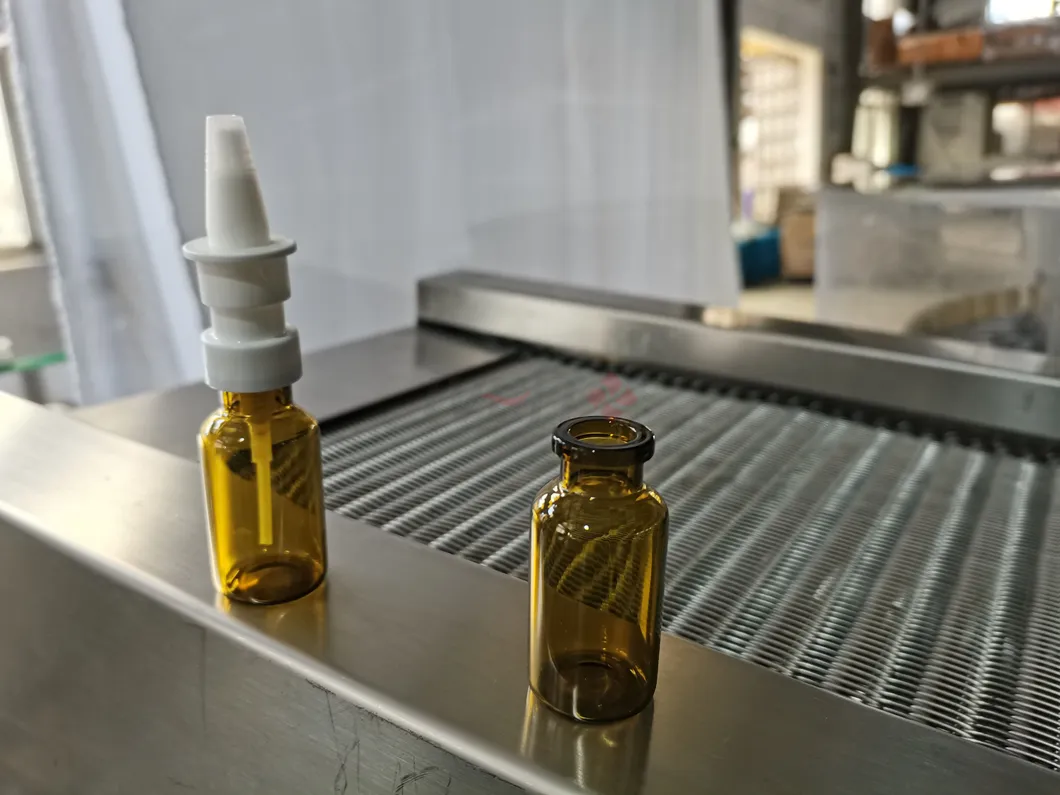

Production & Quality Display

Frequently Asked Questions

Q1: What is the filling accuracy of this production line?

A: The machine achieves a high filling accuracy of ≤±0.5%, ensuring consistent product quality for pharmaceutical applications.

Q2: Can this machine handle different bottle materials?

A: Yes, it is designed to work with various materials including glass, plastic, and stainless steel bottles.

Q3: Does the equipment comply with international standards?

A: Absolutely. The entire production line is designed and manufactured according to strict GMP (Good Manufacturing Practice) requirements.

Q4: What is the maximum production capacity available?

A: Depending on the model selected, the capacity ranges from 30 bottles per minute up to 250 bottles per minute (approximately 3500-4000 bottles/hour for standard configurations).

Q5: How is the filling volume adjusted for different products?

A: The filling volume is easily adjusted through the PLC man-machine interface, driven by high-precision servo motors.

Q6: Is the machine easy to clean and sterilize?

A: Yes, the pump structure is designed for easy disassembly, and the system supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) functions.
