After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE, GMP, ISO
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model NO.
Customized -1
Fill Range
1L & Above / 5-500ml
Filling Principle
Gravity Filling
Main Material
Glass, Plastic, Stainless Steel
Voltage
380V
Warranty
1 Year
Pump Type
Ceramic, Peristaltic, Metal Pump
Process Type
Washing, Sterilizing, Filling, Capping
Filling Speed
3500-4000 Bottles/Hour
Filling Accuracy
≤±0.5%

Product Description

Customized Nasal Decongestant Pharmaceutical Liquid Filling and Packing Machine

This production line is ideally suited for packaging operations including bottle unscrambling, air washing, high-precision filling, cap feeding, and automated capping for spray and aerosol bottles. It serves industries such as medicine, daily chemicals, and chemical processing, providing a high-performance alternative to imported equipment. It is also versatile enough for filling other materials like droppers.

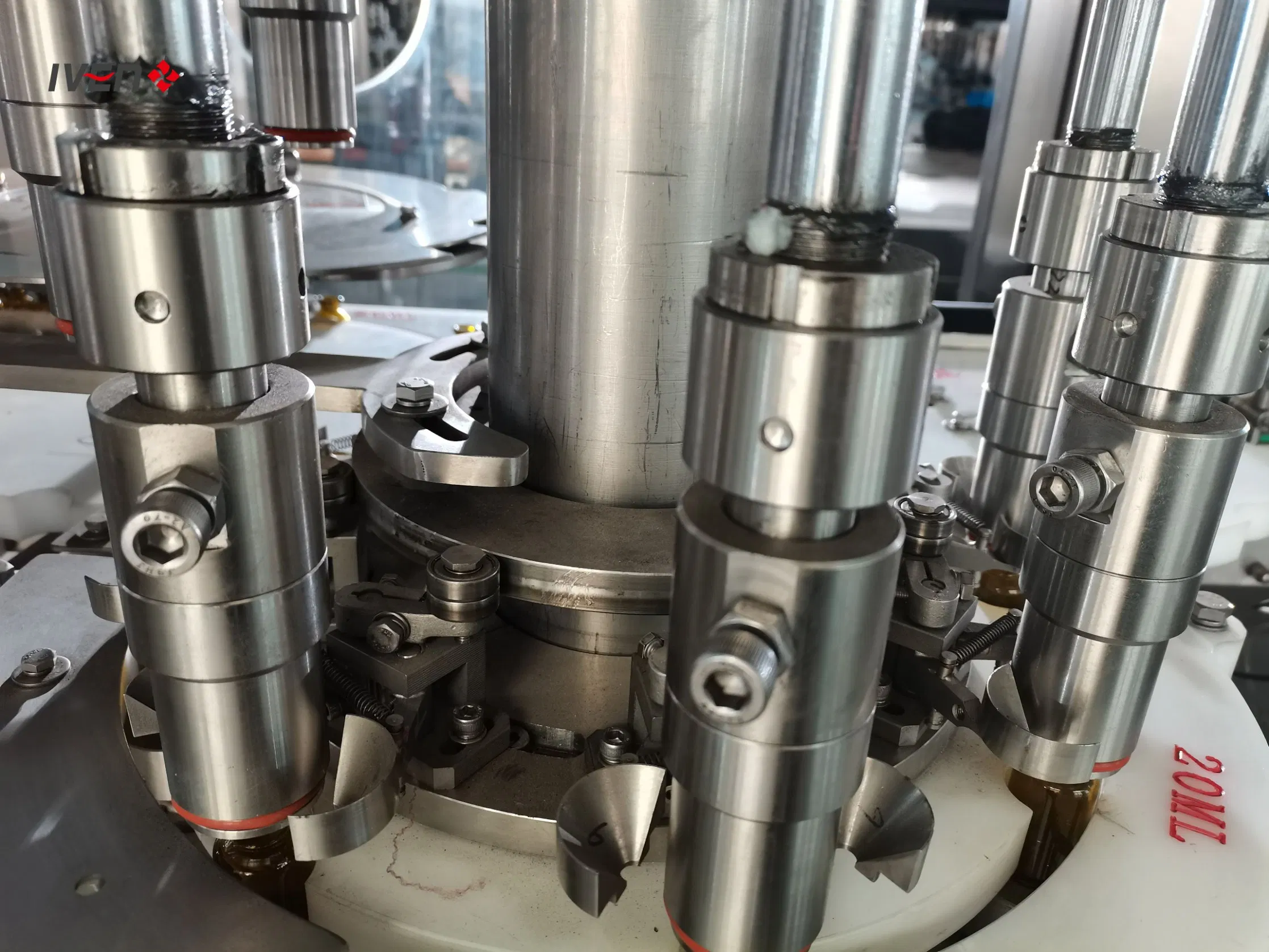

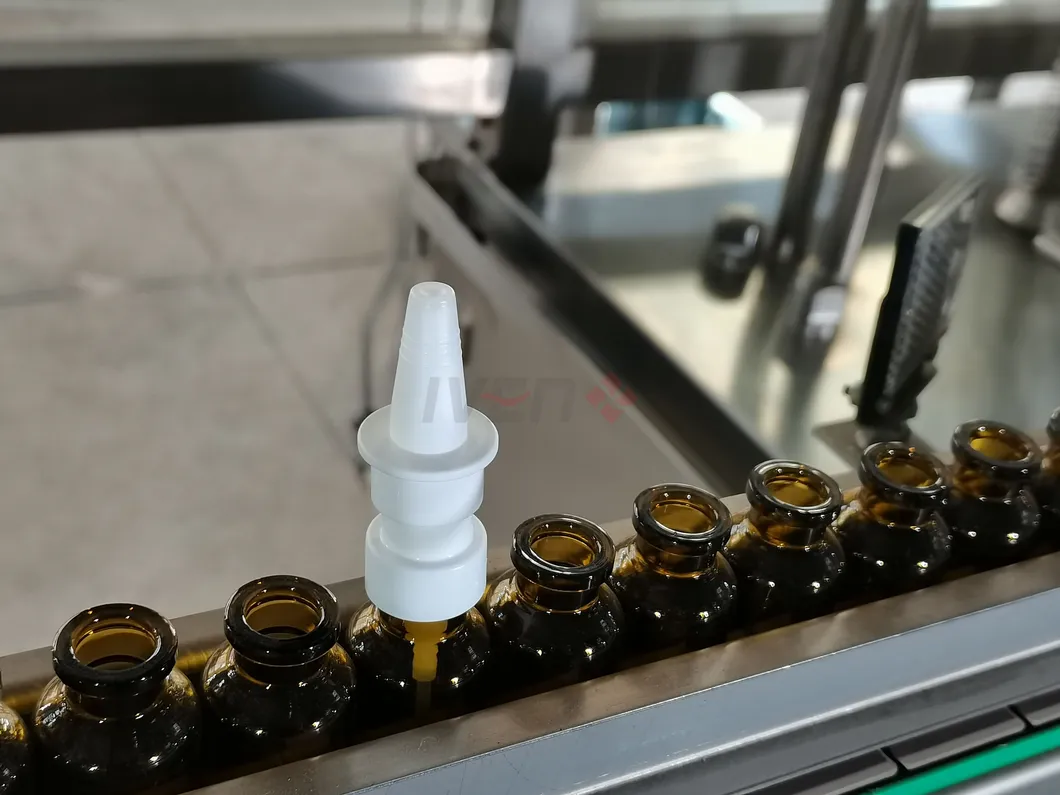

Efficient Capping and Filling System

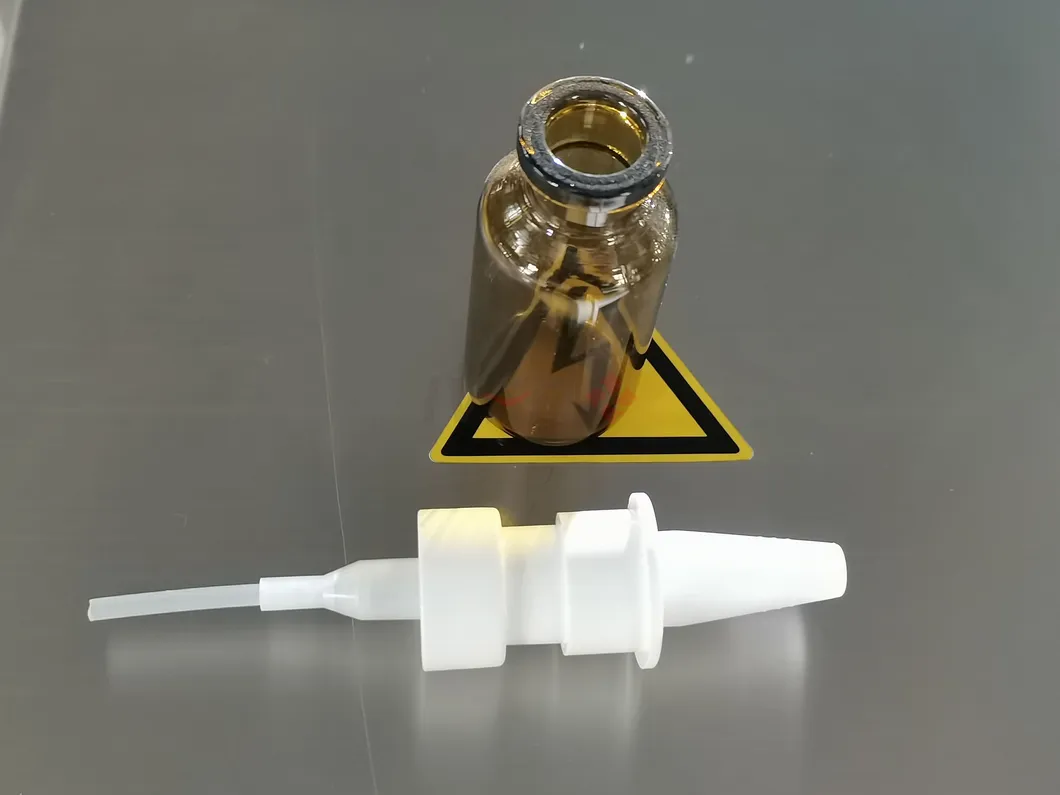

Pharmaceutical Liquid Filling

Key Technical Features

  • Automatic Operation: Features automatic bottle unscrambling to save manpower.
  • Advanced Cleaning: Uses purified air and ion wind devices to ensure bottle cleanliness and eliminate static electricity.
  • High Precision: Employs plunger metering pumps for liquids of various viscosities.
  • Sanitary Design: Supports CIP/SIP functions; pumps are easily disassembled for sterilization.
  • PLC Control: Fully automated system with variable frequency speed control and human-machine interface.
  • Anti-Leaking: Filling system includes an anti-leaking device with bottom-up filling to avoid bubbles.
  • GMP Compliance: Entire line designed strictly according to GMP requirements.

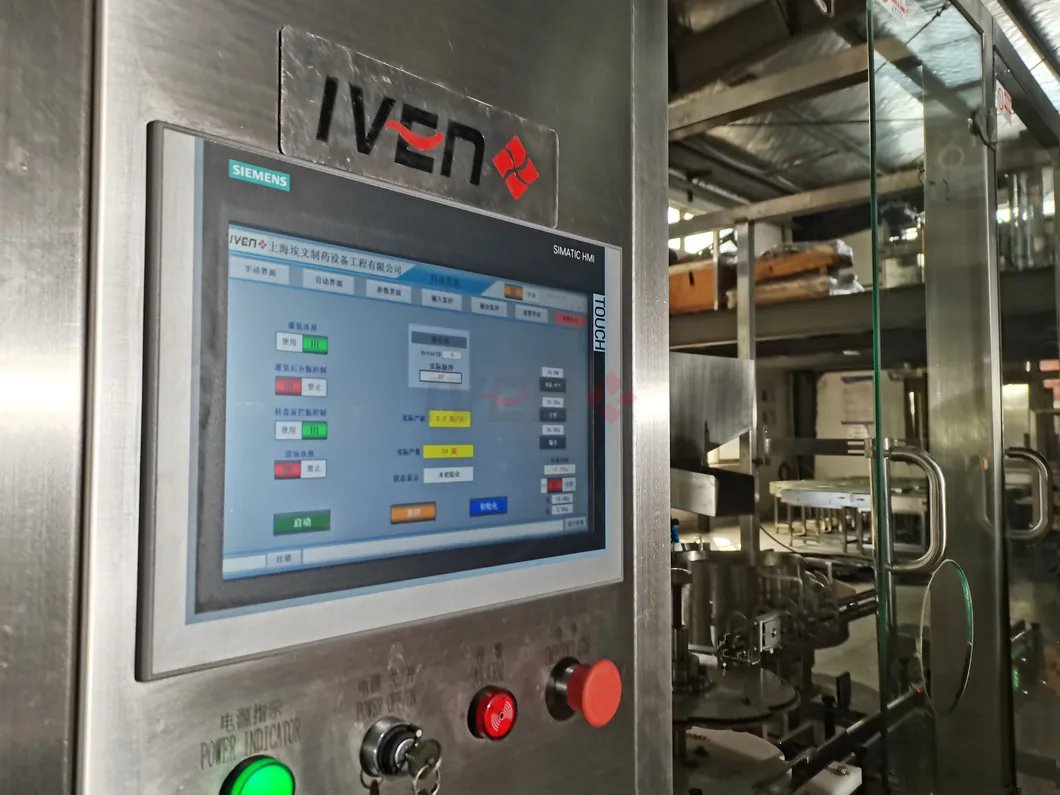

System Detail 1

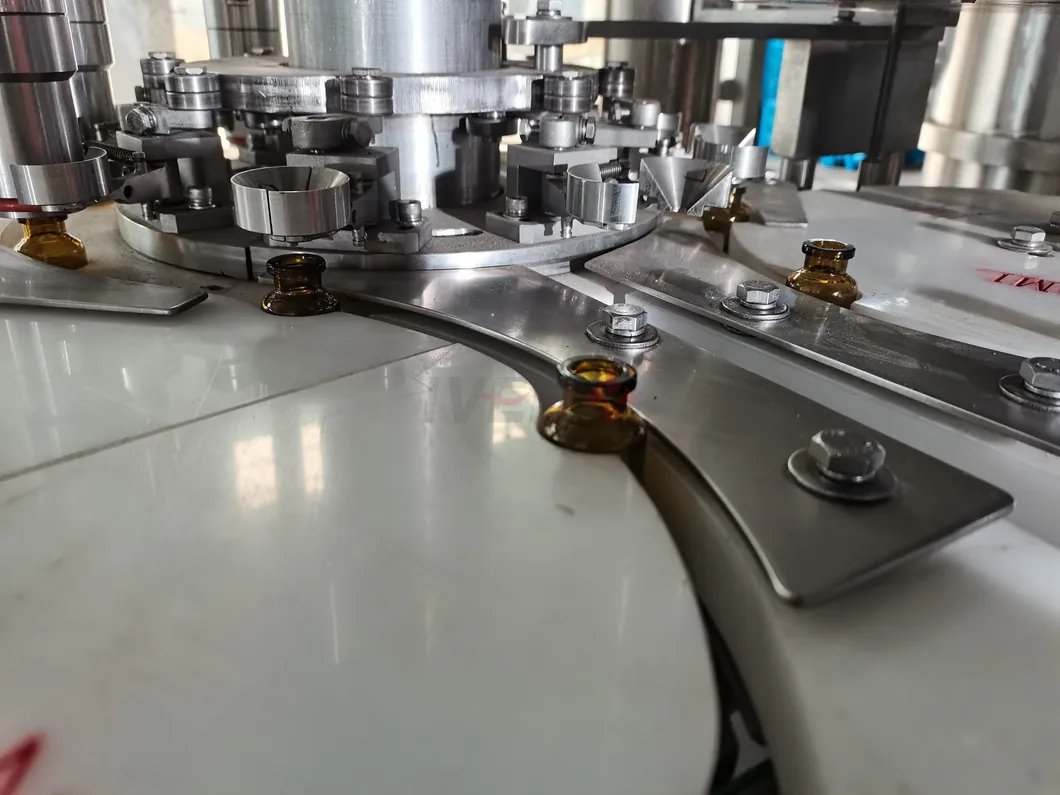

System Detail 2

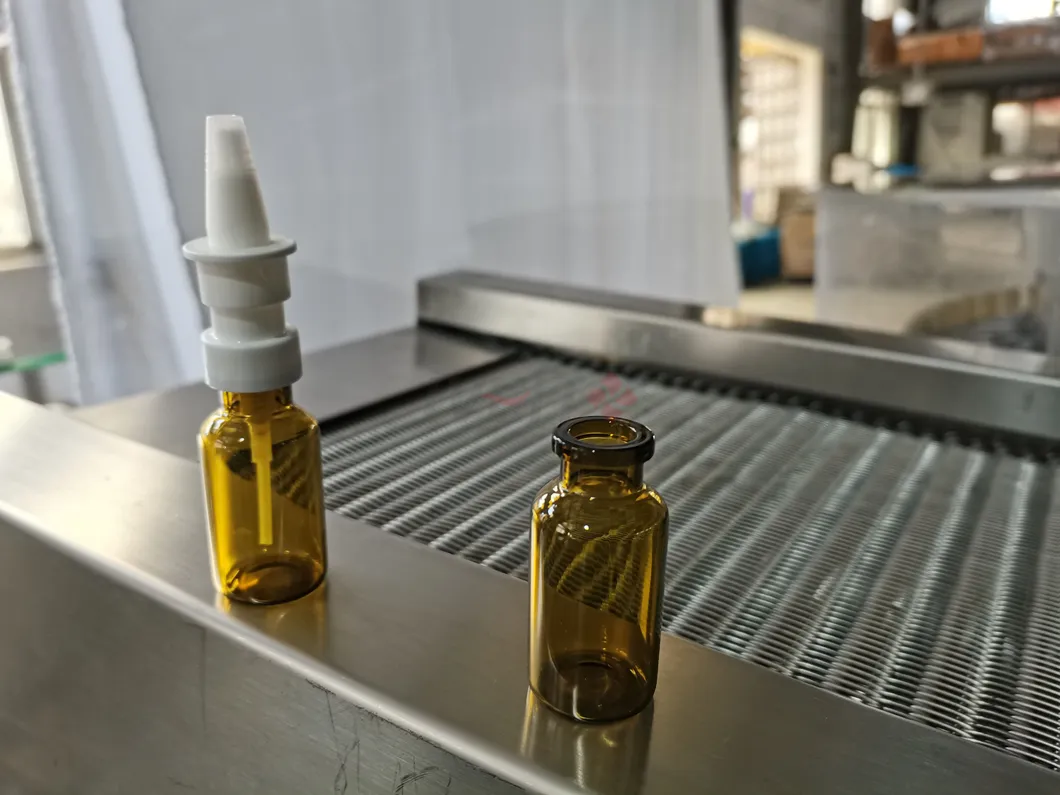

System Detail 3

Product Parameters

Product Model PYG2/1/1 PYC4/2/2 PYG12/8/B PYG24/18/18
Production Capacity 30-50 bpm 60-90 bpm 90-120 bpm 200-250 bpm
Moving Mode Intermittent Type / Rotary Type
Filling Range 5-500ml
Filling Heads 2 heads 4 heads 12 heads 24 heads
Filling Accuracy ≤±0.5%
Capping Heads 1 head 2 heads 8 heads 8 heads
Power Supply 220/380V 50/60Hz
Air Pressure 0.4-0.6MPa

Industrial Workflow & Capability

Workflow Diagram
Factory Facility

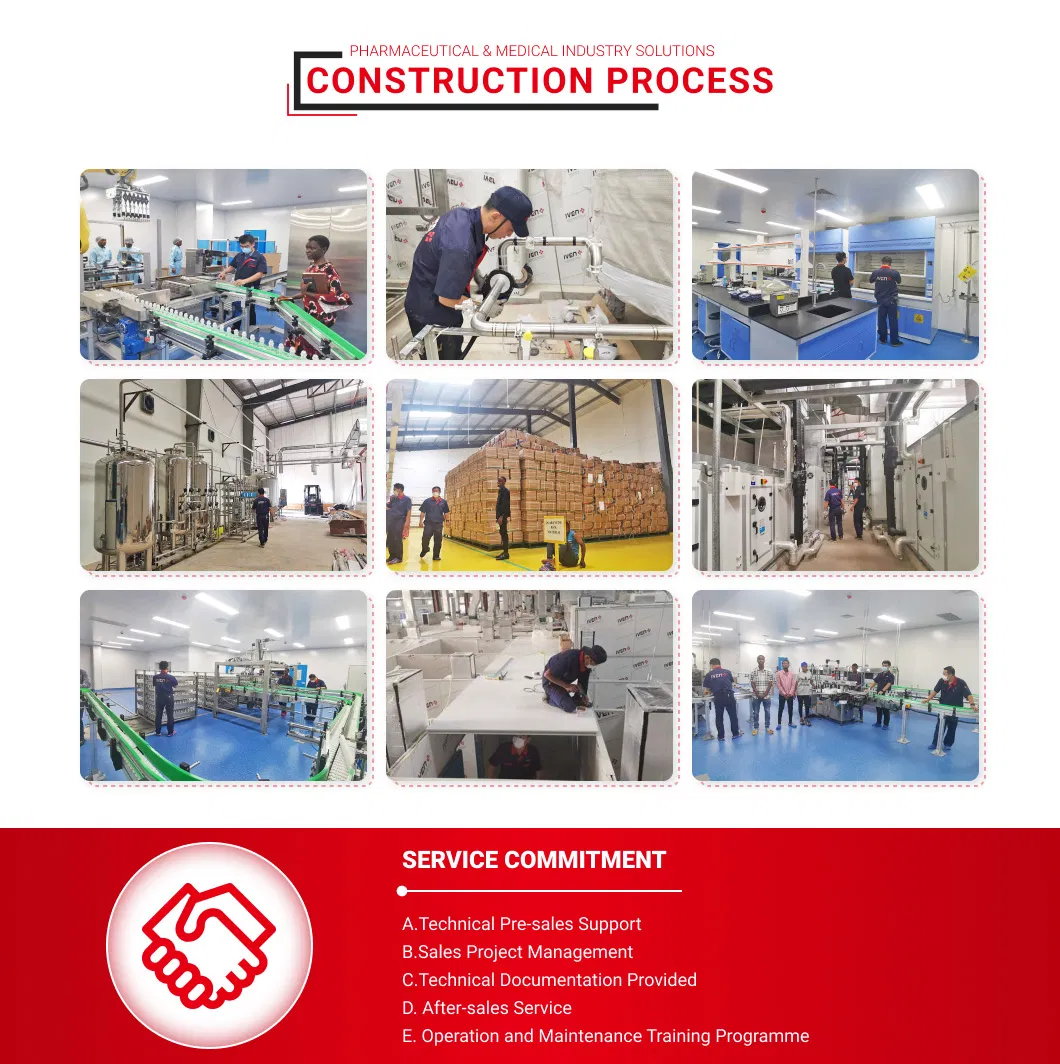

Processing Equipment
Quality Control

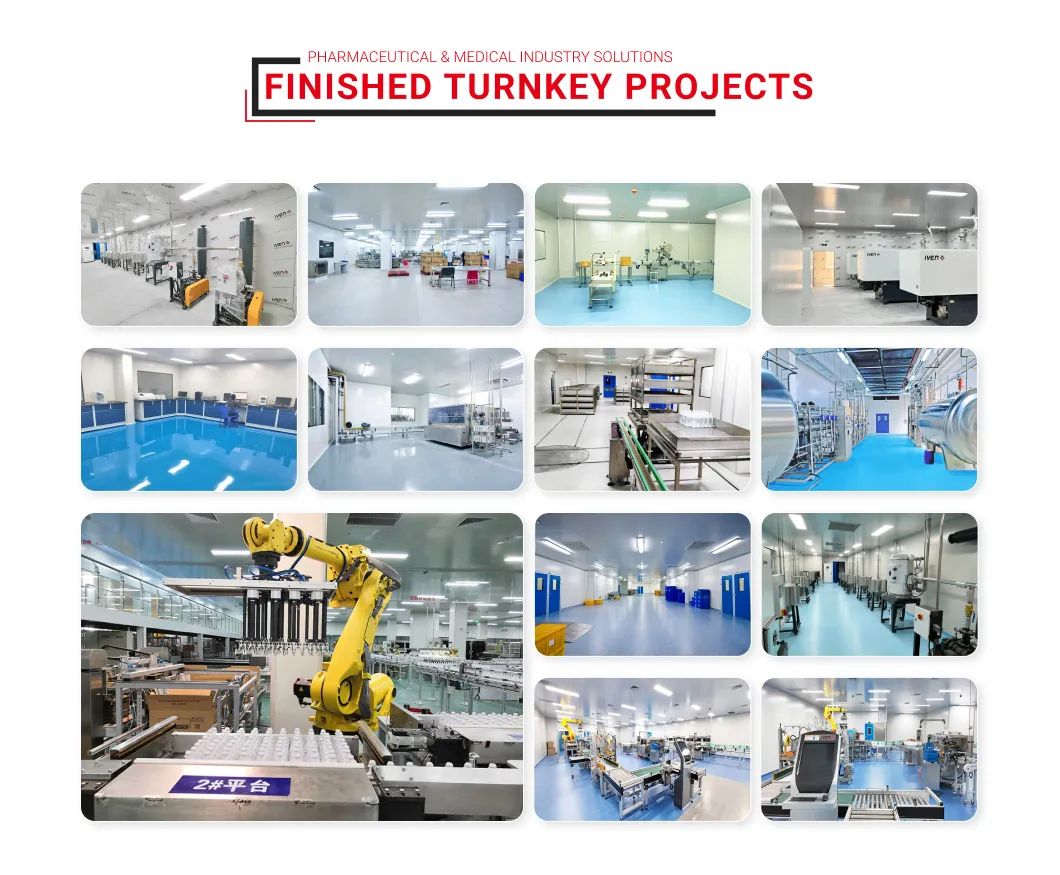

Production Line View
Technical Specifications Overview

Frequently Asked Questions

What types of liquids can this machine handle?
The machine is designed for various viscosities, making it ideal for pharmaceutical nasal decongestants, spray liquids, and daily chemical products.
How precise is the filling volume?
The system utilizes high-precision plunger metering pumps, ensuring a filling accuracy of ≤±0.5%.
Does the machine meet pharmaceutical safety standards?
Yes, the entire production line is designed and manufactured according to strict GMP requirements to ensure safety and hygiene.
Can the machine be customized for different bottle sizes?
Absolutely. The line is suitable for various specifications of bottles, and adjustments can be completed conveniently within a short timeframe.
What is the maximum production capacity available?
Depending on the model selected, the stable production capacity ranges from 30 bottles per minute up to 250 bottles per minute.
Is the machine easy to maintain and clean?
Yes, the pump structure is designed for easy disassembly and supports CIP/SIP functions for efficient cleaning and sterilization.
