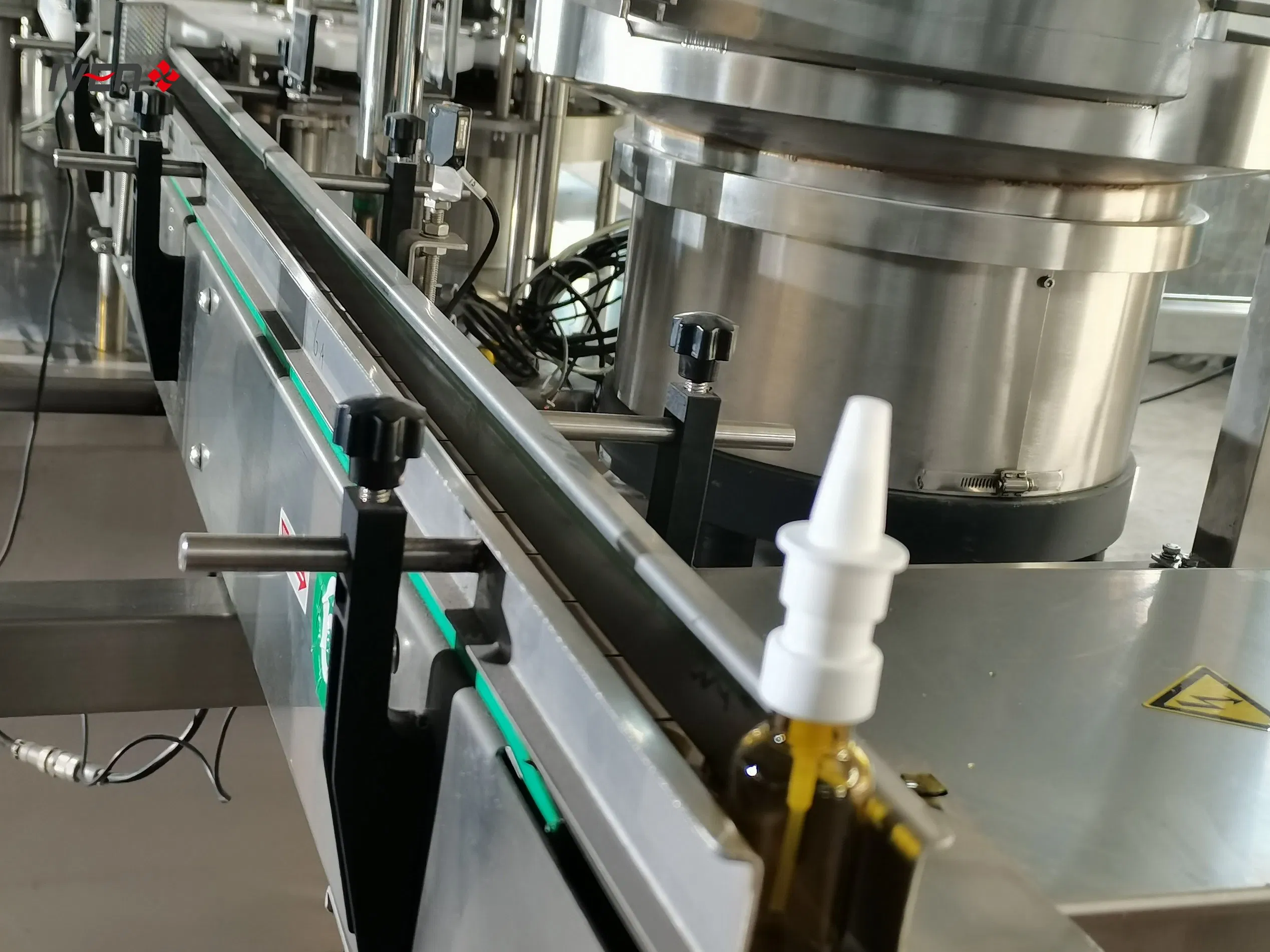

GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
1 / 5
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System
GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System

GMP Approved Snuff Fluid Dispensing Rhinological Relief Bottling and Sealing System

After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE, GMP, ISO
Condition: New
Send Inquiry

Product Description

Basic Information
Model NO.
Customized -1
Fill Range
5-500ml (1L & Above options)
Filling Principle
Gravity Filling / Plunger Pump
Main Material
Glass, Plastic, Stainless Steel
Voltage
380V
Warranty
1 Year
Pump Type
Ceramic/Peristaltic/Metal Pump
Filling Speed
3500-4000 Bottles/Hour
Accuracy
≤±0.5%
HS Code
8422303090
Nostril Spray Filling Capping Machinery

The Nasal Spray Filling and Capping production line is suitable for packaging production such as bottle unscrambling, air washing, filling, cap feeding, cap screwing (pressing or cap grabbing), aerating, large cap feeding, labeling, cartoning, case packing and palletizing of spray and aerosol bottles in industries such as medicine, daily chemical industry, and chemical industry. It has reached an advanced level and is also suitable for filling other packaging materials such as droppers.

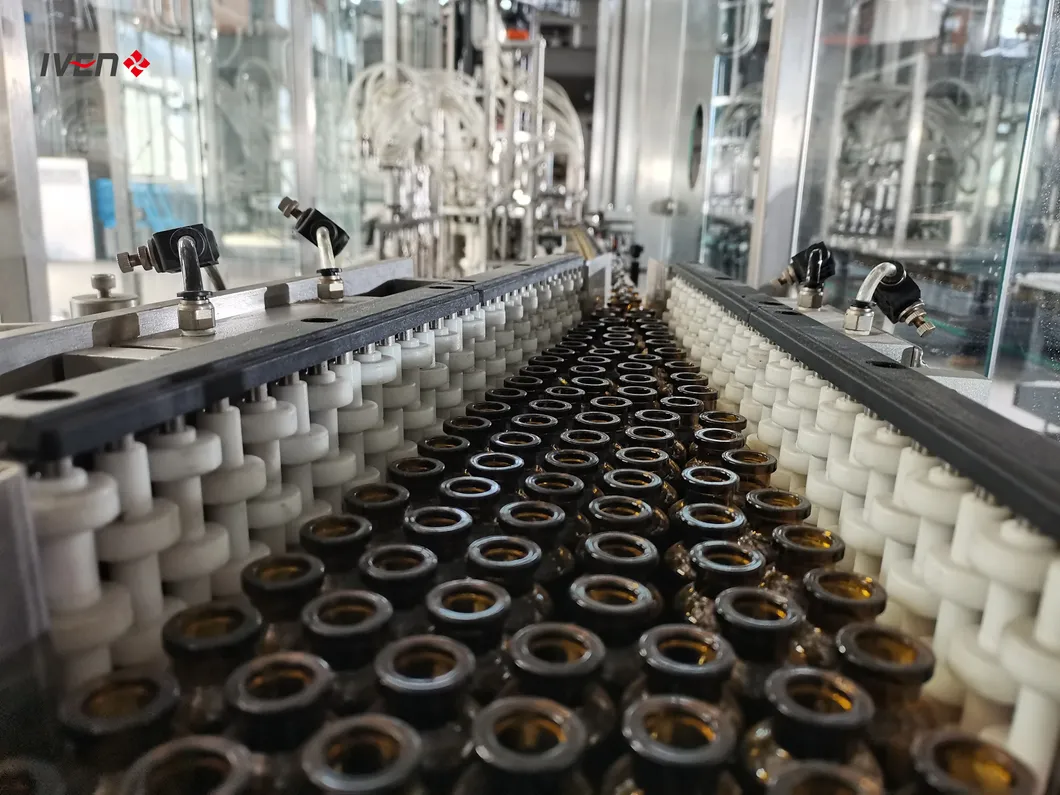

Nasal Spray Filling Line 1

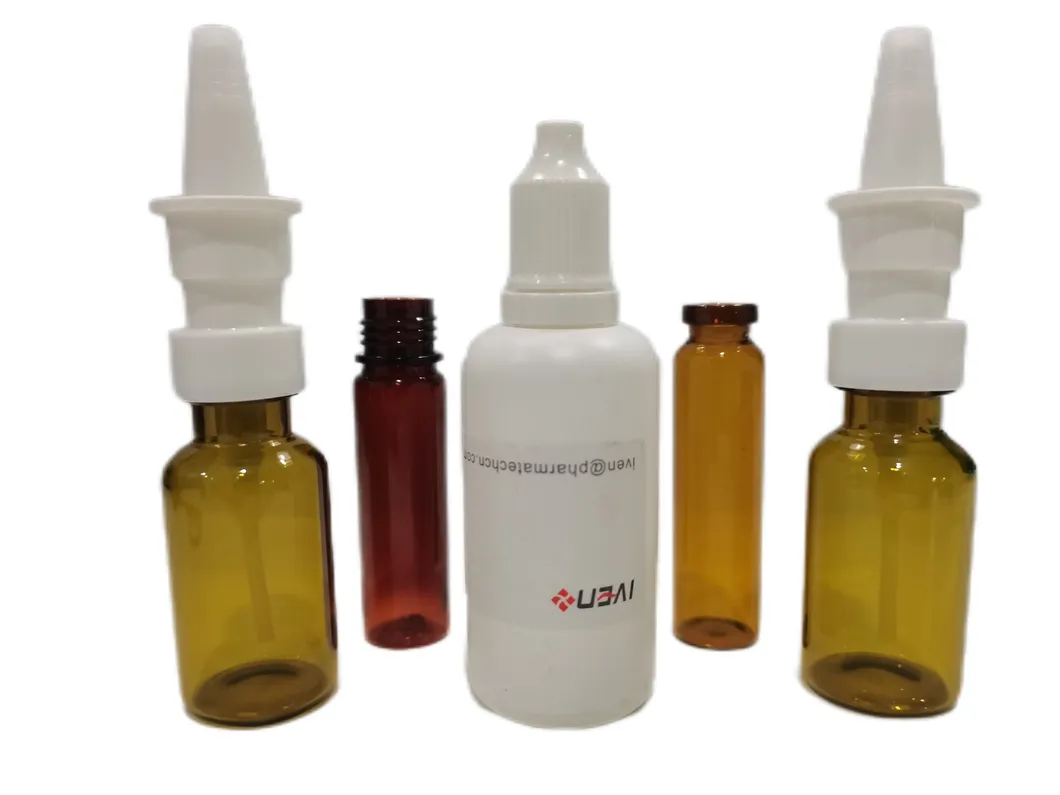

Nasal Spray Filling Line 2
Main Technical Features
  • ⚙️ Automatic bottle unscrambling instead of manual work, saving manpower.
  • ⚙️ Purified air bottle rinsing with ion wind device for eliminating static electricity.
  • ⚙️ Plunger metering pump for high precision filling of various viscosities; supports CIP/SIP functions.
  • ⚙️ PLC control system with variable frequency speed control and high degree of automation.
  • ⚙️ Servo motor driving with filling volume adjusted via man-machine interface.
  • ⚙️ Anti-leaking filling system realizing bottom-up filling to avoid bubbles.
  • ⚙️ Mechanical hand cap feeding, stable and reliable guiding functions.
  • ⚙️ Designed strictly according to GMP requirements.

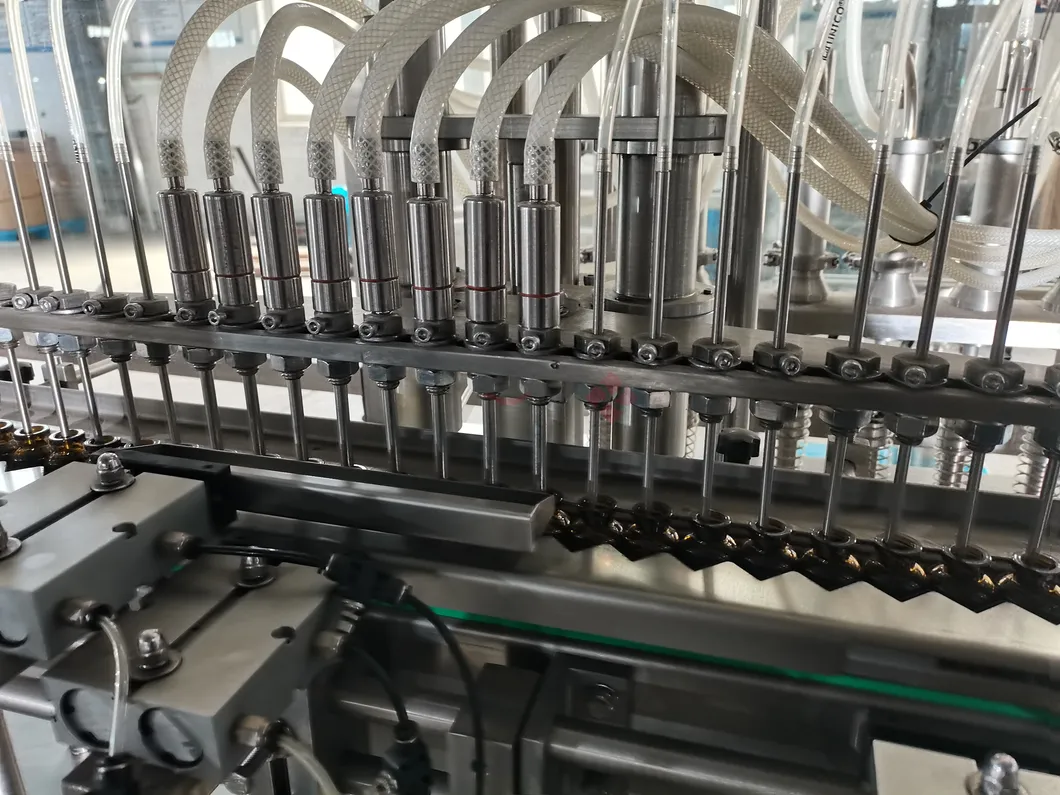

Detail Image 1

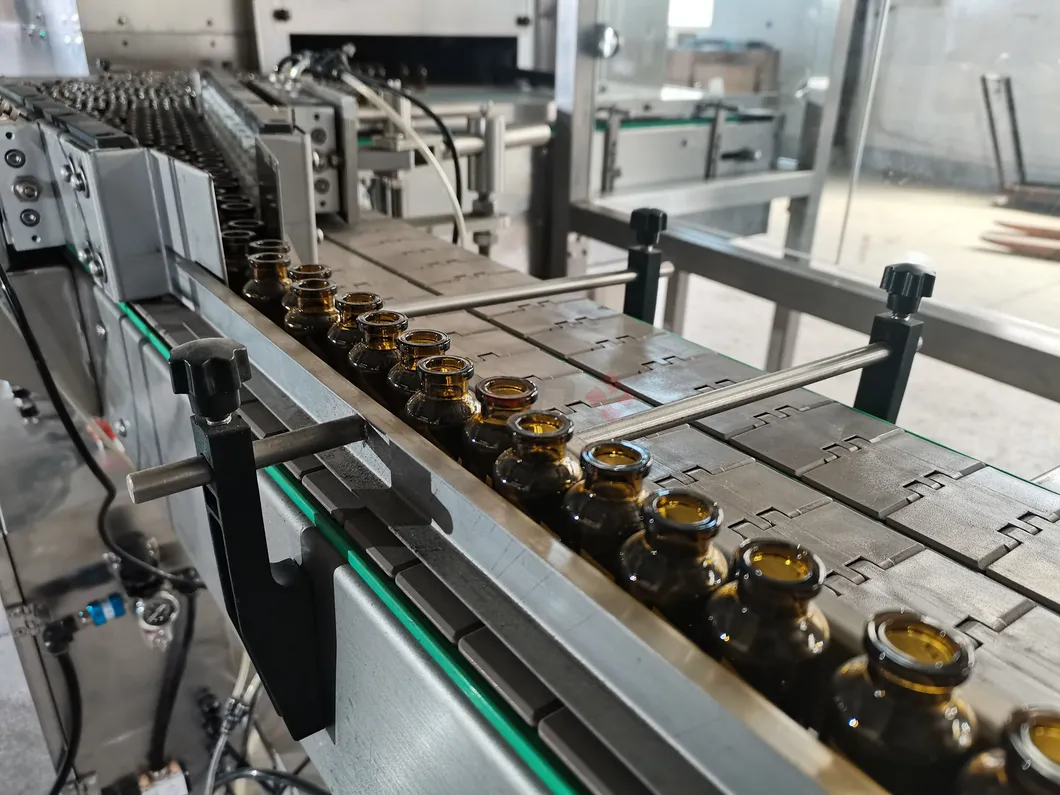

Detail Image 2

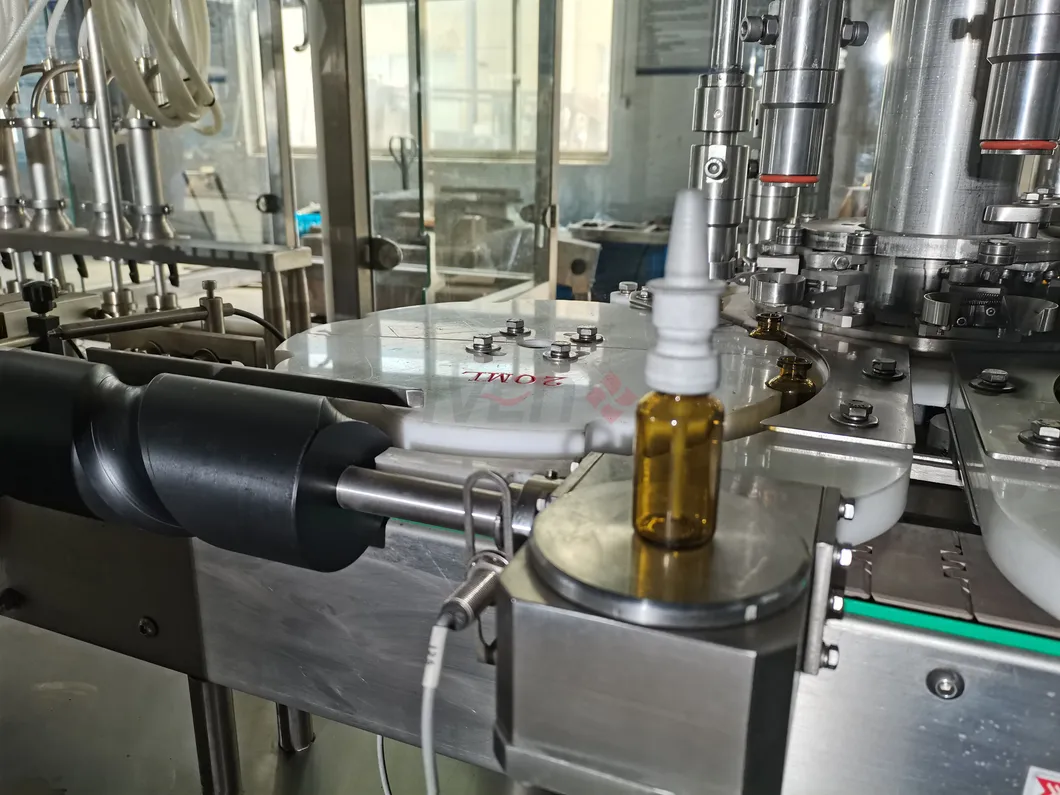

Detail Image 3
Product Technical Parameters
Model PYG2/1/1 PYC4/2/2 PYG12/8/B PYG24/18/18
Capacity (bottles/min) 30-50 60-90 90-120 200-250
Moving Mode Intermittent type Rotary type
Filling Range 5-500ml
Filling Heads 2 4 12 24
Accuracy ≤±0.5%
Capping Heads 1 2 8 8
Power Supply 220/380V 50/60Hz
Power ≤2.2kw ≤2.2kw ≤3.5kw ≤5kw
Weight 1000kg 1500kg 2500kg 3500kg

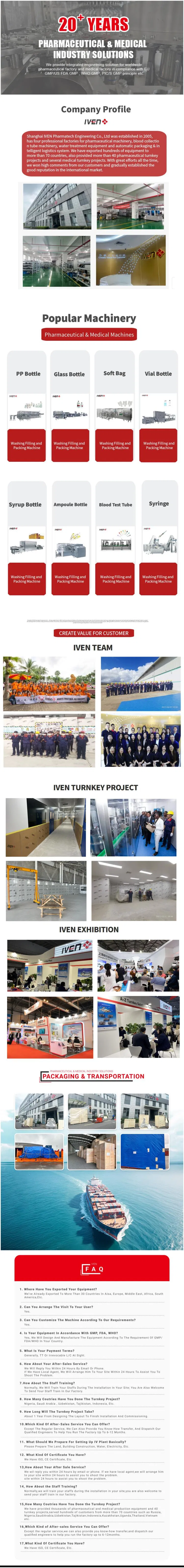

Process Chart
Operational Flow
Frequently Asked Questions
Q1: What is the maximum filling speed of this production line?
A1: Depending on the specific model, the stable production capacity ranges from 30 bottles per minute up to 250 bottles per minute for high-end rotary types.
Q2: What filling accuracy can the machine achieve?
A2: The machine utilizes high-precision plunger metering pumps, achieving a filling accuracy of ≤±0.5%.
Q3: Does the machinery comply with pharmaceutical standards?
A3: Yes, the entire production line is designed and manufactured strictly according to GMP (Good Manufacturing Practice) requirements.
Q4: Can this line handle different bottle sizes and liquid viscosities?
A4: Yes, the filling range is 5-500ml and it is designed for various viscosities. Adjustments for different bottle specifications can be completed conveniently within a short time.
Q5: What are the key automation features included?
A5: It includes automatic bottle unscrambling, PLC control with variable frequency speed, servo motor driving for volume adjustment, and mechanical hand cap feeding.
Q6: What types of pumps are available for the filling system?
A6: We offer Ceramic Pumps, Peristaltic Pumps, and Metal Pumps to suit different liquid characteristics and cleaning requirements.
