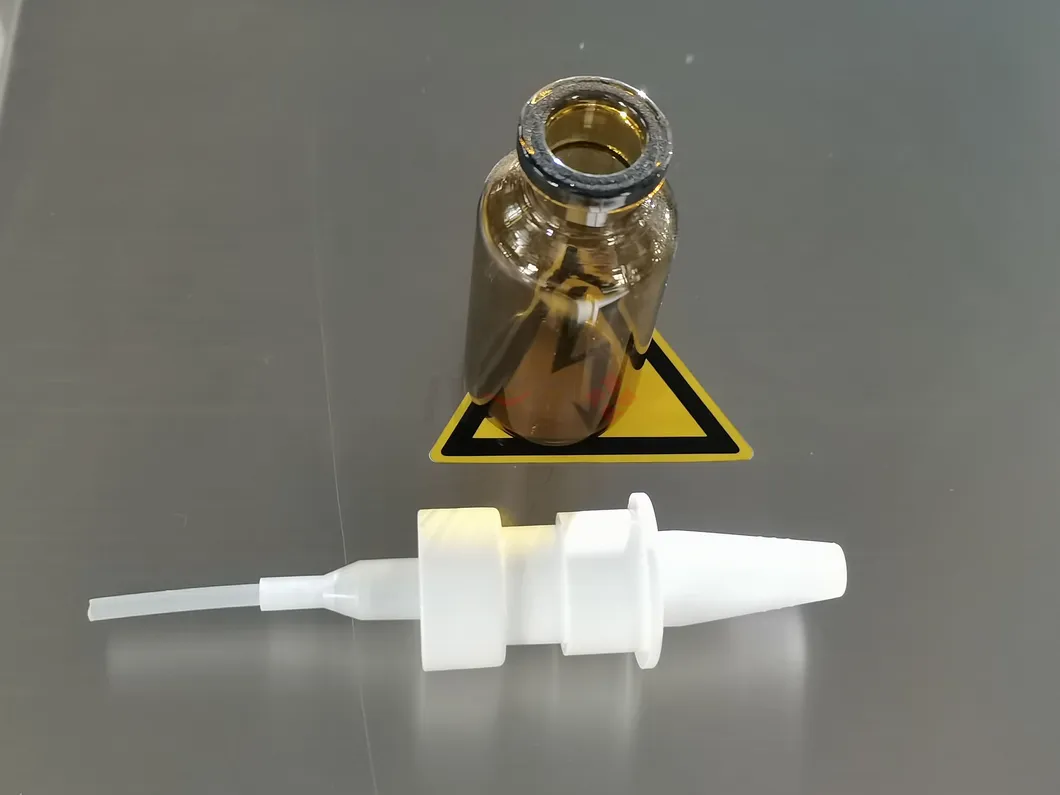

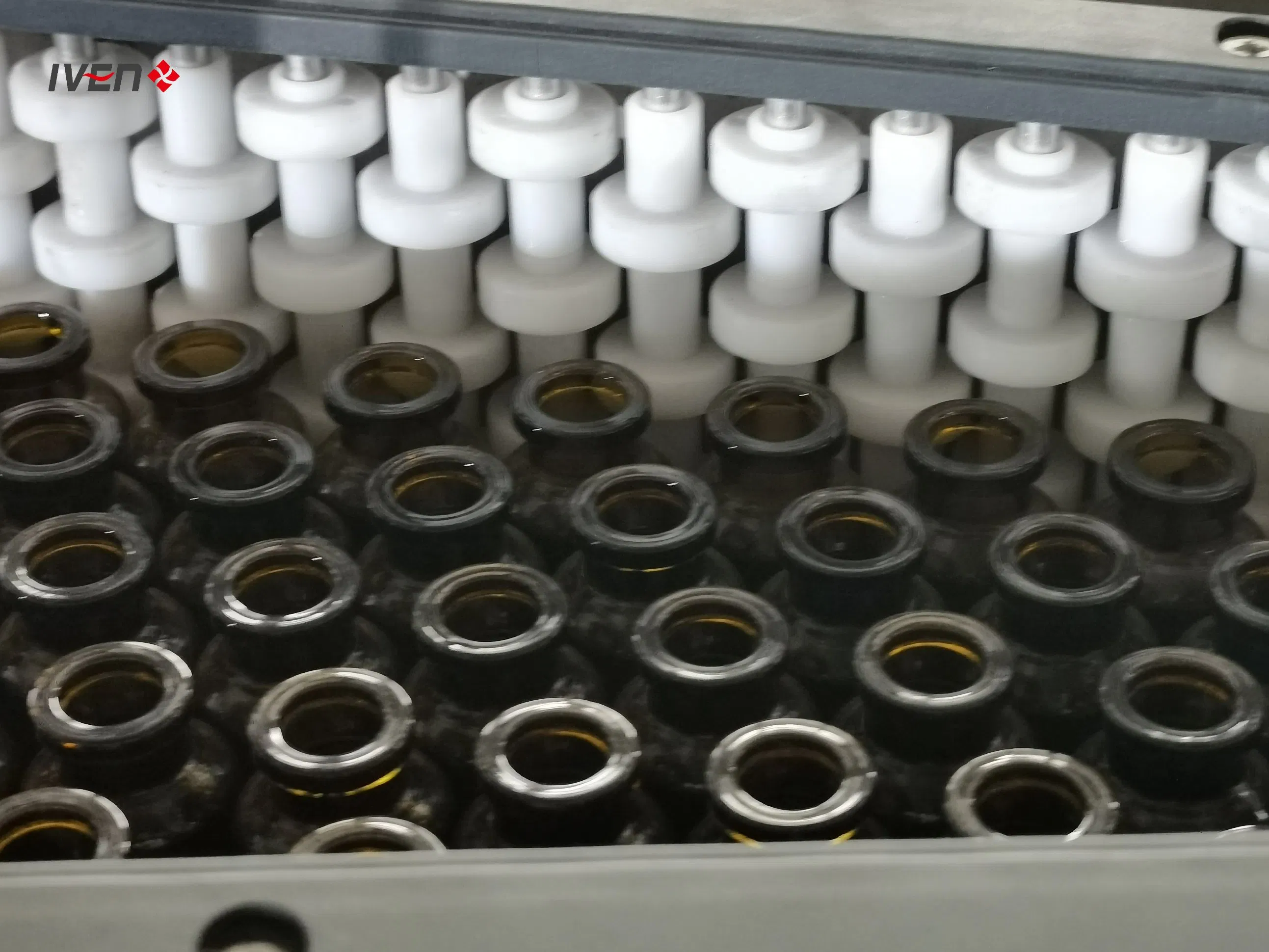

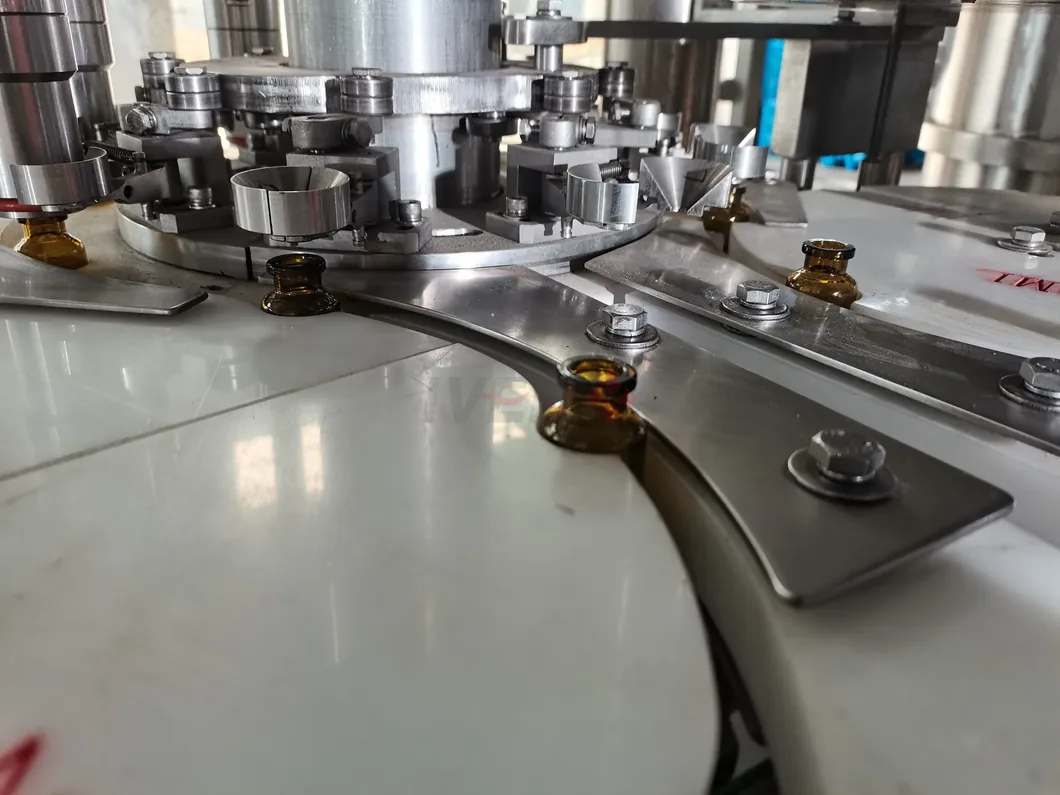

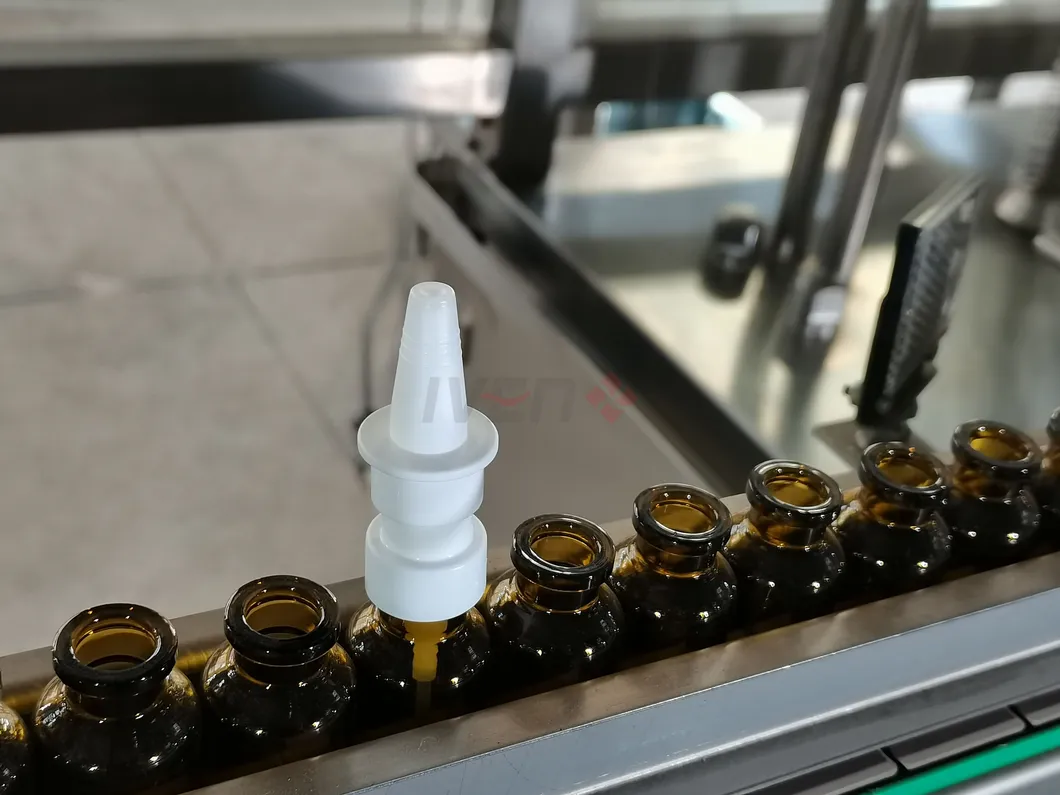

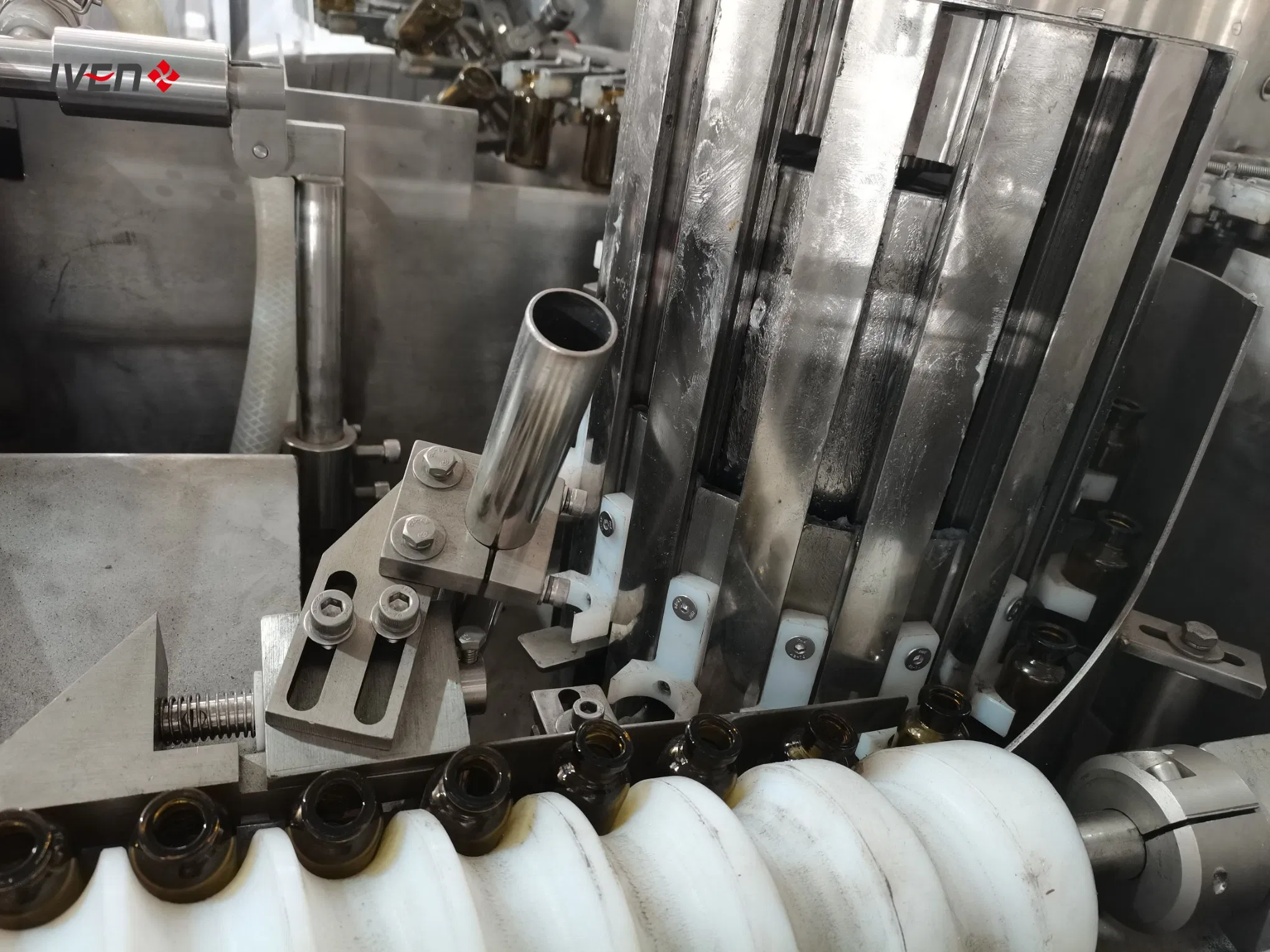

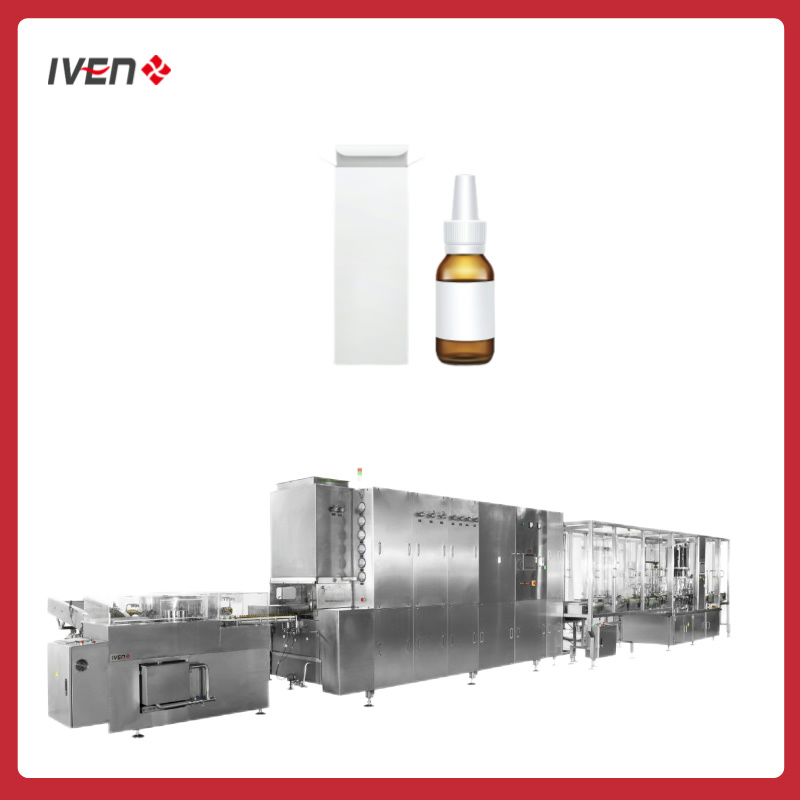

High Speed Pharma & Medicinal Liquid Nasal/Mouth Spray Filling Capping Machine: This production line is designed for comprehensive packaging processes including bottle unscrambling, air washing, filling, cap feeding, and screwing. It is ideal for spray and aerosol bottles used in medicine, daily chemical, and specialized chemical industries.
| Product Model | PYG2/1/1 | PYC4/2/2 | PYG12/8/B | PYG24/18/18 |
|---|---|---|---|---|
| Stable production capacity | 30-50 bottles/min | 60-90 bottles/min | 90-120 bottles/min | 200-250 bottles/min |
| Filling range | 5-500ml | |||
| Number of filling heads | 2 heads | 4 heads | 12 heads | 24 heads |
| Filling accuracy | ≤±0.5% | |||
| Capping heads | 1 head | 2 heads | 8 heads | 8 heads |
| Power Supply | 220/380V 50/60Hz | |||
| Power | ≤2.2kw | ≤2.2kw | ≤3.5kw | ≤5kw |
| Weight | 1000kg | 1500kg | 2500kg | 3500kg |
A: It is widely used in the medicine, daily chemical, and chemical industries for spray and aerosol bottle packaging.
A: The machine achieves a high precision filling accuracy of ≤±0.5% using plunger metering pumps.
A: Yes, the pump structure can be adapted to support CIP (Clean-in-Place) and SIP (Sterilize-in-Place) functions for convenient cleaning.
A: It is equipped with an ion wind device specifically designed to eliminate static electricity during the bottle rinsing process.
A: Depending on the model, the stable production capacity ranges from 30 bottles per minute up to 250 bottles per minute.
A: Yes, the plunger metering pump is specifically designed to fill liquids of various viscosities with high precision.
