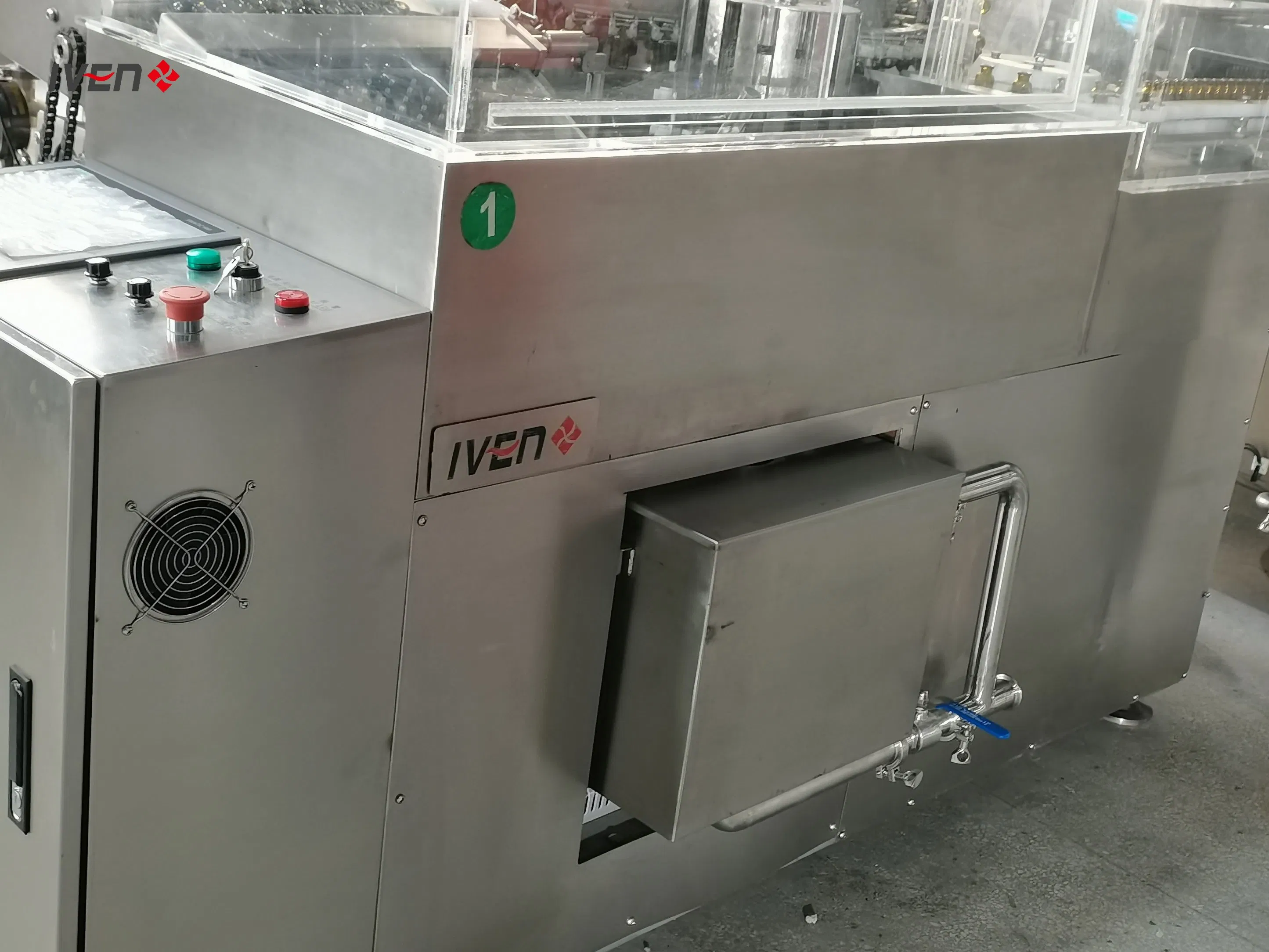

CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
1 / 5
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed
CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed

CE Marked Automatic Snuff Fluid Bottle Liquid Filling System with High Speed

After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE, GMP, ISO
Condition: New
Send Inquiry

Product Description

📊 Overview & Basic Info
Model
Customized-1
Filling Principle
Gravity Filling
Filling Range
5-500ml
Main Material
Glass, Plastic, Stainless Steel
Voltage
380V
Warranty
1 Year
Filling Speed
3500-4000 Bottles/Hour
Filling Accuracy
≤±0.5%
Pump Type
Ceramic, Peristaltic, Metal Pump
Capacity
30-250 Bottles/Minute
⚙️ Product Description
The Automatic Snuff Fluid Bottle Liquid Filling System is a high-speed production line suitable for packaging processes including bottle unscrambling, air washing, filling, cap feeding, and capping. It is widely used in industries such as medicine, daily chemicals, and chemical processing. This system is ideal for spray and aerosol bottles, as well as dropper-style packaging.

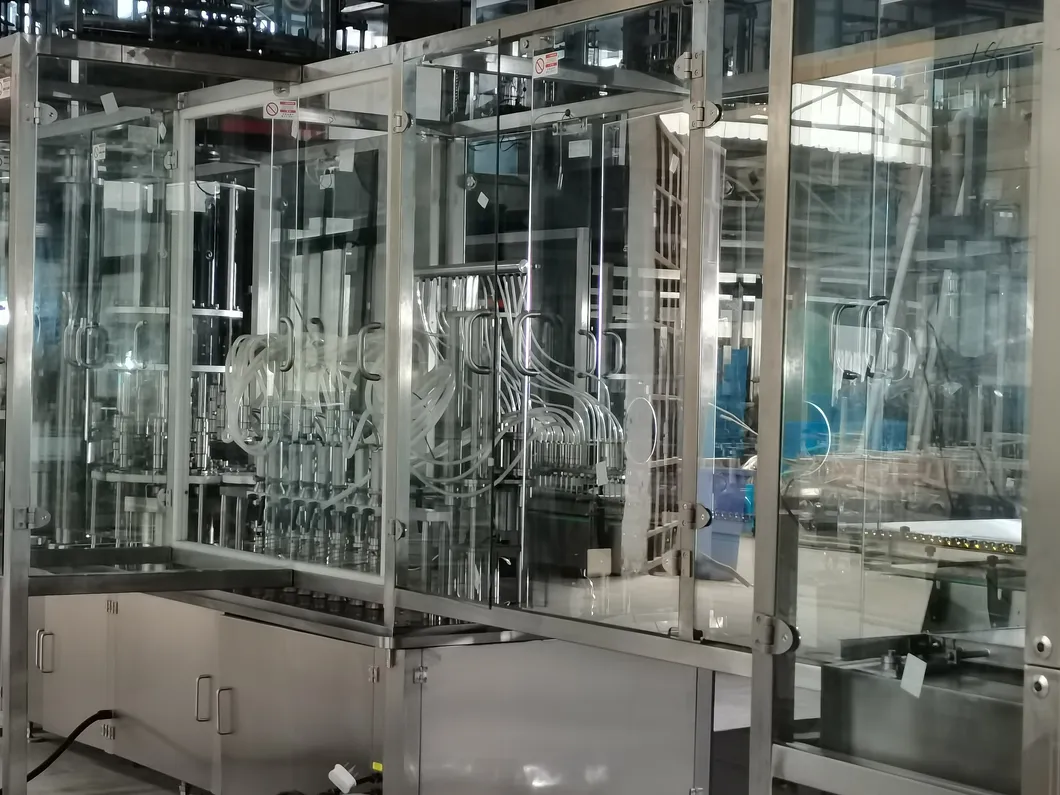

Filling System 1

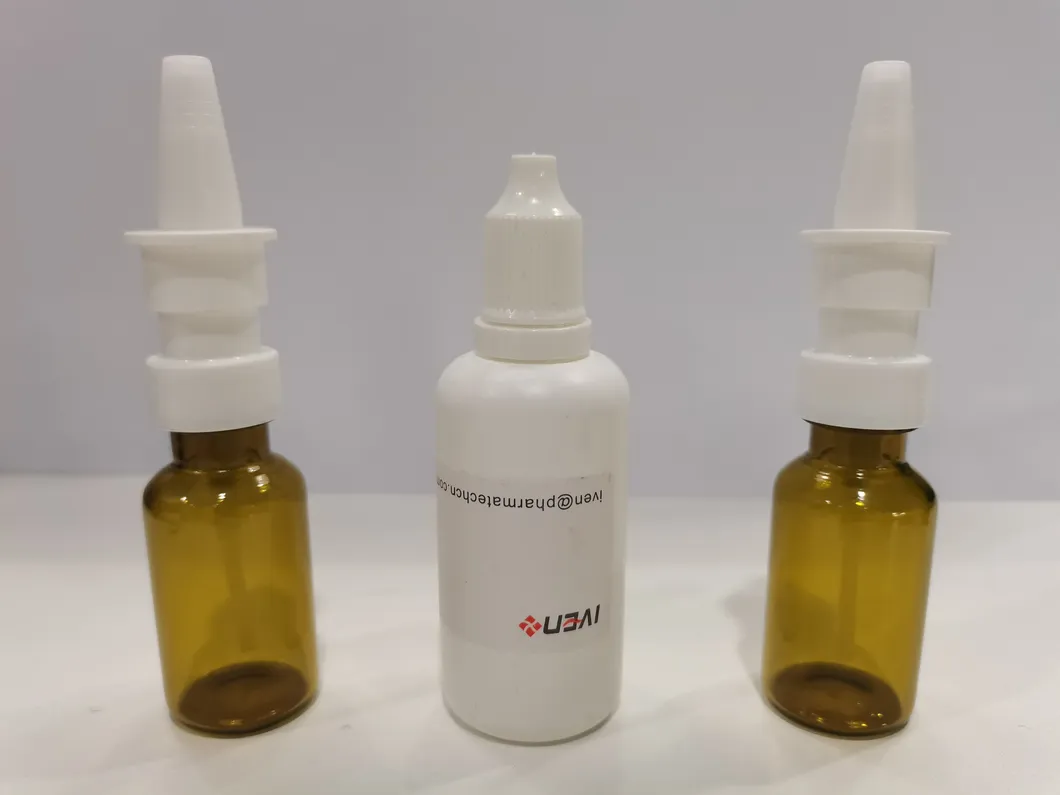

Filling System 2
Key Technical Features:
  • Automatic bottle unscrambling to reduce manual labor.
  • Purified air rinsing with ion wind device to eliminate static electricity.
  • High-precision plunger metering pump for various liquid viscosities.
  • Easy disassembly for convenient cleaning and sterilization (Supports CIP/SIP).
  • PLC control system with variable frequency speed adjustment.
  • Servo motor driving with filling volume adjustment via man-machine interface.
  • Anti-leaking device with bottom-up filling to avoid bubbles.
  • Fully compliant with GMP requirements.

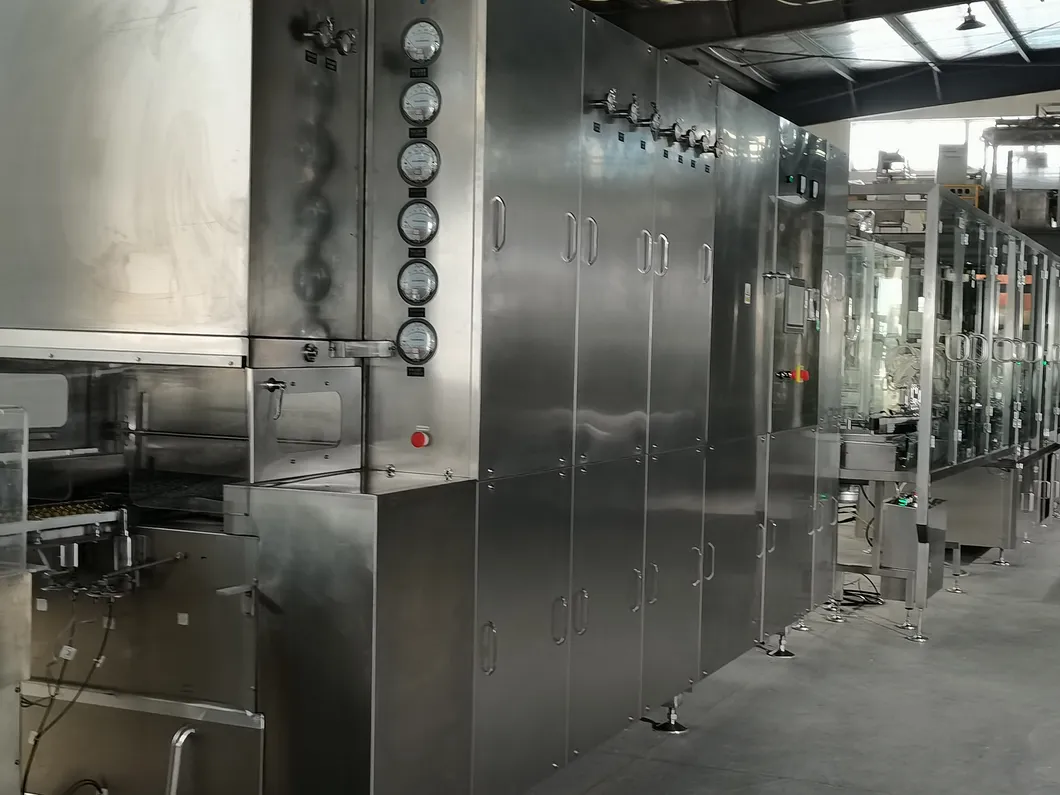

Machine Detail 1

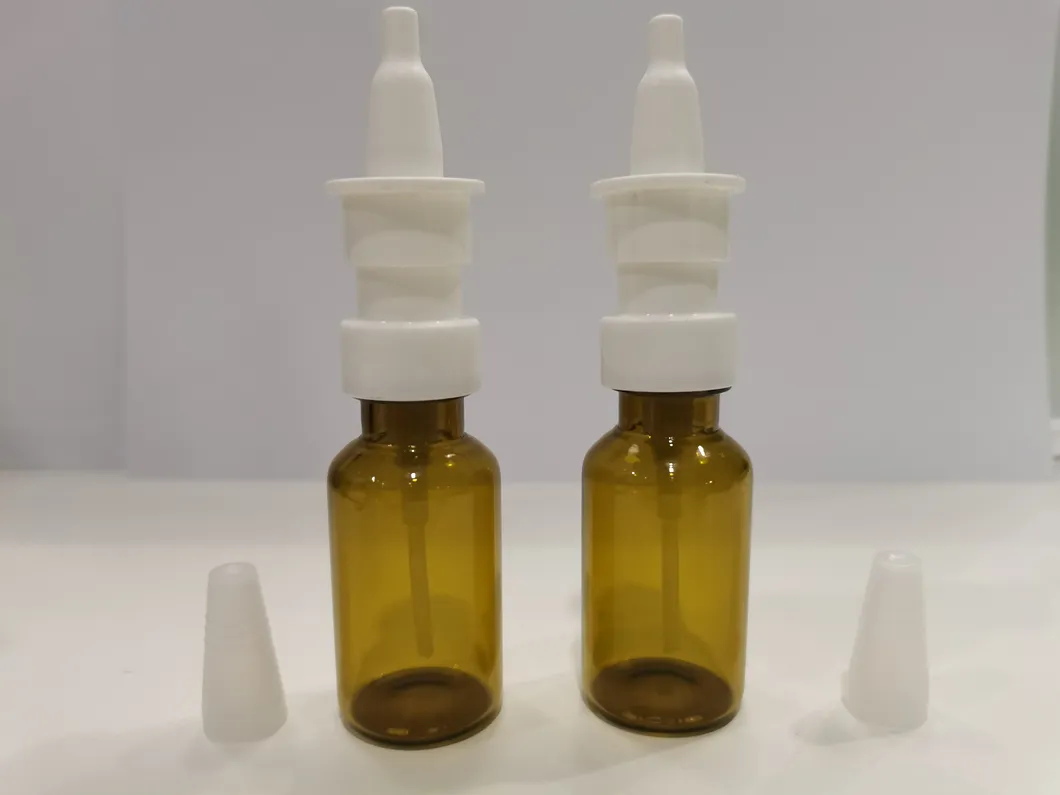

Machine Detail 2

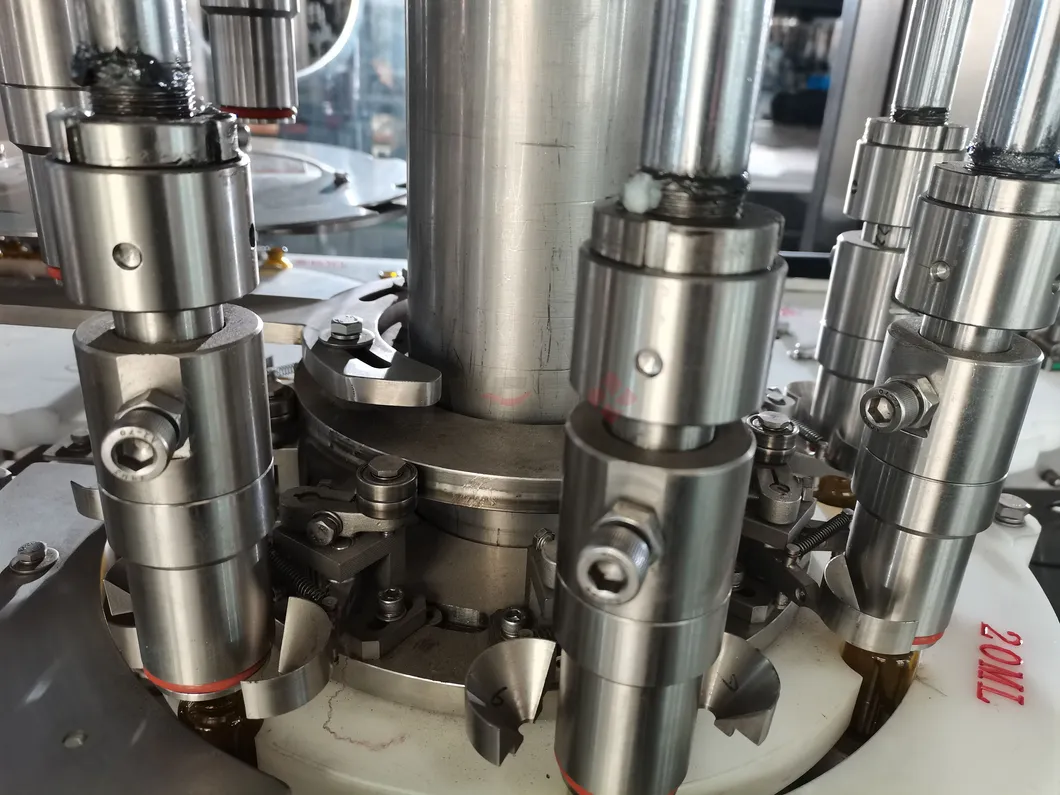

Machine Detail 3
📋 Product Parameters
Model PYG2/1/1 PYC4/2/2 PYG12/8/B PYG24/18/18
Production Capacity 30-50 bpm 60-90 bpm 90-120 bpm 200-250 bpm
Bottle Moving Mode Intermittent Type Rotary Type
Filling Range 5-500ml
Filling Heads 2 Heads 4 Heads 12 Heads 24 Heads
Filling Accuracy ≤±0.5%
Capping Heads 1 Head 2 Heads 8 Heads 8 Heads
Power Supply 220/380V 50/60Hz
Weight 1000kg 1500kg 2500kg 3500kg
Process Flow
System Banner
❓ Frequently Asked Questions
What is the filling accuracy of the system?
The system maintains a high filling accuracy of ≤±0.5%, ensuring consistent dosage for pharmaceutical and chemical products.
What bottle types are compatible with this line?
It is designed for nasal spray bottles, aerosol bottles, and dropper bottles made of glass, plastic, or stainless steel.
Does the machine support CIP/SIP?
Yes, the pump structure is designed for easy disassembly and supports Clean-In-Place (CIP) and Sterilization-In-Place (SIP) functions.
How is the filling volume adjusted?
The filling volume is easily adjusted through the PLC-controlled man-machine interface using servo motor driving.
Is the production line compliant with medical standards?
Absolutely. The entire line is designed and manufactured according to strict GMP requirements for pharmaceutical production.
