Customization: Available
Warranty: 12months
Type: Extrusion Blow Molding Machine
Send Inquiry

Product Description

Basic Information
Model NO.Blowing-Filling-Sealing System
Raw MaterialHDPE
Making MethodExtrusion-Blow Molding
AutomationAutomatic
ComputerizedComputerized
CertificationCE, ISO9001:2008
Max Container Width10mm-15mm
Max Capacity2ml-10ml
Mould Cavity15/10 - 60/40
OriginChina
HS Code84774010
Production Capacity4,204,800 pcs/Year
Product Description
⚙️
Blowing-Filling-Sealing (BFS) Machine adopts specialized packaging-free technology for continuous operation. It processes medical polyethylene (PE) or polypropylene (PP) particles into containers with fully automatic filling and sealing in a single sterile state. This process effectively ensures the safety of drug use while offering low production costs and high aseptic stability.

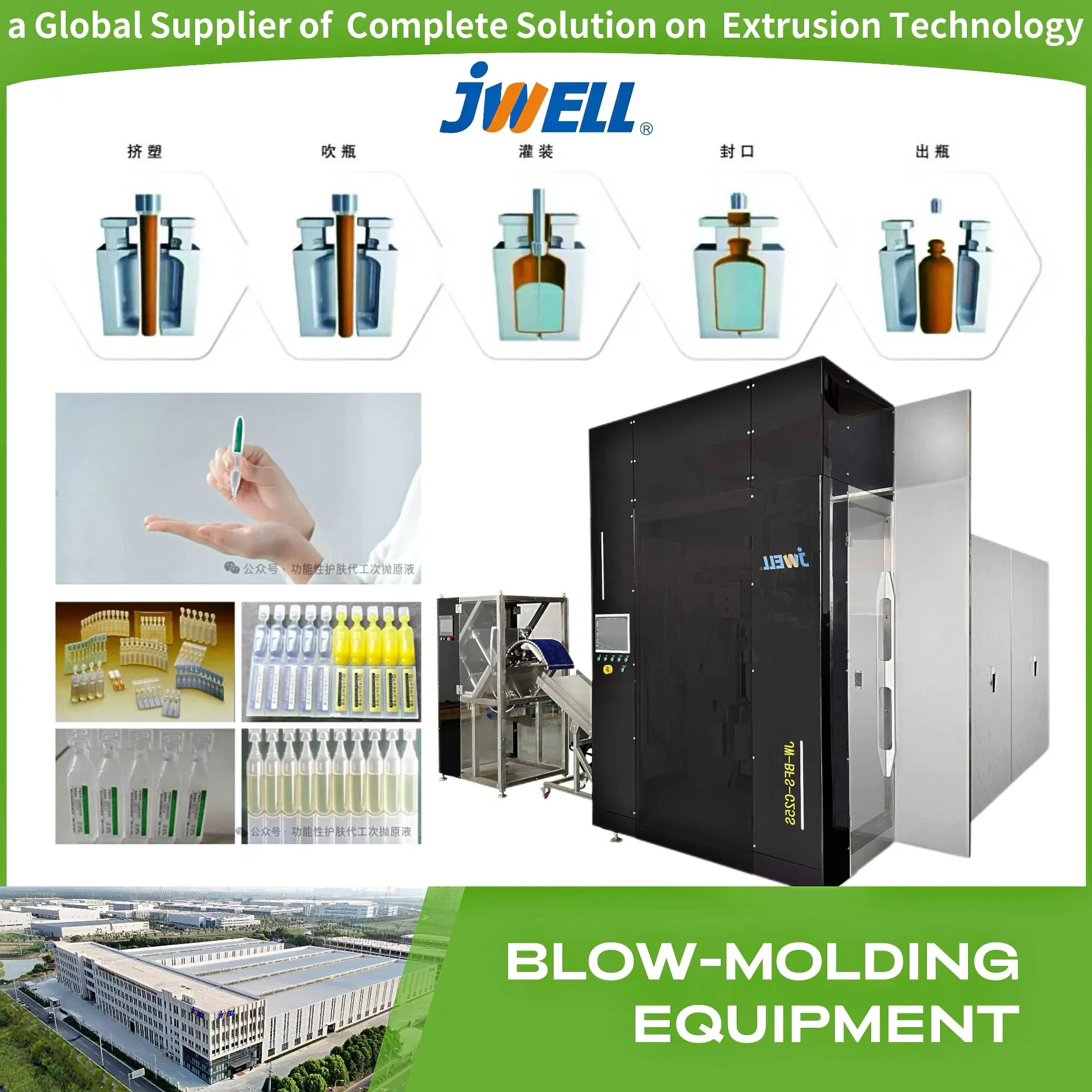

Process Stages

🔵 Extruding: The screw extrudes plasticized particles through the mold end to form the tube embryo, supported by sterile air at 170~220 degrees.

🔵 Blowing: The mold moves to the blowing station protected by an A-class air shower. The container is formed via vacuum or sterile compressed air.

🔵 Filling: Liquid is filled via a time-pressure valve while sterile air is discharged. Pipelines support CIP and SIP for maximum safety.

🔵 Sealing & Outfeeding: After filling, the container is hermetically sealed, the mold opens, and the finished product is sent out for trimming.

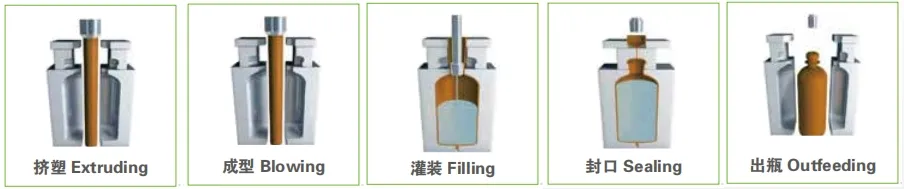

BFS System Diagram

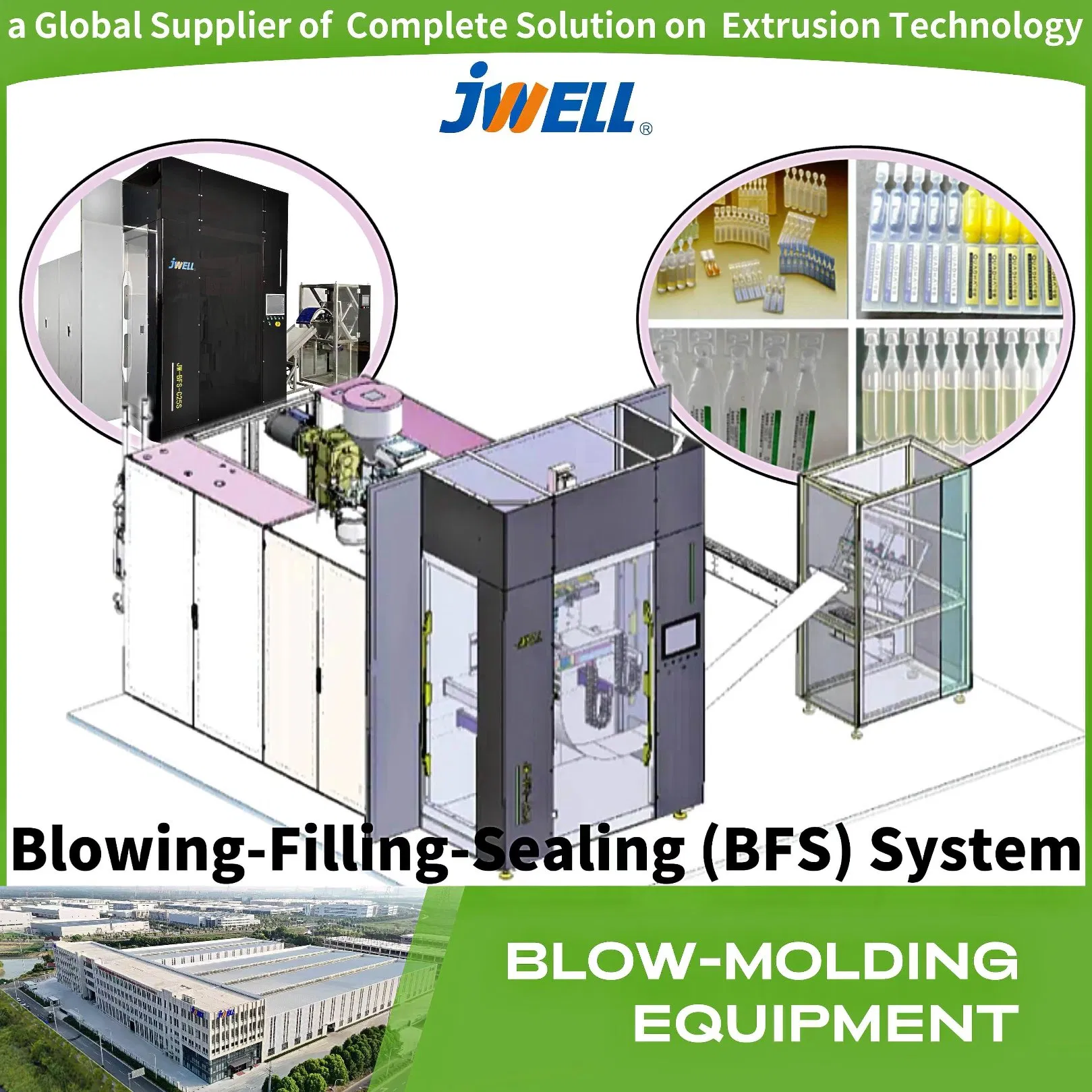

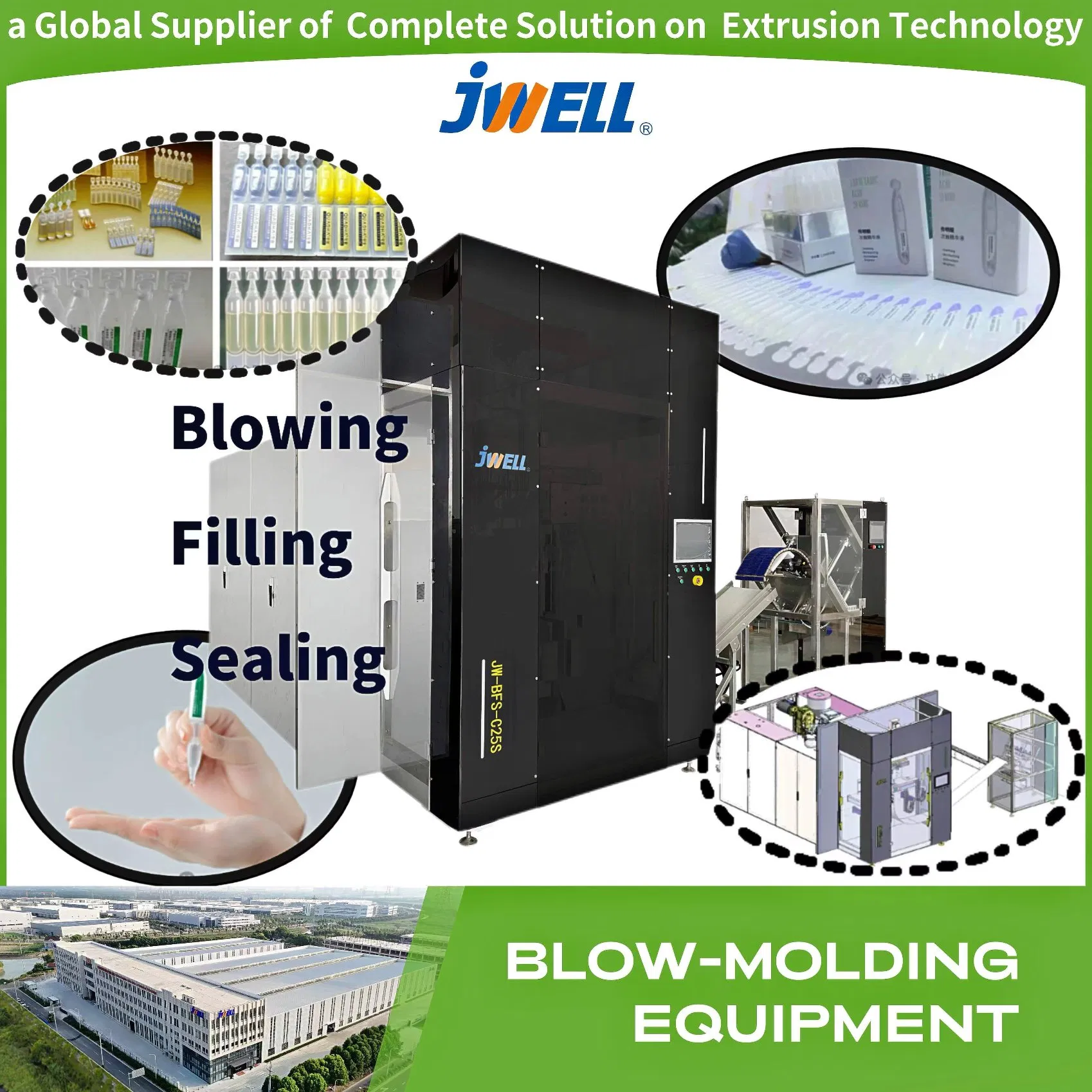

BFS Machine Unit
Product Applications
Large Capacity (50ml-1L): Used for intravenous injections, disinfectants, and large infusion products.
Small Capacity (0.1ml-20ml): Used for eye drops, ear drops, aerosols, anesthetics, and cosmetics.

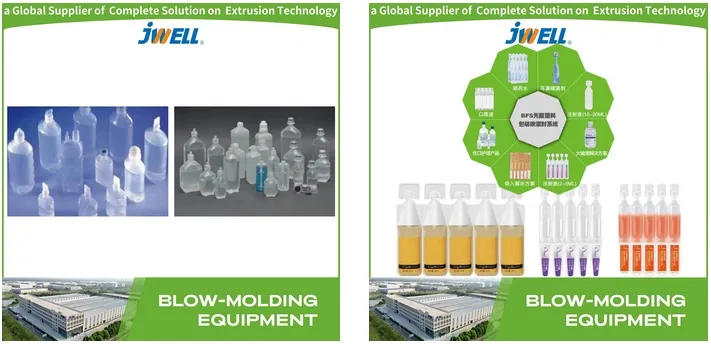

BFS Product Range
Performance & Advantages
🛡️
• Low production and management costs.
• Excellent aseptic stability and internal quality.
• Minimal cross-contamination rate.
• Versatile application across pharmaceutical, food, and chemical industries.
Internal Performance
Technical Parameters
Small Capacity Specifications
Type C15S-I/II C25S-I/II C40S-I/II C60S-I/II
Max Capacity (ml) 2ml - 10ml 2ml - 10ml 2ml - 10ml 2ml - 10ml
Mould Cavity 15 / 10 25 / 15 40 / 25 60 / 40
Max Width (mm) 10mm - 15mm 10mm - 15mm 10mm - 15mm 10mm - 15mm
Output (Single Mould) 4000-6000/hr 6000-10000/hr 10000-16000/hr 14400-21600/hr
Output (Double Mould) 8000-12000/hr 12000-20000/hr 20000-32000/hr 28800-43200/hr
Packaging & Shipping
Shipping 1 Shipping 2 Shipping 3
📦
To ensure integrity during long-distance transportation, we use robust wooden outer cases and protective plastic wrap inner packaging. This prevents damage from sea water corrosion and mechanical impact during freight.

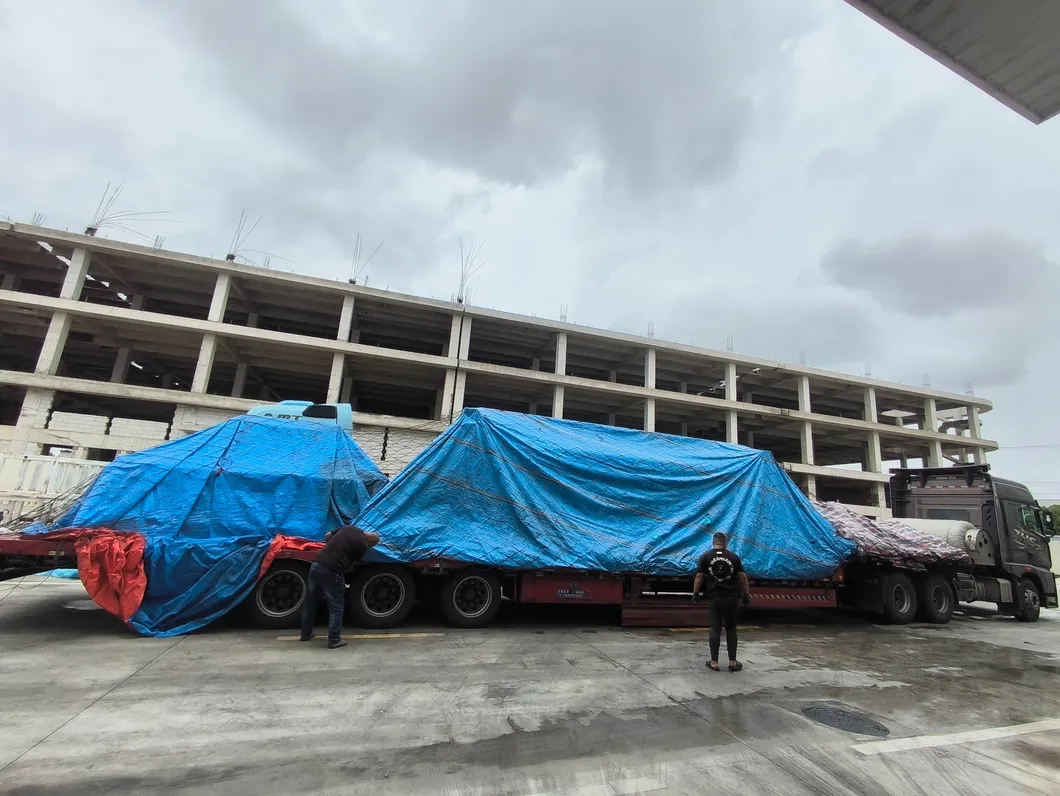

Packaging Detail 1 Packaging Detail 2
Company Profile
The supplier is a global provider of complete solutions on extrusion technology. As a large manufacturer of extrusion machinery, the facility covers an area of more than 1,000,000 square meters. With a dedicated team of over 3000 staff, including 580 technical and management professionals, the company holds over 500 national patents. Annually, more than 3000 advanced extrusion lines are produced and exported to 120 countries and regions worldwide.

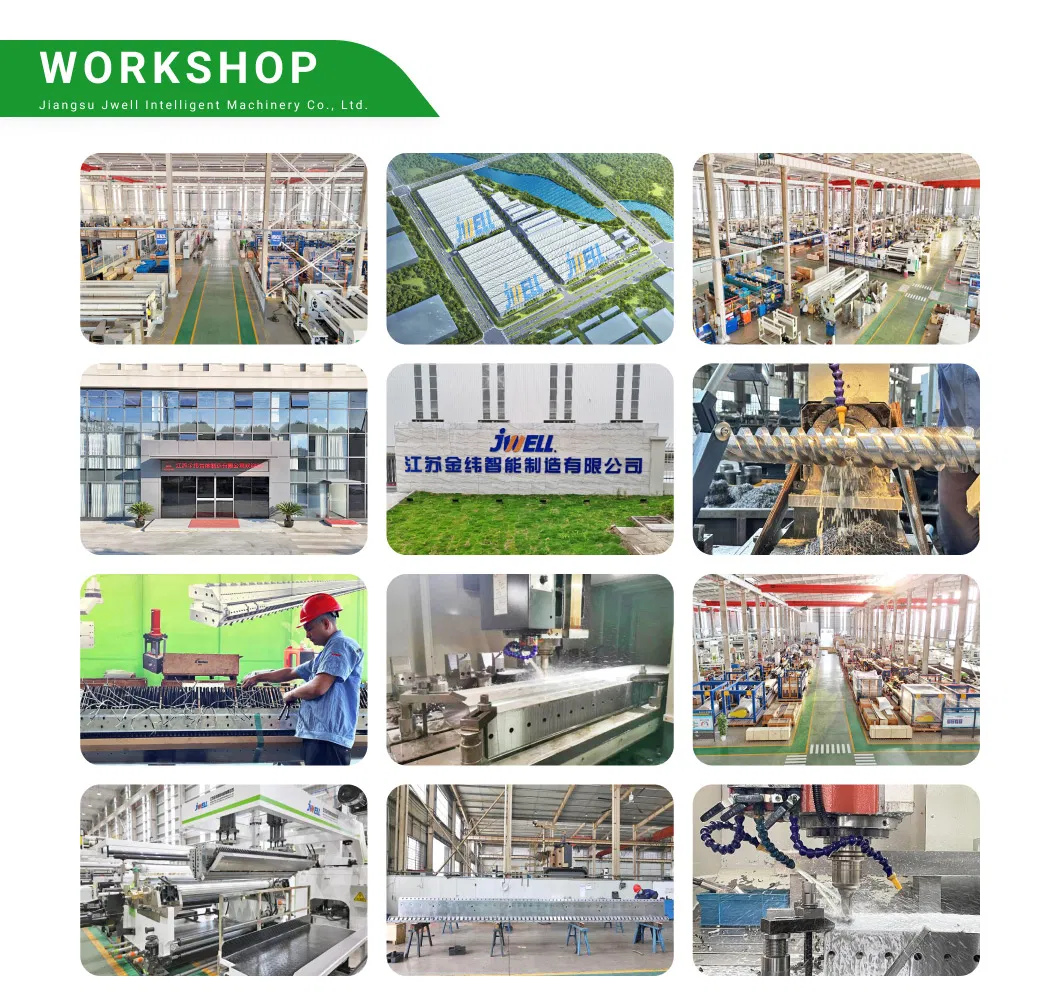

Factory Overview
Production Line 1 Production Line 2
Frequently Asked Questions
Q1: What materials can the BFS machine process?
The system is primarily designed to process medical-grade Polyethylene (PE) and Polypropylene (PP) particles.
Q2: What is the maximum production capacity per year?
The system is capable of producing up to 4,204,800 pieces per year, depending on the specific model and configuration.
Q3: Does the machine support sterile filling?
Yes, the machine integrates blow molding, filling, and sealing in a single sterile state, with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) capabilities.
Q4: What container sizes are supported?
The machine supports a wide range from small capacity (0.1ml - 20ml) to large capacity (50ml - 1L) containers.
Q5: Which industries use BFS technology?
It is widely used in the pharmaceutical industry (eye drops, injections, inhalers) as well as the food and chemical industries for aseptic packaging.
Q6: How is the equipment protected during international shipping?
We use a combination of plastic wrap inner packaging and sturdy wooden outer boxes to prevent damage from moisture and mechanical stress during transit.
